NO-FROST REFRIGERATOR-FREEZER

WITH THlnSr(i&@” MODEL ED25YQ

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, war/d-c/ass home appliance. Years of engineering experience

have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free

operation, we have developed this Use and Care Guide. It is full of valuable information on

how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your appli-

ance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire and

electrical shock.

This symbol will help you avoid actions

which coukf cause product damage

(scratches, dents, etc.) and damage to your

personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 25. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using

your refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

*Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely.

Never allow children to operate, play

with, or crawl inside the refrigerator.

Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

Do not load the refrigerator with food

before it has time to get properly cold.

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts

And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like.

temperature

control fi

Slide-out

Meat drawer

door shelves

Meat drawer

Light

/ - Model and

serial number

illguard

shelves

- Wine rack

Egg bin

! Adjustable

slideout

A humidity

L contrdl

(on side wall)

Leveling rollers

(behind base grille) \

Base grille

Control panel

I I

Freezer control Refrigerator control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning R...............................................5 lnstalllng tt properly ...............................6

Plugging lt In ..........................................5 Leveling lt ...............................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as

described

above.

Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

NOTE:

Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 20-21.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle

Refrigeretor

power cord

grounding

plug

Installing it properly

Allow l/i inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

The refrigerator can be flush against the

wall.

Make sure ice maker water supply has

been connected. Refer to Installation

Instructions.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

1. Remove base grille. (See page 17.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

Check with level.

5. Replace base grille. (See page 17.)

Using Your Refrigerator

In This Section Pay

Pa e

Settlng the controls ............................... AdJustlng the wlne rack .......................

Changlng the control settlngs ..............6 Removing the freezer baskets ............12

Removlng the door shelf fronts ........... 8 Removlng the freezer sheli .................12

Removing the door trlm THIRSTCRUSHERTM dlspenslng

(dispenser area) .....................................9 system .............................................~.....

AdJustlng the refrigerator shelves .......9 Uslng the automatic Ice maker ...........14

Removlng the crisper and Removlng the Ice maker

crisper cover ........................................10 storage bln ............................................15

Adjustlng the crisper humldlty Solving common dlspenser

control ...................................................10 problems ...............................................16

Removlng the meat drawer and Removlng the base grille ....................17

cover ~.................................................... 11 Changlng the light bulbs .....................17

AdJustlng the meat drawer Understandlng the sounds you

temperature ..........................................11 may hear ...............................................18

Removlng the snack bin ......................11 Savlng energy ......................................19

In order to obtain the best possible results from your refrigerator, it is important that you

operate it properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When the refrigerator is

plugged in for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly

when milk or juice is as cold as you like and

when ice cream is firm. If you need to adjust

these settings, see “Changing the control

settings” on page 8.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up

on the outside of your refrigerator cabinet. This

control does not have to be set or adjusted. 7

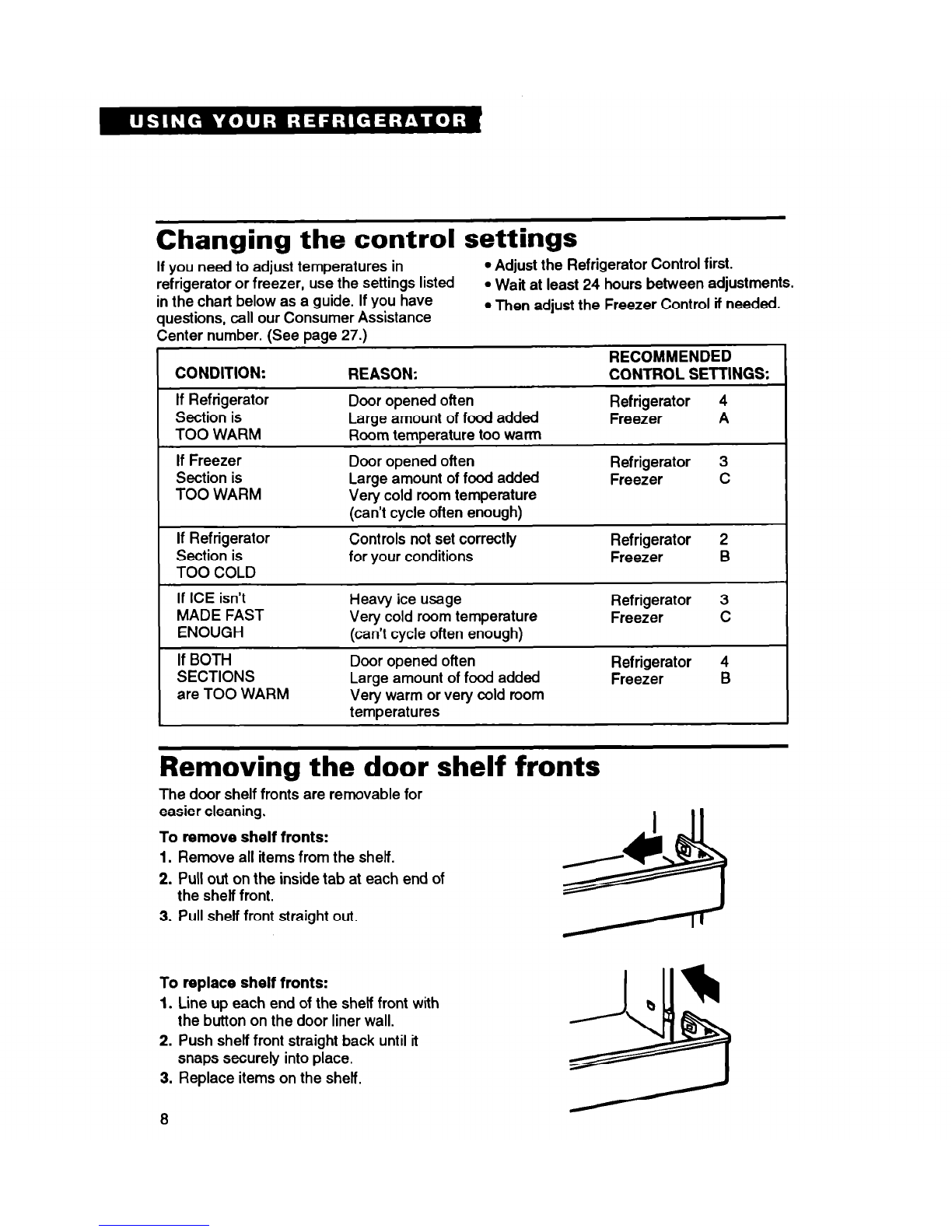

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below as a guide. If you have

questions, call our Consumer Assistance

Center number. (See page 27.)

l Adjust the Refrigerator Control first.

l Wait at least 24 hours between adjustments.

l Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

If Refrigerator

Section is

TOO COLD

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

CONTROL SETTINGS:

Refrigerator 4

Freezer A

Refrigerator 3

Freezer C

Refrigerator 2

Freezer B

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer B

Removing the door shelf fronts

The door shelf fronts are removable for

easier cleaning.

To remove shelf fronts:

Remove all items from the shelf.

2. Pull out on the inside tab at each end of

the shelf front.

3. Pull shelf front straight out.

To replace shelf fronts:

Line up each end of the shelf front with

the button on the door liner wall.

2. Push shelf front straight back until it

snaps securely into place.

3. Replace items on the shelf.

Removing the door trim (dispenser area)

The trim above the dispenser area is

removable for easier cleaning.

To remove

trim:

1. Remove all items from the shelf.

2. Pull straight up at each end of the trim.

To replace trim:

Line up each end of the trim above the

trim pocket opening in the door liner wall.

2. Push the trim straight down until it stops.

3. Replace items on the shelf.

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way

you use your refrigerator. Glass shelves are

strong enough to hold bottles, milk and other

heavy food items.

To remove glass shelves:

Remove items from shelf.

2. Slide shelf out with an even, constant

pull.

3. Lift front and slide the rest of the way out.

To move shelf guides to a new position:

Lift front of guide. Pull guide forward off

rear support. Repeat for other guide.

2. To replace guide, push guide onto rear

support. Push front of guide down onto

support.

To replace glass shelves:

Guide rear of shelf into shelf guide.

2. Slide shelf into place.

Be careful when

handling glass items.

Removing the crisper and crisper cover

remove

the crisper:

Slide the crisper straight out to the stop.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

remove the cover:

1. Hold cover firmly with both hands and lift

front of cover off supports.

2. Lift cover out by pulling up and out.

replace the cover:

Fit back of cover into notch supports on

walls of refrigerator.

2. Lower front into place.

Pull out to the

stop, lift the front

and pull again.

Lift the cover

front, then

the back

Adjusting the crisper humidity control

You can control the amount of humidity in

the moisture-sealed crisper.

The control can be adjusted to any setting

between LOW and HIGH.

LOW (open) lets moist air out of the crisper

for best storage of fruits and vegetables

with skins.

HIGH (closed) keeps moist air in the

crisper for best storage of fresh, leafy

vegetables.

Table des matières

Autres manuels Whirlpool Réfrigérateur

Whirlpool

Whirlpool ET22MM Manuel utilisateur

Whirlpool

Whirlpool WRS537SIA Instructions d'utilisation

Whirlpool

Whirlpool W8TXEWFYB Instructions de montage

Whirlpool

Whirlpool WRS537SIAW Manuel utilisateur

Whirlpool

Whirlpool GI5FSAXV Manuel de la liste des pièces

Whirlpool

Whirlpool ED5KVEXVB - 25CF Texture Dr Plastic HANDLMECHANICAL... Instructions de montage

Whirlpool

Whirlpool ER2MHKXPL01 Manuel utilisateur

Whirlpool

Whirlpool W10661461B Manuel utilisateur

Whirlpool

Whirlpool ED2FHEXVB00 Manuel utilisateur

Whirlpool

Whirlpool WRS950SIAM01 Manuel utilisateur

Whirlpool

Whirlpool WSR25D2RYY Guide de l'utilisateur

Whirlpool

Whirlpool GB2SHTXTS - Fridge Bottom Mount Manuel

Whirlpool

Whirlpool GS6NHAXVS - 25 Cubic Foot Qualifi Instructions de montage

Whirlpool

Whirlpool UH6F1CWUK Instructions d'utilisation et d'installation

Whirlpool

Whirlpool GARF19XXPK00 Manuel utilisateur

Whirlpool

Whirlpool B TNF 5012 OX2 Manuel d'installation et d'exploitation

Whirlpool

Whirlpool 2315173-D-WH Instructions d'utilisation

Whirlpool

Whirlpool WBA34983 DFC W Manuel du propriétaire

Whirlpool

Whirlpool W10321469A Manuel utilisateur

Whirlpool

Whirlpool FRENCH DOOR BOTTOM MOUNT REFRIGERATOR Manuel utilisateur

Whirlpool

Whirlpool WRS335FDDB Manuel utilisateur

Whirlpool

Whirlpool ET1NK Manuel utilisateur

Whirlpool

Whirlpool ED5FVGXSS01 Manuel utilisateur

Whirlpool

Whirlpool REFRIGERATOR Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
