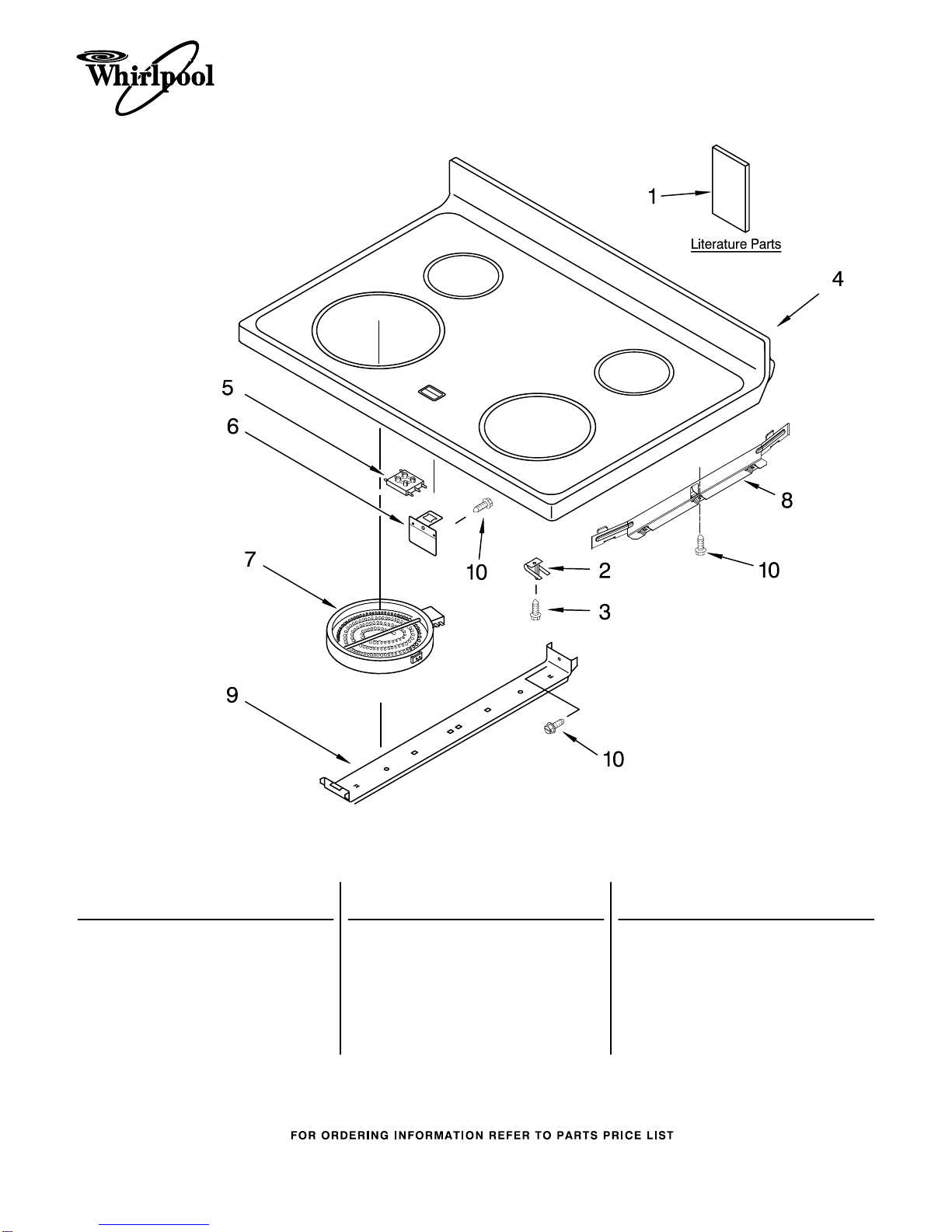

COOKTOP PARTS

For Model: WERE4200PQ3

(White)

4−06 Litho In U.S.A. (lwp) Part No. 8188422

30" ELECTRIC CERAN

FREESTANDING RANGE

STANDARD CLEAN OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10017610

Owners Manual

9758065 Tech Sheet

9756848 Installation

Instructions

Template, Anti−Tip

9757143 English/French

9757142 English/Spanish

2 3149191 Spring, Locator

3 3196170 Screw

4 9758725 Cooktop

5 8523739 Light, Indicator

(Hot Surface)

6 8523741 Bracket, Ind Light

7 Element, Surface

8273992 2500 W − LF

8273994 1200 W − LR

8273994 1200 W − RR

8273992 2500 W − RF

8 8524132 Shield, Wiring

9 8272791 Bracket, Element

10 3196169 Screw

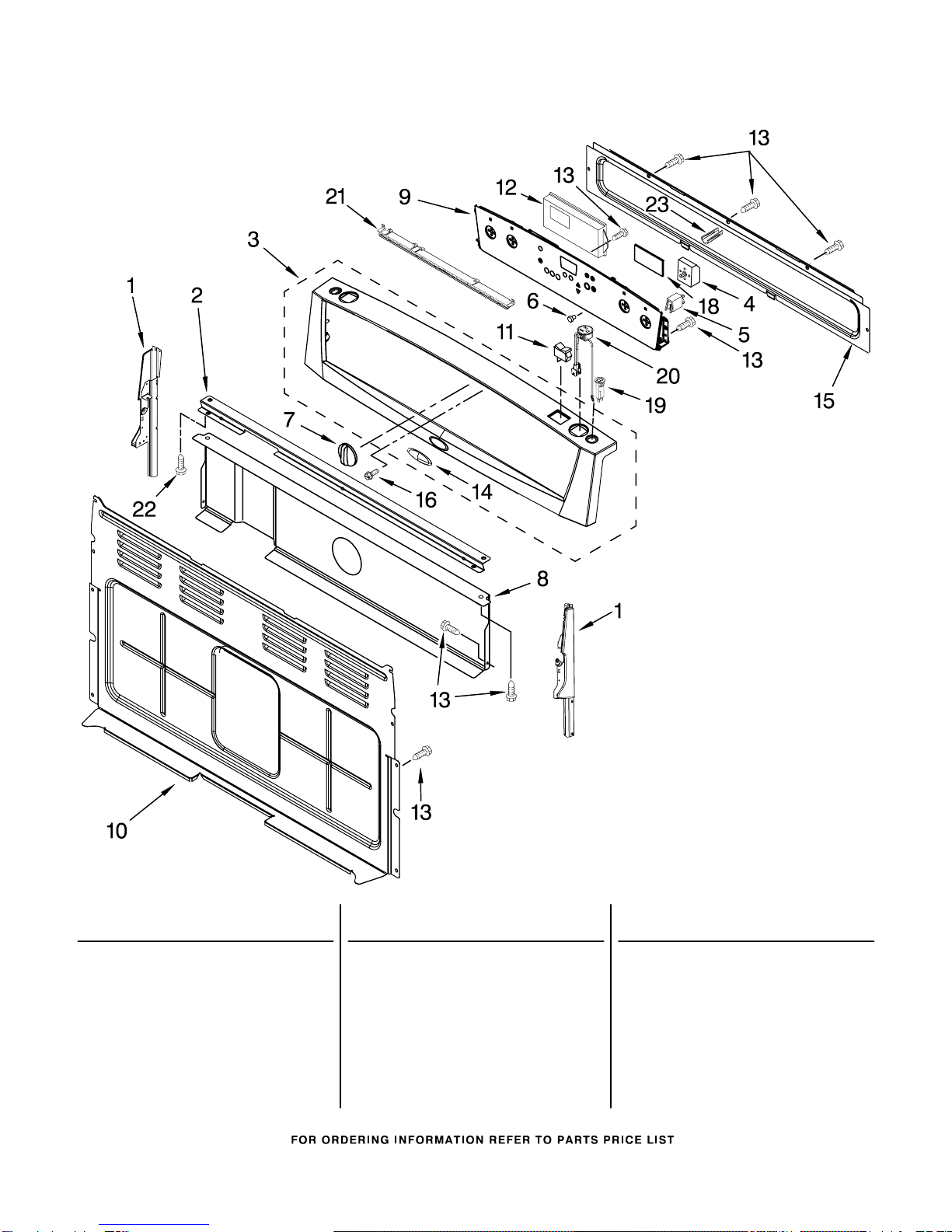

CONTROL PANEL PARTS

For Model: WERE4200PQ3

(White)

8188422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

Left Hand

W10009050

Right Hand

2 9756364 Bracket, Console

3 9763293 Panel, Control

4 Switch, Infinite

3148954 Left Front

3148951 Left Rear

3148951 Right Rear

3148954 Right Front

5 8523265 Light, Indicator

6 3196068 Lens, Light

7 9757132 Knob, Infinite (4)

8 8523280 Shield, Heat

9 9758467 Bracket, Control

10 9756999 Cover, Rear

11 9758907 Switch, Rocker

12 9760421 Control, Range

13 3196178 Screw

14 9757609 Nameplate

15 9756366 Cover, Rear

(Console)

16 3400882 Screw

18 9758486 Insulator, Card

19 9757601 Breaker, 15Amp (2)

20 9758889 Receptacle (2)

21 9757358 Module, Lighting

22 3196166 Screw

23 9757490 Support, Glass

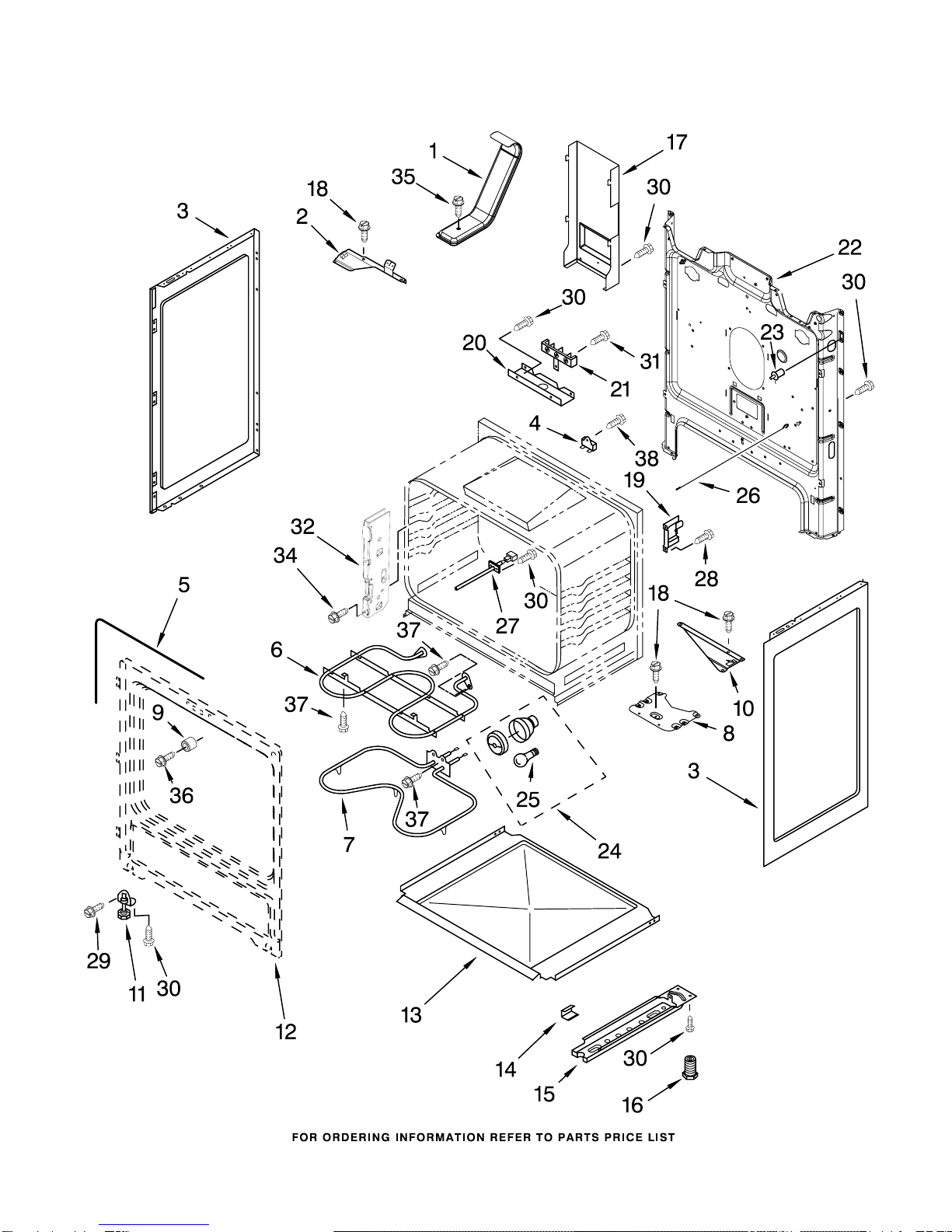

CHASSIS PARTS

For Model: WERE4200PQ3

(White)

8188422

CHASSIS PARTS

For Model: WERE4200PQ3

(White)

8188422

Illus. Part

No. No. DESCRIPTION

1 9761300 Vent Tube

2 8273905 Support, Corner RR

3 8053830 Panel, Side (2)

4 3196548 Fuse, Thermal

5 3186152 Seal, Oven Door

6 9757341 Element, Broil

7 9758541 Element, Bake

8 3195736 Support, Front (2)

9 9758701 Spacer, Door

10 3195987 Support, Corner LR

11 3196037 Foot, Front (2)

12 Frame, Front

(Not Serviced)

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

16 9761935 Foot, Rear (2)

17 9758283 Cover, Box

18 3196169 Screw

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 4449868 Block, Terminal

112432 Nut (3)

22 8274034 Back, Main

23 9758161 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9757239 Rod − Dr Switch

27 8273902 Sensor, Oven

28 3196165 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9760407 Brkt, Mounting

W10031780

Screw

35 3196566 Screw

36 3196168 Screw

37 3196174 Screw

38 3196172 Screw

INSULATION

8273263 Insulation, Wrap

8272611 Insulation, Back

8272613 Insulation, Vent

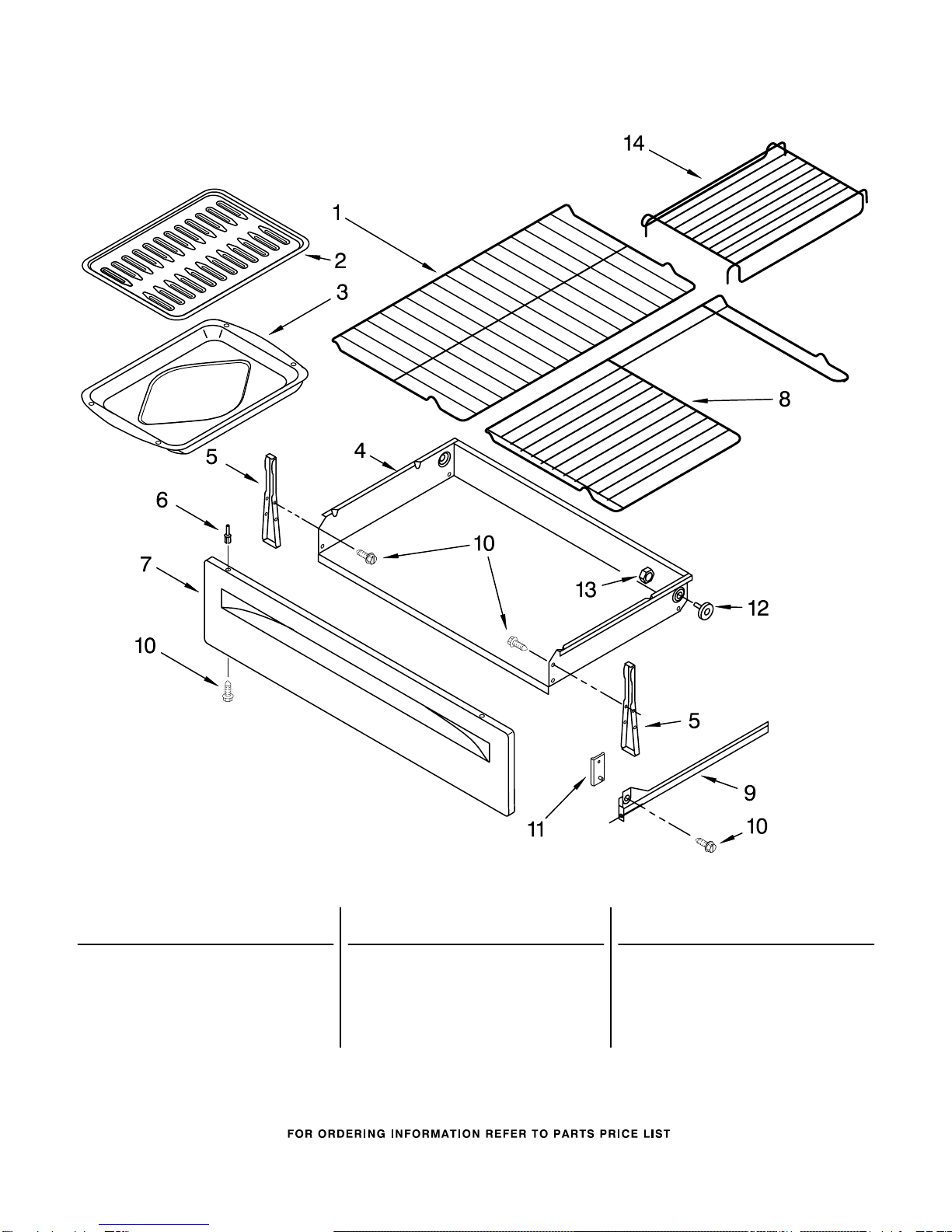

DRAWER & BROILER PARTS

For Model: WERE4200PQ3

(White)

8188422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 3195996 Grill, Broiler

3 3196076 Pan, Broiler

4 9761030 Drawer, Storage

5 9758200 Bracket, Drawer(2)

6 3196814 Rivet, Push (2)

7 8053339 Panel, Drawer Frnt

8 8274021 Rack, Partial

9 Rail, Drawer

8274191 Right Hand

8274190 Left Hand

10 3196168 Screw

11 8522669 Spacer, Glide

12 9751138 Roller (2)

13 487939 Nut (2)

14 8274022 Rack, Insert

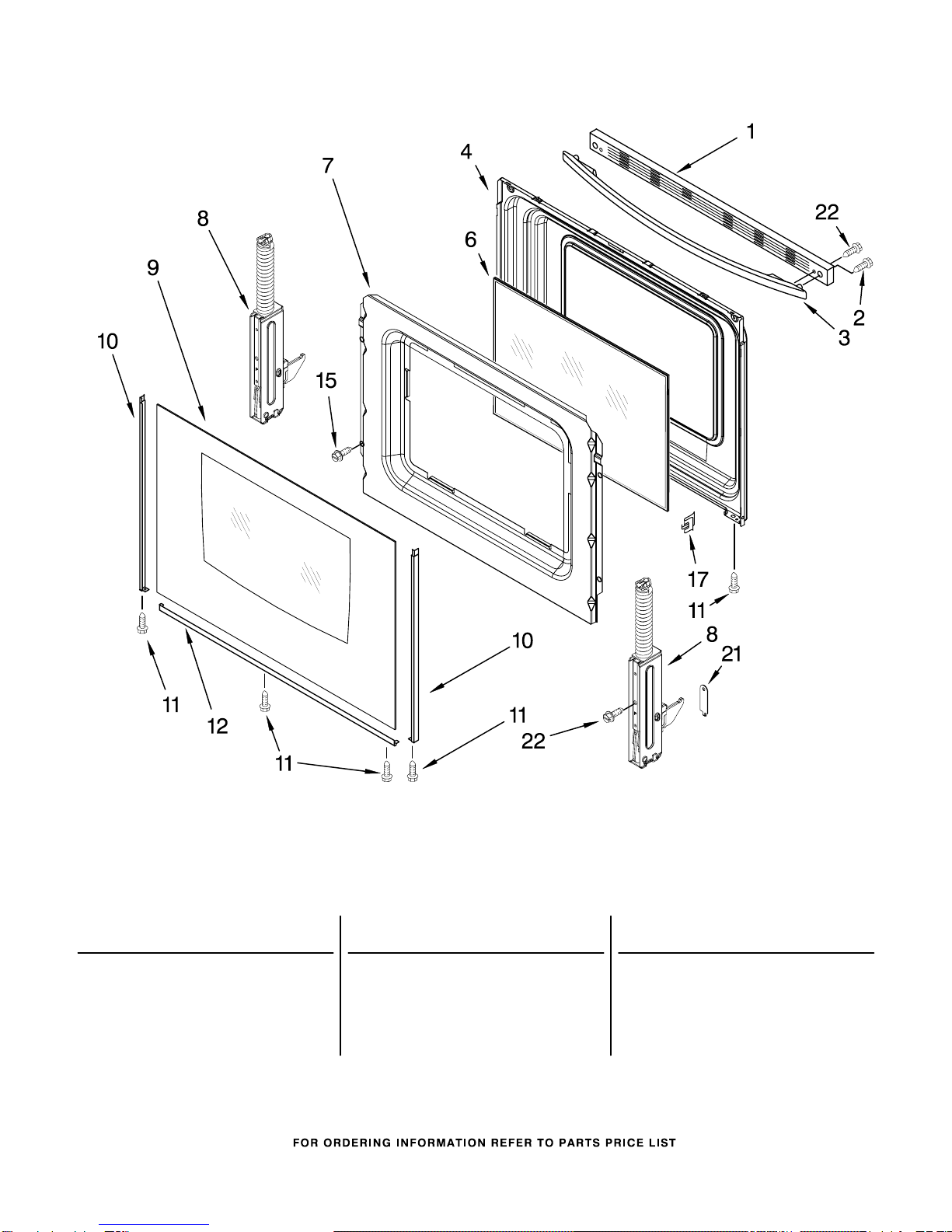

DOOR PARTS

For Model: WERE4200PQ3

(White)

8188422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10016370

Trim, Top

2 3196164 Screw

3 8522444 Handle, Door

4 9761344 Liner, Door

6 9758162 Window, Inner

7 9761505 Retainer, Insul.

8 9761494 Hinge, Door (2)

9 8053480 Glass, Outer

10 Trim, Side

8523172 Left Hand

8523166 Right Hand

11 3196160 Screw

12 8523175 Trim, Lower

W10031790

Screw

17 3196025 Clip, Glass (6)

21 9761517 Clip, Dr Mntg (2)

W10031780

Screw

OPTIONAL PARTS (NOT INCLUDED)

For Model: WERE4200PQ3

(White)

8188422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9761451 Harness, Wire

(Cooktop Left)

9761452 Harness, Wire

(Cooktop Right)

9758202 Harness, Wire

(Main)

9756350 Power Cord

9756779 Strain Relief

9762424 Connector Cable

8523279 Wire, Ground

3196154 Screw

9756752 Harness, Wire

(Sensor)

3196174 Screw

(Grnd / Main Back)

3196173 Screw, Ground

3400964 Clip, Wire
