Table of Contents

(complete) ................ 2

A Note to You .............. 3

Range Safety ............ 4-6

Getting to Know

Your Range ................. 7

Using Your Range ...... 8

Using the Self-

Cleaning Cycle .......... 21

Caring for Your

Range ......................... 25

Troubleshooting ....... 29

Requesting

Assistance

or Service .................. 31

Index .......................... 35

Warranty .................... 36

l-800-253-1 301

Call us with questlons or comments.

SELF-CLEANING ELECTRIC RANGE

PART NO. 3189080 Rev. A

MODEL RF3663XD

ioh5

Table of Contents

A Note to You ............................................ 3

Range Safety ......................................... 4-6

Getting to Know Your Range ................... 7

Using Your Range .................................... 8

Using the surface units ......................... 8

Positioning racks and pans ................ 10

........................ 11

For.best air circulation

Using aluminum foil for baking ........... 11

The electronic oven control ................ 12

Starting a function .............................. 13

Canceling a function .......................... 13

Baking/roasting .................................. 13

Adjusting the oven temperature

control ............................................... 15

Broiling .............................................. 16

Broiling tips ........................................ 18

Energy saving tips ............................. 18

The oven vent .................................... 19

The storage drawer ............................ 19

The anti-tip bracket ............................ 20

Optional door panel pat ..................... 20

Using the Self-Cleaning Cycle ............... 21

Before you start ................................. 21

Before setting the controls .................. 22

Setting the controls ............................ 22

Special tips ........................................ 24

How the cycle works .......................... 24

Caring for Your Range ........................... 25

Cleaning the cooktop ......................... 25

Cleaning other range parts.. ................ 27

The oven light ...... .............................. 28

Troubleshooting ..................................... 29

Requesting Assistance or Service ....... .31

Index ....................................................... 35

Warranty ................................................. 36

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL ranges are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable infor-

mation about how to operate and maintain your appliance properly and safely. Please read

it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

Dealer Name

page 7 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day. I

-800-253-I 301

Range Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, and personal injury.

rhi= --hoi alerts you to such

lyw, w ,s fire, electrical shock,

n= -d personal injury. I

IMPORTANT SAFETY INSTRUCTIONS

General

ORead all instructions before using

the range.

@Install or locate the range only in

accordance with the provided

Installation Instructions.The range

must be installed by a qualified

installer. The range must be

properly connected to electrical

supply and grounded.

allowed to sit or stand on any

part of the range. They could be

burned or injured.

@Do not operate the range if it is

damaged or not working properly.

*Do not use the range for warming

or heating the room. Persons

could be burned or injured, or a

fire could start.

@Usethe range only for its intended

use as described in this manual.

@WARNING: To reduce the risk of

tipping the appliance, the appli- *Do not touch surface units, areas

ante must be secured by a near units, heating elements, or

properly installed anti-tip bracket. interior surfaces of oven. Surface

To check if the bracket is installed units and heating elements could

properly, see “The anti-tip be hot even though they are dark

bracket” on page 20. in color. Areas near surface units

CAUTION: Do not store things and interior surfaces of an oven

children might want above the become hot enough to cause

range. Children could be burned burns. During and after use, do

or injured while climbing on it. not touch, or let clothing or other

.Do not leave children alone or un- flammable materials contact

attended in area where the range surface units, areas near units,

is in use. They should never be heating elements, or interior

surfaces of oven until they have

had sufficient time to cool. Other

surfaces of the range, such as

the oven vent opening, the

surface near the vent opening,

the cooktop, and the oven door

and window, could also become

.hot enough to cause burns.

‘ADO not wear loose or hanging

garments when using the range.

They could ignite if they touch a

hot surface unit and you could be

burned.

@Use only dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holder touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

Keep range vents unobstructed.

@Do not heat unopened contain-

ers. They could explode. The hot

contents could cause burns and

container particles could cause

injury.

muse only utensils approved for

oven use. Follow utensil manu-

facturer’s instructions, especially

when using glass or plastic

utensils.

@Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

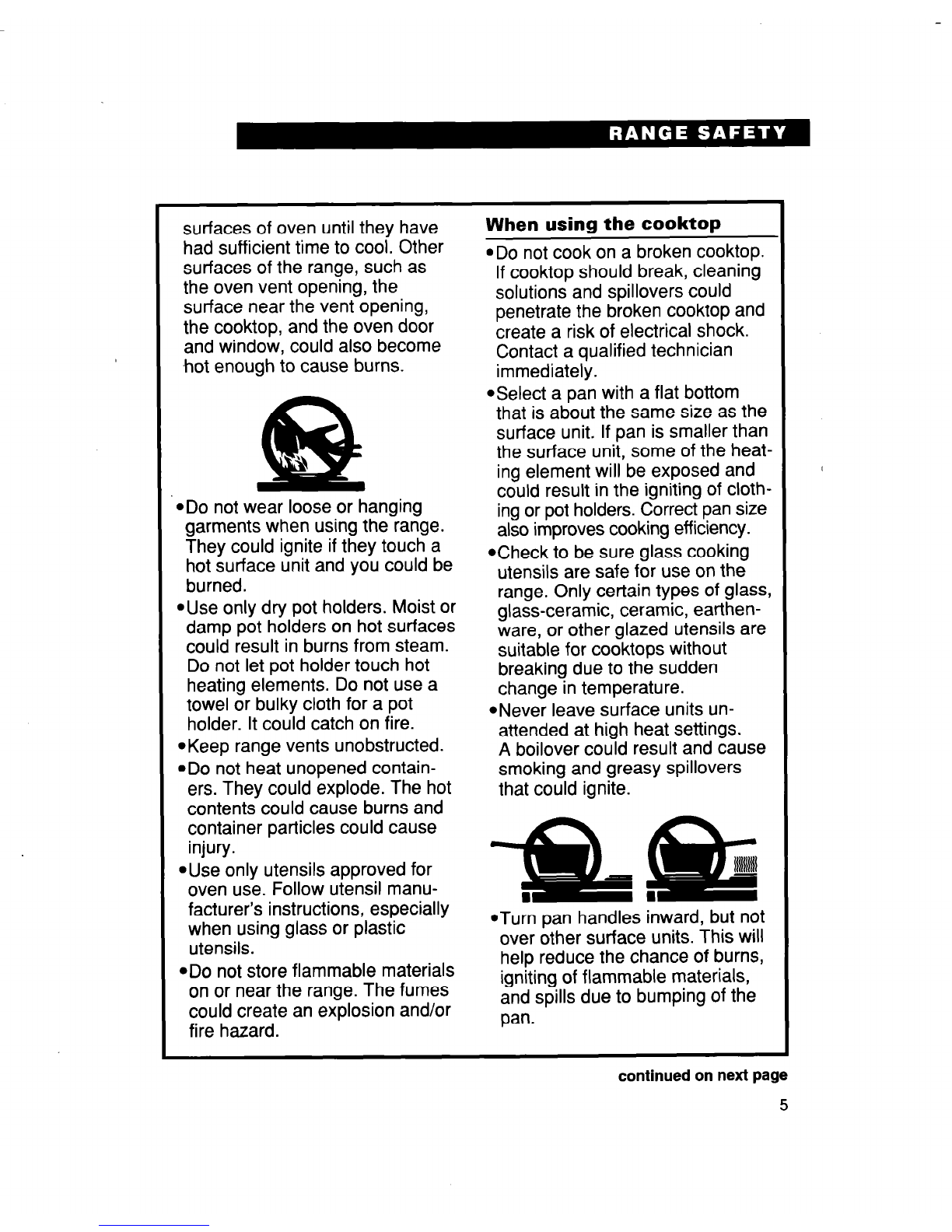

When using the cooktop

@Donot cook on a broken cooktop.

If cooktop should break, cleaning

solutions and spillovers could

penetrate the broken cooktop and

create a risk of electrical shock.

Contact a qualified technician

immediately.

@Select a pan with a flat bottom

that is about the same size as the

surface unit. If pan is smaller than

the surface unit, some of the heat-

ing element will be exposed and

could result in the igniting of cloth-

ing or pot holders. Correct pan size

also improves cooking efficiency.

Gheck to be sure glass cooking

utensils are safe for use on the

range. Only certain types of glass,

glass-ceramic, ceramic, earthen-

ware, or other glazed utensils are

suitable for cooktops without

breaking due to the sudden

change in temperature.

*Never leave surface units un-

attended at high heat settings.

A boilover could result and cause

smoking and greasy spillovers

that could ignite.

@Turn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials,

and spills due to bumping of the

pan.

continued on next page

When using the oven

*Always position oven rack(s) in

desired location while oven is

cool. If a rack must be removed

while oven is hot, do not let pot

holder contact hot heating ele-

ment in oven.

iUse care when opening oven

door. Let hot air or steam escape

before removing or replacing

food.

*Small amounts of formaldehyde

and carbon monoxide are given off

in the Self-Cleaning cycle from

fiberglass insulation and food de-

composition. Significant exposure

to these substances could cause

cancer or reproductive harm. Expo-

sure can be minimized by venting

with a hood or open window and

wiping out excess food spills prior

to self-cleaning.

Grease

*Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

@Donot use water on grease fires.

Never pick up a flaming pan.

Smother flaming pan on range

by covering with a well-fitted lid,

cookie sheet, or flat tray. Flaming

grease outside of pan can be

extinguished with baking soda

or, if available, a multipurpose

dry chemical or foam-type

extinguisher.

Care and cleaning

@Do not use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in, or around, any

part of the oven.

@Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other utensils.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

*Do not clean door heat seal. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the seal. Clean only

Darts recommended in this Use

and Care Guide.

@Donot repair or replace any part

@Clean cooktop with care. Some of the range unless specifidatly

cleaners could produce noxious recommended in this manual. All

fumes if applied to a hot surface. other servicing should be referred

If a wet paper towel is used to to a qualified technician.

wipe spills on a hot cooking area,

Disconnect the electrical supply

be careful to avoid steam burns. before servicing the range.

- SAVE THESE INSTRUCTIONS -

Getting to Know Your Range

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features. To help you find information on specific

parts and features quickly, page references are included.

Control panel Oven vent

(P. 19)

LEANTOP

Model and

serial number

Anti-tip floor

bracket

(for information on

alternate wall-

EilEE~ipJ~y

storage drawer

(P. 19)

ceramic

cooktop

(PP. 9, 25)

Automatic

(P. 28)

Broil element

Control panel

Surface Left rear

unit marker control

(P.8)

knob

Electronic

oven

control

Rlght Right

rear Manual front

control oven Ilght control

knob switch, knob

Left front

control

knob

(PP. 627)

Hot surface

lndlcator light

(P. 8)

Surface unlt

indicator light

(P. 8)

Using Your Range

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them any-

where between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker

Surface unit indicator lights

One of the Surface Unit Indicator Lights on

Hot surface indicator light

The Hot Surface Indicator Light on the

control panel will glow when a

surface unit becomes too hot

to touch. The Indicator Light

will continue to glow as long

as the surface unit is too hot

to touch, even after it is turned off.

Fire Hazard

Turn all controls off when done

cooking.

Failure to do so can result in death,

fire, or burns.

Until you get used to the settings, use

the following as a guide. For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

SElTING RECOMMENDED USE

6-8

2-4

l To start foods cooking.

l To bring liquids to a boil.

l To hold a rapid boil.

l To fry chicken or

pancakes.

l For gravy, pudding, and

icing.

l To cook large amounts

of vegetables.

l To keep food cooking

after starting it on a

higher setting.

LO l To keep food warm until

ready to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

l The surface unit will glow red when it is

turned on. You will see the element cycling

on (glowing red) and off - even on HI

setting -to maintain the proper tempera-

ture setting you have selected.

l Sliding metal pans on ceramic glass

cooktop surface could leave marks. Wiping

off the cooktop before, and after, each use

will help keep the surface free from stains

and provide the most even heating. See

pages 25 and 26 for care and cleaning

suggestions.

Cookware tips

l Select a pan that is about the same size

as the surface unit.

l NOTE: For best results and greater

energy efficiency, use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause uneven heating and poor cooking

results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

l The pan should have straight sides and a

tight-fitting lid.

l Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

l The pan material (metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

l Handles should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

l With your hand, feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

l Make sure bottoms of pans are clean and

dry before using on cooktop.

l Avoid spillovers on cooktop. Use pans

with tall sides.

l Do not cook food directly on cooktop.

NOTE: Do not leave an empty utensil, or

one which has boiled dry, on a hot surface

unit. The utensil could overheat and

damage the utensil or surface unit.

Home canning information

Pan

Surface unit

. Start with hot water. This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

l Refer to your canner manual for specific

instructions.

l Use the largest surface unit for best

results. Also, use a canner/pan which can

be centered over the surface unit.

Positioning racks and pans

General guidelines

l Always position oven rack(s) in desired

location before turning oven on.

l To move rack(s), lift rack(s) at front and

pull out.

l Be sure the rack(s) is level.

l If rack(s) must be moved while oven is

hot, use pot holders or oven mitts to

protect hands.

l For baking/roasting with one rack, place

the rack so the top of the food will be

centered in the oven.

l When baklng on two racks, arrange

racks on the bottom and third level from

the bottom.

Rack placement for specific

foods:

FOOD RACK POSITION

Frozen pies, large Lowest level or

roasts, turkeys, angel 2nd level from

food cakes bottom

Bundt cakes, most 2nd level from

quick breads, yeast bottom

breads, casseroles,

meats

Cookies, biscuits,

muff ins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

NOTE: For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 17.

Table des matières

Autres manuels Whirlpool Gamme

Whirlpool

Whirlpool GS395LEG Manuel utilisateur

Whirlpool

Whirlpool 30 " Eye-Level Gas Range Manuel utilisateur

Whirlpool

Whirlpool SF336PER Manuel utilisateur

Whirlpool

Whirlpool GFG464LVB Manuel utilisateur

Whirlpool

Whirlpool ELECTRIC RANGE Manuel utilisateur

Whirlpool

Whirlpool Gold SF114PXS Manuel utilisateur

Whirlpool

Whirlpool RS675PXG Manuel utilisateur

Whirlpool

Whirlpool Gold GGE350LW Manuel

Whirlpool

Whirlpool SLIDE-IN ELECTRIC RANGES Manuel utilisateur

Whirlpool

Whirlpool GY399LXUB0 Manuel utilisateur

Whirlpool

Whirlpool SF387PEY Manuel utilisateur

Whirlpool

Whirlpool GAS DOUBLE OVEN RANGE Manuel utilisateur

Whirlpool

Whirlpool range series Manuel utilisateur

Whirlpool

Whirlpool ELECTRIC RANGE Manuel utilisateur

Whirlpool

Whirlpool Ranges Manuel utilisateur

Whirlpool

Whirlpool SF367LXSS Manuel utilisateur

Whirlpool

Whirlpool SF365BEXN0 Manuel utilisateur

Whirlpool

Whirlpool FGP335B Manuel utilisateur

Whirlpool

Whirlpool SF315PEPB0 Manuel utilisateur

Whirlpool

Whirlpool ELECTRIC RANGE Manuel utilisateur

Whirlpool

Whirlpool RF310PXA Manuel utilisateur

Whirlpool

Whirlpool WFG231LV Instructions d'utilisation

Whirlpool

Whirlpool WGE555S0BB Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool WFG361LVS Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur

Samsung

Samsung NX58*565 Series Manuel utilisateur
