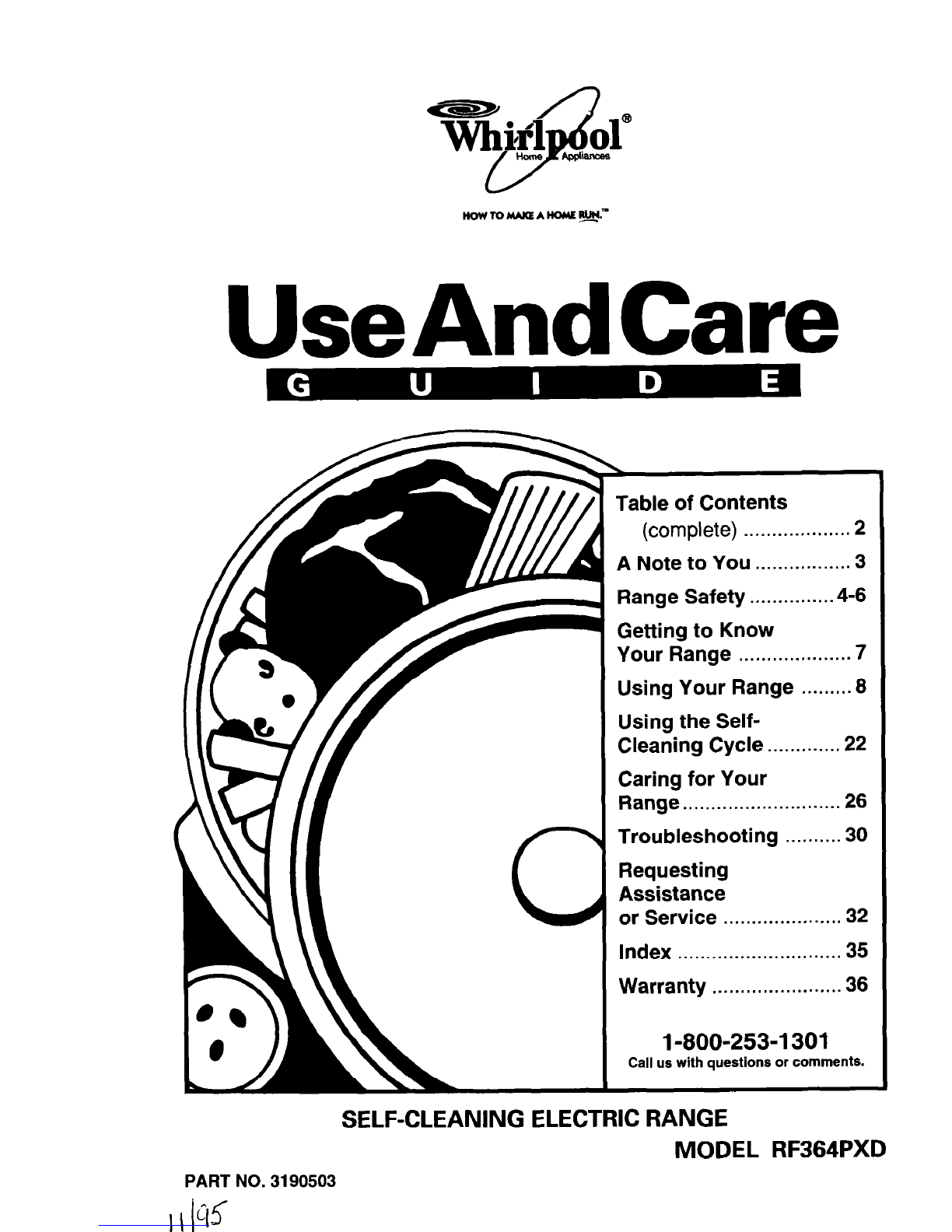

Whirlpool RF364PXD Manuel utilisateur

UseAndCare

Table of Contents

(complete) ...................2

A Note to You ................. 3

Range Safety .,............. 4-6

Getting to Know

Your Range .................... 7

Using Your Range .........8

Using the Self-

Cleaning Cycle .............22

Caring for Your

Range ............................26

Troubleshooting ..........30

Requesting

Assistance

or Service ..................... 32

Index ............................. 35

Warranty .......................36

l-800-253-1 301

Call us with questions or comments.

SELF-CLEANING ELECTRIC RANGE

MODEL RF364PXD

PART NO. 3190503

l\IS5

Table of Contents

A Note to You ........................................... 3

Range Safety ......................................... 4-6

Getting to Know Your Range ................... 7

Using Your Range ....................................

Using the surface units ......................... 8

Positioning racks and pans ................

For best air circulation ........................

Using aluminum foil for baking ...........

Setting the clock ................................ 12

Using the Minute lamer ...................... 12

Baking/roasting .................................. 13

Adjusting the oven temperature

control ............................................... 14

Broiling ..............................................

Broiling tips ........................................ 17

Energy saving tips .............................

Using the MEALTIMERTM clock .......... 18

The oven vent .................................... 20

The storage drawer ............................ 20

The anti-tip bracket

............................ 21

Optional door panel pat ..................... 21

Using the Self-Cleaning Cycle ............... 22

Before you start ................................. 22

Setting the controls ............................ 23

Special tips ........................................ 25

How the cycle works .......................... 25

Caring for Your Range ...........................

Cleaning the cooktop ......................... 26

Cleaning other range parts.. ................ 28

The oven light .................................... 28

Troubleshooting ..................................... 30

Requesting Assistance or Service ........32

Index ....................................................... 35

Warranty ................................................. 36

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL ranges are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

Dealer Name

page 7 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 (

Range Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock,

injury to persons, or damage when using

the range, follow basic precautions,

including the following:

General never be allowed to sit or stand on

@Read all instructions before using any part of the range. They could

the range. be burned or injured.

@Install or locate the range only in @Donot operate the range if it is

accordance with the provided damaged or not working properly.

Installation Instructions.The ADO not use the range for warming

range must be installed by a or heating the room. Persons

qualified installer. The range could be burned or injured, or a

must be properly connected to fire could start.

electrical supply and grounded. muse the range only for its intended

use as described in this manual.

@ii&g) @

@WARNING: To reduce the risk

of tipping the appliance, the @Donot touch surface units, areas

appliance must be secured by near units, heating elements, or

a properly installed anti-tip interior surfaces of oven. Surface

bracket. To check if the bracket units and heating elements could

is installed properly, see “The be hot even though they are dark

anti-tip bracket” on page 21. in color. Areas near surface units

@CAUTION: Do not store things and interior surfaces of an oven

children might want above the become hot enough to cause

range. Children could be burned burns. During and after use, do not

or injured while climbing on it. touch, or let clothing or other flam-

.Do not leave children alone or mable materials contact surface

unattended in area where the units, areas near units, heating

range is in use. They should elements, or interior surfaces

of oven until they have had suffi-

cient time to cool. Other surfaces

of the range, such as the oven

vent opening, the surface near

the vent opening, the cooktop,

and the oven door and window,

could also become hot enough to

cause burns.

@Do not wear loose or hanging

garments when using the range.

They could ignite if they touch

a hot surface unit and you could

be burned.

@Use only dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holders touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

*Keep range vents unobstructed.

@Do not heat unopened contain-

ers. They could explode. The

hot contents could cause burns

and container particles could

cause injury.

@Use only utensils approved for

oven use. Follow utensil manu-

facturer’s instructions, especially

when using glass or plastic

utensils.

*Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

When using the cooktop

@Donot cook on a broken cooktop.

If cooktop should break, cleaning

solutions and spillovers could

penetrate the broken cooktop and

create a risk of electrical shock.

Contact a qualified technician

immediately.

aSelect a pan with a flat bottom

that is about the same size as the

surface unit. If pan is smaller than

the surface unit, some of the

heating element will be exposed

and could result in the igniting of

clothing or pot holders. Correct

pan size also improves cooking

efficiency.

@Check to be sure glass cooking

utensils are safe for use on the

range. Only certain types of glass,

glass-ceramic, ceramic, ear-then-

ware, or other glazed utensils are

suitable for cooktops without

breaking due to the sudden

change in temperature.

@Never leave surface units un-

attended at high heat settings.

A boilover could result and cause

smoking and greasy spillovers

that could ignite.

*Turn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials,

and spills due to bumping of

the pan.

continued on next page

When using the oven @Small amounts of formaldehyde

Always position oven rack(s) in and carbon monoxide are given

desired location while oven is off in the Self-Cleaning cycle from

cool. If a rack must be removed fiberglass insulation and food

while oven is hot, do not let pot decomposition. Significant expo-

holder contact hot heating ele- sure to these substances could

ment in oven. cause cancer or reproductive

@Use care when opening oven harm. Exposure can be minimized

door. Let hot air or steam escape by venting with a hood or open

before removing or replacing window and wiping out excess

food. food spills prior to self-cleaning.

Grease

@Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

*Do not use water on grease

fires. Never pick up a flaming

pan. Smother flaming pan on

range by covering with a well-

fitted lid, cookie sheet, or flat tray.

Flaming grease outside of pan

can be extinguished with baking

soda or, if available, a multi-

purpose dry chemical or

foam-type extinguisher.

Care and cleaning

Clean cooktop with care. Some

cleaners could produce noxious

fumes if applied to a hot surface.

If a wet paper towel is used to

wipe spills on a hot cooking area,

be careful to avoid steam burns.

-SAVE THESE

aDo not use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in or around any

part of the oven.

@Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other utensils. Do

not use your oven to clean miscel-

laneous parts unless you are

instructed to do so in this Use and

Care Guide.

.Do not clean door heat seal. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the seal. Clean only

parts recommended in this Use

and Care Guide.

@Do not repair or replace any part

of the range unless specifically

recommended in this manual. All

other servicing should be referred

to a qualified technician.

@Disconnect the electrical supply

before servicing the range.

INSTRUCTIONS -

Getting to Know Your Range

This section contains captioned illustrations of your range.

Use

them to become familiar with

the location and appearance of all parts and features. To help you find information on specific

parts and features quickly, page references are included.

ceramic

Broil

- element

anti-tip bracket,

see p. 21)

Removable

Control panel

Left front Left rear MEALTIMEP Oven temperature Oven selector

Surface unit

light

(P. 8) light knob light knob

(PP. 13, 15) (P. 8) (P. 8) (P. 8)

Using Your Range

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them any-

where between HI and OFF.

Surface unit markers

The solid dot in the Surface Unit Marker

Surface unit indicator lights

One of the Surface Unit Indicator Lights

Hot surface indicator light

The Hot Surface Indicator Light on the

control panel will glow when a

surface unit becomes too hot

to touch. The Indicator Light

will continue to glow as long as

the surface unit is too hot to

touch, even after it is turned off.

Fire Hazard

Turn all controls off when done

cooking.

Failure to do so can result in death,

fire, or burns.

Until you get used to the settings, use

the following as a guide.

For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

SETTING

6-6

2-4

RECOMMENDED USE

l To start foods cooking.

l To bring liquids to a boil.

l To hold a rapid boil.

l To fry chicken or

pancakes.

l For gravy, pudding,

and icing.

l To cook large amounts

of vegetables.

l To keep food cooking

after starting it on a

higher setting.

l To keep food warm until

ready to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

The surface unit will glow red

when it is

turned on. You will see the element cycling

on (glowing red) and off - even on HI

setting -to maintain the proper tempera-

ture setting you have selected.

Sliding metal pans

on ceramic glass

cooktop surface could leave marks. Wiping

off the cooktop before and after each use

will help keep the surface free from stains

and provide the most even heating. See

pages 26 and 27 for care and cleaning

suggestions.

Cookware tips

Select a pan

that is about the same size

as the surface unit.

NOTE: For best results and greater

energy efficiency,

use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause uneven heating and poor

cooking results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan

should have straight sides and a

tight-fitting lid.

Choose medium to heavy gauge

(thick-

ness) pans that are fairly lightweight.

The pan material

(metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best

cooking results.

Handles

should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

With your hand,

feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

Make sure bottoms

of pans are clean and

dry before using on cooktop.

Avoid splllovers

on cooktop. Use pans

with tall sides.

Do not

cook food directly on cooktop.

NOTE:

Do not leave an empty utensil, or

one which has boiled dry, on a hot surface

unit. The utensil could overheat and damage

the utensil or surface unit.

Home canning information

Start with hot water.

This reduces the

Pan

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

Surface unit

Refer

to your canner manual for specific

instructions.

Use the largest surface unit

for best

results. Also, use a canner/pan which can

be centered over the surface unit.

Positioning racks and

General guidelines

Always posltion oven rack(s)

in desired

location before turning oven on.

To move rack(s),

lift rack(s) at front and

pull out.

Be sure

the rack(s) is level.

If rack(s) must be moved

while oven is

hot, use pot holders or oven mitts to

protect hands.

For baking/roasting with one rack,

place

the rack so the top of the food will be

centered in the oven.

When baking on two racks,

arrange

racks on the bottom and third level from

the bottom.

pans

Rack placement for specific

foods:

roasts, turkeys, angel 2nd level from

quick breads, yeast

breads, casseroles,

2nd level from

bottom

NOTE:

For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 16.

Table des matières

Autres manuels Whirlpool Gamme

Whirlpool

Whirlpool RF3620XV Manuel utilisateur

Whirlpool

Whirlpool RF350BXE W Manuel utilisateur

Whirlpool

Whirlpool GR399LXGB1 Manuel utilisateur

Whirlpool

Whirlpool RF310PXD Manuel utilisateur

Whirlpool

Whirlpool WFE330W0AB Manuel utilisateur

Whirlpool

Whirlpool WEG515S0FBK Manuel utilisateur

Whirlpool

Whirlpool RF362BXB Manuel utilisateur

Whirlpool

Whirlpool RS675PXV Manuel utilisateur

Whirlpool

Whirlpool SF3020EE N Manuel utilisateur

Whirlpool

Whirlpool RF306BXP Manuel utilisateur

Whirlpool

Whirlpool GERC4110PB2 Manuel utilisateur

Whirlpool

Whirlpool WEG760H0DE Manuel utilisateur

Whirlpool

Whirlpool SF196LEPB3 Manuel utilisateur

Whirlpool

Whirlpool WKP85800 Manuel utilisateur

Whirlpool

Whirlpool 30" Freestanding Sealed Burner Gas Range with self-cleaning... Manuel utilisateur

Whirlpool

Whirlpool GGE388LX - 8-18-10 Manuel utilisateur

Whirlpool

Whirlpool RS386PXE Manuel utilisateur

Whirlpool

Whirlpool RF324PXE Manuel utilisateur

Whirlpool

Whirlpool WFG515S0MS Manuel utilisateur

Whirlpool

Whirlpool SF340BEH Guide de l'utilisateur

Whirlpool

Whirlpool WKP85800 Manuel utilisateur

Whirlpool

Whirlpool IGS325RQ1 Manuel utilisateur

Whirlpool

Whirlpool ELECTRIC RANGE Manuel utilisateur

Whirlpool

Whirlpool RF362LXTB Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur

Samsung

Samsung NX58*565 Series Manuel utilisateur
