Whirlpool RF265LXTB2 Manuel utilisateur

COOKTOP PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

06−07 Litho in U.S.A. (rek) Part No. W10146229 Rev. A

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN CONVECTION OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763001 Owner’s Manual

W10134252

Tech Sheet

9762996 Installation

Instructions

Template, Anti−Tip

9757143 English/French

9757142 English/Spanish

9762761 Brochure, Tips

Safe Cooking

2 Cooktop

9763327 White

9763329 Black

9763328 Biscuit

3 Element, Surface

8523047 2400/1000 W − LF

8273994 1200 W − LR & RR

8273992 2500 W − RF

4 Bracket, Element

8272791 (2)

5 3196169 Screw

W10035930

Spring, Locator

7 3196170 Screw

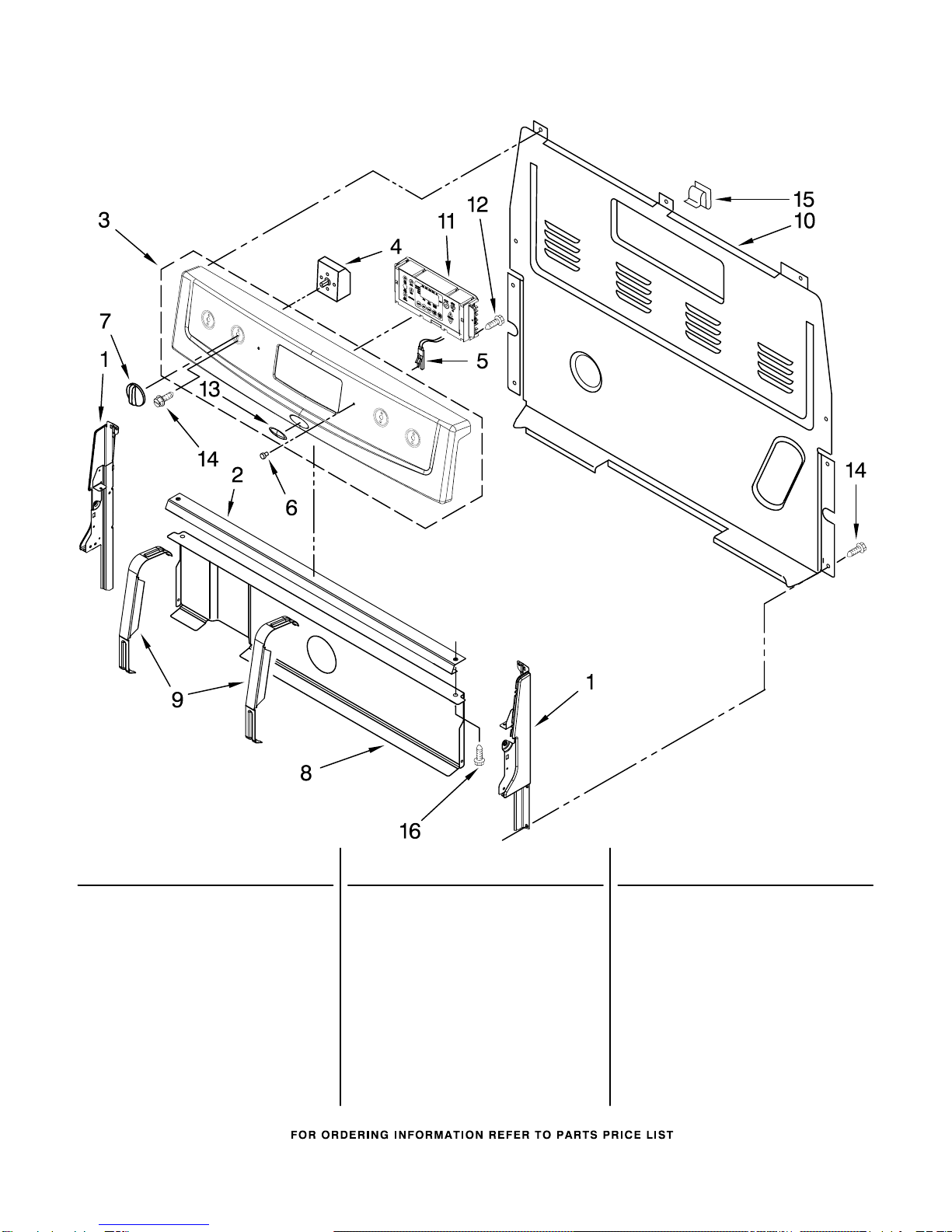

CONTROL PANEL PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

W10146229

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

White Left Hand

W10009050

White Right Hand

W10009080

Black Left Hand

W10009090

Black Right Hand

W10009060

Biscuit, LH

W10009070

Biscuit, RH

2 9762095 Bracket, Console

3 Panel, Control

9762023 White

9762026 Stainless Steel

9762025 Black

9762024 Biscuit

4 Switch, Infinite

9758060 Left Front (Dual)

3148951 Left Rear

3148951 Right Rear

9758060 Right FronT (Dual)

5 8523265 Light, Indicator

6 3196068 Lens, Light

7 Knob, Infinite (4)

9761962 White

9761964 Black

9761963 Biscuit

W10134247

Shield, Heat

9 9762078 Brkt, Mntg EOC

10 8272473 Cover, Rear

11 Control, Range

W10108090

White

W10108100

Black

W10108110

Biscuit

12 3196178 Screw

13 9757609 Nameplate

14 3400882 Screw

15 8273564 Clip, Cover

16 Screw

3196166 White

3196168 Black

8281194 Biscuit

CHASSIS PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

W10146229

CHASSIS PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

W10146229

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9761299 Vent Tube Asmbly

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White

8053832 Black

8272519 Biscuit

4 9761517 Clip,Door Mntg.(2)

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

(Hidden)

8 3195736 Support, Front (2)

9 3196548 Fuse, Thermal

W10114344

Glide, Drwr Top

11 3196037 Foot, Front (2)

W10067840

Screw

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

17 3195987 Guard, Wire

18 9757239 Rod − Dr Switch

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

27 8273902 Sensor, Oven

28 3196179 Screw

29 3196178 Screw

30 3400016 Screw

31 3196172 Screw

W10031780

Screw

33 3196566 Screw

34 3196168 Screw

35 3196174 Screw

36 9758238 Retainer, Side (2)

37 9760407 Brkt − Mounting

38 9761013 Latch, Door

W10078380

Rod, Latch

W10107820

Latch Asy, Rear

41 9758701 Spacer, Door

42 3196169 Screw

43 9758283 Cover, Box

44 9761301 Screen − Catalyst

45 3196560 Screw (2)

46 112432 Nut (3)

47 9761490 Insulation

48 9761512 Clip, Mounting

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

8272613 Insulation, Vent

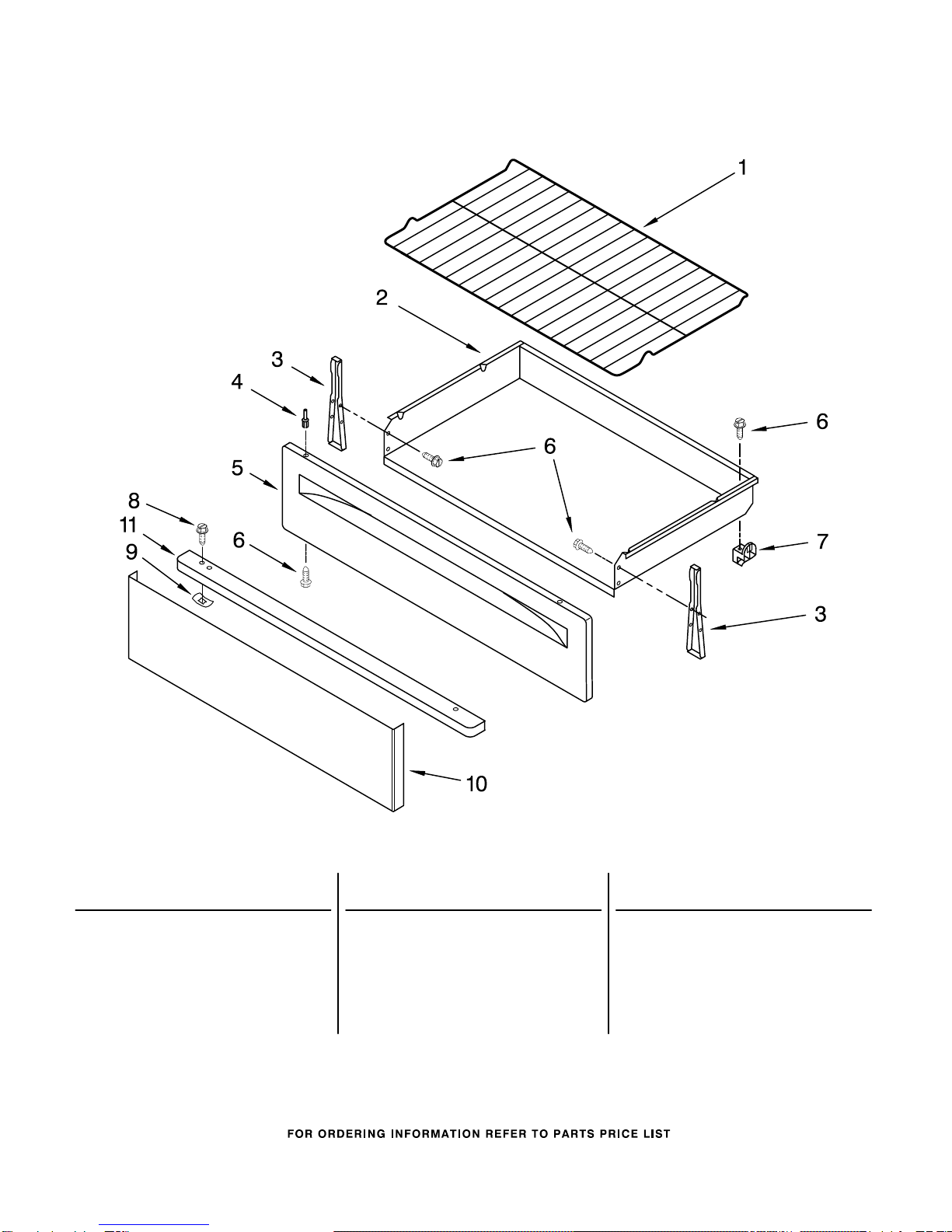

DRAWER PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

W10146229

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

3 9758200 Brkt−Mntg, Drawer

4 Rivet, Push (2)

3196814 White

3196813 Black

3196815 Almond

5 Panel, Drawer Frnt

8053339 White

8053341 Black

8272501 Biscuit

6 3196168 Screw

7 8053334 Glide, Drawer (2)

W10031790

Screw(Stls. Model)

9 9781235 Clip(Stls. Model)

10 9755798 Panel(Stls. Model)

11 Handle

9757219 (Stainless Model)

9762251 (Univ.Silver Mod.)

DOOR PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

W10146229

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9761975 White

9762394 Stainless Model

9762391 Black

9761976 Biscuit

W10067560

Universal Silver

2 3196164 Screw

3 Handle, Door

9761982 White

9761983 Black

9761984 Biscuit

9761985 Universal Silver

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 Hinge, Door (2)

9761493 White,Black,Bisc.

9761496 Stainless Model

11 Glass, Outer

W10075980

White

W10075990

Black

W10076000

Biscuit

9756435 Stainless Steel

12 Trim, Side

W10128572

White Left Hand

W10128563

White Right Hand

W10128571

Black Left Hand

W10128562

Black Right Hand

W10128573

Biscuit Left Hand

W10131044

Biscuit Right Hand

W10128577

Gray Left Hand

W10128568

Gray Right Hand

13 3196160 Screw

14 Trim, Lower

8523175 White

8523177 Black

8523178 Biscuit

8523180 Stainless Model

W10067550

Universal Silver

W10031790

Screw

W10031780

Screw

17 3196165 Screw

18 3196794 Bracket, Window(2)

W10113759

Strap, Door

OPTIONAL PARTS

For Models: RF265LXTQ2, RF265LXTB2, RF265LXTT2, RF265LXTS2, RF265LXTY2

(White) (Black) (Biscuit) (S.Steel) (Universal Silver)

W10146229

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

Following Parts Not Illustrated

W10111767

Harness, Wire

(Cooktp Lft Dual)

W10111766

Harness, Wire

(Cooktop Right)

W10111768

Harness, Wire

(Main)

W10084660

Harness, Wire

(Sensor/Dr Switch)

8523279 Wire, Ground

313660 Clip, Ground Wire

3196154 Screw

3196173 Screw, Grnd Wire
