Whirlpool GS395LEH Manuel utilisateur

Self-Cleaning

Gas Range

A Note to You ............2

Range Safety ............3

Parts and Features....5

Using Your Range......6

Using the Self-

Cleaning Cycle ........24

Caring for Your

Range ......................28

Troubleshooting ......34

Requesting

Assistance or

Service ....................36

Index ........................39

Warranty ..................40

1-800-253-1301

Call our Consumer Assistance Center

with questions or comments.

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION

BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ AND KEEP THIS

BOOK FOR FUTURE REFERENCE.

4.65 Cubic Foot Oven

MODEL GS395LEG GS395LEH

8273155

with ACCUBAKE®System

Our Consumer Assistance Center number is toll free.

A NOTE TO YOU

Thank you for buying a WHIRLPOOL®appliance.

The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your

life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.

It is full of valuable information about how to operate and maintain your appliance properly. Please read it

carefully.

Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us

notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for your appliance,

you need to know your complete model number and

serial number. You can find this information on the

model and serial number label/plate (see diagram in

the “Parts and Features” section).

Please also record the purchase date of your appliance

and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference. It is important

for you to save your sales receipt showing the date of purchase. Proof of purchase will as-

sure you of in-warranty service.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

1-800-253-1301

To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to

purchase an accessory item, or register your appliance on-line, please visit our Web site at

www.whirlpool.com

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch.

•Do not use any phone in your building.

•Immediately call your gas supplier from a neighbor’s phone. Follow the gas

supplier’s instructions.

•If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer, service agency

or the gas supplier.

RANGE SAFETY

continued on next page

Tip Over Hazard

A child or adult can tip the range and be killed.

Connect anti-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is moved.

See the installation instructions for details.

Failure to follow these instructions can result in death or serious burns

to children and adults.

Making sure the anti-tip bracket is installed:

•Slide range forward.

•Look for the anti-tip bracket securely attached to floor.

•Slide range back so rear range foot is under anti-tip bracket.

Anti-Tip Bracket

Range Foot

wWARNING

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to

the open door without the anti-tip bracket fastened down properly.

THE ANTI-TIP BRACKET

You will be killed or seriously injured if you don’t

follow instructions.

You can be killed or seriously injured if you don’t

follow instructions.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and

obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word “DANGER” or

“WARNING.” These words mean:

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

RANGE SAFETY

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical

shock, injury to persons, or damage when using the

range, follow basic precautions, including the

following:

•WARNING – TO REDUCE THE RISK OF

TIPPING OF THE RANGE, THE RANGE MUST

BE SECURED BY PROPERLY INSTALLED

ANTI-TIP DEVICES. TO CHECK IF THE

DEVICES ARE INSTALLED PROPERLY, SLIDE

RANGE FORWARD, LOOK FOR ANTI-TIP

BRACKET SECURELY ATTACHED TO FLOOR,

AND SLIDE RANGE BACK SO REAR RANGE

FOOT IS UNDER ANTI-TIP BRACKET.

•CAUTION – Do not store items of interest to

children in cabinets above a range or on the

backguard of a range – children climbing on the

range to reach items could be seriously injured.

•Proper Installation – The range, when installed,

must be electrically grounded in accordance with

local codes or, in the absence of local codes, with

the

National Electrical Code, ANSI/NFPA 70.

sure the range is properly installed and grounded

by a qualified technician.

•This range is equipped with a three-prong

grounding plug for your protection against shock

hazard and should be plugged directly into a

properly grounded receptacle. Do not cut or

remove the grounding prong from this plug.

IMPORTANT SAFETY INSTRUCTIONS

•Disconnect the electrical supply before servicing

the appliance.

•Never Use the Range for Warming or Heating the

Room.

•Injuries may result from the misuse of appliance

doors or drawers such as stepping, leaning, or

sitting on the doors or drawers.

•Maintenance – Keep range area clear and free

from combustible materials, gasoline, and other

flammable vapors and liquids.

•Storage in or on the Range – Flammable materials

should not be stored in an oven or near surface

units.

•Top burner flame size should be adjusted so it

does not extend beyond the edge of the

cooking utensil.

For self-cleaning ranges –

•Before Self-Cleaning the Oven – Remove broiler

pan and other utensils. Wipe off all excessive

spillage before initiating the cleaning cycle.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to

publish a list of substances known to the State of California to cause cancer, birth defects, or other

reproductive harm, and requires businesses to warn of potential exposure to such substances.

WARNING: This product contains a chemical known to the State of California to cause cancer, birth

defects, or other reproductive harm.

This appliance can cause low-level exposure to some of the substances listed, including benzene,

formaldehyde, carbon monoxide, toluene, and soot.

Oven vent

(p. 23)

Surface burners

and grates

(pp. 6, 29-31)

Center grate

(Model GS395LEH only)

(p. 29)

Anti-tip bracket

(p. 3)

Door stop clip

(p. 31-33)

Model and

serial number

plate

(behind left side

of storage drawer)

Storage drawer

(p. 23)

PARTS AND FEATURES

Electronic oven

control

(p. 10-22)

Control panel

(pp. 5, 28)

Automatic oven

light switch

(p. 33)

Gasket

(p. 24)

Left front

control knob

(POWER™Burner)

Right front

control knob

Right rear

control knob

(ACCUSIMMER™

setting)

Left rear

control knob

Surface burner marker

(shows which burner

you are setting)

CONTROL PANEL

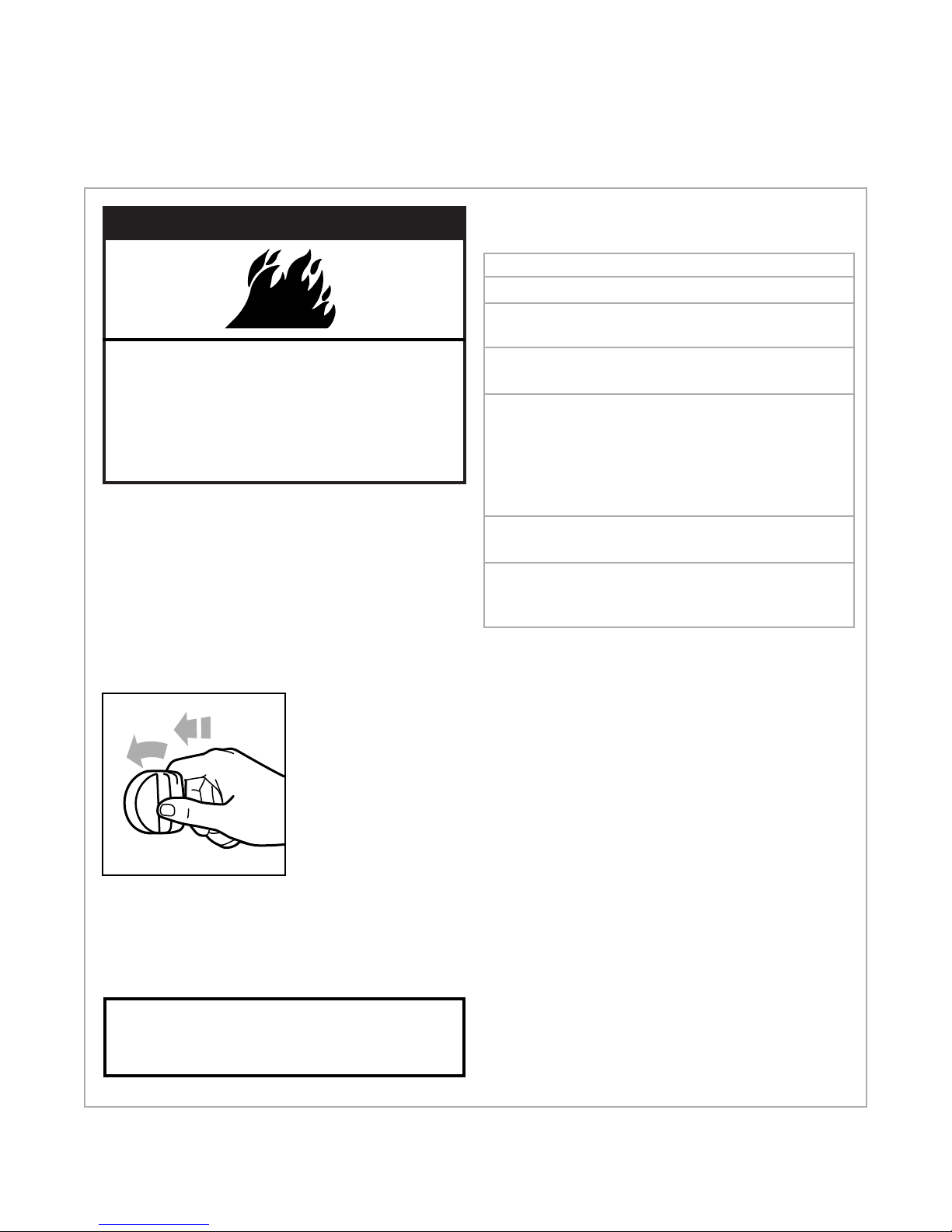

USING YOUR RANGE

USING THE SURFACE BURNERS

NOTE: Do not leave empty cookware, or cookware

which has boiled dry, on a hot surface burner. The

cookware could overheat, causing damage to the

cookware or cooking product.

Using POWER Burner

POWER Burner is an adjustable setting for the left

front burner which provides an ultra-high heat setting.

It can be used to rapidly bring liquid to a boil and to

cook large quantities of food.

Using ACCUSIMMER setting

ACCUSIMMER is an adjustable setting for the right

rear burner. It allows more accurate simmer control at

the lowest setting.

Easy ways to save energy

•To help shorten your cooking time, use the least

amount of liquid possible.

•Preheat your pots and pans only when

recommended and for the shortest time possible.

•Start your food on a higher heat setting, then turn

the control to a lower setting to finish cooking.

wWARNING

Fire Hazard

Do not let the burner flame extend beyond

the edge of the pan.

Turn off all controls when not cooking.

Failure to follow these instructions can

result in death or fire.

RECOMMENDED USE

•To light the burner.

•To provide highest heat

setting.

•To start food cooking.

•To bring liquid to a boil.

•To hold a boil.

•To fry chicken or pancakes.

•To cook gravy, pudding or

icing.

•To cook large amounts of

vegetables.

•To keep food warm.

•To simmer.

•To provide lowest

simmer/heat setting.

•To melt chocolate or butter.

SETTING

LIGHT

POWER™Burner

(left front burner)

HIGH

Mid-range

(between HIGH

and LOW)

LOW

ACCUSIMMER™

setting

(right rear burner)

Burner heat settings

Use the following chart as a guide.

Using the control knobs

Your range comes with electric ignition. Electric

ignitors automatically light the burners each time

you turn the control knobs to LIGHT.

•Place a filled pan on the burner grate before

turning on the surface burner. Do not operate a

burner for extended periods of time without

having cookware on the grate.

•Push in the control knob and turn it counter-

clockwise to the

LIGHT position. The

clicking sound is the

ignitor sparking. Make

sure the burner has lit.

•To stop the clicking

sound after the burner

lights, turn the control

knob to the cook

setting you want. You

can set the control knob

anywhere between HIGH and LOW.

NOTE: All four electric ignitors will click at the same

time. However, the burner with the control knob

turned to LIGHT is the one that will ignite.

REMEMBER: When range is in use or during

the Self-Cleaning cycle, the entire cooktop area

may become hot.

USING YOUR RANGE

In case of a prolonged power failure

You can manually light surface burners. Hold a lit

match near a burner and turn the control knob to

the LIGHT position. After the burner lights, turn the

control knob to the setting you want.

Home canning information

The large diameter of most water-bath or pressure

canners combined with high heat settings for long

periods of time can cause damage to the cooktop.

To protect your range:

•For best results, use a canner which can be

centered over the surface burner.

•Do not place your canner on two surface burners

at the same time.

•Start with hot water. This reduces the time

the control is set on high. Reduce the heat

setting to the lowest position needed to maintain

a boil or required pressure levels in a pressure

canner.

•

Refer to your canner manual for specific

instructions.

For up-to-date information on canning, contact your

local U.S. Government Agricultural Department

Extension Office or companies who manufacture

home canning products.

Using the right cookware makes a

big difference

•The pan should have a flat bottom, straight sides,

and a well-fitting lid.

•Choose medium to heavy gauge (thickness)

cookware.

•The pan material (metal or glass) affects how

quickly and evenly the pan heats.

•When using glass or ceramic cookware, check to

make sure it is suitable for use on surface burners.

•To avoid tipping, make sure pots and pans are

centered on the grates.

The pan material affects how fast heat transfers from the surface cooking area through the pan material and how

evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

Aluminum • Heats quickly and evenly.

• Use for all types of cooking.

• Medium or heavy thickness is best for most cooking.

• Used as a core or base in cookware to provide even heating.

Cast iron • Heats slowly and evenly.

• Good for browning and frying.

• Maintains heat for slow cooking.

• Can be coated with porcelain enamel.

Ceramic or

ceramic glass • Heats slowly and unevenly.

• Use on low to medium settings.

• Follow manufacturer’s instructions.

Copper • Heats very quickly and evenly.

• Used as a core or base in cookware to provide even heating.

Earthenware • Can be used for cooktop cooking if recommended by the

manufacturer.

• Use on low settings.

Porcelain enamel-on-steel or

enamel-on-cast iron • See cast iron and stainless steel.

Stainless steel • Heats quickly but unevenly.

•

A core or base of aluminum or copper on the cookware provides

even heating.

• Can be coated with porcelain enamel.

USING THE SURFACE BURNERS (CONT.)

CHARACTERISTICS OF COOKWARE MATERIALS

USING YOUR RANGE

USING THE OVEN

Positioning racks and pans

Place the oven racks where you need them before

turning on the oven.

•To move a rack, pull it out to the stop position,

raise the front edge and lift it out.

•Be sure the rack(s) is level.

•Use pot holders or oven mitts to protect your hands

if rack(s) must be moved while the oven is hot.

•For best performance, cook on one rack. Place

the rack so the top of the food will be centered in

the oven.

•For best results allow 2 inches of space around

each pan and between pans and oven walls.

Extra oven rack position (roasting rack)

Use this rack position when roasting food too large

to be placed on the first

rack position.

For proper roasting,

follow these guidelines:

•To avoid spillage,

remove food before

pulling out the rack.

•Tilt the rack up at the

front before pulling it

over the door.

•Use an adequate amount of liquid in the pan

(meat juices or water) so your food does not get

overdone.

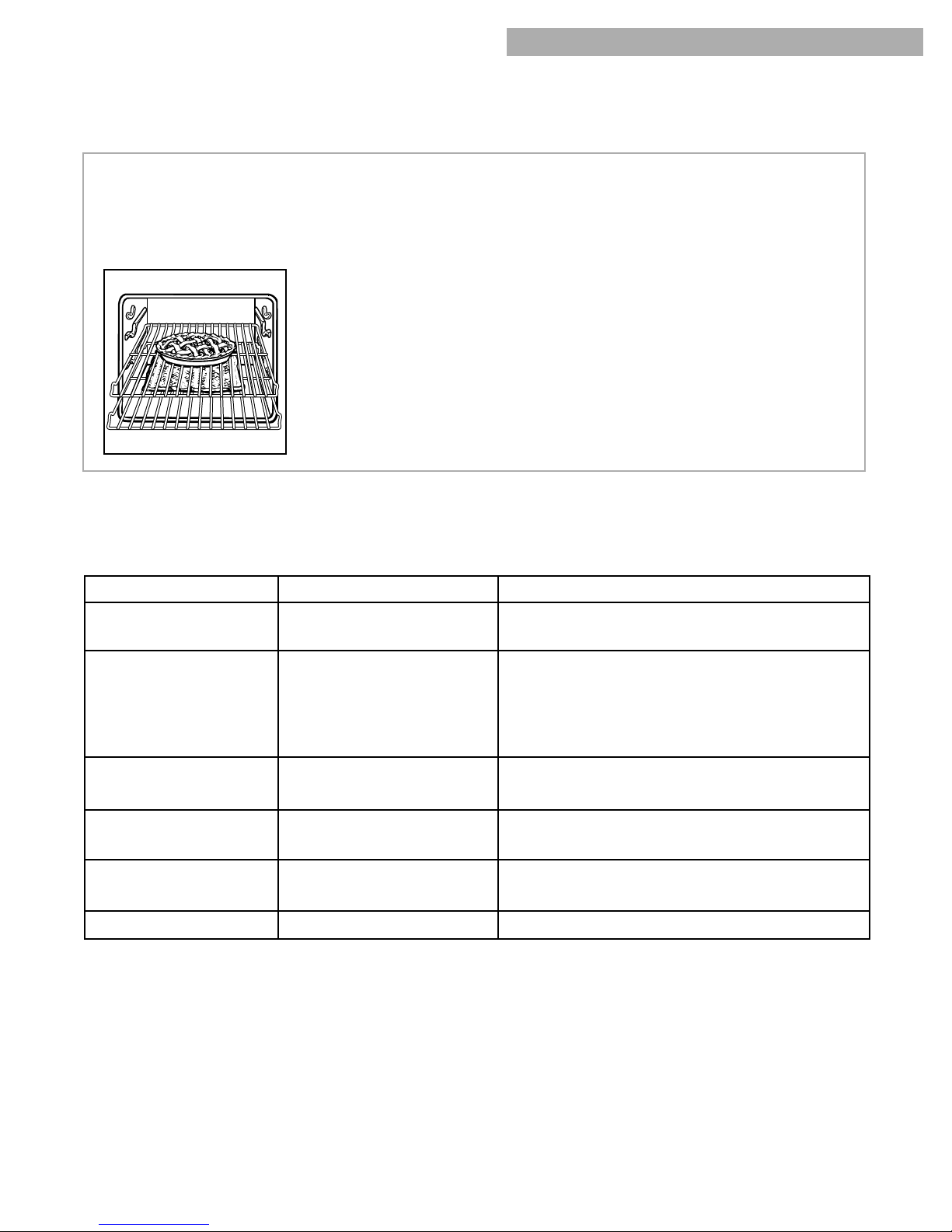

Extra oven rack position

Where to place pans:

WHEN YOU HAVE

1 pan

2 pans

3 or 4 pans

PLACE

In center of the oven rack.

Side by side or slightly

staggered.

In opposite corners on

each oven rack. Stagger

pans so no pan is directly

over another.

Rack placement for specific foods:

FOOD

Frozen pies, large

roasts, turkeys, angel

food cakes

Bundt cakes, most

quick breads, yeast

breads, casseroles,

meats

Cookies, biscuits,

muffins, cakes,

nonfrozen pies

RACK POSITION

1st or 2nd rack

guide from bottom

2nd rack guide

from bottom

2nd or 3rd rack

guide from bottom

NOTE: For information on where to place your rack

when broiling, see “Broiling guidelines” later in this

section.

USING YOUR RANGE

BAKEWARE CHOICES

Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.

BAKEWARE TYPE

Light colored aluminum • Light golden crusts

• Even browning • Use temperature and time recommended

in recipe.

Dark aluminum and other

bakeware with dark, dull,

and/or non-stick finish

• Brown, crisp crusts • May reduce baking temperature 25°F.

• Use suggested baking time.

• Use temperature and time recommended in recipe

for pies, breads, and casseroles.

• Place rack in center of oven.

Ovenproof glassware,

ceramic glass, or ceramic • Brown, crisp crusts • May reduce baking temperature 25°F.

Insulated cookie sheets or

baking pans • Little or no bottom browning • Place in the bottom third of oven.

• May need to increase baking time.

Stainless steel • May need to increase baking time.

• Crisp crustsStoneware • Follow manufacturer's instructions.

• Light, golden crusts

• Uneven browning

BEST USED FOR GUIDELINES

•Do not line the oven bottom with any type of

foil, liners, or cookware. Permanent damage

will occur to the oven bottom finish.

•Do not block the oven bottom vents.

•Do not cover the entire rack with aluminum foil.

Doing so will reduce air

circulation and overall

oven performance.

•To catch spillovers

from pies or casseroles

place foil on the oven

rack below. Foil should

be turned up at edges

and be at least 1 inch

larger than dish.

•Place tent-shaped foil loosely over meat or

poultry to slow down surface browning for long

term roasting. Remove foil for the last 30 minutes.

•Use narrow strips of foil to shield piecrust edges

if browning too quickly.

USING ALUMINUM FOIL

USING YOUR RANGE

HR MIN

COOK

TIME DELAY

START

TIME STOP

TIME

TIMER

SET TIMER

OFF

BAKE TEMP

START

ENTER

OFF

CANCEL

BAKE

BROIL

HEAT

DELAY

DTIME START?

STOP

CLEAN

TIME

RTIME

LOCKED

COOK

SELF-CLEANING OVENSELF-CLEANING OVEN

CLOCK LIGHT

AUTO

CLEAN

CUSTOM

BROIL

5 SEC

THE ELECTRONIC OVEN CONTROL

Clock pad

(p. 11)

Off/cancel

pad

(p. 12, 14,

16, 20, 22, 27)

Start/enter

pad

(pp. 10, 11,

12, 14, 15,

16, 17, 20,

22, 25, 26)

Minute

pads

(p. 11,

22, 25,

26)

Hour

pads

(p. 11,

21, 25,

26)

Temperature

pad

(pp. 13, 15, 17,

19, 21)

Oven selector

pads

(pp. 13, 15, 16,

17, 19, 21, 25,

26)

Electronic

MEALTIMER™

control pads

(pp. 12, 19-22,

26)

Manual oven

light pad

(p. 33)

Electronic

display

Display/clock

•When you first plug in the range, everything on

the display will light up for 1 to 2 seconds, then

a time of day and “PF” will appear on the

temperature display. Press OFF/CANCEL to clear

“PF” from the display. If, after you set the clock

(see “Setting the clock” later in this section), “PF”

again appears on the display, your electricity was

off for a while. Reset the clock, if needed.

•When you are not using the oven, the control is

an accurate clock.

•When you are using the oven or minute timer,

the display will show times, temperature settings,

and what command pads have been pressed.

•When showing the time of day, the display will

show the hour and minutes.

•When you are using the minute timer, the display

will show minutes and seconds in the following

sequence:

– For settings from 1-59 minutes, the display will

count down each second.

– For settings one hour or over, the display will

count down each minute.

•When you are using cook time and/or stop time,

the display will show hours

and minutes or minutes and

seconds.

Minute timer set and

off pads (pp. 11, 12)

Using the control lock

The control lock lets you shut down the control

panel command pads. The control lock comes in

handy when you want to prevent others from using

the oven.

NOTES:

•You can only use the control lock when the oven

is not in use or the control has not been set.

•Set the control lock when cleaning the control

panel to prevent yourself from accidentally

turning on the oven.

•The control lock will stay on even after a power

failure.

To lock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear a single tone and “Loc” and

will appear on the temperature display.

When the control is locked, “START?”

will appear on the display and 3 tones

will sound if you press any command

pad other than clock or timer set.

To unlock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear 3 tones followed by a single

tone. “Loc” and will disappear from the

temperature display.

START

ENTER

5 SEC

COOK

TIME STOP

TIME

START

ENTER

5 SEC

USING YOUR RANGE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Gamme

Whirlpool

Whirlpool TGR51 Instructions d'installation

Whirlpool

Whirlpool 8053373A Manuel utilisateur

Whirlpool

Whirlpool RS6700XV Manuel utilisateur

Whirlpool

Whirlpool WFC130M0AB Manuel de la liste des pièces

Whirlpool

Whirlpool GFG464LVB Manuel utilisateur

Whirlpool

Whirlpool RF363PXVT Manuel utilisateur

Whirlpool

Whirlpool SLIDE-IN ELECTRIC RANGES Manuel utilisateur

Whirlpool

Whirlpool RF303BXP Manuel utilisateur

Whirlpool

Whirlpool WGI925C0B Manuel utilisateur

Whirlpool

Whirlpool WFG535S0JV0 Manuel utilisateur

Whirlpool

Whirlpool 0W10196159 Manuel utilisateur

Whirlpool

Whirlpool W11508802B Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool GR563LXSQ0 Manuel utilisateur

Whirlpool

Whirlpool FEP340Y Instructions d'installation

Whirlpool

Whirlpool RS61OOXK Manuel utilisateur

Whirlpool

Whirlpool RF395PXP Manuel utilisateur

Whirlpool

Whirlpool YIES366RS0 Manuel utilisateur

Whirlpool

Whirlpool NWF30312 Instructions d'utilisation

Whirlpool

Whirlpool SF216LXSQ3 Manuel utilisateur

Whirlpool

Whirlpool 9763523 Manuel utilisateur

Whirlpool

Whirlpool RME30101 Manuel utilisateur

Whirlpool

Whirlpool WFC150M0EW3 Manuel utilisateur

Whirlpool

Whirlpool RF306BXV Manuel utilisateur

Whirlpool

Whirlpool RF264LXSB1 Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur

Samsung

Samsung NX58*565 Series Manuel utilisateur
