Whirlpool RBS305PRB00 Manuel utilisateur
OVEN PARTS
1
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
11−05 Litho in U.S.A. (dmm) Part No. 8186432
30" BUILT−IN
ELECTRIC OVEN
SELF CLEAN
OVEN PARTS
2
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
8186432
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303647 Installation
Instructions
8303870 Use & Care Guide
(Oven)
8301758 Tech Sheet (Oven)
8303946 Installation/
Undercounter
Safer Cooking Tips
3191638 English
9759133 French
8301928 Instructions
Microwave Trim
Kit
2 Trim, Side
(Right Hand)
8302908 Black
8302909 White
8302911 Biscuit
8303213 Stainless
(Left Hand)
8302907 Black
8302910 White
8302912 Biscuit
8303214 Stainless
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 Screw
3400832 Black
3400805 Zinc
7 8303099 Top Chassis
8 4452490 Spacer, Foam
9 4452158 Tube, Vent
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
13 4452337 Insulation,
Bottom Vent
14 9759060 Frame, Front
15 4455382 Gasket, Door
16 4449809 Screw
17 4449040 Screw
18 4452152 Bracket, Mounting
19 4451478 Support, Insulation
21 Rail, Side
8303115 Right Side
8303116 Left Side
4448444 Grommet
22 9759525 Latch, Motorized
23 4449154 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
26 4452234 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
33 9760677 Deflector, Vent
37 9759243 Thermostat (TOD)
(Temp.) SPST
43 9759713 Base, Chassis
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
53 4449845 Support, Bracket
55 Trim, Bottom
8302947 Black
8302948 White
8302949 Biscuit
8302950 Stainless
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back

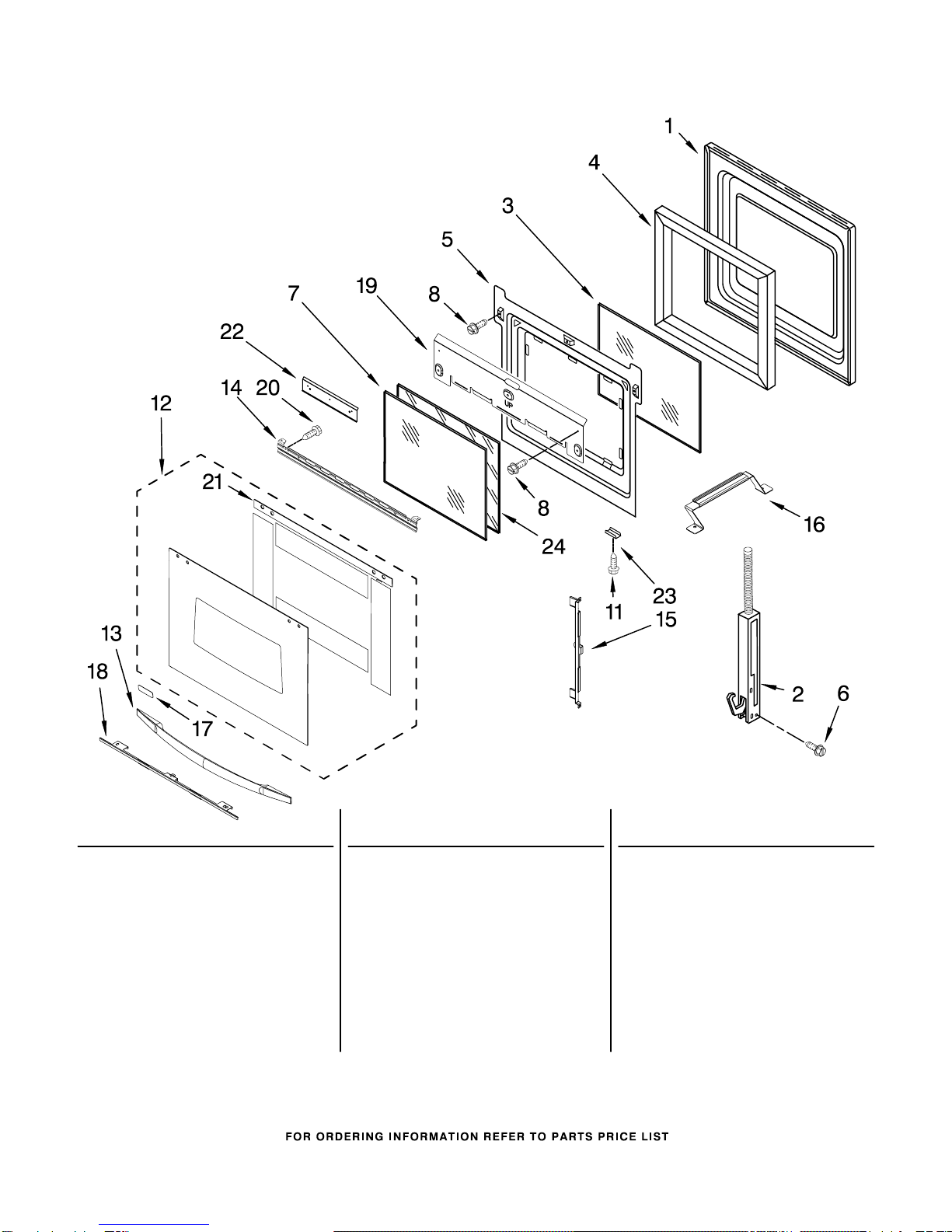

OVEN DOOR PARTS
3
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
8186432
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8303700 Door Liner
2 Hinge, Door
9760571 R.Side (White)
9760572 L.Side (White)
9760573 R.Side (Lt.Blue)
9760574 L.Side (Lt.Blue)
3 4449259 Glass, Inner
4 4451722 Insulation, Door
5 4457132 Retainer, Glass
6 4449743 Screw
7 9759225 Glass, Inner
8 4449809 Screw
11 3400832 Screw
12 Assy, Door Glass
8303330 Black
8303339 White
8303342 Biscuit
8303314 Stainless
13 Door Handle
8302813 Black
8302814 White
8302815 Biscuit
14 8303167 Bracket, Handle
15 9759229 Bracket(2nd glass)
16 9759230 Bracket(3rd Glass)
17 8303811 Nameplate
18 Retainer, Door
8303389BL
Black
8303389WH
White
8303389BT
Biscuit
19 4457103 Shield, Heat
4449809 Screw
20 4451040 Screw
21 8303878 Seal, Door Top
22 4457114 Shield, Heat (Btm)
23 4451432 Retainer, Clip
24 9759228 Glass, Inner
INTERNAL OVEN PARTS
4
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
8186432
Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
6 4448717 Rack, Oven
7 4452153 Element, Bake
4449154 Screw
CONTROL PANEL PARTS
5
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
8186432
Illus. Part
No. No. DESCRIPTION
1 Control Panel Assy.
8302848 Black
8302849 White
8302850 Biscuit
2 Membrane Switch
8304242 Black
8304243 White
8304244 Biscuit
3 8303885 Microcomputer
4 8304161 Bracket, Control
5 8302877 Cover, Stainless
TOP VENTING PARTS
6
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
8186432
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 4457289 Blower
4 4451758 Block, Foam
5 4455177 Elbow, Vent−Bottom
6 4449809 Screw
7 4449040 Screw
8 3400080 Screw
9 4450038 Screw
11 4449868 Block, Terminal
13 8303497 Vent,
(Control Panel)
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450551 Cover, Top Rear
17 4448664 Clamp
18 4450554 Cover, Top Front
19 8302143 Suppressor
OPTIONAL PARTS
7
For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00
(Black) (Designer White) (Biscuit) (S.Steel)
8186432
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
WIRING HARNESS PARTS
8301400 Harness, Wire
(Main)
4450952 Conduit
4449809 Screw
112432 Nut
4450800 Screw, Ground
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
4396923 Broiler Pan Assy.
814381 Pin Hinge Kit
4448950 Screw, Install (4)
