OVEN PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

07−06 Litho in U.S.A. (dmm) Part No. 8186430

24" BUILT−IN ELECTRIC

SINGLE OVEN

SELF−CLEAN

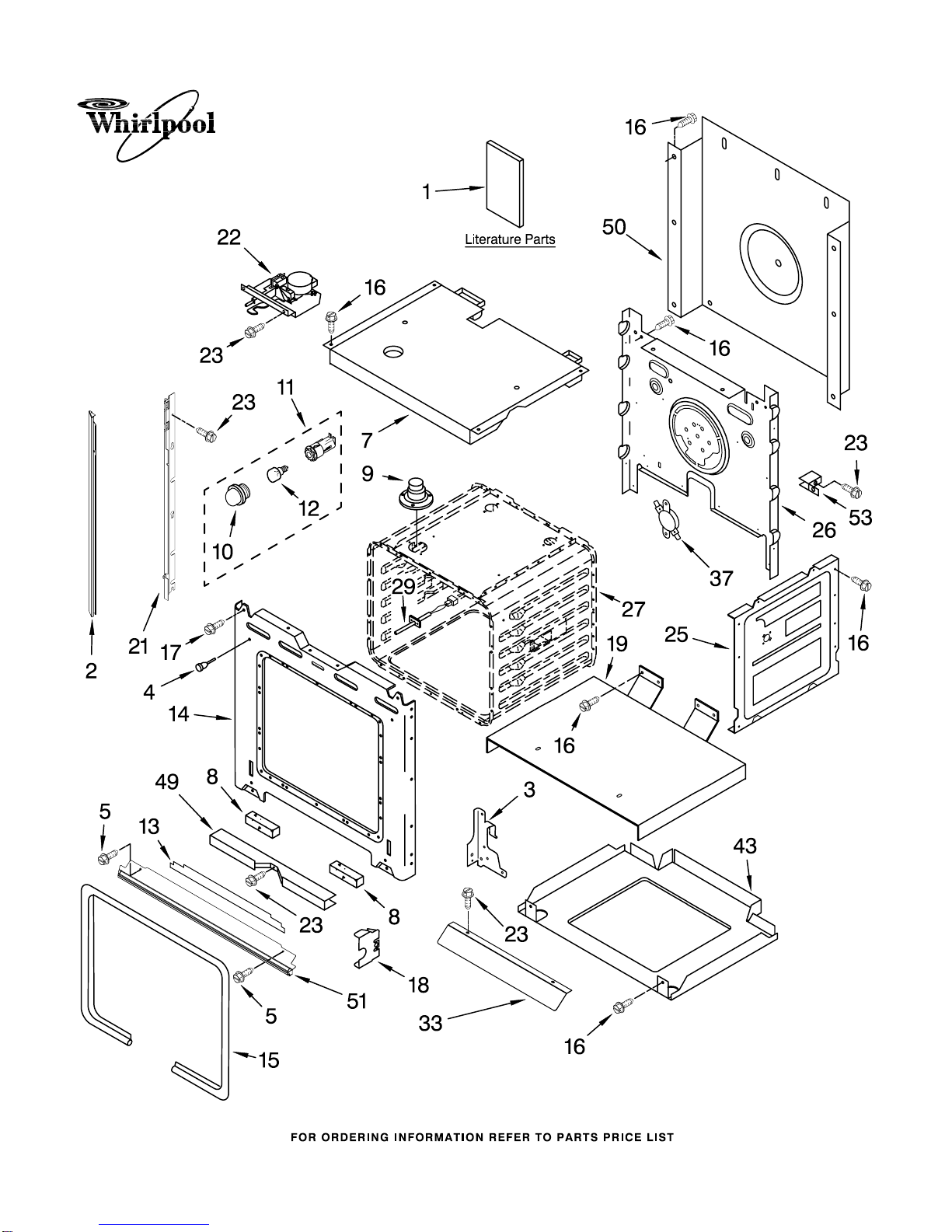

OVEN PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186430

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303871 Installation

Instructions

8303870 Use & Care Guide

(Oven)

8301758 Tech Sheet

8303946 Installation/

Undercounter

8301928 Installation/

MWO Trim Kit

3191638 Safer Cooking Tips

2 Trim, Side

8302908 RH Black

8302909 RH White

8302911 RH Biscuit

8302907 LH Black

8302910 LH White

8302912 LH Biscuit

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 Screw

3400832 Black

3400805 Zinc

7 4455863 Top Chassis

8 4452490 Spacer, Foam

9 4452158 Tube, Vent

3196176 Screw

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb,Light

13 8300825 Insulation,

Bottom Vent

14 4455610 Frame, Front

4449040 Screw

4450118 Nut

15 4455380 Gasket, Door

16 4449809 Screw

17 4449040 Screw

18 4452152 Bracket, Mounting

(Bottom Vent)

19 4451476 Support, Insulation

4449154 Screw

21 Rail, Side

8303115 Right Side

8303116 Left Side

4448444 Grommet

22 9759525 Latch, Motorized

23 4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

33 9760675 Deflector, Vent

37 9759243 Thermostat (TOD)

(Temp.) SPST

43 4450525 Base, Chassis

49 4448933 Retainer,Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302942 Black

8302943 White

8302944 Biscuit

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

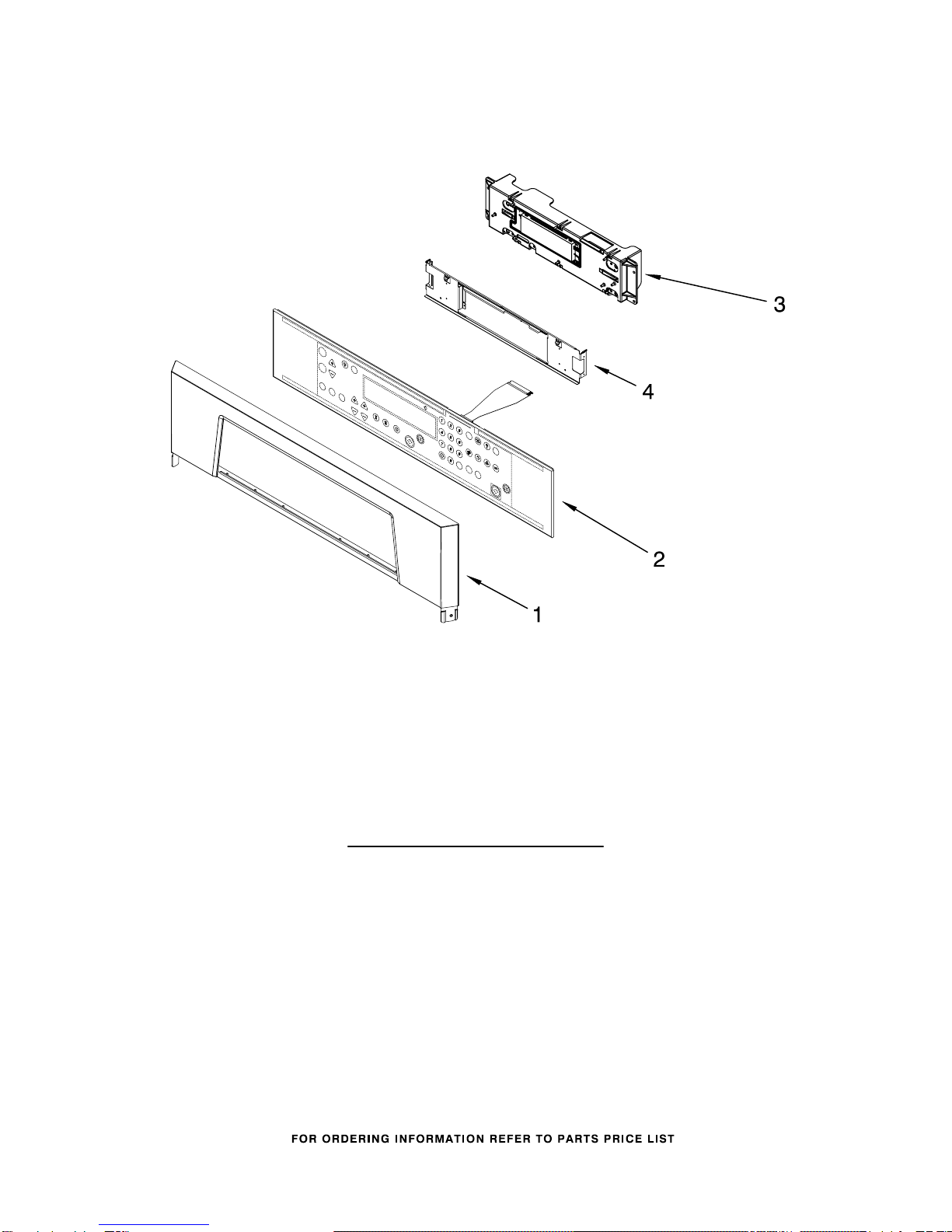

CONTROL PANEL PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186430

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302840 Black

8302841 White

8302842 Biscuit

2 Membrane Switch

8304239 Black

8304240 White

8304241 Biscuit

3 8303885 Microcomputer

4 8304163 Bracket, Control

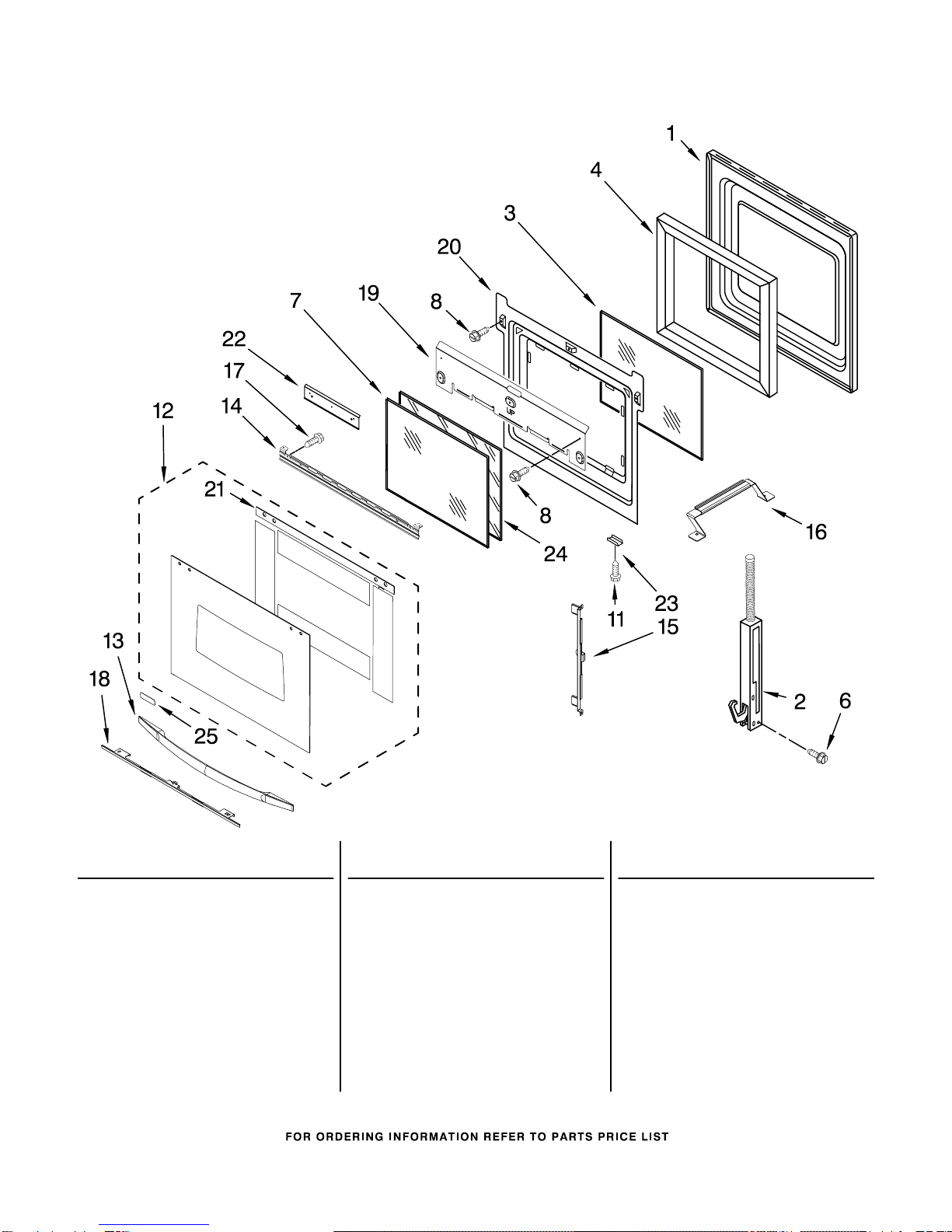

OVEN DOOR PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186430

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303698 Door Liner

2 Hinge, Door

9760567 R.Side (Red)

9760568 L.Side (Red)

9760569 R.Side (Green)

9760570 L.Side (Green)

3 4449247 Glass, Inner

4 4451720 Insulation,Door

6 4449743 Screw

7 9759223 Glass, Inner

8 4449809 Screw

11 3400832 Screw

12 Door Glass,Assy.

8303328 Black

8303337 White

8303340 Biscuit

8303312 Stainless Steel

13 Door Handle

8302807 Black

8302808 White

8302809 Biscuit

14 8303165 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 4451040 Screw

18 Retainer, Door

8303387BL

Black

8303387WH

White

8303877BT

Biscuit

19 4457101 Shield, Heat

20 4457130 Retainer, Glass

21 8303876 Seal, Door Top

22 4457112 Shield, Heat(Btm)

23 4451432 Retainer, Clip

(For SS Model)

24 9759226 Glass, Inner

25 8303811 Nameplate

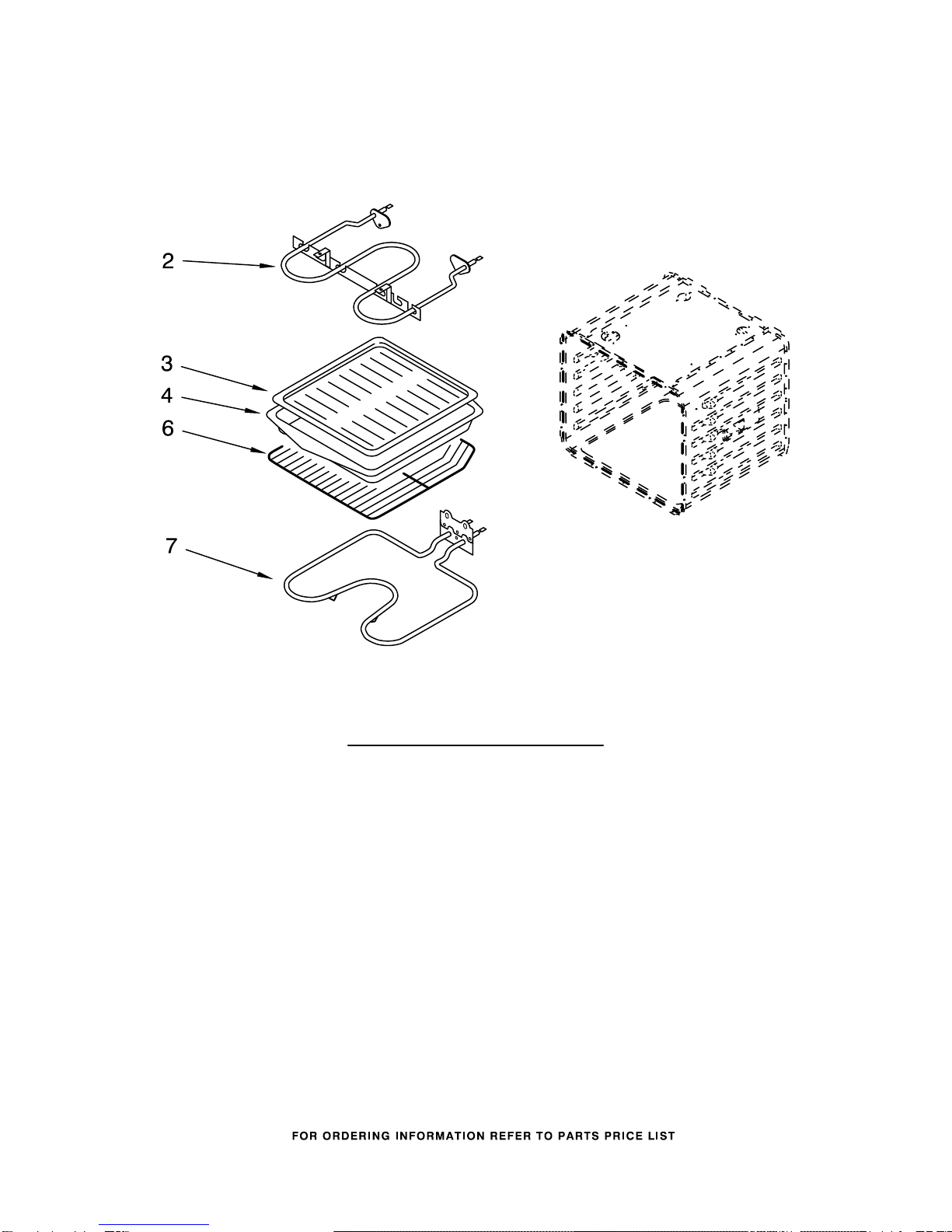

INTERNAL OVEN PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186430

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448716 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

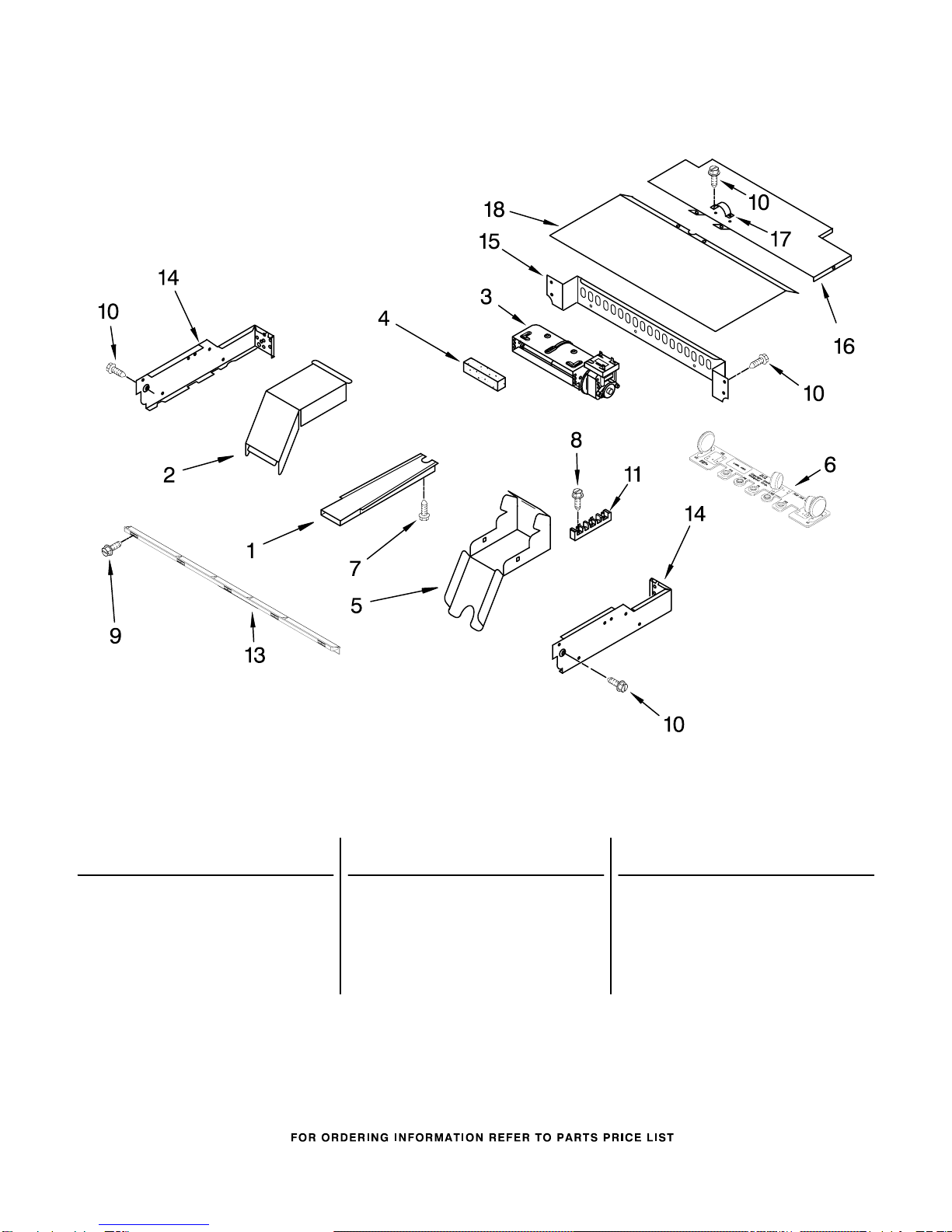

TOP VENTING PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186430

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent,Exhaust

2 4455178 Elbow, Vent−Top

3 4457289 Blower, 60MM

4 4451758 Foam, Block

5 4455177 Elbow, Vent−Bottom

6 8302143 Suppressor

7 4449040 Screw

8 3400080 Screw

9 4450038 Screw

10 4449809 Screw

11 4449868 Block, Terminal

13 8303499 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450549 Cover, Top Rear

17 4448664 Clamp

18 4452365 Cover, Top Front

OPTIONAL PARTS

For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186430

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

4449809 Screw

8301400 Harness, Wire

(Main)

4451761 Support, Wiring

4454842 Tie, Cable

4450952 Conduit

4450800 Screw, Ground

4448664 Clamp

4449809 Screw

112432 Nut

4454835 Tie, Cable

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (2)
