AMW 518

INSTALLATION

PRIOR TO CONNECTING AFTER CONNECTING

Do not remove the microwave inlet

protection plates located on the side of the

oven cavity wall. They prevent grease & food

particles from entering the microwave inlet

channels.

Ensure that the appliance is not damaged.

Check that the oven door closes ﬁrmly against

the door support and that the internal door

seal is not damaged. Empty the oven and

clean the interior with a soft, damp cloth.

In the case of a permanent connection, the

appliance should be installed by a qualiﬁed

technician.

The manufacturers are not liable for any

problems caused by the user’s failure to

observe these instructions.

The earthing of this appliance is compulsory.

The manufacturer will accept no responsibility

for injury to persons, animals or damage to

objects arising from the non-observance of

this requirement.

Ensure the oven cavity is empty before

mounting.

Do not operate this appliance if it has

a damaged mains cord or plug, if it is not

working properly, or if it has been damaged

or dropped. Do not immerse the mains cord

or plug in water. Keep the cord away from hot

surfaces. Electrical shock, ﬁre or other hazards

may result.

Follow the supplied separate mounting instructions

when installing the appliance.

The oven can be operated only if the oven

door is ﬁrmly closed.

Important!

A permanent connection requires the

installation of a separating device. The

separating device must have an omnipolar

contact opening of more than 3 mm including

LS switches, safety valves and relays. The

separating device must be connected directly

to the terminal.

Check that the voltage on the rating plate

corresponds to the voltage in your home.

WARNING!

Only allow children to use the oven with adult

supervision after adequate instructions have

been given so that the child is able to use the

oven in a safe way and understands the hazards

of improper use.

The appliance is not intended for use by young

children or inﬁrm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

If your oven have a combination mode, children

should only use the oven under adult supervision

due to the temperatures generated.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Do not heat, or use ﬂammable materials

in or near the oven. Fumes can create a ﬁre

hazard or explosion.

Do not use corrosive chemicals or vapors in

this appliance. This type of oven is speciﬁcally

designed to heat or cook food. It is not

designed for industrial or laboratory use.

Do not use your microwave oven for drying

textiles, paper, spices, herbs, wood, ﬂowers,

fruit or other combustible materials. Fire could

result.

If material inside / outside the oven should

ignite, keep oven door closed and turn the

oven oﬀ. Disconnect the power cord or shut

oﬀ power at the fuse or circuit breaker panel.

Do not over-cook food. Fire could result.

Do not leave the oven unattended,

especially when using paper, plastic or other

combustible materials in the cooking process.

Paper can char or burn and some plastics can

melt if used when heating food.

WARNING!

Do not use your microwave oven for

heating anything in airtight sealed

containers. The pressure increases

and may cause damage when

opening or may explode.

WARNING!

The door seals and the door seal areas must

be regularly inspected for damage. If these

areas are damaged the appliance should not be

operated until it has been repaired by a trained

service technician.

EGGS

Do not use your microwave

oven for cooking or reheating

whole eggs with or without shell

since they may explode even

after microwave heating has ended.

PRECAUTIONS

GENERAL

This appliance is designed for domestic use

only!

LIQUIDS

E.g. beverages or water

in your microwave oven,

overheating the liquid beyond

boiling point can occur

without evidence of bubbling. This could

result in a sudden boil over of the hot liquid.

To prevent this possibility the following steps

should be taken:

1. Avoid using straight-sided containers with

narrow necks.

2. Stir the liquid before placing the container

in the oven and let the teaspoon remain

in the container.

3. After heating, allow standing for a short

time, stirring again before carefully

removing the container from the oven.

The appliance should not be operated

without food in the oven when using

microwaves. Operation in this manner is likely to

damage the appliance.

If you practice operating the oven, put a

glass of water inside. The water will absorb the

microwave energy and the oven will not be

damaged.

Remove wire twist-ties from

paper or plastic bags before

placing bag in the oven.

DEEP-FRYING

Do not use your microwave

oven for deep-frying, because

the oil temperature cannot be

controlled.

Use hot pads or oven mitts to prevent burns,

when touching containers, oven parts, and

pan after cooking.

CAREFUL

Always refer to a microwave cookbook (not

included) for details. Especially, if cooking or

reheating food that contains alcohol.

After heating baby food or

liquids in a baby bottle or in a

baby food jar, always stir and

check the temperature before

serving. This will ensure that the heat is

evenly distributed and the risk of scalding

or burns can be avoided.

Ensure the Lid and the Teat are removed

before heating!

Do not use the cavity for any storage

purposes.

Do not remove the microwave inlet

protection plates located on the side of the

oven cavity wall. They prevent grease & food

particles from entering the microwave inlet

channels.

PUSH - PUSH KNOBS

The knobs of this oven are aligned with the

buttons on the panel, at delivery. The

knobs will slide out if pushed and their

various functions can be accessed.

It is not neccessary to have them

petruding from the panel during

operation. Simply push them back

into the panel when you

are done with the setting

and continue to operate the oven.

GLASS TURNTABLE

Use the Glass turntable with

all cooking methods. It collects

the dripping juices and food

particles that otherwise would

stain and soil the interior of the oven.

* Place the Glass turntable on the turntable

support.

ACCESSORIES

GENERAL

There are a number of accessories available

on the market. Before you buy, ensure they are

suitable for microwave use.

When you put food and accessories in the

microwave oven, ensure that they do not come

in contact with the interior of the oven. This is

especially important with accessories made

of metal or metal parts.

If accessories containing metal comes in

contact with the oven interior, while the oven

is in operation, sparking can occur and the

oven could be damaged.

Always ensure that the turntable is able to

turn freely before starting the oven.

Ensure that the utensils you use are oven

proof and allow microwaves to pass through

them before cooking.

TURNTABLE SUPPORT

Use the turntable support under

the Glass turntable. Never put any

other utensils on the turntable

support.

* Fit the turntable support in the oven.

CRISP HANDLE

Use the supplied special

Crisp handle to remove the hot

Crisp plate from the oven.

CRISP-PLATE

Place the food directly on the

Crisp-plate. Always use the Glass

turntable as support when using

the Crisp-plate.

Do not place any utensils on the

Crisp-plate since it will quickly

become very hot and is likely to

cause damage to the utensil.

The Crisp-plate may be preheated

before use (max. 3 min). Always use the Crisp

function when preheating the crisp-plate.

WIRE RACK

Use the Wire rack when grilling

using the grill or cooking in

combination (microwaves and

grill).

Ensure that the utensils you use are oven

proof and allow microwaves to pass through

them before cooking.

CLOCK

Keep the door open while setting

the Clock. This gives you 10 minutes

to complete the setting of the

Clock. Otherwise, each step must be

accomplished within 60 seconds.

1(a). Turn the multifunction knob to the zero

position.

2(b). Press the Select button (3 seconds) until

the left-hand digit (hour’s) ﬂicker.

3. Turn the +/- knob to set the hours.

4. Press the Select button again. (The two right

hand digits (minutes) ﬂicker).

5. Turn the +/- knob to set the minutes.

6. Press the Select button again.

The Clock is set and in operation.

Note: When the appliance is ﬁrst plugged in or

after a power failure, the display is blank. If the

clock is not set, the display will remain blank

until the cooking time is set.

START PROTECTION / CHILD LOCK

This automatic safety function is activated

one minute after the oven has returned to

“stand by mode“.

PAUSE OR STOP COOKING

To pause cooking:

The cooking can be paused to check, turn or

stir the food by opening the door. The setting

will be maintained for 10 minutes.

To continue cooking:

Close the door and press the Start

button ONCE. The cooking is resumed

from where it was paused.

Pressing the Start button TWICE will increase

the time by 30 seconds.

If you don’t want to continue

cooking:

Remove the food, close the door and

press the STOP button

A beep will signal once a minute

for 10 minutes when the cooking is

ﬁnished. Press the STOP button or open the

door to cancel the signal.

Note: The oven will only hold the settings for

60 seconds if the door is opened and then

closed after the cooking is ﬁnished.

The door must be opened and closed e.g.

putting food into it, before the safety lock is

released. Else the display will show “door“.

1(a) 35

If you wish to remove the clock from the

display once it has been set,

follow steps (a) & (b) and press the Stop button

(c).

(c)

To reinstate the clock, follow the above

procedure.

1. Turn the multifunction knob to the zero

position.

2. Turn the +/- knob to set the time to measure.

KITCHEN TIMER

Use this function when you need a

kitchen timer to measure exact time for

various purposes such as cooking eggs,

pasta or letting the dough rise before

baking etc.

The timer autostarts the countdown after 1

second.

1. Turn the multifunction knob to the

microwave position.

2. Press the Select button to select power

level.

3. Turn the +/- knob to set the prefered power

level.

4. Press the Select button to select time.

5. Turn the +/- knob to set the cooking time.

6. Press the Start button.

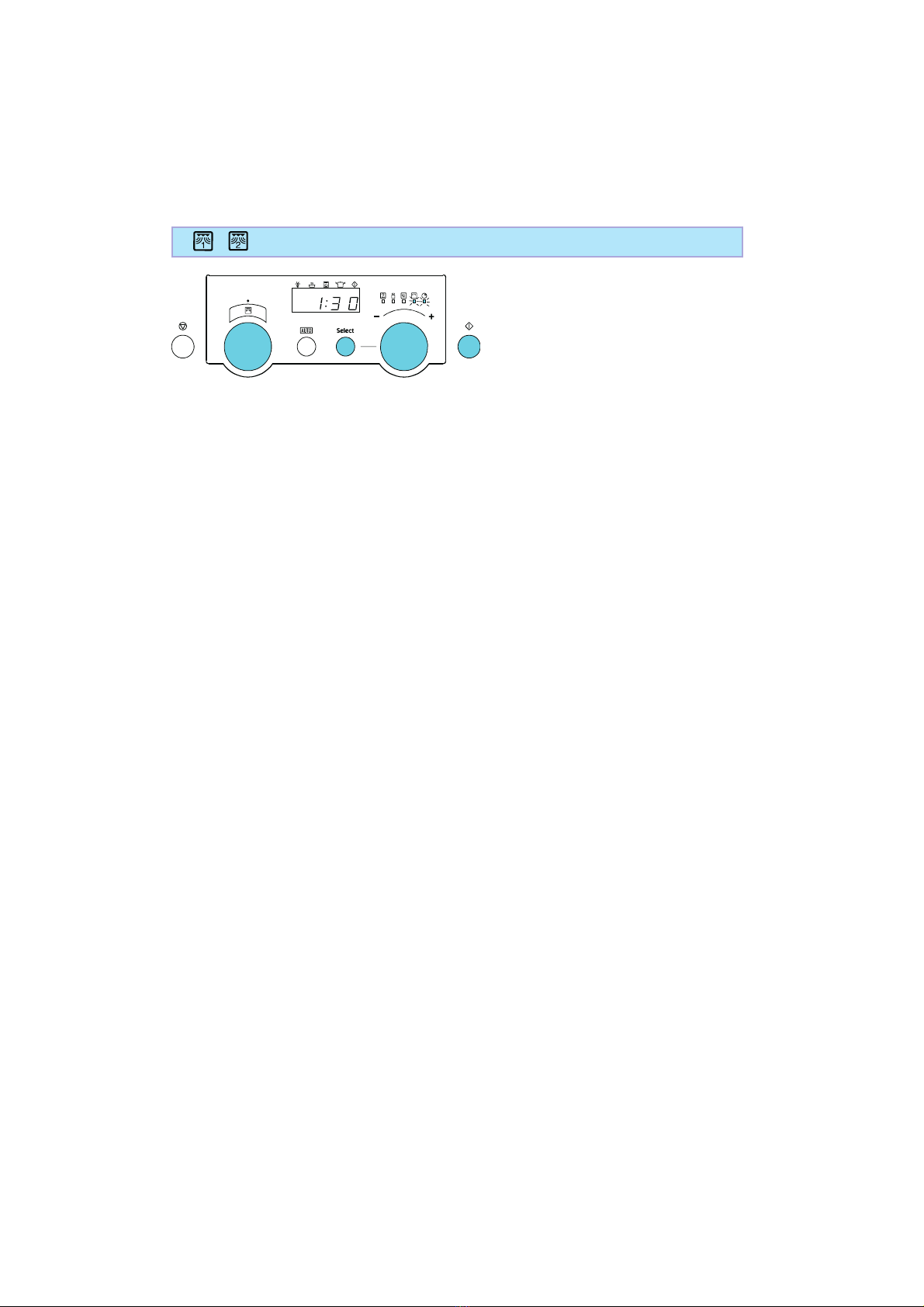

COOK & REHEAT WITH MICROWAVES

Use this function for normal cooking

and reheating, such as vegetables, ﬁsh,

potatoes and meat.

Once the cooking process has been started:

The time can easily be increased in 30-second

steps by pressing the Start button. Each press

increases the time with 30 seconds. You may

also alter the time by turning the +/- knob to

increase or decrease the time.

By pressing the Select button you may switch

between cooking time and power level. Both

can be altered during cooking by turning the

+/- knob after selection.

123

456

An acoustic signal will be heard when the

timer has ﬁnished to count down.

GRILL

Use this function to quickly give a

pleasant brown surface to the food.

1. Turn the multifunction knob to the grill

position.

2. Turn the +/- knob to set the cooking time.

3. Press the Start button.

Do not leave the oven door open for long

periods when the Grill is in operation, as this

will cause a drop in temperature.

123

JET START

This function is used for quick reheating

of food with a high water content such as;

clear soups, coﬀee or tea.

This function automatically starts with

full microwave power level and the cooking

time set to 30 seconds. Each additional press

increases the time with 30 seconds. You may

also alter the time by turning the +/- knob

to increase or decrease the time after the

function has started.

1. Turn the multifunction knob to the

microwave position.

2. Press the Start button.

IMPORTANT!

Ensure that the utensils used are heat resistant

and ovenproof before grilling with them.

Do not use plastic utensils when grilling. They

will melt. Items of wood or paper are not suitable

either.

Do not use with this function.

Place food like cheese, toast, steaks and

sausages on the wire grid.

Note: If the cooking time is set to more than

90 minutes, the display will show ”CONT”, I.E.

the oven will run continuously without any

timelimit until you turn the oven oﬀ.

GRILL COMBI

1. Turn the multifunction knob to the grill low

or high position.

2. Turn the +/- knob to set the cooking time.

4. Press the Select button to select microwave

power level.

5. Turn the +/- knob to set the power level.

6. Press the Start button.

Using the multifunction knob you can select

two diﬀerent power levels on the grill. High

grill is 80% (2) of full power and Low grill is

60% (1) of full power.

The Max. possible microwave power level

when using the Grill is limited to a factory-

preset level.

Use this function to cook such food

as Gratin’s, Lasagne, Poultry and Baked

potatoes.

CRISP

Use this function to reheat and cook

pizzas and other dough based food. It

is also good for frying bacon and eggs,

sausages, hamburgers etc.

1. Turn the multifunction knob to the crisp

position.

2. Turn the +/- knob to set the cooking time.

3. Press the Start button.

The oven automatically works with

Microwaves and Grill in order to heat the Crisp-

plate. This way the Crisp-plate will rapidly

reach its working temperature and begin to

brown and crisp the food.

IMPORTANT!

123

Do not use with this function.

It is not possible to change or switch, the

Power level or Grill, on/oﬀ, when using the Crisp

function.

Ensure that the Crisp-plate is correctly placed in

the middle of the Glass turntable.

The oven and the crisp-plate become very hot

when using this function.

Do not place the hot crisp-plate on any

surface susceptible to heat.

Be careful, not to touch the ceiling beneath the

Grill element.

Use oven mittens or the special

Crisp handle supplied when

removing the hot Crisp-plate.

Only use the supplied Crisp plate

with this function. Other

available Crisp plate on the

market will not give the

correct result when using this

function.

Table des matières

Autres manuels Whirlpool Four

Whirlpool

Whirlpool RMC275 Manuel utilisateur

Whirlpool

Whirlpool 6AKZ 186/IX Manuel utilisateur

Whirlpool

Whirlpool RB1200XV Manuel utilisateur

Whirlpool

Whirlpool RB262PXY Manuel utilisateur

Whirlpool

Whirlpool OMR58CU1SX Manuel utilisateur

Whirlpool

Whirlpool RB47OPXL Manuel utilisateur

Whirlpool

Whirlpool AKZ9 6270 IX Manuel utilisateur

Whirlpool

Whirlpool AKZ 430 Mode d'emploi

Whirlpool

Whirlpool AKZM 656 Manuel utilisateur

Whirlpool

Whirlpool WOS92E Manuel utilisateur

Whirlpool

Whirlpool AKZ 520 Mode d'emploi

Whirlpool

Whirlpool GBS309PV Guide de l'utilisateur

Whirlpool

Whirlpool AKZ9 6220 WH Manuel utilisateur

Whirlpool

Whirlpool BUILT-IN MICROWAVE OVEN Manuel utilisateur

Whirlpool

Whirlpool RS675PXGB7 Manuel utilisateur

Whirlpool

Whirlpool GGG388LX - ELECTRIC DOUBLE OVEN Manuel utilisateur

Whirlpool

Whirlpool RB270PXK Manuel utilisateur

Whirlpool

Whirlpool 24" (61.0 CM) GAS SINGLEAND DOUBLE BUILT-IN... Manuel utilisateur

Whirlpool

Whirlpool AKZM 8920 Mode d'emploi

Whirlpool

Whirlpool MIcrowave Ovens Mode d'emploi

Whirlpool

Whirlpool 30" WOS51EC0A Manuel utilisateur

Whirlpool

Whirlpool RB120PXK Manuel utilisateur

Whirlpool

Whirlpool W11I OP1 4S2 H Manuel utilisateur

Whirlpool

Whirlpool AKP 756/IX/01 Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
