Cycle control knob

Start button

Model and serial

Electronic

DRY-MISER” sensor

Drying rack

(not shown)

Drum light

(in drum)

SUPERCAPACITY

AUTOMATICDRYERS

LE9680XW LG968lXW

All manuals and user guides at all-guides.com

all-guides.com

Contents

Page

Important Safety

Instructions.

Additional safety instructions

and your responsibilities

Operating Instructions

Starting your dryer

The automatic cycles

Timed drying

Using fluff air .

Using TUMBLE PRESS@

Using damp dry .

End-of-cycle signal

Lint signal

Additional Dryer Features

Gentle heat system

Using the drying rack

FINISH GUARD@ setting

Caring For Your Dryer

Cleaning the lint screen

Cleaning the dryer interior

Lint removal

Changing the drum light

If You Need Service Or

Assistance

Whirlpool Automatic

Dryer Warranty.

01990 Whirlpool Corporation

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used.

To remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue

as described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe oul the dryer drum

with a damp cloth before using to re-

move dust from storing or shipping.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this Information ready

if you need service or call with a

question.

Copy model and serial numbers

from plate (on the frame behind the

door) and purchase date from sales

slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

All manuals and user guides at all-guides.com

ImportantSafetyInstructions

To reduce the risk of fire, electrical shock, or

injury to persons when using your dryer, follow

basic precautions, including the following:

Read all instructions before

using the dryer.

NEVER dry items cleaned,

washed, soaked in or spotted with

wax, paint, gasoline or flammable

fluids in the dryer. The fumes can

create a FIRE HAZARD or

EXPLOSION. ALWAYS hand

launder and air dry fabrics contain-

ing these materials.

NEVER allow children to operate,

play with or crawl inside the dryer.

Close supervision of children is

necessary when the dryer is used

near children.

DO NOT reach into a dryer if the

drum is moving.

When discarding an old dryer,

ALWAYS remove the door to

prevent accidental entrapment.

DO NOT install or store dryer

where it will be exposed to the

weather.

DO NOT tamper with the controls.

You are responsible for

making sure that your

dryer is installed, repaired and

parts replaced by a qualified

person.

Use only fabric softeners specifi-

tally labeled as not being harmful

to the dryer.

* FIRE HAZARD and DAMAGE to

materials can result from:

-drying rubber, rubber-like and

heat sensitive materials with heat.

- allowing lint build-up inside the

dryer or exhaust system. Clean-

ing should be done periodically

by a qualified person.

Clean lint screen before or after

each load.

DO NOT let dust, lint, paper, rags,

chemicals, etc. pile up around or

under the dryer.

Dryer must be electrically

grounded. See the Installation

Instructions.

- SAVE THESE INSTRUCTIONS -

Additionalsafetyinstructionsandyourresponsibilities

NEVER operate the dryer if:

-it is not working right (i.e. noisy, too hot).

- it is damaged.

-parts are missing (i.e. door latch).

-all panels are not In place.

-the lint screen is loose, damaged

or missing.

ALWAYS shut off the gas valve

before leaving on vacalion if you have

a gas dryer.

ALWAYS unplug the power supply

cord or turn off electrical power before

attempting to service the dryer. Shut

off

GAS VALVE ifyou have a gas dryer.

You are responsible for making

sure that your dryer:

-is properly maintained.

is properly installed and leveled

on a floor that can support the

weight in a well ventilated room.’

- is located in an area where the

temperature is above 45°F (7.2%)

- is connected to the proper outlet

and electrical supply.’

- is properly connected to fuel and

exhaust systems.’

- is not installed against drapes or

curtains.*

- is used only for jobs normally

expected of home clothes dryers.

-is not used by anyone unable to

operate it properly.

‘See the Installation Instructions for

complete information.

All manuals and user guides at all-guides.com

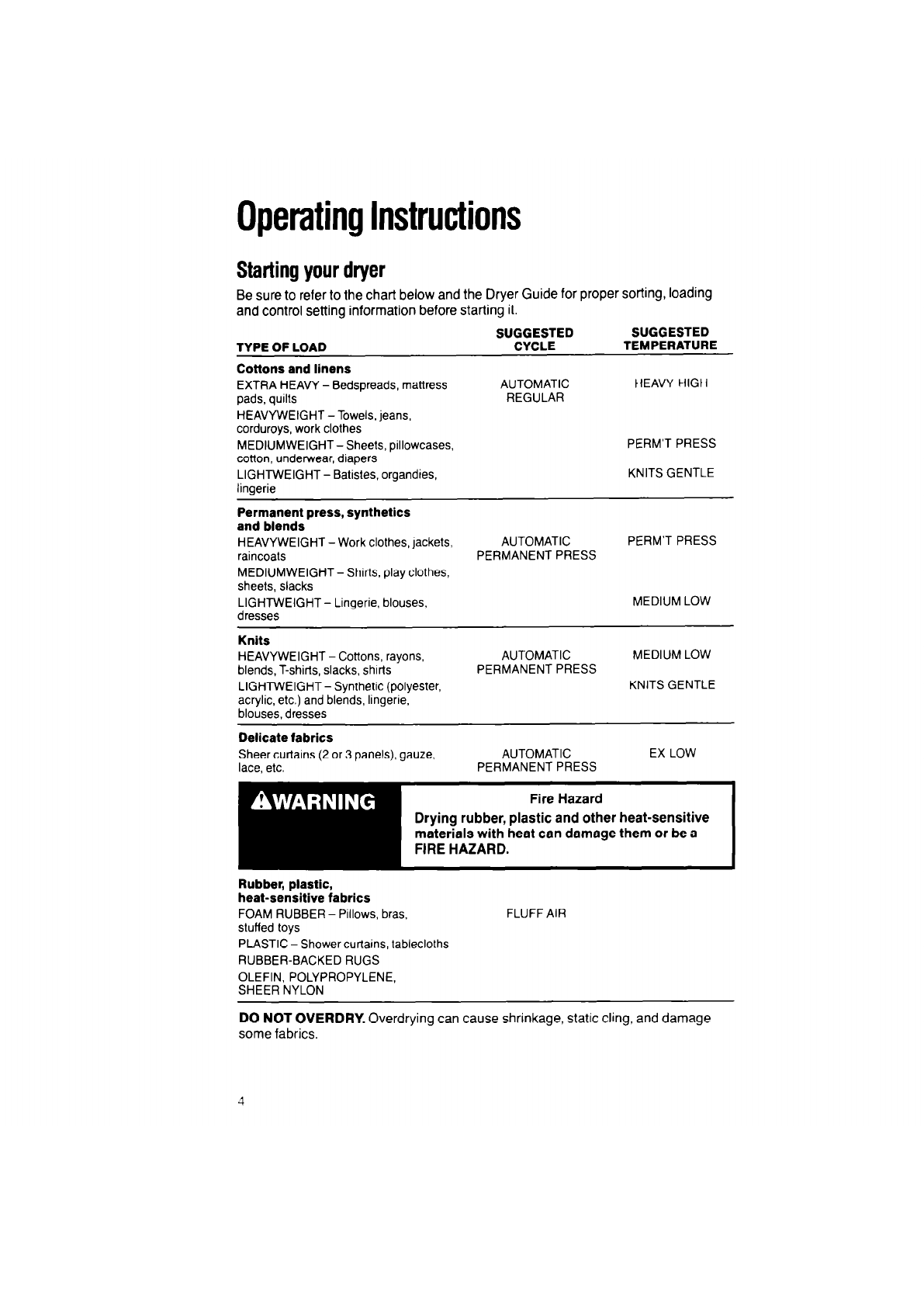

OperatingInstructions

Startingyourdryer

Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting it.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

Cottons and linens

EXTRA HEAVY - Bedspreads, mattress AUTOMATIC HEAVY HIGH

pads, quilts REGULAR

HEAVYWEIGHT-Towels, jeans,

corduroys, work clothes

MEDIUMWEIGHT - Sheets, pillowcases, PERM’T PRESS

cotton, underwear, diapers

LIGHTWEIGHT - Balistes. organdies, KNITS GENTLE

lingerie

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC PERM’T PRESS

raincoats PERMANENT PRESS

MEDIUMWEIGHT - Shirts, play clothes,

sheets, slacks

LIGHTWEIGHT - Lingerie, blouses, MEDIUM LOW

dresses

Knits

HEAVYWEIGHT - Cottons, rayons,

blends, T-shirts, slacks, shorts

LIGHTWEIGHT-Synthetic (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

AUTOMATIC MEDIUM LOW

PERMANENT PRESS KNITS GENTLE

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze,

lace, etc. AUTOMATIC EX LOW

PERMANENT PRESS

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER - Pillows, bras,

sluffed toys

PLASTIC-Shower curtains, lablecloths

RUBBER-BACKED RUGS

OLEFIN. POLYPROPYLENE,

SHEER NYLON

FLUFF AIR

DO NOT OVERDRY. Overdrying can cause shrinkage, static cling, and damage

some fabrics.

All manuals and user guides at all-guides.com

1. Select a cycle by turning the Cycle

Control Knob either way. Stop when

the indicator on the knob’s outer ring

points to the cycle and setting you

want. See pages 6-6 for further cycle

information.

2. Press a temperature selection

which matches the type of fabnc

being dried. The red indicator will

appear over the temperature selec-

tion you have chosen.

3. Push the Start Button to start

the dryer.

4. To stop and restart the dryer:

Open the door or turn the Cycle Con-

trol Knob to OFF to stop the dryer.

Close the door, select a cycle (if nec-

essary) and push the Start Button to

restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not in

use. If the dryer is stopped before the

cycle is finished, turn the Cycle Control

Knob to an OFF area.

All manuals and user guides at all-guides.com

Operating Instructions

Continued

Theautomaticcycles

The automatic cycles allow you to

select the degree of dryness you prefer

for the clothes being dried.

The electronic DRY-MISER@ control

is an electronic sensor that determines

the amount of moisture in the clothes.

The dryer automatically shuts off when

the proper dryness is reached.

The Cycle Control Knob will not move

until the clothes load is almost dry, or

the Cool-Down portion of the cycle has

been reached. After the Cool-Down

portion is complete, the Cycle Control

Knob automatically moves to an OFF

area and tumbling stops.

Use AUTOMATIC PERMANENT

PRESS to dry permanent press, knits

and other synthetic items. The load

tumbles without heat during the last 10

minutes. This helps keep wrinkles from

setting in and makes the load easier

to handle.

shrinkage, static cling and damage to

some fabrics.

All manuals and user guides at all-guides.com

all-guides.com

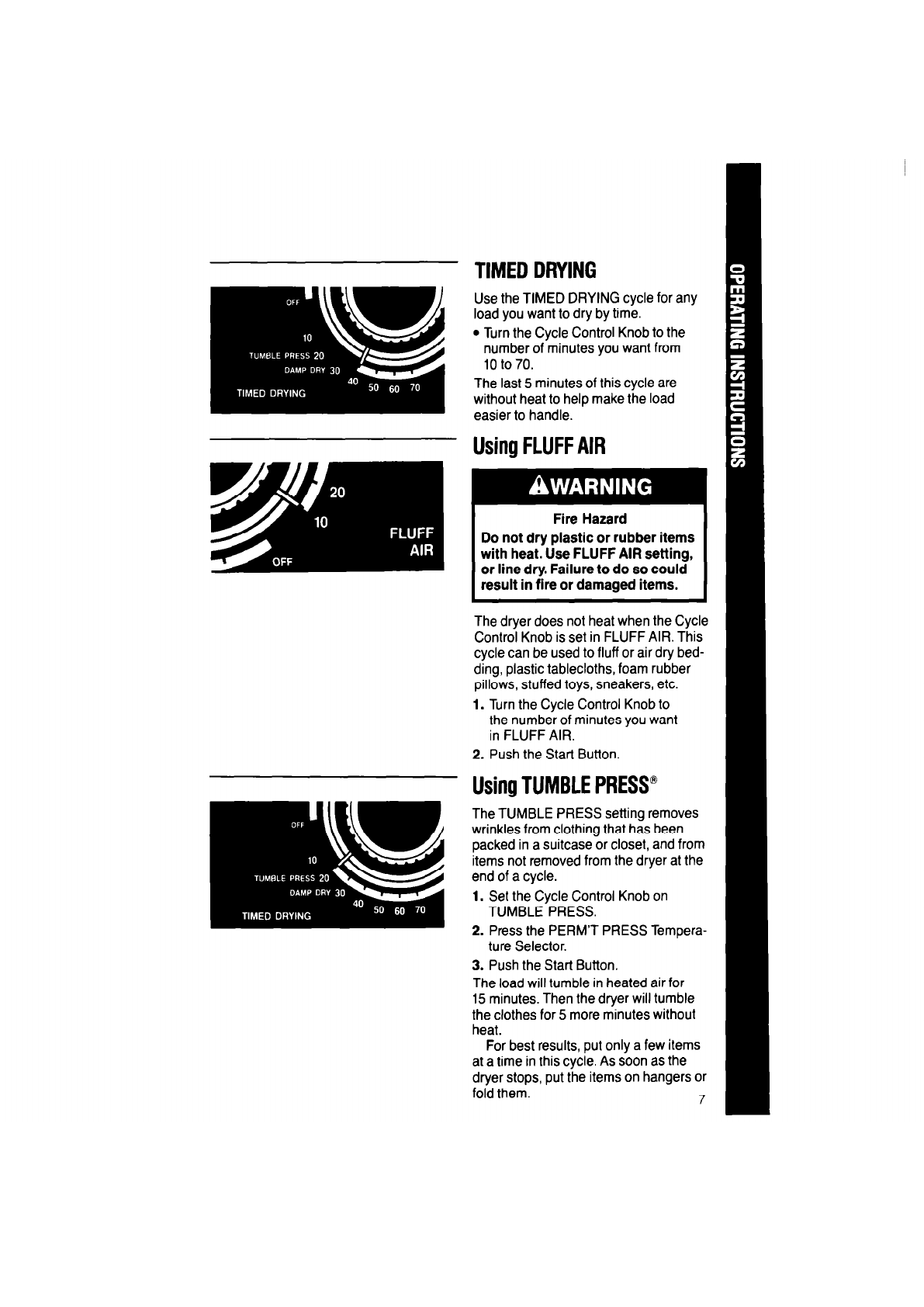

TIMEDDRYING

Use the TIMED DRYING cycle for any

load you want to dry by time.

Turn the Cycle Control Knob to the

number of minutes you want from

10 to 70.

The last 5 minutes of this cycle are

without heat to help make the load

easier to handle.

UsingFLUFFAIR

Fire Hazard

Do not dry plastic or rubber items

with heat. Use FLUFF AIR setting,

or line dry. Failure to do so could

result in fire or damaged items.

The dryer does not heat when the Cycle

Control Knob is set in FLUFF AIR. This

cycle can be used to fluff or air dry bed-

ding, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Cycle Control Knob to

the number of minutes you want

in FLUFF AIR.

2. Push the Start Button.

UsingTUMBLEPRESS”

The TUMBLE PRESS setting removes

wrinkles from clothing that has been

packed in a suitcase or closet, and from

items not removed from the dryer at the

end of a cycle.

1. Set the Cycle Control Knob on

TUMBLE PRESS.

2. Press the PERM’T PRESS Tempera-

ture Selector.

3. Push the Start Button.

The load will tumble in heated air for

15 minutes. Then the dryer will tumble

the clothes for 5 more minutes without

heat.

For best results, put only a few items

at a time in this cycle. As soon as the

dryer stops, put the items on hangers or

fold them. 7

All manuals and user guides at all-guides.com

Operating Instructions

Continued

UsingDAMPDRY

Use this setting to dry damp items that

do not require an entire drying cycle, or

to dry items to damp level. (Two exam-

ples are heavy cottons, such as jeans,

which you do not want to become stiff,

or cotton clothes which are easier to

press when damp.)

1. Set the Cycle Control Knob on

DAMP DRY in the TIMED DRYING

cycle.

2. Push the Start Button.

The dryer tumbles the load with heat

for 25 minutes, then without heat for

5 minutes.

End-of-cyclesignal

The dryer sounds a signal to let you

know when the cycle is finished. The

signal can be turned on or off.

The signal is helpful when you are

drying permanent press, synthetics and

other items that should be taken out as

soon as the dryer stops. To use the

Cycle Signal:

Press the Cycle Signal ON pad before

a cycle starts. The ON indicator will

show. The signal will sound when the

cycle is finished.

If no signal is desired, press the Cycle

Signal OFF pad. Make sure the OFF

indicator is showing.

Lintsignal

Clean the lint screen before each

load. If you neglect to clean your lint

screen, a signal will sound. The (whistle

tone) signal lets you know the air flow is

being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint

screen as shown on page 11.

All manuals and user guides at all-guides.com

AdditionalDlyerFeatures

GentleHeatsystem

The dryer automatically reduces the

heat settings in HEAVY HIGH and

PERM’T PRESS. During the

IaSt

few

minutes of each of these temperature

settings, the dryer temperature gradu-

ally reduces to a lower heat setting.

This helps prevent overdrying.

Usingthedryingrack

The drying rack lets you dry items that

you may not want to tumble. The rack

does not move, but the drum turns.

Make sure nothing hangs over the edge

of the rack.

1. Fit rear legs of the rack into indenta-

tions in the back wall of the dryer.

2. Lower the front so the legs rest on

the dryer opening.

3. Put wet items on top of the rack.

Leave space between them so air

can reach all surfaces.

4. Close the door and start the dryer.

See page 10 for suggested cycles

and temperature settings when

using the drying rack.

All manuals and user guides at all-guides.com

Drying rack suggestions

Drying time will depend on how much moisture the items hold. The following chart

suggests cycles and temperature settings for different kinds of items that might best

be rack-dried.

SUGGESTED SUGGESTED

TO RACK DRY: CYCLE TEMPERATURE

Wool sweaters

(Block to shape and lay flat on

the rack.)

TIMED DRYING KNITS GENTLE

Stuffed toys or pillows

(Cotton or polyester fiber

filled.) TIMED DRYING PERM’T PRESS

Stuffed toys or pillows

(Foam rubber filled.) FLUFF AIR

Sneakers or canvas shoes FLUFF AIR

NOTE:

The rack must be removed for normal tumble drying.

FINISHGUARD”setting

When you are unable to remove a

toad from the dryer as soon as it stops,

wrinkles can form.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid wrinkles

that set in when the load remains in

the drum.

You don’t have to set the Cycle

Control Knob for FINISH GUARD.

FINISH GUARD takes over automati-

tally to protect the load if you don’t

open the door within 5 minutes after the

PERMANENT PRESS cycle stops.

A signal will sound every 5 minutes

during FINISH GUARD, for up to 40

minutes. The signal will stop when the

dryer door is opened.

All manuals and user guides at all-guides.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Séchoir

Whirlpool

Whirlpool LE6055XSWO Manuel utilisateur

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Manuel utilisateur

Whirlpool

Whirlpool LG5761XS Manuel utilisateur

Whirlpool

Whirlpool Cabrio W10151492A Manuel utilisateur

Whirlpool

Whirlpool LET7646DQ0 Manuel utilisateur

Whirlpool

Whirlpool Cabrio,- WED7300X Manuel utilisateur

Whirlpool

Whirlpool LGR4634EQ3 Manuel utilisateur

Whirlpool

Whirlpool WGD6400SW - 29" Gas Dryer Manuel utilisateur

Whirlpool

Whirlpool WGD7800XB0 Manuel utilisateur

Whirlpool

Whirlpool LG493lXT Manuel utilisateur

Whirlpool

Whirlpool YWED9550WR0 Manuel utilisateur

Whirlpool

Whirlpool LER3422AW0 Manuel utilisateur

Whirlpool

Whirlpool AZA9791 Manuel utilisateur

Whirlpool

Whirlpool PROD 06SCII Manuel utilisateur

Whirlpool

Whirlpool LE4900XT Manuel utilisateur

Whirlpool

Whirlpool 4.3 CU FT Manuel utilisateur

Whirlpool

Whirlpool Cabrio 5800 Series Manuel utilisateur

Whirlpool

Whirlpool 7MWGD1860EM0 Manuel utilisateur

Whirlpool

Whirlpool WED8300SB1 Manuel utilisateur

Whirlpool

Whirlpool LGQ8000JQ5 Manuel utilisateur

Whirlpool

Whirlpool LGR4624BW0 Manuel utilisateur

Whirlpool

Whirlpool LE7800XK Manuel utilisateur

Whirlpool

Whirlpool W10596019A Manuel utilisateur

Whirlpool

Whirlpool WED5500BW0 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
