TOP AND CONSOLE PARTS

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

9−98 Litho in U.S.A. (djc) Part No. 4377865

GAS DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

4377865

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 3400859 Screw, Grounding

3 693995 Screw, Hex Head

4 Cap, End (L.H.)

3358528 White

3358529 Almond

5 3936144 Connector

7 Cap, End (R.H.)

3358513 White

3358514 Almond

8 357213 Nut, Push−In (2)

9 3395683 Housing, Connector

(Motor)

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 388326 Screw, Console

15 3397269 Connector

(Timer)

16 Top

3396022 White

3396023 Almond

17 3394427 Clip, Harness

18 94614 Terminal

21 3976569 Timer Assembly,

60 Hz.

23 3394291 Harness, Wiring

24 3403499 Connector,

2−Position

(Gas Valve)

25 3403498 Connector,

3−Position

(Gas Valve)

29 3390646 Screw, 8−18 x 5/16

39 3395382 Switch,

Push−To−Start

48 Timer Knob

Assembly

3406143 White

3406144 Almond

53 8054298 Bracket, Control

54 Panel, Control

3976748 White

3976749 Almond

75 717252 Receptacle,

Latching (2−Way)

81 Knob,

Push−To−Start

3406133 White

3406134 Almond

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LIT3406071

Use & Care Guide

LIT3405338

Instructions,

Installation

LIT3406688

Label, Wiring

Diagram

LITERATURE PARTS OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

CABINET PARTS

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

4377865

CABINET PARTS

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

4377865

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 5/8

2 343641 Screw, 10−16 x 1/2

3 Plug, Strike

Hole

3403630 White

3403631 Almond

4 Plug, Hinge

Hole (4)

3404413 White

3404414 Almond

5 3396795 Cover, Block

6 Plug, Front Panel

3394975 White

3394976 Almond

7 3396807 Panel, Rear

8 342055 Screw, 8−18 x 1/2

10 3406104 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 238614 Bumper

15 3394083 Clip, Front Panel

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

18 Cabinet

(Includes Illus.

Nos. 5, 7, 15,

16 & 57)

3399580 White

3399581 Almond

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Front Panel

Assembly

3403574 White

3403575 Almond

23 685203 Clip, Felt Pad

24 690081 Catch, Door

25 693995 Screw, Hex Head

28 3405514 Hinge & Pin

Assembly

33 3403431 Strike, Door

35 3403371 Door, Rear

36 Door, Front

3403361 White

3403362 Almond

37 Handle, Door

3405184 White

3405185 Almond

38 349464 Seal & Bearing

Assembly

42 3405245 Seal, Door

45 344020 Cord, Power

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3394341 Pulley, 60 Hz.

62 3976707 Motor, 60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3402844 Burner Assembly,

60 Hz.

(Refer To Pages

5 & 6 For Further

Breakdown)

68 341029 Clamp, Pipe

69 694572 Kit, Conversion

(Type 1, 2 & 3

To Type 4)

85 3401775 Valve, Gas

60 Hz.

(Complete)

86 686590 Ignitor

87 3393909 Screw & Washer

88 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

89 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

90 694421 Screw, Bracket

Mounting

(8−32 x 1/2)

91 694538 Bracket, Coil

93 694424 Leak Limiter

94 694423 Screw, Regulator

Adjustment

95 694422 Spring, Regulator

97 239822 Plug, Pipe

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

BA−141

3402844 BURNER ASSEMBLY

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

4377865

Illus. Part

No. No. DESCRIPTION

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

BA−141

1 3402844 Burner Assembly

60 Hz.

(Type 1, 2 & 3)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw,

8−18 x 3/8 (2)

9 Orifice, Burner

234826 Type 1

15775 Type 2

15419 Type 3

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 3401775 Valve, 60 Hz.

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

21 233273 Pipe, Gas Supply

22 3406052 Elbow Union Assembly

23 3393767 Pipe, Tail

24 233076 Nut, Compression

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1, 2 & 3)

to Type (4) L.P.G.

Following Parts Not Illustrated

3402844 BURNER ASSEMBLY

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

64377865

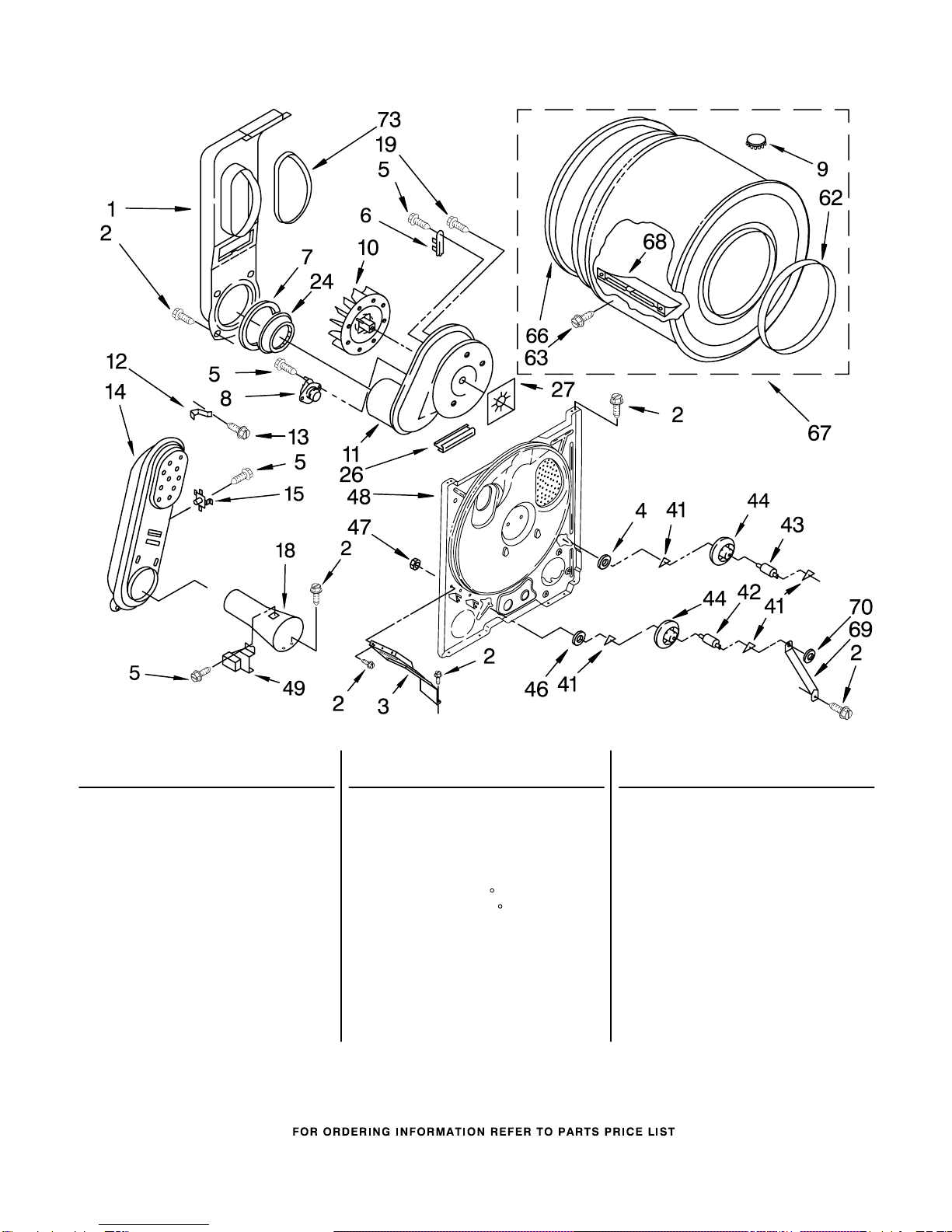

BULKHEAD PARTS

For Models: LGR4634EQ3, LGR4634EZ3

(Designer White) (Designer Almond)

4377865

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute

Assembly

2 343641 Screw, 10−16 x 1/2

3 3406022 Bracket, Bulkhead

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3392519 Fuse, Thermal

7 347139 Seal, Lint

Chute

8 3387134 Thermostat,

Internal−Bias

9 3977358 Drum Hole

Plug

10 694089 Wheel, Blower

11 3405016 Housing, Blower

12 3398161 Clip

13 489463 Screw, 8−18 x 5/8

14 3394343 Box, Heater

15 3403140 Thermostat,

205 F

(96.1 C)

18 8066048 Funnel, Burner

19 693995 Screw, 8−18 x 3/8

24 696302 Shield, Exhaust

26 3392247 Pad, Blower

Housing

27 3394196 Seal, Blower

Shaft

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

49 338906 Sensor, Radiant

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 337449 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 3976435 Bracket, Support

70 90296 Clip

73 339956 Seal
