TOP AND CONSOLE PARTS

For Models: LET7646DQ0, LET7646DZ0

(Designer White) (Designer Almond)

5−95 Litho in U.S.A. (tpm) Part No. 4377499

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LET7646DQ0, LET7646DZ0

(Designer White) (Designer Almond)

4377499

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 688805 Clip

3 Wire, Jumper

3393811 Violet

3393812 Blue

4 Cap, End (L.H.)

3358528 White

3358529 Almond

5 3390647 Screw, 8−18 x 1/2

6 3353145 Screw, Console

7 689180 Clip, Retainer

8 Cap, End (R.H.)

3358513 White

3358514 Almond

9 3388706 Resistor, Timer

10 349639 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3401684 Wire, Jumper

(Black)

15 693995 Screw

16 Top

3396022 White

3396023 Almond

17 694419 Buzzer, Mini

18 3401144 Connector

(Relay/Buzzer)

19 3395683 Connector,

(Motor)

20 3394427 Clip

21 3397269 Connector, Timer

22 3398137 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3401629 Harness, Wiring

(Includes 3397659

Terminal Block)

32 3390646 Screw, 8−18 x 5/16

39 3398095 Relay,

Push−To−Start

48 Timer Knob

Assembly

3396146 White

3396149 Almond

53 3396295 Bracket, Control

54 Panel, Control

3398529 White

3398530 Almond

72 690853 Wire, Ground

79 Switch,

Clean−Touch

3403966 White

3403967 Almond

81 Knob, Push

To Start

3358435 White

3358436 Almond

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401092

Use & Care Guide

LIT3397597

Instructions,

Installation

LIT3401723

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

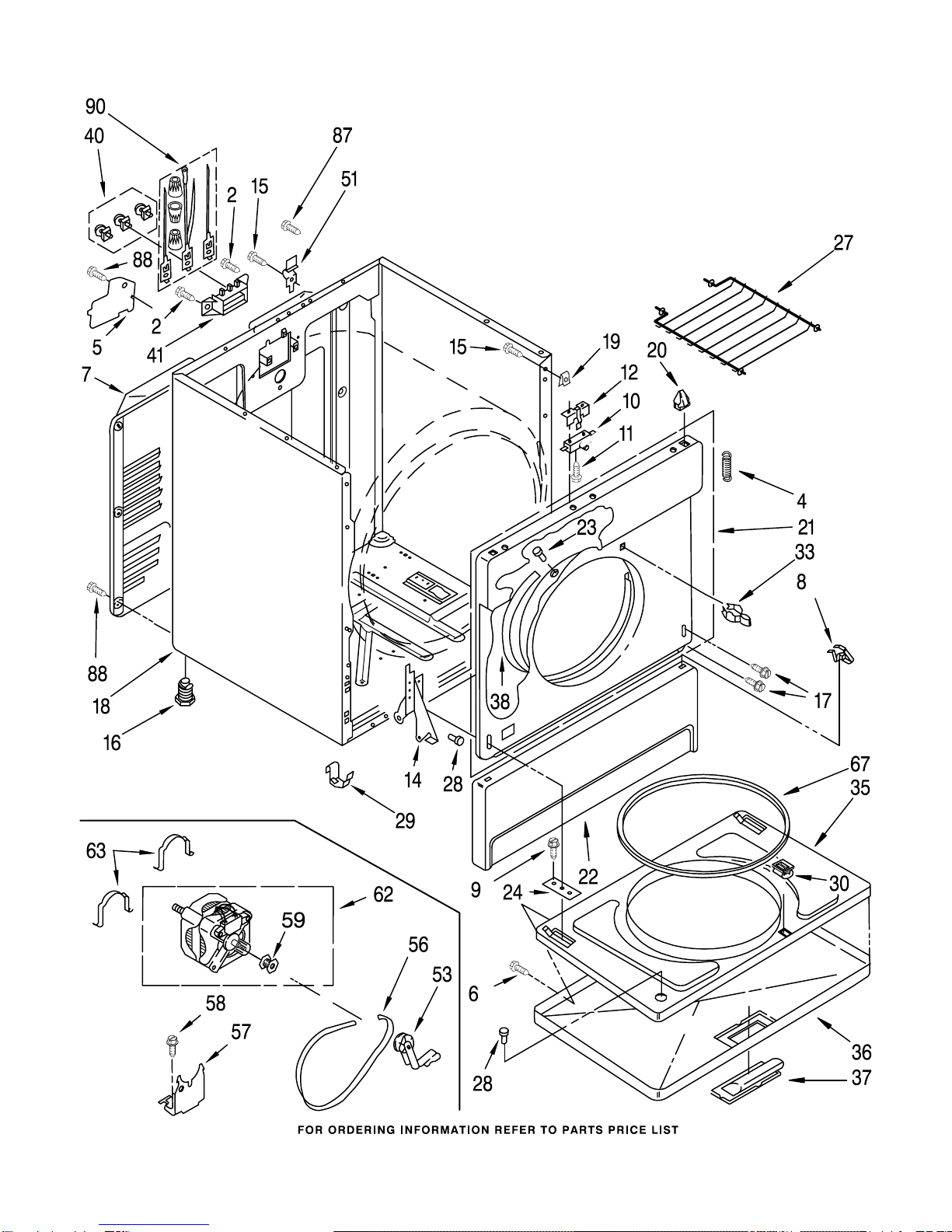

CABINET PARTS

For Models: LET7646DQ0, LET7646DZ0

(Designer White) (Designer Almond)

4377499

CABINET PARTS

For Models: LET7646DQ0, LET7646DZ0

(Designer White) (Designer Almond)

4377499

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

4 237979 Spring, Door (2)

5 3396795 Cover, Terminal

Block

6 694091 Screw

7 3396805 Panel, Rear

8 3388229 Clip,

Toe Panel (2)

9 3357011 Screw,

10−16 x 1/2

10 3397503 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

Mounting

14 687905 Hinge, R.H.

687906 Hinge, L.H.

15 343641 Screw, 10−16 x 1/2

16 3392100 Foot, Dryer (4)

17 342043 Screw,

10−32 x 1/2

18 Cabinet

3399585 White

3399586 Almond

(Includes Illus.

Nos. 5, 7, 16,

41 & 57)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel

338012 White

689533 Almond

22 Panel, Toe

692427 White

692428 Almond

23 685203 Clip, Felt Pad

24 337189 Clip, Hinge (2)

27 3397713 Rack, Dry

28 238614 Bumper

29 297092 Clip, Hinge (2)

30 690081 Catch, Door

33 696144 Strike, Door

35 695954 Door, Rear

36 Door Front

348728 White

689330 Almond

37 Handle, Door

690270 White

690271 Almond

38 349464 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 3397659 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390733 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

88 693995 Screw, 10−16 x 1/2

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

BULKHEAD PARTS

For Models: LET7646DQ0, LET7646DZ0

(Designer White) (Designer Almond)

4377499

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3396352 Lint Chute Assembly

2 359702 Cap, Screw

3 3400800 Screw, 8−18 x 3/4

5 90767 Screw, 8 x 3/8

6 3399848 Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

8 3388703 Washer, Support

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3390291 Thermostat,

High Limit

250 F

(121.1 C) (60 Hz.)

17 3398064 Element, Heater

(For 240 Volt

Installation)

18 691034 Socket Assembly

19 311255 Bulb

20 341165 Lens, Drum Light

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

22 3392123 Seal, Blower

23 3392519 Fuse, Thermal

24 3387139 Thermostat,

Internal Bias

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3399465 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 3397509 Seal, Rear Drum

67 3396778 Drum Assembly

68 342847 Baffle, Drum

69 3394133 Bracket, Support

70 90296 Clip

73 3398160 Seal

75 696302 Shield, Exhaust
