AUTOMATIC

DRYERS

Electric Model

LE7805XP

and

Gas Model

LG7806XP

owave Ovens, Trash Compactors, Room Au Condilloners. Oehumldlfiers. Aulomatlc Washers, Clothes Dryers, Freezers, Refngerator-Free2

Parts and features

CYCLE CONTROL KNOB

\ TEMPERATURE SELECTOR

START BUTTON

ADING DOOR

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Complete Model Number

1. Complete Model and Serial Numbers

(from-the plate located as shown]

2. Purchase date from sales slip

Complete Senal Number

Copy this information in these spaces

Keep this book, your warranty, sales slip

Purchase Dale

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer Service

Company and

console.

Telephone

Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

Contents

Page Page

PARTS AND FEATURES. 2 End-of-Cycle Signal 8

YOUR RESPONSIBILITIES. 3 Lint Signal 8

SAFETY FIRST . . . 3 LINT SCREEN. 9

SELECTING A CYCLE AND LINT REMOVAL. 9

STARTING YOUR DRYER 4 CARING FOR YOUR DRYER. IO

OPERATING INSTRUCTIONS. 6 Cleaning Dryer Interior 10

Automatic Cycles 6 Vacation Care . 10

Timed Drying . 6 IF YOU NEED SERVICE OR

DRYING TIPS. 7 ASSISTANCE.. 11

FLUFFAIR Setting 7 I. Before Calling for

FINISH GUARD@ Setting 7 Assistance 11

TUMBLE PRESS@Setting 7 2. If You Need Assistance 11

Drying Times 8 3. If You Need Service 11

Mixed Loads 8 4. If You Have a Problem 11

2 01985 Whirlpool Corporation

Your

Responsibilities

Read

this “Use

and

Care Guide”

and

your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room* on a floor

that can support the weight.

is located in an area wherethetem-

perature is above 45°F (7.2”C).

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to fuel and

exhaust systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

‘See the “Installation Instructions” for

complete information.

FOR YOUR SAFETY

IF YOU SMELLGAS:

OPEN WINDOWS.

2. DON’T TOUCH ELECTRI-

CAL SWITCHES.

3. EXTINGUISH ANY OPEN

FLAME.

4. IMMEDIATELY CALL

YOUR GAS SUPPLIER.

FOR YOUR SAFETY

DO NOT STOREOR USE

GASOLINE OR OTHER

OF THIS OR ANY OTHER

APPLIANCE. I

TVPEOF LOAD. SUgVM;ED SUGGESTED

TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY - Bedspreads,

mattress pads,quilts. HEAW

HEAVYWEIGHT FABRICS - Towels, AUTOMATIC HIGH

jeans, corduroys, work clothes

MEDIUMWEIGHT COTTONS - REGULAR

Sheets, pillowcases, cotton PERM’T PRESS

underwear, diapers MED

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie

P%RMAN%NT PRESS, SYNTHETICS

AND BlENDS

KNITS GENTLE

LOW

HEAVYWEIGHT FABRICS -Work clothes. AUTOMATIC PERMIT PRESS

jackets, raincoats PERMANENT MED

MEDIUMWEIGHT FABRICS - Shirts, play PRESS

clothes, sheets, slacks

LIGHTWEIGHT FABRICS - Lingerie, KNITS GENTLE

blouses, dresses LOW

KNITS

HEAVYWEIGHT - Cottons, rayons, AUTOMATIC PERM’T PRESS

blend&T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetics [polyester, PERMANENT MED

acrylic, etc.] and blends, lingerie, PRESS KNITS GENTLE

blouses, dresses LOW

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels) e;;A”NA:;? KNITS GENTLE

Gauze, lace, etc. LOW

PRESS

RUBBER, PLASTIC, HEAT-SENSITIVE TIMED

FABRICS DRYING

FOAM RUBBER - Pillows, bras,

stuffed toys _. _. 20-30 MINS. FLUFF

PLASTIC - Shower curtains. AIR

tablecloths _. 20-30 MINS.

RUBBER-BACKED RUGS . 40-50 MIN.5

OLEFIN. POLYPROPYLENE, SHEER NYLON 15-20 MINS.

Select a

1. CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the

3. START Button

The dryer will start tumbling when

you push the START Button.

Set TEMPERATURE

SELECTOR

needed drying temperature.

To stop and restart

the dryer

turn the Control Knob to OFF).

To restart the dryer, close the door,

Select cycle, if necessary, and push I

The Cycle Control Knob should point to OFF when the dryer is not in use.

11~

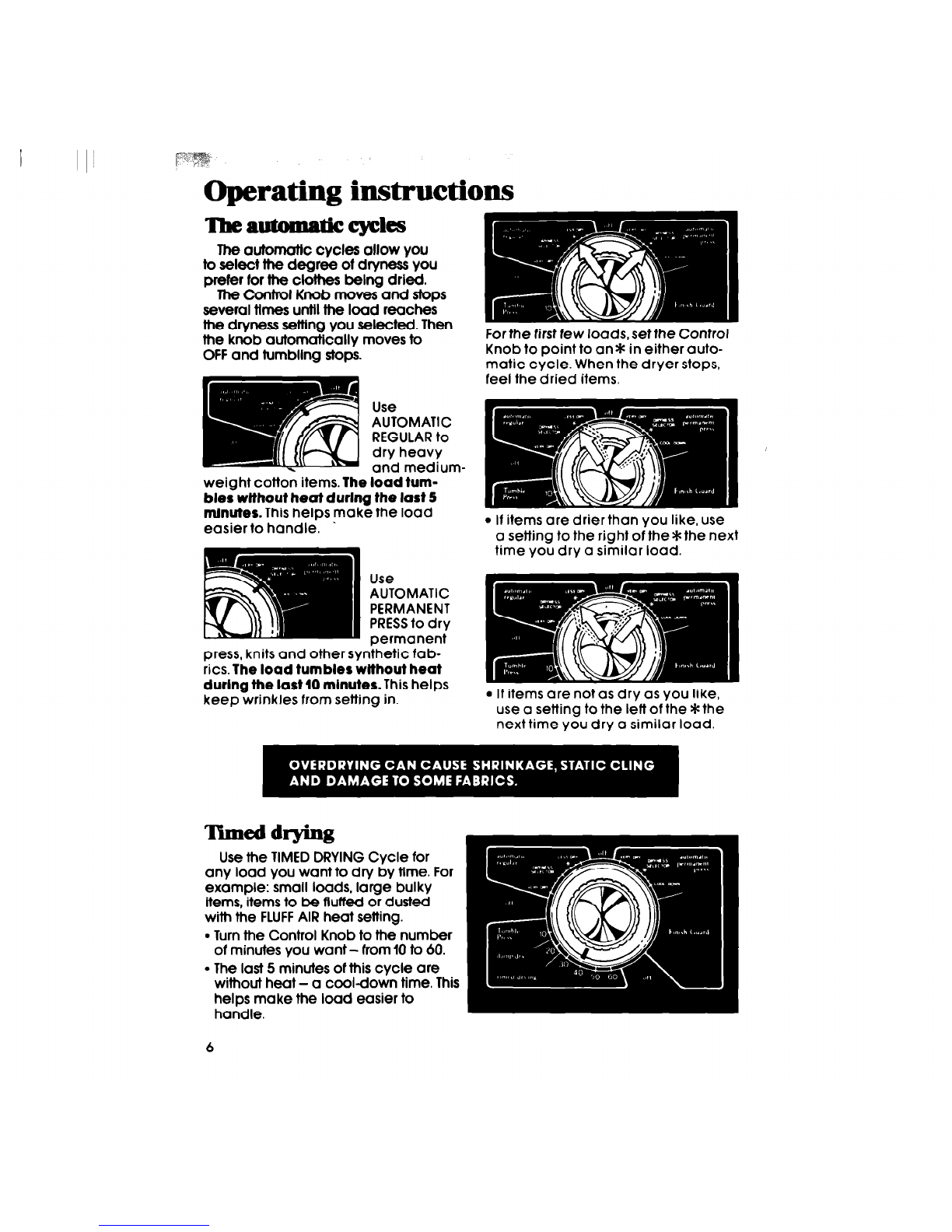

Operating instructions

The autoxmtk cycks

The automotlc cycles allow you

ta select the degree of dryness you

prefer for the clothes belng dried.

The Control Knob moves and stops

several ttmes until the Iaad reaches

the dryness seltlng you selected. Then

the knob automatically moves to

OFF and tumbllng stops.

weight cotton items. The load tum-

bles wlthout heat during the last 5

mlnutes. This helps make the load

easier to handle.

Use

AUTOMATIC

PERMANENT

PRESSto dry

permanent

press, knits and other synthetic fab-

rics. The load tumbles wtthout heat

during the last 10 minutes. This helps

keep wrinkles from setting in.

For the first few loads, set the Control

Knob to point to an* in either auto-

matic cycle. When the dryer stops,

feel the dried items.

If items are drier than you like, use

a setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like,

use a setting to the left of the *the

next time you dry a similar load.

lImeddrying

Use the TIMED DRYING Cycle for

any load you want to dry by time. Far

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

. Turn the Control Knob to the number

of minutes you want - ham 10 to 60.

The last 5 minutes of this cycle are

Drying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc

1. Turn the Temperature Selector to

FLUFFAIR.

2. Turn the Control Knob to the num-

ber of minutes you want in the

TIMED DRYING Cycle.

3. Push the STARTButton.

TUMBLEPRESS" Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items thcit may have been packed

in a suitcase, closet, or items not

removed from the dryer.

FINISH

GUARD@‘Setting

When you are unable to unload the

dryer as soon as it stops, wrinkles can

form.

If you don’t open the door within 5

minutes after the dryer stops, FINISH

GUARD takes over automaltcally to

protect the load. You don? have to set

the Control Knob tor FINISH GUARD.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid the

wrinkles that set in when the load

remains in the warm dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESS/ MED.

3. Push START Button.

The load will tumble in heated air

for 10 minutes. The heat shuts off and

the dryer continues to tumble the

load for 5 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops. 7

II’

isrw’

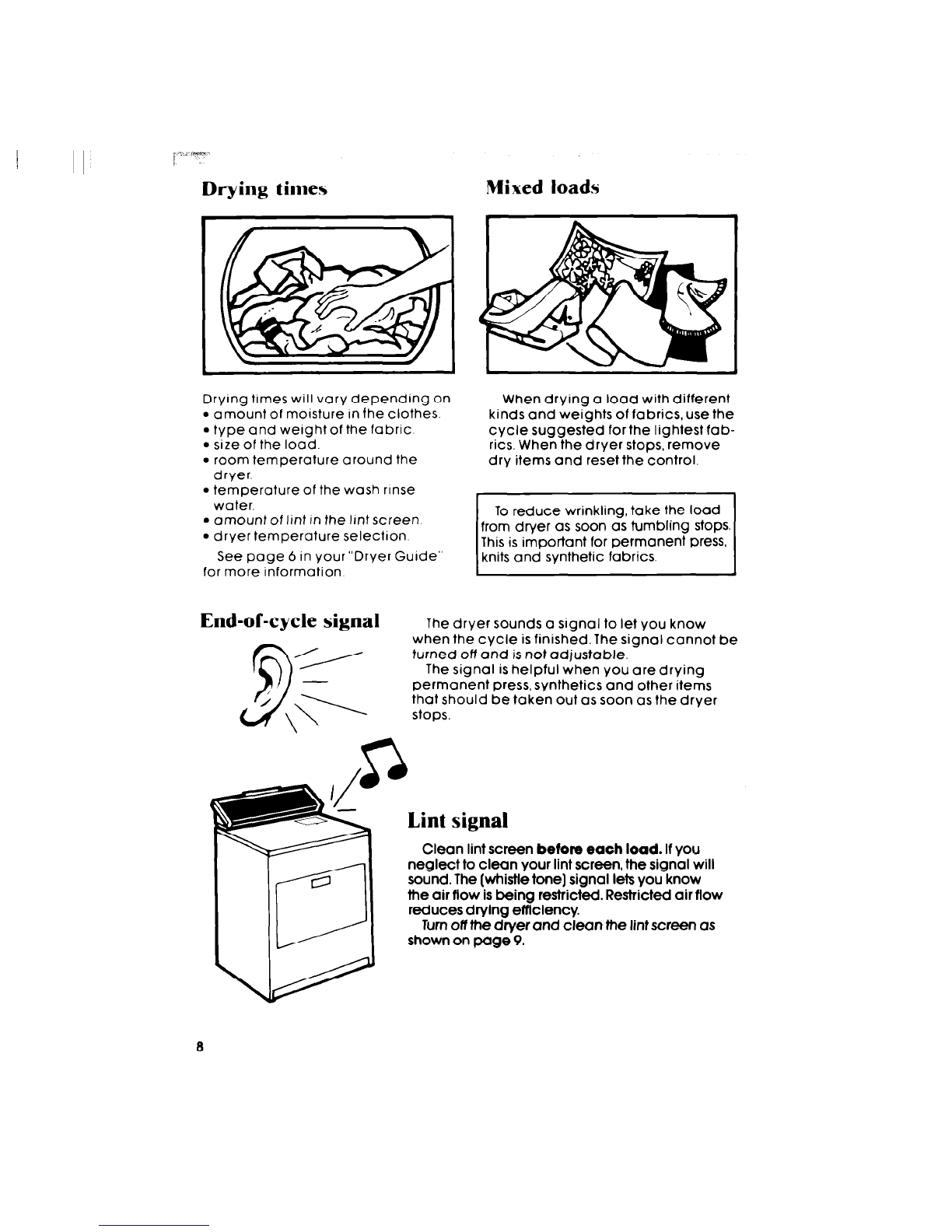

Drying times Mixed loads

Drying times will vary depending on

amount of moisture In fhe clothes.

type and weight of the fabric

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint In the lint screen

dryer temperature selection

See page 6 in your”Dryer Guide”

for more information.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove

dry items and reset the control.

To reduce wrinkling, take the load

from dryer as soon as tumbling stops.

This is important for permanent press,

knits and synthetic fabrics.

End-of-cycle signal The dryer sounds a signal to let you know

when the cycle is finished. The signal cannot be

turned ofl and is not adjustable.

The signal is helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer

stops.

Lint signal

Clean lint screen before each load. If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone] signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint screen as

shown on page 9.

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

Open the lid and pull the lint screen

straiaht out. ROLL the lint off the screen

with your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into

place.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard-unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric)

or lower access panel (gas].

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art- with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer.

Remove loose and sharp objects from Some pretreatment products can

clothing before drying - pins, buckles, damage dials, consoles and finish.

etc. Cl&e metal zippers. Do not-use these products on or

near your dryer.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check packets for bolts, nuts, etc.

Cleaning dryer interior

Before cleaning interior,

unplug power supply cord

or turn off electrical

power to avoid electrical

shock hazard.

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to a

soft cloth and scrub area until all

excess dye is removed. Rinse thor-

oughly with a damp cloth. Tumble a

load of rags. -OR-

Liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

Unplug power cord or turn off elec-

trical power.

for gas dryers, close gas valve.

0 Clean lint screen.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Séchoir

Whirlpool

Whirlpool Gold GGQ8811PL2 Manuel utilisateur

Whirlpool

Whirlpool W10061470 Manuel de la liste des pièces

Whirlpool

Whirlpool 3LWED5500 Manuel utilisateur

Whirlpool

Whirlpool LER56000 Manuel utilisateur

Whirlpool

Whirlpool Duet W10182361A Manuel utilisateur

Whirlpool

Whirlpool FFT M22 8X2BS BE Manuel utilisateur

Whirlpool

Whirlpool LE6685XP Manuel utilisateur

Whirlpool

Whirlpool 8535899 Manuel utilisateur

Whirlpool

Whirlpool HSCX90424 Manuel utilisateur

Whirlpool

Whirlpool 3RAWZ480E Manuel utilisateur

Whirlpool

Whirlpool 4LEC7646EZ0 Manuel utilisateur

Whirlpool

Whirlpool CABRIO W10150626 Manuel utilisateur

Whirlpool

Whirlpool W10115229B-S Manuel utilisateur

Whirlpool

Whirlpool WED97HEXL0 Manuel utilisateur

Whirlpool

Whirlpool Electric and Gas Dryers Manuel utilisateur

Whirlpool

Whirlpool CEM2760TQ0 Manuel utilisateur

Whirlpool

Whirlpool Duet W10136968C Manuel utilisateur

Whirlpool

Whirlpool WED9500E SERIES Manuel utilisateur

Whirlpool

Whirlpool LE5920XK Manuel utilisateur

Whirlpool

Whirlpool cabrio WED6400S Manuel utilisateur

Whirlpool

Whirlpool HWFB9002GW Guide d'installation

Whirlpool

Whirlpool LGQ8000JQ5 Manuel utilisateur

Whirlpool

Whirlpool 340 1094 Manuel utilisateur

Whirlpool

Whirlpool LE4900XS, LE4930XS, LG4931XS Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
