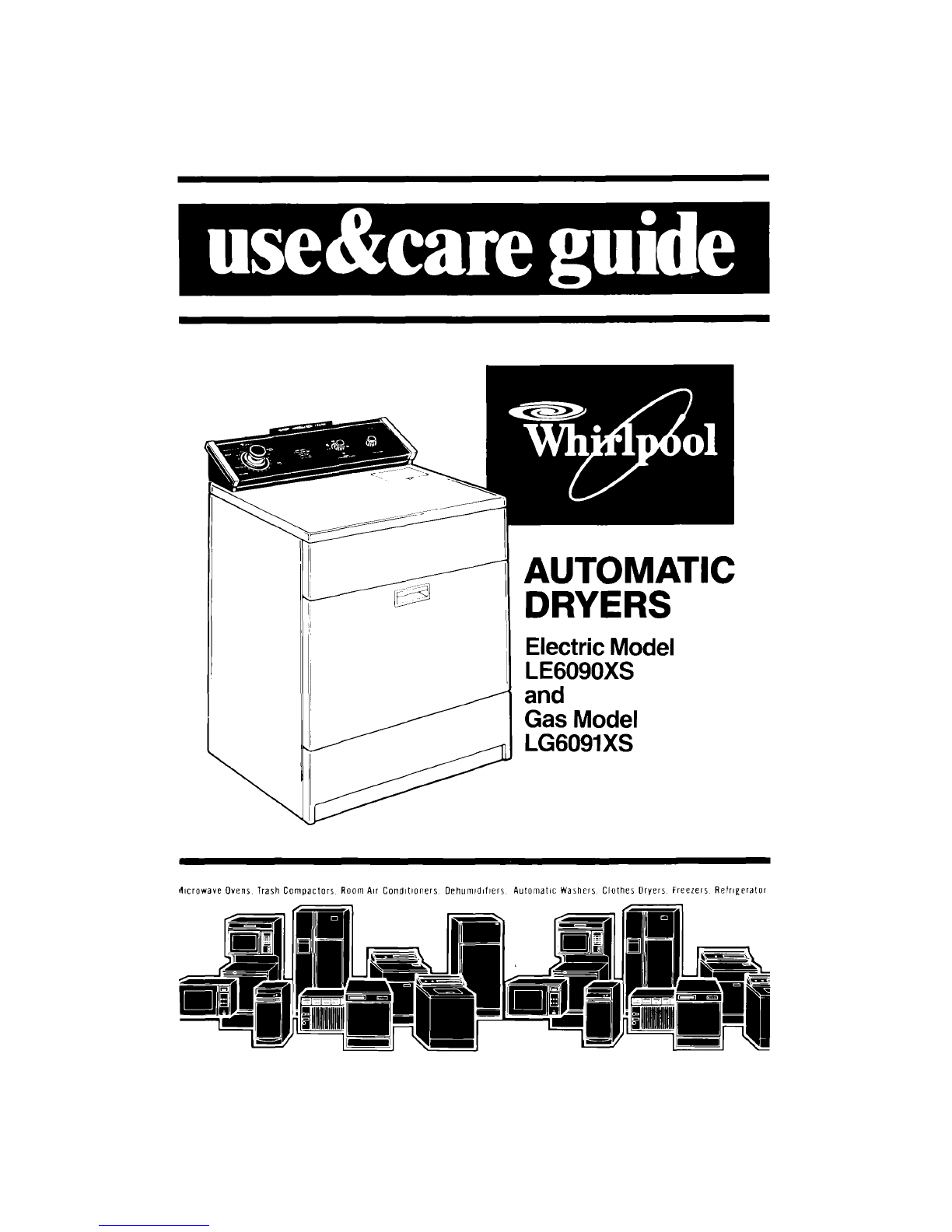

Whirlpool LG6091XS Manuel utilisateur

AUTOMATIC

DRYERS

Electric Model

LE609OXS

and

Gas Model

LG6091XS

_lcrowave Ovens Trash Compactors RoomA=r ConEIntPoners DehumpdJfpers Automatic Washers Clothes Dryers Freezers Refrigerator

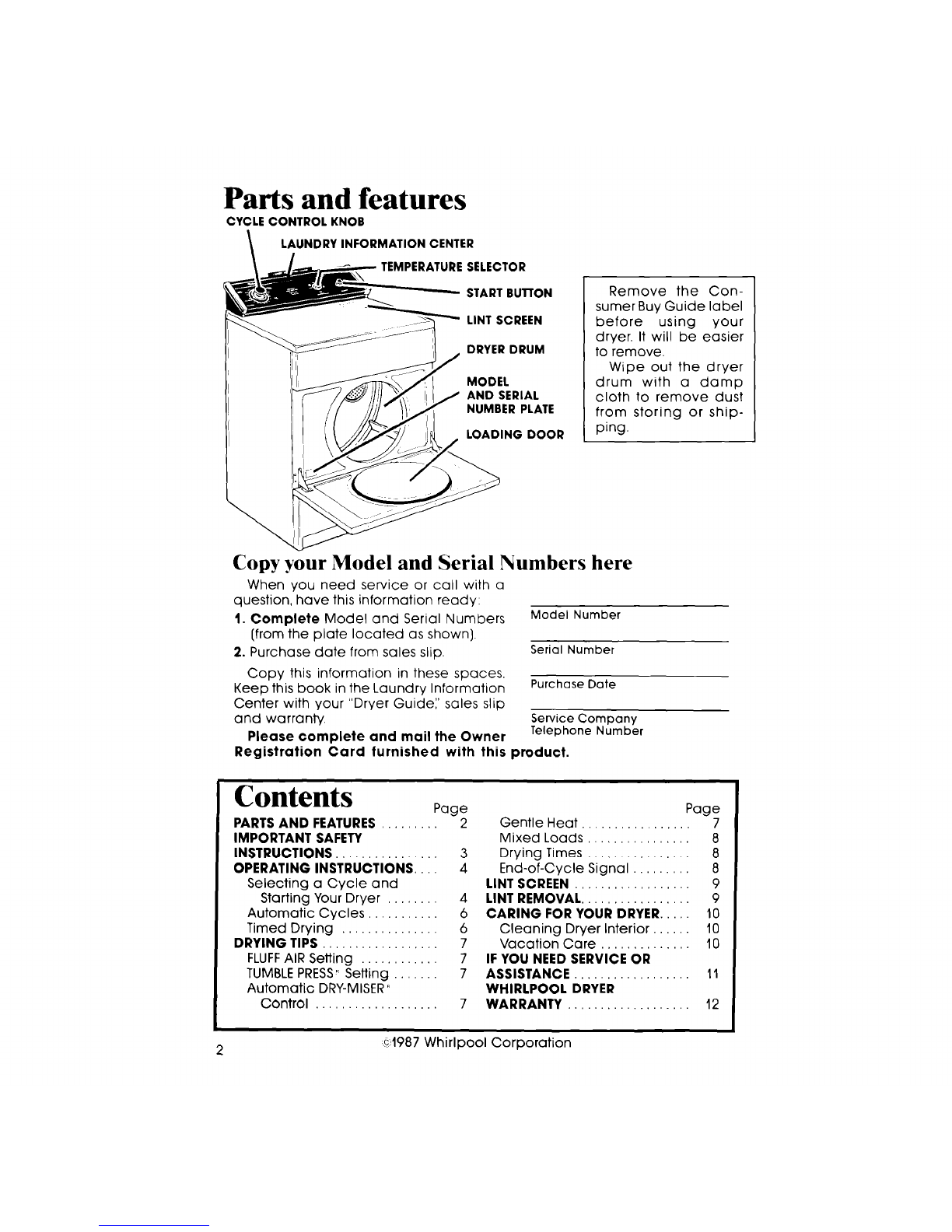

Parts and features

CYCLE CONTROL KNOB

LAUNDRY INFORMATION CENTER

TEMPERATURE SELECTOR

START BUTTON

LINT SCREEN

DRYER DRUM

MODEL

AND SERIAL

NUMBER PLATE

LOADING DOOR

Remove the Con-

sumer Buy Guide label

before using your

dryer, It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

I. Complete Model and Serial Numbers Model Number

[from the plate located as shown].

2. Purchase date from sales slip. Serial Number

Copy this information in these spaces.

Keep this book in the Laundry Information Purchase Date

Center with your "Dryer Guide:' sales slip

and warranty. Service Company

Please complete and mail the Owner Telephone Number

Registration Card furnished with this product.

Contents Page

PARTS AND FEATURES ......... 2

IMPORTANT SAFETY

INSTRUCTIONS ................ 3

OPERATING INSTRUCTIONS .... 4

Selecting a Cycle and

Starting Your Dryer ........ 4

Automatic Cycles ........... 6

Timed Drying ............... 6

DRYING TIPS .................. 7

FLUFFAIR Setting ............ 7

TUMBLEPRESS_Setting ....... 7

Automatic DRY-MISER°

Control ................... 7

Page

Gentle Heat ................. 7

Mixed Loads ................ 8

Drying Times ................ 8

End-of-Cycle Signal ......... 8

LINT SCREEN .................. 9

LINT REMOVAL ................. 9

CARING FOR YOUR DRYER..... 10

Cleaning Dryer Interior ...... 10

Vacation Care .............. 10

IF YOU NEED SERVICE OR

ASSISTANCE .................. 11

WHIRLPOOL DRYER

WARRANTY ................... 12

:,cA987 Whirlpool Corporation

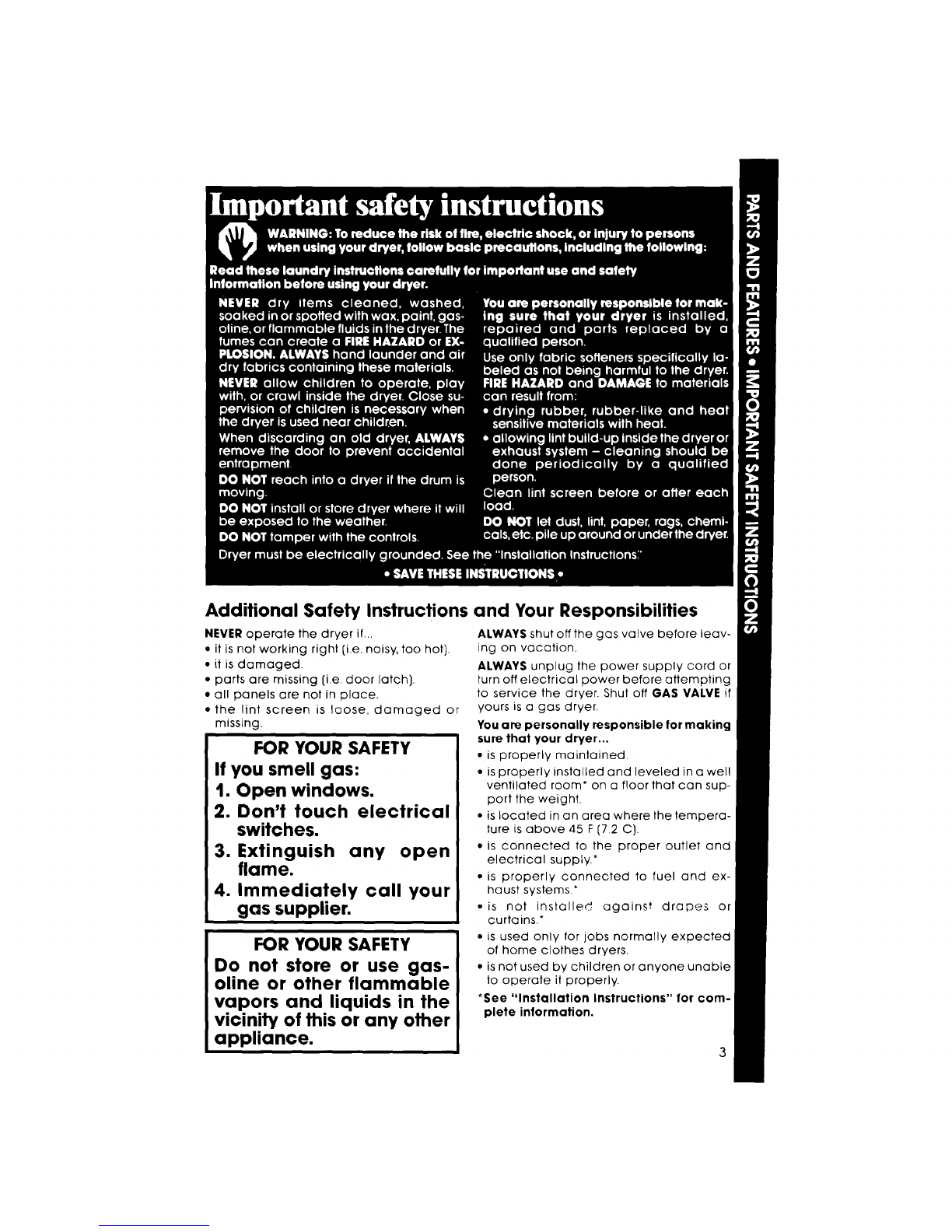

Additional Safety Instructions and Your Responsibilities

NEVER operate the dryer if...

•it is not working right [i.e. noisy, too hot}.

• it is damaged.

• parts are missing [i.e. door latch].

• all panels are not in place.

• the lint screen is loose, damaged or

missing.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don't touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

ALWAYS shut off the gas valve before leav-

ing on vacation.

ALWAYS unplug the power supply cord or

turn off electrical power before attempting

to service the dryer. Shut off GAS VALVE if

yours is a gas dryer.

You are personally responsible for making

sure that your dryer...

•is properly maintained.

• is properly installed and leveled in a well

ventilated room* on a floor that can sup-

port the weight.

• is located in an area where the tempera-

ture is above 45 F [7,2 C].

• is connected to the proper outlet and

electrical supply.*

• is properly connected to fuel and ex-

haust systems."

•is not installe_ against draDe_ or

curtains.*

• is used only for jobs normally expected

of home clothes dryers.

• is not used by children or anyone unable

to operate it properly.

_See "Installation Instructions" for com-

plete information.

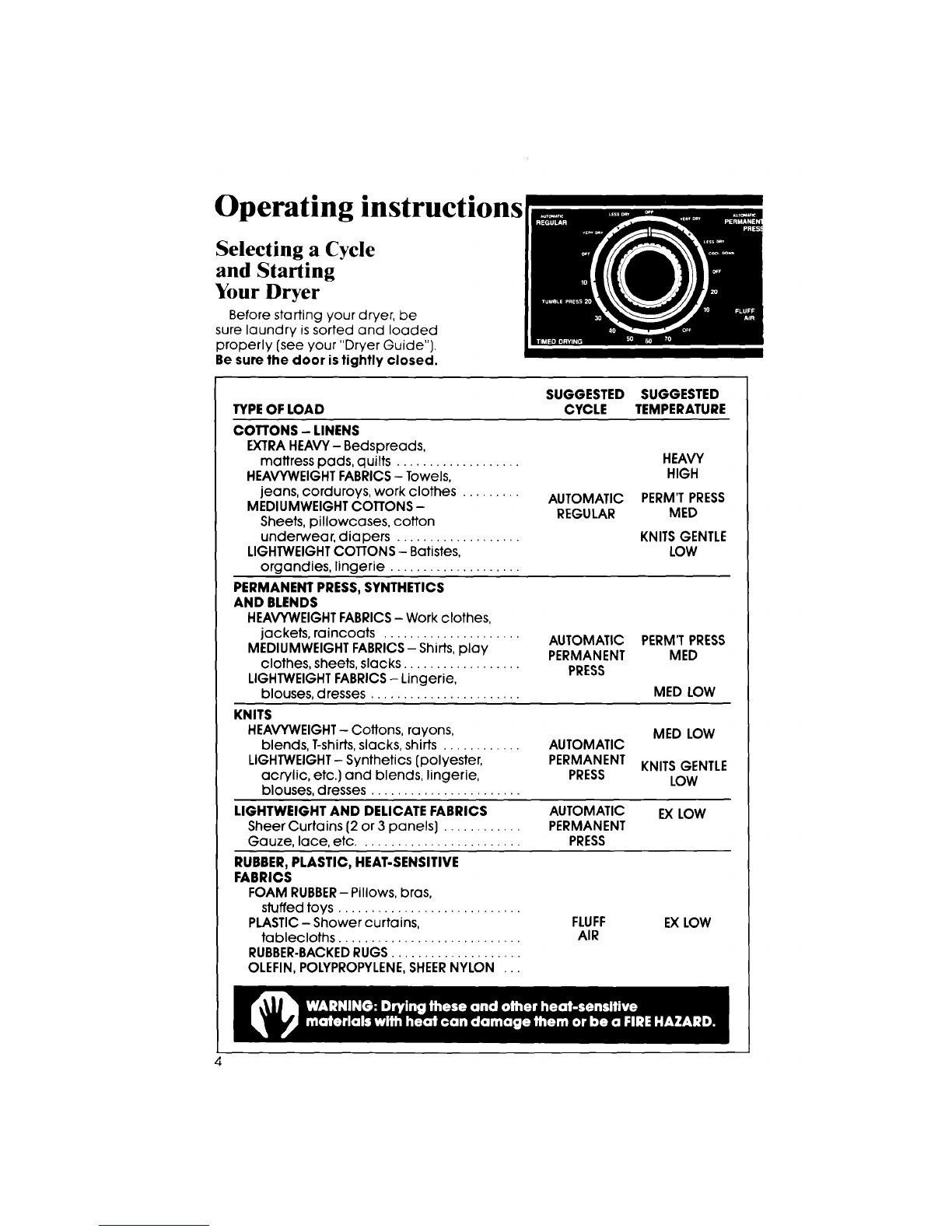

Operating instructions

Selecting a Cycle

and Starting

Your Dryer

Before starting your dryer, be

sure laundry is sorted and loaded

properly [see your "Dryer Guide"),

Be sure the door istightly closed.

SUGGESTED SUGGESTED

TYPEOF LOAD CYCLE TEMPERATURE

COl"rONS - LINENS

EXTRAHEAVY- Bedspreads,

mattress pads, quilts ...................

HEAVYWEIGHT FABRICS- Towels,

jeans, corduroys, work clothes .........

MEDIUMWEIGHT Co1"rON S-

Sheets, pillowcases, cotton

underwear, diapers ...................

LIGHTWEIGHTCoI"rONS - Batistes,

organdies, lingerie ....................

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHTFABRICS- Work clothes,

jackets, raincoats .....................

MEDIUMWEIGHT FABRICS- Shirts, play

clothes, sheets, slacks ..................

LIGHTWEIGHT FABRICS- Lingerie,

blouses, dresses .......................

HEAVY

HIGH

AUTOMATIC PERM'T PRESS

REGULAR MED

KNITSGENTLE

LOW

AUTOMATIC PERM'T PRESS

PERMANENT MED

PRESS

MED LOW

KNITS

HEAVYWEIGHT- Cottons, rayons,

blends, T-shirts, slacks, shirts ............

LIGHTWEIGHT- Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses .......................

MED LOW

AUTOMATIC

PERMANENT KNITS GENTLE

PRESS LOW

LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC EX LOW

Sheer Curtains (2 or 3 panels) ............ PERMANENT

Gauze, lace, etc ......................... PRESS

RUBBER,PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

stuffed toys ............................

PLASTIC- Shower curtains,

tablecloths ............................

RUBBER-BACKEDRUGS ....................

OLEFIN, POLYPROPYLENE,SHEERNYLON ...

FLUFF EXLOW

AIR

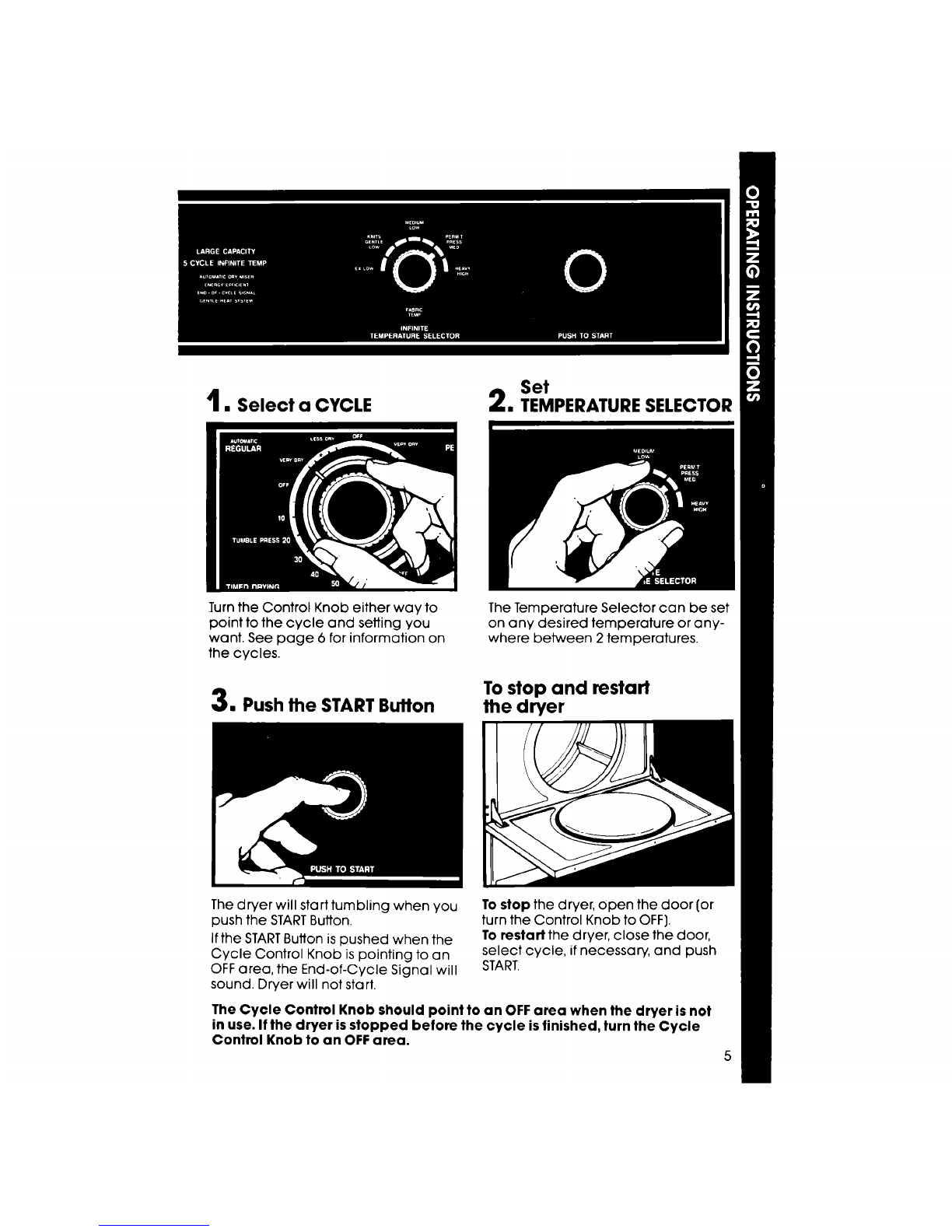

I. Select a CYCLE Set

2.TEMPERATURESELECTOR

]urn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

3, Pushthe STARTButton

The Temperature Selector can be set

on any desired temperature or any-

where between 2 temperatures.

To stop and restart

the dryer

The dryer will start tumbling when you

push the STARTButton.

Ifthe STARTBuflon is pushed when the

Cycle Control Knob is pointing to an

OFF area, the End-of-Cycle Signal will

sound. Dryer will not start.

To stop the dryer, open the door (or

turn the Control Knob to OFF].

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to an OFF area when the dryer is not

in use. If the dryer isstopped before the cycle isfinished, turn the Cycle

Control Knob to an OFF area. 5

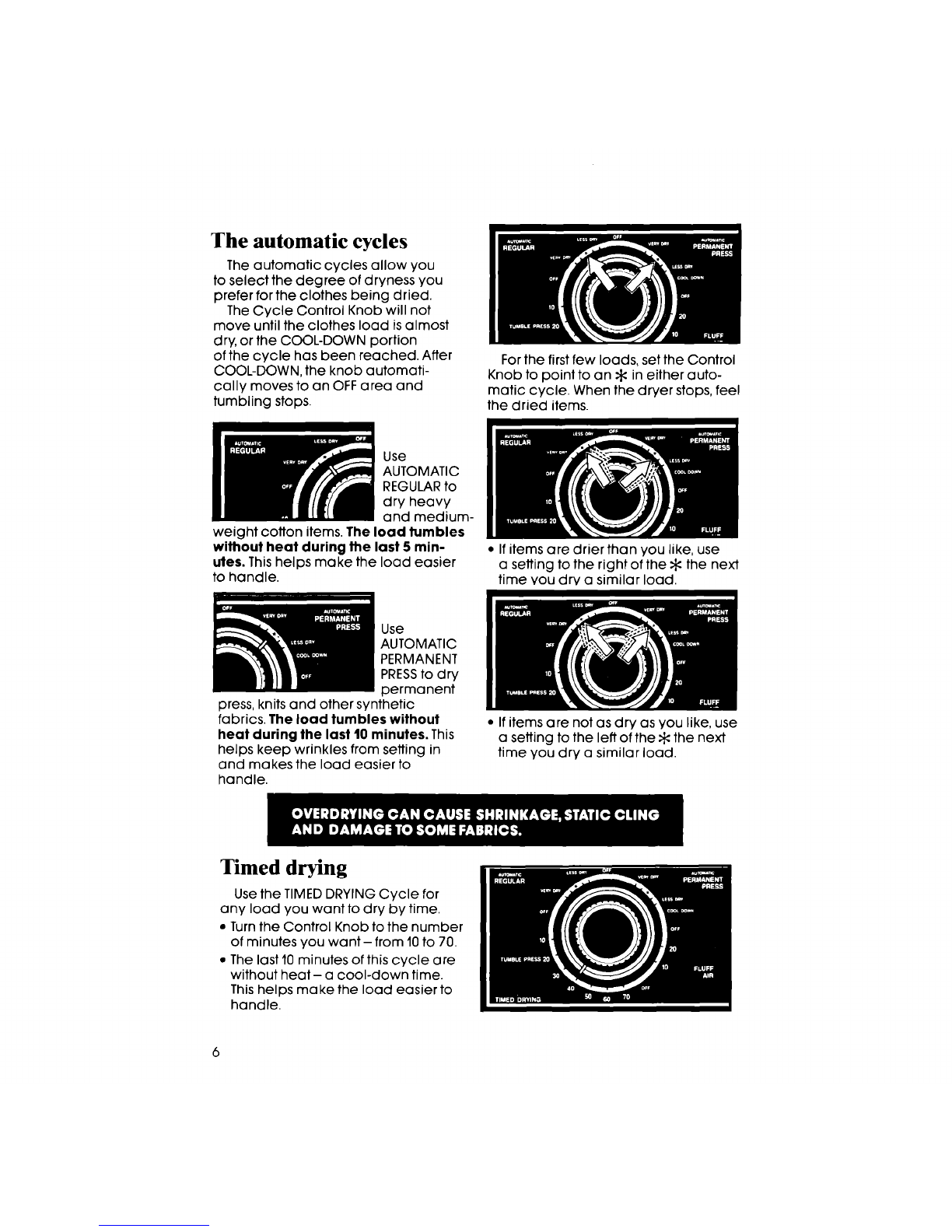

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Cycle Control Knob will not

move until the clothes load is almost

dry, or the COOL-DOWN portion

of the cycle has been reached. After

COOL-DOWN, the knob automati-

cally moves to an OFF area and

tumbling stops.

For the first few loads, set the Control

Knob to point to an _ in either auto-

matic cycle. When the dryer stops, feel

the dried items.

Use

AUTOMATIC

REGULAR to

dry heavy

and medium-

weight cotton items. The Iood tumbles

without heat during the last 5 min-

utes. This helps make the load easier

to handle.

• If items are drier than you like, use

a setting to the right of the >_the next

time you drv a similar load.

Use

AUTOMATIC

PERMANENT

PRESSto dry

permanent

press, knits and other synthetic

fabrics. The load tumbles without

heat during the last 10 minutes. This

helps keep wrinkles from setting in

and makes the load easier to

handle.

• If items are not as dry as you like, use

a setting to the left of the _ the next

time you dry a similar load.

Timed drying

Use the TIMED DRYING Cycle for

any load you want to dry by time,

• Turn the Control Knob to the number

of minutes you want- from 10to 70.

• The last 10 minutes of this cycle are

without heat- a cool-down time.

This helps make the load easier to

handle.

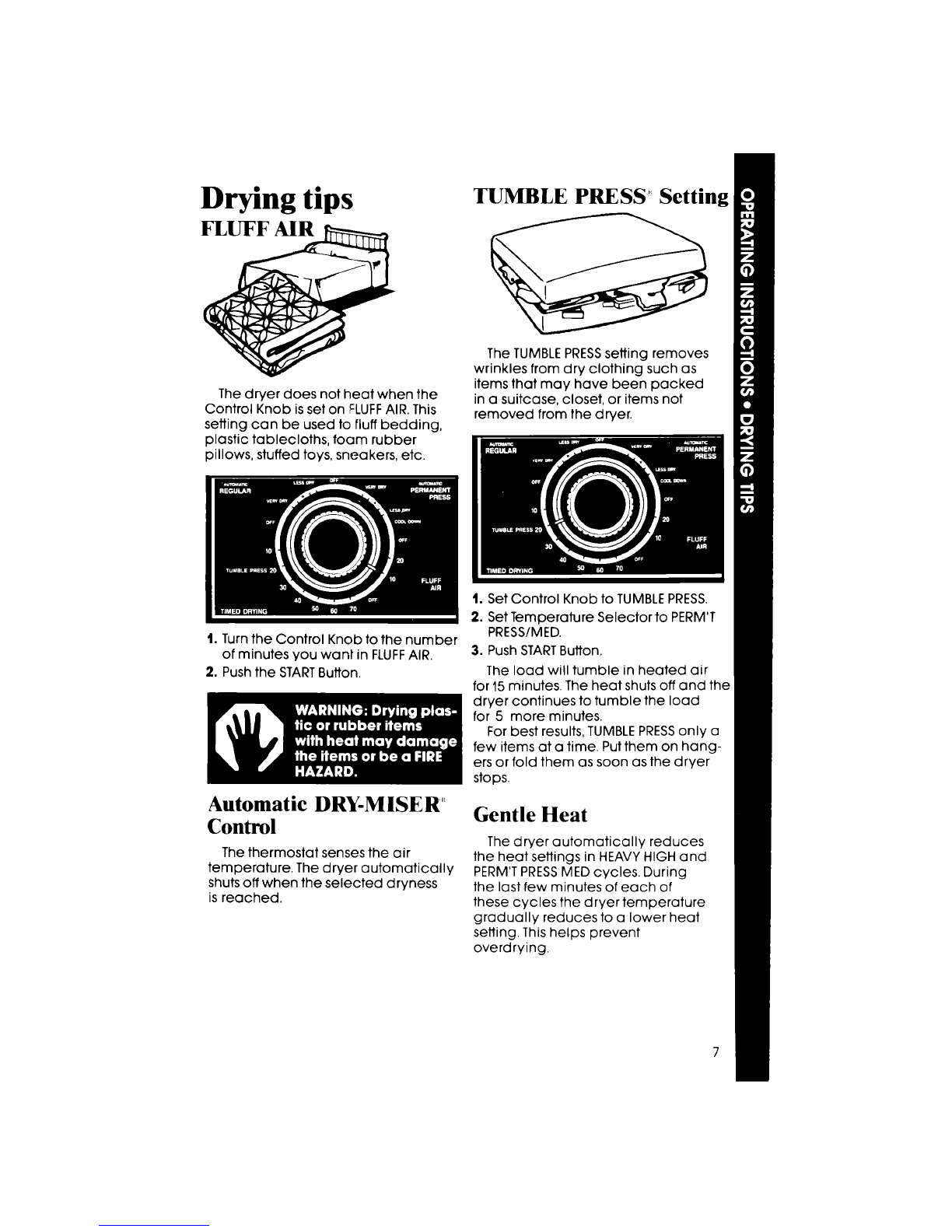

Drying tips

FLUFF

The dryer does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

TUMBLE PRESS Setting

The TUMBLEPRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

Automatic DRY-MISER"

Control

The thermostat senses the air

temperature. The dryer automatically

shuts off when the selected dryness

is reached.

1. Set Control Knob to TUMBLEPRESS.

2. Set Temperature Selector to PERM'T

PRESS/MED.

3. Push STARTButton.

The load will tumble in heated air

for 15 minutes. The heat shuts off and the

dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLEPRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops.

Gentle Heat

The dryer automatically reduces

the heat settings in HEAVY HIGH and

PERM'TPRESSMED cycles. During

the last few minutes of each of

these cycles the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent

overdrying.

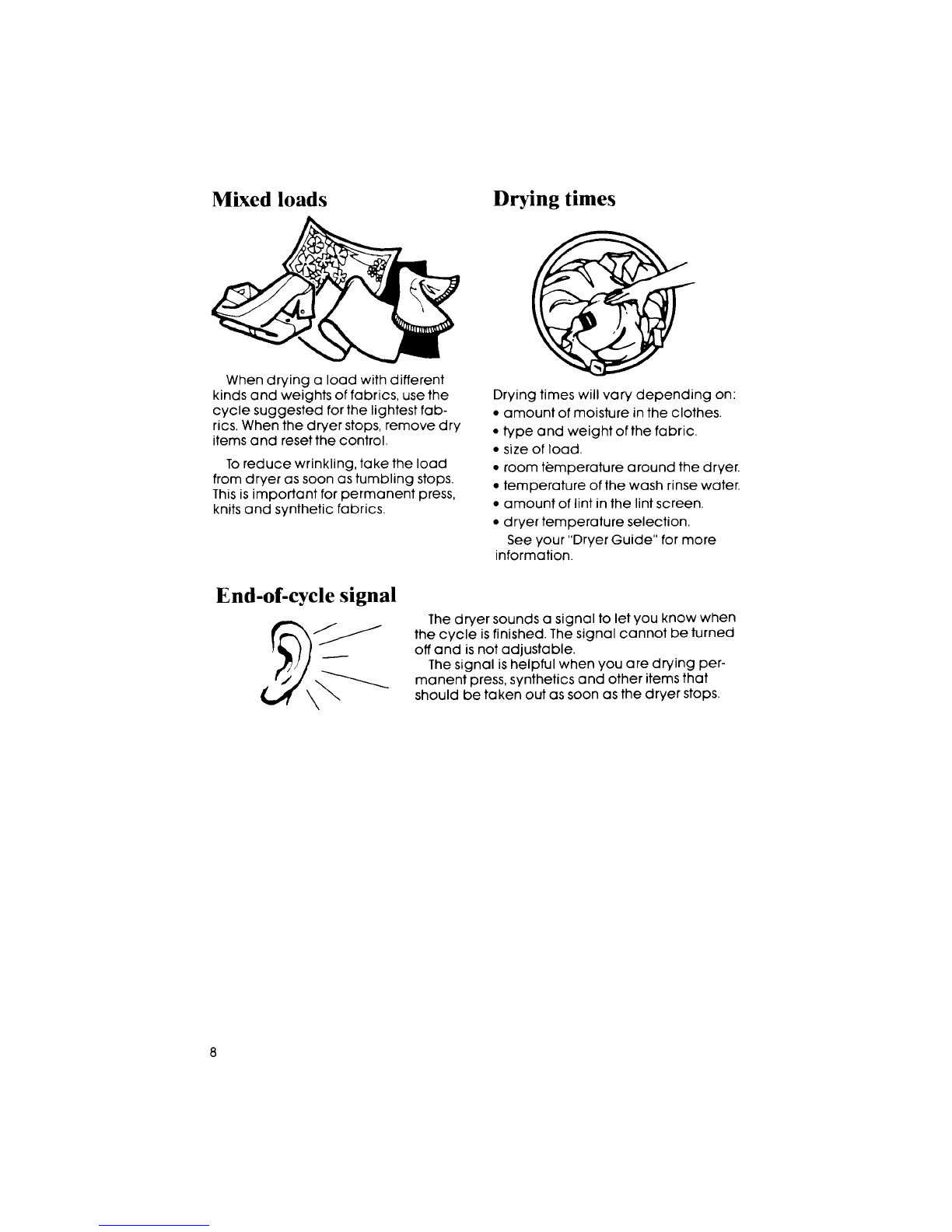

Mixed loads Drying times

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove dry

items and reset the control.

Toreduce wrinkling, take the load

from dryer as soon as tumbling stops.

This is important for permanent press,

knits and synthetic fabrics.

Drying times will vary depending on:

•amount of moisture in the clothes.

• type and weight of the fabric.

• size of load.

• room ti_mperature around the dryer.

• temperature of the wash rinse water.

• amount of lint in the lint screen.

• dryer temperature selection.

See your "'Dryer Guide" for more

information.

End-of-cycle signal The dryer sounds a signal to let you know when

the cycle is finished. The signal cannot be turned

off and is not adjustable.

The signal is helpful when you are drying per-

manent press, synthetics and other items that

should be taken out as soon as the dryer stops.

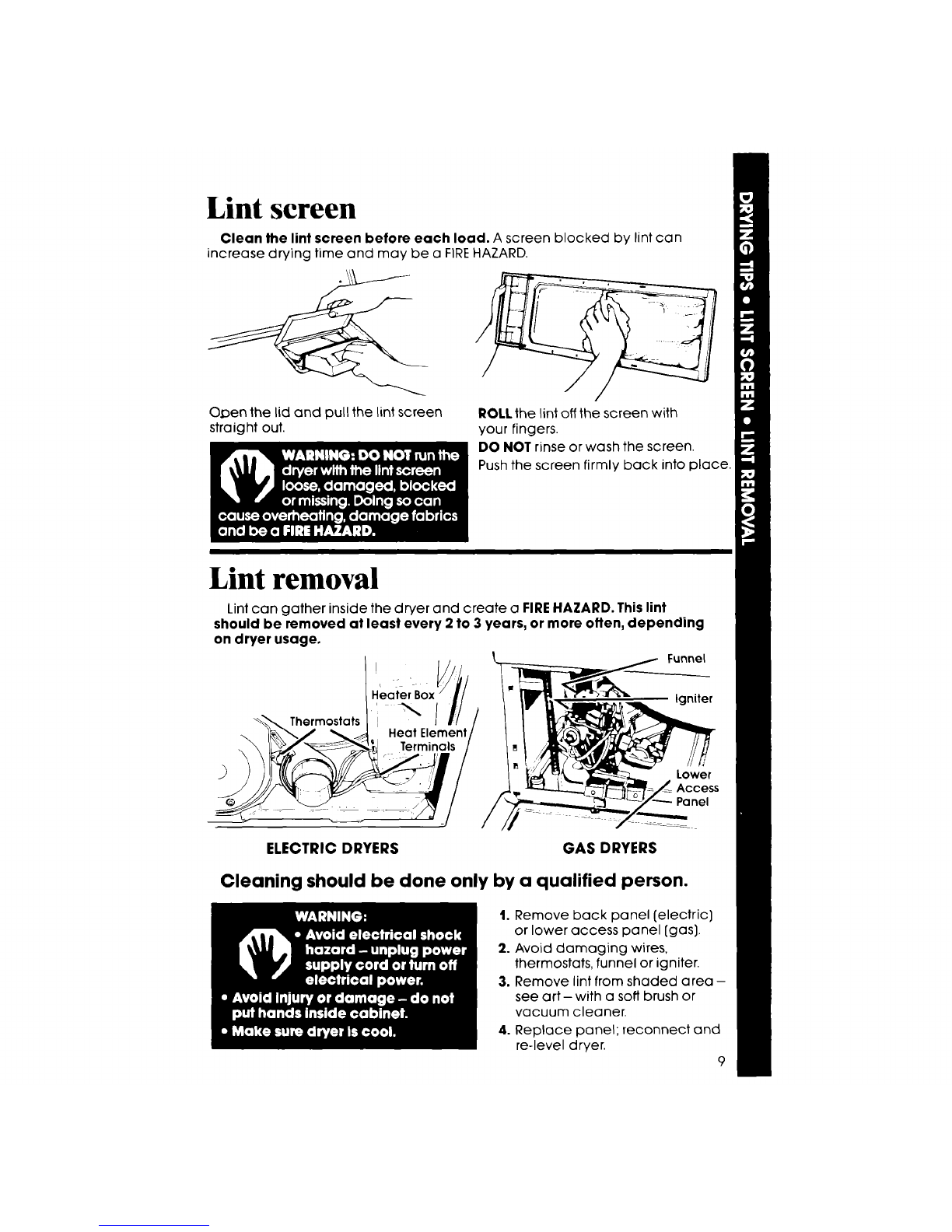

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIREHAZARD.

O.oen the lid and pull the lint screen

straight out. ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lintcan gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more often, depending

on dryer usage.

Thermostats Heat Element

Terminals

Funnel

Igniter

Lower

Access

Panel

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

t. Remove back panel (electric]

or lower access panel [gas].

2. Avoid damaging wires,

thermostats, tunnel or igniter.

3. Remove lint from shaded area -

see art- with a soft brush or

vacuum cleaner,

4. Replace panel; reconnect and

re-level dryer. 9

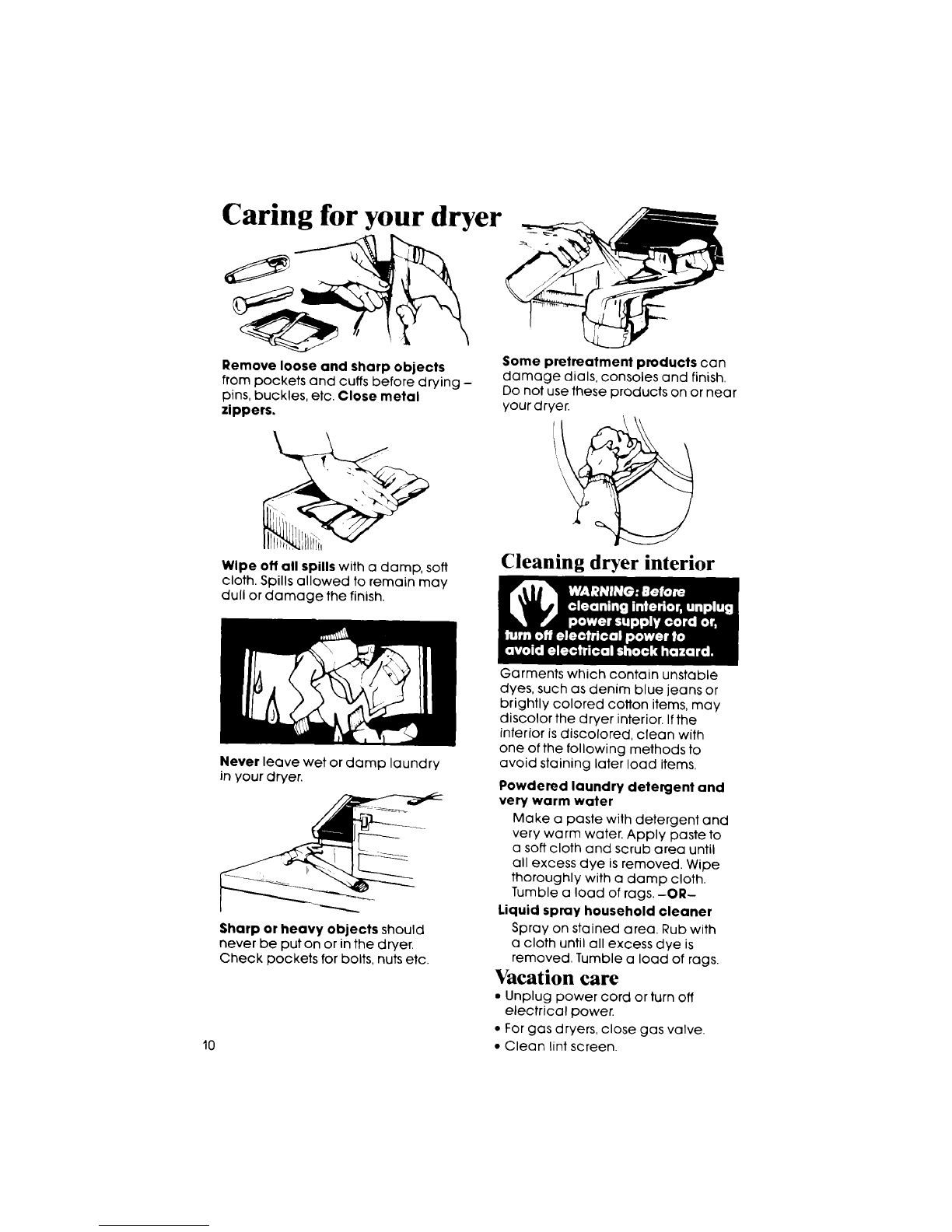

Caring for your dryer

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Cleaning dryer interior

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining _ater load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags.-OR-

Liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

•Unplug power cord or turn off

electrical power.

• For gas dryers, close gas valve.

• Clean lint screen.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Séchoir

Whirlpool

Whirlpool 3401092 Manuel utilisateur

Whirlpool

Whirlpool 3401011 Manuel utilisateur

Whirlpool

Whirlpool WGD9500T Guide de l'utilisateur

Whirlpool

Whirlpool Duet GGW9200LW0 Manuel utilisateur

Whirlpool

Whirlpool WED72HEDW0 Manuel utilisateur

Whirlpool

Whirlpool WGD94HEX Manuel utilisateur

Whirlpool

Whirlpool LE7800XM Manuel utilisateur

Whirlpool

Whirlpool WGD92HEFW1 Manuel utilisateur

Whirlpool

Whirlpool CGW9100VQ0 Manuel utilisateur

Whirlpool

Whirlpool CGM2751KQ Manuel utilisateur

Whirlpool

Whirlpool LEW0050PQ - Electric Dryer Manuel utilisateur

Whirlpool

Whirlpool LG5701XS Manuel utilisateur

Whirlpool

Whirlpool ELECTRONIC DRYER Manuel utilisateur

Whirlpool

Whirlpool LE4905XM Manuel utilisateur

Whirlpool

Whirlpool LE5920XK Manuel utilisateur

Whirlpool

Whirlpool WED86HEBW0 Manuel utilisateur

Whirlpool

Whirlpool Duet WGD9400SB0 Manuel utilisateur

Whirlpool

Whirlpool W10054070A Manuel utilisateur

Whirlpool

Whirlpool LER3622PQ1 Manuel utilisateur

Whirlpool

Whirlpool LI._7681XM Manuel utilisateur

Whirlpool

Whirlpool WED9050X Manuel de la liste des pièces

Whirlpool

Whirlpool 3XWED5705SW0 Manuel utilisateur

Whirlpool

Whirlpool WFC7500VW Manuel utilisateur

Whirlpool

Whirlpool WGD5500SQ0 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
