TOP AND CONSOLE PARTS

For Model: YLEV4634JQ1

(Designer White)

29" ELECTRIC DRYER

6−02 Litho in U.S.A. (djc) Part No. 4377985 Rev. B

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Model: YLEV4634JQ1

(Designer White)

4377985

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8314832

Use And Care Guide

LIT3978846

Installation,

Instructions

LIT3978731

Label,

Energy Guide

LIT8528189

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 8274261 Panel, Rear

Console

3 3390646 Screw, 8−18 x 5/16

4 8271365 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 3395683 Housing, Connector

(Motor)

8 8271359 Cap, End (R.H.)

9 3400859 Screw, 8−18 x 7/32

10 339392 Screen, Lint

11 8283378 Cover, Lint Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 297535 Bumper, Lint Lid

15 693995 Screw, Hex Head

16 8271390 Top

17 3394427 Clip, Harness

18 3391249 Tie, Cable

19 94614 Terminal

21 8299778 Timer, 60 Hz.

22 357213 Nut, Push−In (2)

23 8299868 Harness, Wiring

24 3977456 Switch,

Push−To−Start

25 8312687 Timer Knob

Assembly

26 8271418 Bracket, Control

27 3977815 Panel, Control

28 8271341 Knob,

Push−To−Start

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

4392065 Kit,

Dryer Repair

689790 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

CABINET PARTS

For Model: YLEV4634JQ1

(Designer White)

4377985

CABINET PARTS

For Model: YLEV4634JQ1

(Designer White)

4377985

Illus. Part

No. No. DESCRIPTION

2 3405160 Belt, Drive

(Blower Wheel)

3 694415 Clip, Strain

Relief

4 3404283 Plug, Cabinet

5 3394202 Cover, Terminal

Block

6 3394208 Cord, Power

7 3396807 Panel, Rear

8 3404413 Plug, Hinge

Hole (4)

9 342055 Screw, 8−18 x 1/2

10 3406104 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 3401805 Bracket, Idler

13 693995 Screw, Rear Panel

Mounting

14 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

15 343641 Screw, 10−16 x 1/2

16 8530603 Cabinet

17 98234 Clip, Ground

18 690363 Lock, Front

Top (2)

19 3403571 Front Panel

Assembly

20 685203 Clip, Felt Pad

21 690081 Catch, Door

22 3405514 Hinge & Pin

Assembly

23 3394083 Clip, Front

Panel (2)

24 696144 Strike, Door

25 3403371 Door, Rear

26 3403361 Door Front

27 3405184 Handle, Door

28 8066124 Seal & Bearing

Assembly

29 3401800 Belt Shield

Assembly

31 238088 Hinge, Top (2)

32 691366 Idler & Pulley

Assembly

33 8066065 Belt, Drive

34 3401802 Base, Motor

35 3400500 Bolt,

5/16−18 x 3/4

36 3394341 Pulley, 60 Hz.

37 8535934 Motor Assembly

60 Hz.

38 660658 Clamp, Motor

40 3405245 Seal, Door

41 697776 Screw, 10−32 x 5/8

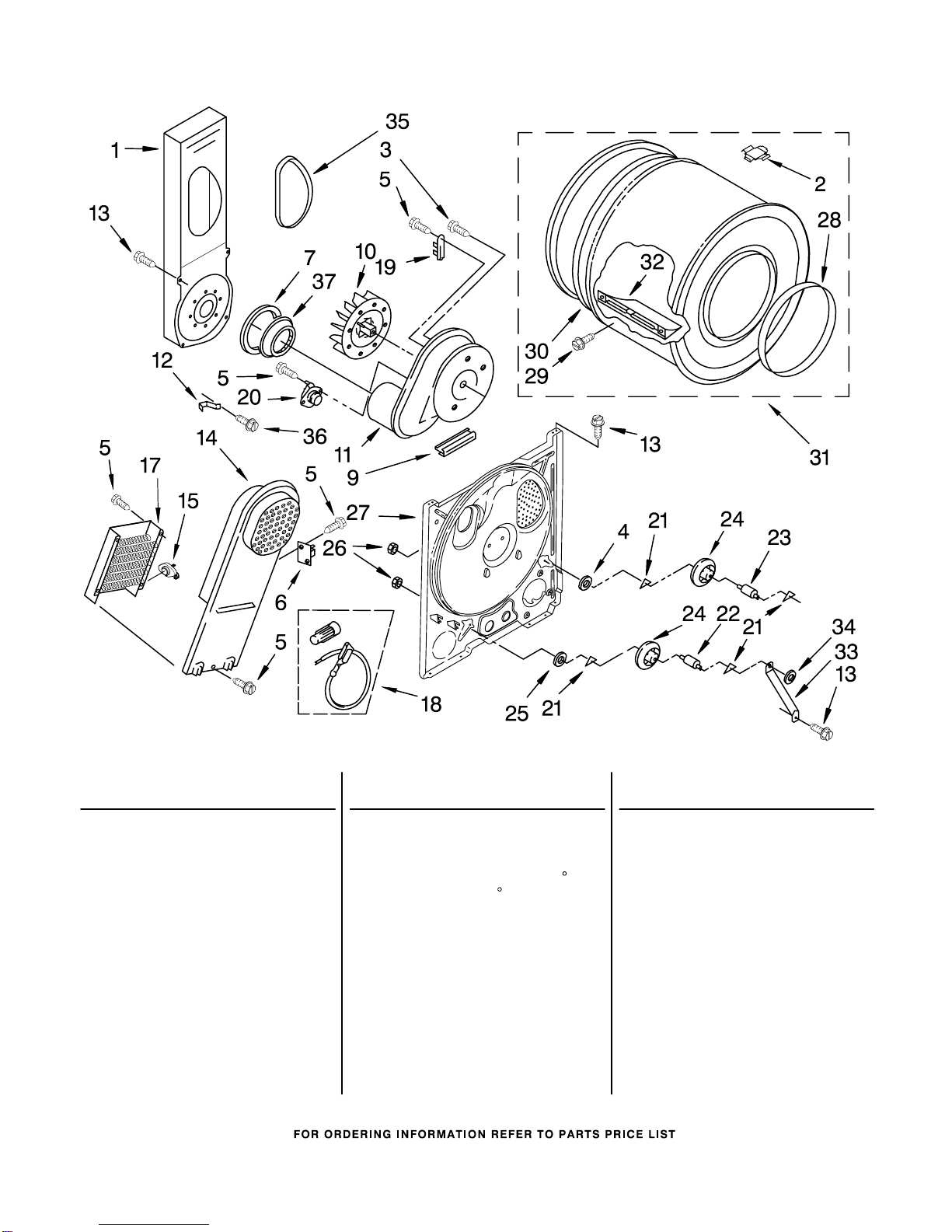

BULKHEAD PARTS

For Model: YLEV4634JQ1

(Designer White)

4377985

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8519777 Lint Chute Assembly

2 8066086 Drum Hole

Plug

3 3390647 Screw, 8−18 x 1/2

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Includes

Illus. 15)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 3406963 Wheel, Blower

11 8538249 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3977767 Thermostat,

High Limit 221 F

(105 C)

17 3403585 Element, Heater

(For 240 Volt

Installation)

18 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

19 3392519 Fuse, Thermal

20 3387134 Thermostat,

Internal−Bias

21 690997 Ring, Tri

22 3399506 Shaft, L.H.

23 3399507 Shaft, R.H.

24 3397588 Roller, Support

25 348197 Washer, Support

26 3359452 Nut, 3/8−16

27 8529955 Bulkhead

28 3394509 Ring, Bearing

29 97787 Screw, 11−16 x 3/4

30 8066085 Seal, Rear Drum

31 697093 Drum Assembly

32 342847 Baffle, Drum

33 3976435 Bracket, Support

34 90296 Clip

35 339956 Seal

36 489463 Screw, 8−18 x 5/8

37 696302 Shield, Exhaust
