COOKTOP, BURNER AND GRATE PARTS

For Models: GLT3657RB01, GLT3657RQ01, GLT3657RT01

(Black) (White) (Biscuit)

36" GAS GLASS SURFACE COOKTOP

3−06 Litho in U.S.A. (cre) Part No.8186509 Rev.A

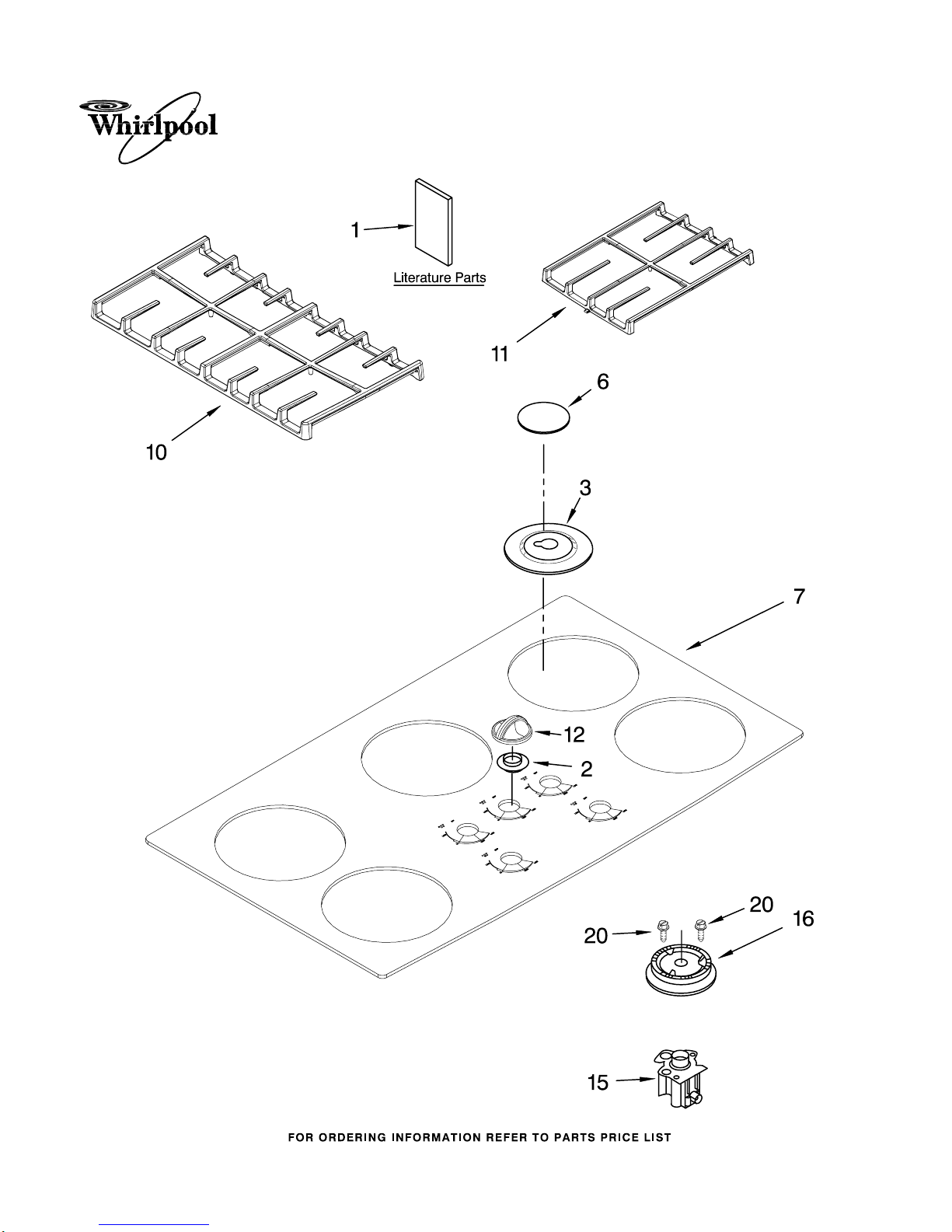

COOKTOP, BURNER AND GRATE PARTS

For Models: GLT3657RB01, GLT3657RQ01, GLT3657RT01

(Black) (White) (Biscuit)

8186509

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

8286304 Installation

Instructions

8286615 Use & Care Guide

3192099 Wiring Diagram

3191638 Safe Cooking Tips

8286620 L.P. Conversion

Instructions

2 Grommet, Glass

3180081 White

3180079 Black

3191817 Biscuit

3 Bowl, Burner

(LF)(RF)(Center)

3191303 White

3191302 Black

3191818 Biscuit

(RR)(LR)

3191307 Black

3191308 White

3191819 Biscuit

6 Cap, Burner

(RR)(LR)

8286153CB

Coal Matte Black

8286153CG

Cumberland Gray

8286153EP

Espresso

(Center)

8286154BL

Black

8286154CG

Cumberland Gray

8286154EP

Espresso

(RF)(LF)

8286155BL

Black

8286155CG

Cumberland Gray

8286155EP

Espresso

7 Cooktop, Glass

8286264 White

8286249 Black

8286267 Biscuit

10 Grate, Burner

L.Hand

8285892CB

Coal Matte Black

8285892CG

Cumberland Gray

8285892EP

Espresso

R.Hand

8285894CB

Coal Matte Black

8285894CG

Cumberland Gray

8285894EP

Espresso

11 Grate, Center

8285891CB

Coal Matte Black

8285891CG

Cumberland Gray

8285891EP

Espresso

12 Knob, Control (5)

8286058WH

White

8286058BL

Black

8286058BT

Biscuit

15 Holder, Orifice

8286180 Rapide

8286178 Semi Rapid

8286179 Auxi

16 Head, Burner

8286181 (LR)(RR)

8286184 (Center)

8286182 (LF)(RF)

20 3368921 Screw

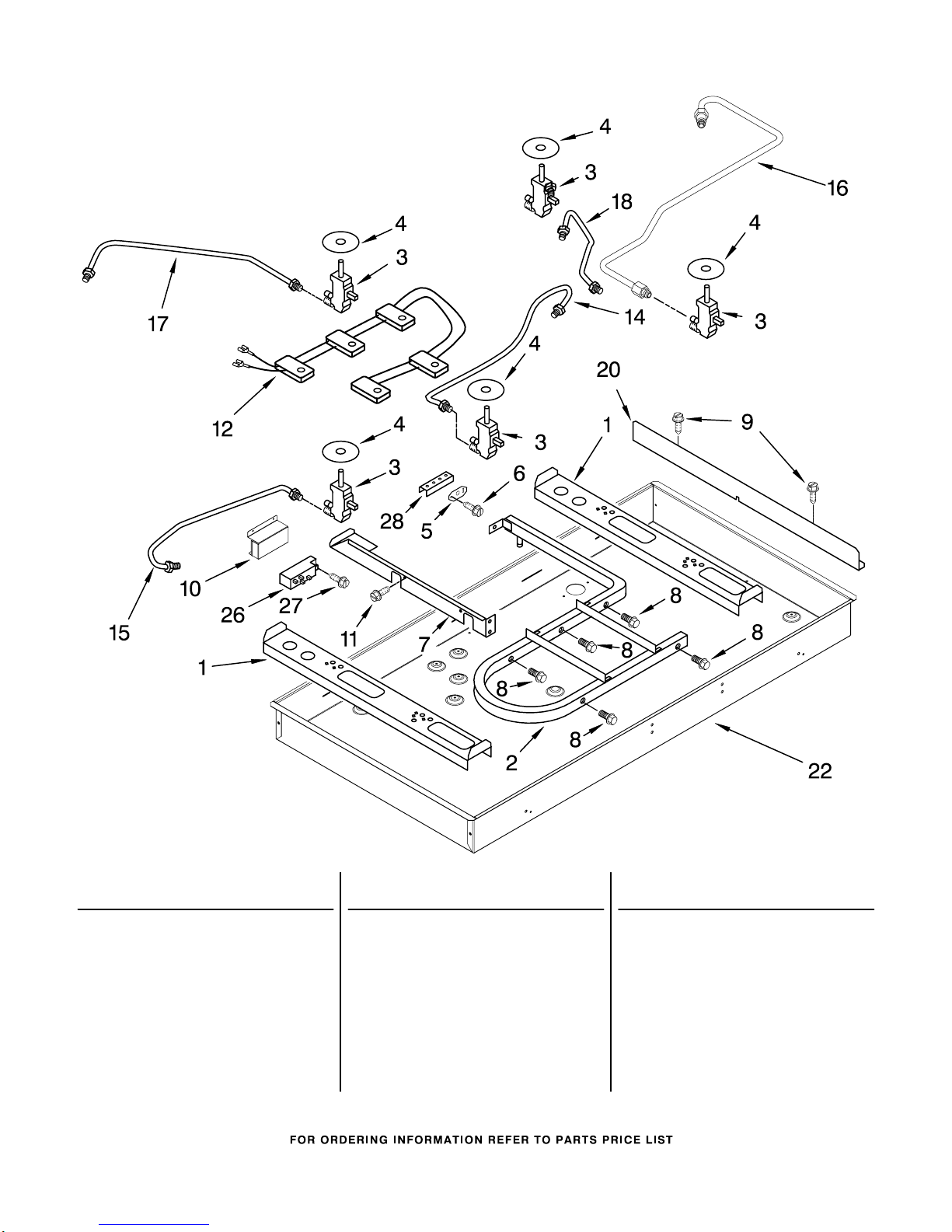

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLT3657RB01, GLT3657RQ01, GLT3657RT01

(Black) (White) (Biscuit)

8186509

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8286099 Rail, Burner

2 8285751 Pipe, Manifold

3 Valve, Gas Burner

8286559 Auxi (2) (White)

8286560 Rapid (2) (Purple)

4456817 Large (Black)

4 3191387 Seal, Shaft

5 3192491 Bracket, Manifold

6 3196160 Screw

7 8285791 Rail, Center

8 3186217 Bolt, Gas Valve

9 3177991 Screw

10 8285789 Shield, Heat

11 4449809 Screw

12 4456901 Harness & Switches

14 8286406 Tubing, Gas

Burner (RF)

15 8286403 Tubing, Gas

Burner (LF)

16 8286405 Tubing, Gas

Burner (RR)

17 8286253 Tubing, Gas

Burner (LR)

18 8286404 Tubing, Gas

Burner (Center)

20 3191462 Shield, Heat

22 8286248 Burner Box

26 8522424 Module Spark

27 3400843 Screw

28 4455917 Bracket, Mounting

OPTIONAL PARTS (NOT INCLUDED)

For Models: GLT3657RB01, GLT3657RQ01, GLT3657RT01

(Black) (White) (Biscuit)

8186509

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

9763116 Cord, Power

4173634 Bushing

3177991 Screw

4455917 Bracket

4167077 Tinnerman Nut

3191933 Seal, Foam−Cooktop

Miscellaneous

4455918 Hardware, Mounting

8286320 Spud Kit

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

4456627 Harness,

Ignitor 28" (2)

8285402 Wire, Ground
