Whirlpool GJC3034RB03 Manuel utilisateur

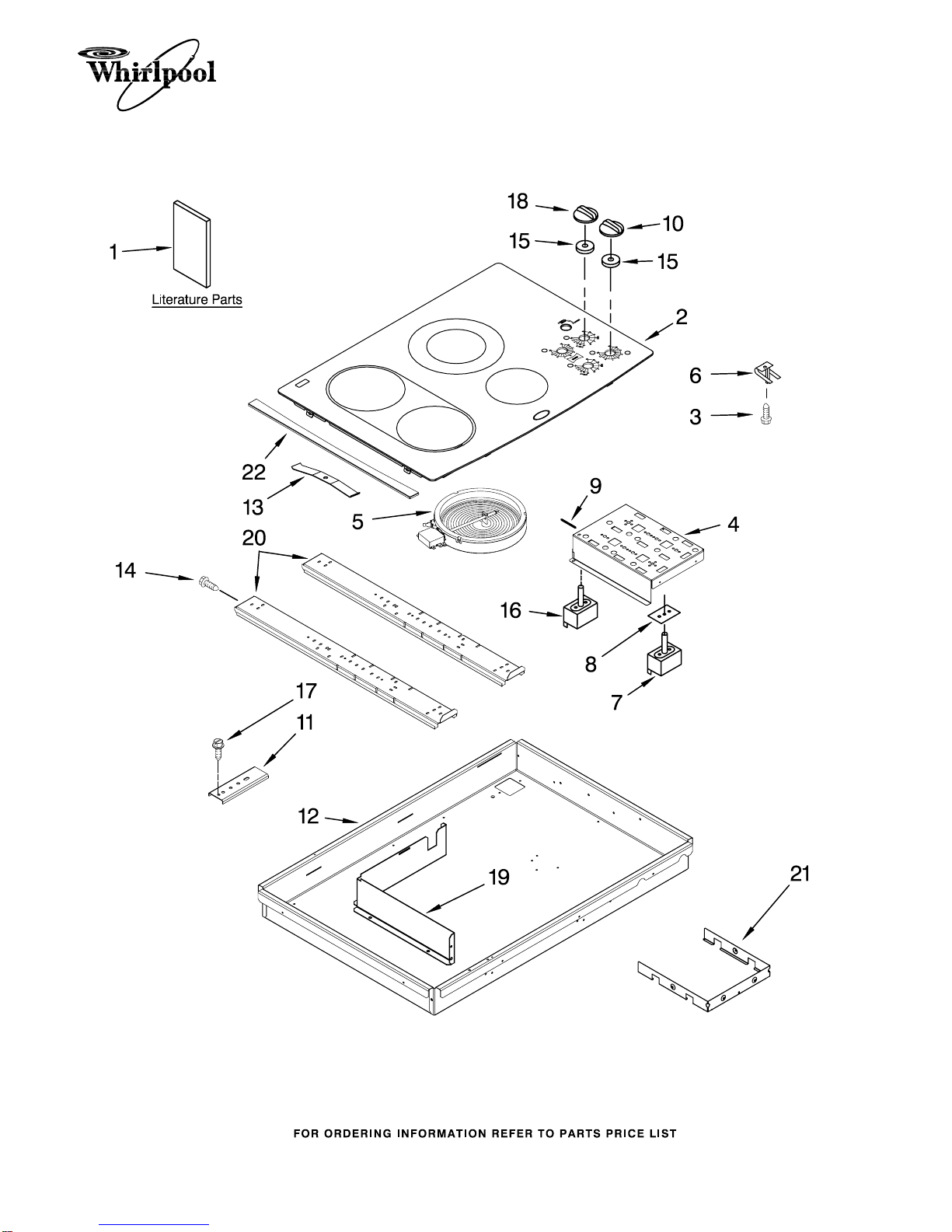

COOKTOP PARTS

For Models: GJC3034RB03, GJC3034RP03, GJC3034RC03, GJC3034RS03

(Black) (Pure White) (Pure Biscuit) (Stainless)

09−07 Litho in U.S.A. (amd) Part No. W10163523 Rev. A

36" ELECTRIC

BUILT−IN CERAN

COOKTOP

COOKTOP PARTS

For Models: GJC3034RB03, GJC3034RP03, GJC3034RC03, GJC3034RS03

(Black) (Pure White) (Pure Biscuit) (Stainless)

W10163523

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8286066 Cooktop

8304571 Undercounter Oven

8286614 Use & Care Guide

8286341 Wiring Diagram

Safer Cooking Tips

3191638 English

9759133 French

2 Cooktop & Bracket

Assembly

8286939 Black

8286955 White

8286954 Biscuit

3 246119 Screw (8)

4 8285928 Bracket, Switch

Mounting

5 Element, Surface

8523698 1200W − RF

8285848 4300W − LF & LR

4453909 1200/2500W − RR

6 9759094 Spring,Locator (6)

7 Switch, Infinite

3191050 Use W/LR Burner

9759474 Use W/LF & RR

Burners

3191049 Use W/RF Burner

Burners

8 3183956 Seal, Switch

Cover (5)

9 3192439 Seal, Limiter (4)

10 Knob, Control (4)

8286043WH

White

8286043BL

Black

8286043BT

Biscuit

11 4455917 Bracket, Mounting

12 8285862 Box, Burner

13 8286582 Spring Clip,

Bridge (3)

14 3196537 Screw

15 8285469 Seal, Switch

Shaft (5)

16 9762441 Switch, Rotary

Accusimer

17 3400093 Screw

18 Knob, Accusimer

8286044WH

White

8286044BL

Black

8286044BT

Biscuit

19 8285949 Control, Heat Shield

20 9763517 Rail, Element(2)

3191839 Seal, Heat

21 9760762 Shield, Heat

8286426 Seal

3196160 Screw

22 Trim, Cooktop

(Stainless Only)

W10142238

Right

W10142237

Left

OPTIONAL PARTS

For Models: GJC3034RB03, GJC3034RP03, GJC3034RC03, GJC3034RS03

(Black) (Pure White) (Pure Biscuit) (Stainless)

W10163523

Illus. Part

No. No. DESCRIPTION

8286642 Tape, Foam

3172515 Mounting

Hardware Kit

4455364 Bracket

Support (6)

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

4456028 Wire, Jumper

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242827 Wire, Yellow

14 Ga. 150 C

ACCESSORY PARTS

3191048 Cleaner

WIRING HARNESS PARTS

8286409 Wiring Harness

Surface Unit

8286347 Harness, Light

8286413 Conduit

3400015 Screw
