Wharfedale Pro 30ET Manuel utilisateur

Programme Series

30E/35E

30ET/35ET

OWNER’S

MANUAL

OPERATING MANUAL AND USER GUIDE

IMPORTANT WARNINGS & SAFETY INSTRUCTIONS

1. READ ALL INSTRUCTIONS carefully and become familiar with the features and

functions of these products before operating them.

2. RETAIN THESE INSTRUCTIONS for future reference.

3. COMPLY WITH ALL WARNINGS –

All warnings and instructions for this product should be adhered to.

4. USE WITH AMPLIFIERS – In order to avoid damage to drivers and other equipment, it

is advisable to establish and follow a routine for powering up and powering down a sound

system. With all system components connected, turn on source equipment (mixers, signal

processors, record and playback units, etc.) BEFORE powering up amplifiers. Transient

voltages from powering up source equipment can damage speakers if amplifiers are

already turned on. Make sure that amplifier volumes are set to their minimum settings and

power up any system amplifiers LAST. It is recommended that all system components be

allowed to stabilize for several seconds before any source signals are introduced or level

setting adjustments are made. Similarly, when shutting systems down, turn all amplifiers

off first, before powering down any other system components.

5. CABLES – Do not use shielded or microphone cables for connection between

amplifiers and speakers. Use only approved speaker cables with proper connectors.

6. RIGGING – SUSPENDING – MOUNTING – Rigging, suspending and mounting of

these speaker systems can expose members of the public to serious health risks and

even death. UNDER NO CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR

OTHERWISE MOUNT THESE SPEAKERS UNLESS YOU ARE FULLY QUALIFIED

AND CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL

AUTHORITIES. ALL RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF

YOU ARE NOT PROPERLY QUALIFIED OR DO NOT KNOW OF PERTINENT

REGULATIONS, CONSULT QUALIFIED PERSONNEL FOR ADVICE.

7. CAUTION – These professional loudspeaker systems are capable of generating very

high sound pressure levels. Use care with placement and operation to avoid exposure to

excessive volume levels. Permanent hearing damage can result when operated to

extreme levels.

8. SERVICE – There are no user serviceable parts inside this product. Users should not

attempt to service this product. Warranty nullification could result if this is attempted.

Programme Series 30E/30ET/35E/35ET

TABLE OF CONTENTS

Page

Programme Series 30E/30ET/35E/35ET

Important Warnings and Safety Instructions

2……………………………………What about the Programme Series?

3…………………………………....Introduction and Overview

4……………………………………Features

5……………………………………Setting up/ Speaker Placement

7……………………………………Connections/Wiring

9.....………………………………..Specifications

10…………………………………. Dimensional Drawings

11…………………………………..Warranty

WHAT ABOUT THE PROGRAMME 30E/30ET/35E/35ET

LOUDSPEAKERS?

Wharfedale Programme Series of foreground/back-ground music speakers

are designed for demanding professional applications such as reproduction

and reinforcement of music and sound in venues as diverse as airports,

places of worship, schools, retail shops, restaurants and

public houses.

When you need a powerful, easy to install and use sound reinforcement or

background music system, you choose the system that can deliver the

biggest sound for your money. TheProgramme 30E/30ET/35E/35ET

system is just what you asked for.

Programme Series 30E/30ET/35E/35ET

INTRODUCTION

Thank You

Wharfedale Programme Series loudspeakers are the result of many years

of experience in the use, design and manufacturing of professional

loudspeaker products. We take great pride in engineering and building every

Wharfedale Pro loudspeaker and wish to thank you for entrusting us with

your sound.

Please take a few minutes to read this manual completely in order to ensure

that you get the most out of your Programme Series Loudspeaker system.

PROGRAMME 30E/30ET/35E/35ET OVERVIEW:

The Programme 30E/35E loudspeaker system is designed to deliver

accurate, high power sound in a lightweight, small and easy to install

package.

From the selection of components, to the High Frequency Driver protection

circuit pro-tech®(PTC)the Programme 30E/35E is designed from the

ground up to be a workhorse. Feature laden and powerful, the Programme

30E/35E is the best choice for a small, big sounding loudspeaker.

The Programme 30ET and Programme 35ET speakers may be used in

constant voltage distributed systems. With an internal 70v/100v transformer,

you can economically install a background music or paging system, while still

only using one (70v/100v) amplifier.

Programme Series 30E/30ET/35E/35ET

FEATURES – Programme 30E/30ET

2-way loudspeaker system

1” (25.4mm) Mylar Dome drive unit

Low distortion, high power, 5-1/4" (133.4mm) woofer

50 Watts Continuous Power Handling

High strength MDF cabinet

Pro-tech®(PTC) driver protection

Four (4) M6 hanging points

Parallel Spring crimp Input Connectors

Available with 100 Volt Transformer (T version)

Universal Bracket Included

FEATURES – Programme 35E/35ET

2-way loudspeaker system

1” (25.4mm) Silk Dome drive unit

Low distortion, high power, 6" (152.4mm) woofer

60 Watts Continuous Power Handling

High strength MDF cabinet

Pro-tech®(PTC) driver protection

Four (4) M6 hanging points

Parallel spring crimp input connectors

Available with 70/100 Volt Transformer (T version)

Programme Series 30E/30ET/35E/35ET

SETTING UP/ SPEAKER PLACEMENT

Programme Series 30E/30ET/35E/35ET

The uniform dispersion of the Programme 30E/30ET/35E/35ET makes it

easy to place the speakers where you need them, rather than trying to rear-

range the room to accommodate the sound system. Try to keep the speak-

ers above head level to get the full effect of the system and cover the most

people.

The Programme 30E/30ET/35E/35ET is an excellent sound reinforcement

or background music speaker. A set of wall mounting brackets is included

with each pair of speakers to make installation easy and safe.

The Programme 30E/30ET/35E/35ET can be oriented in a vertical or hori-

zontal position. All models have been designed for tabletop or bookshelf

installation or, with the use of the included brackets they can be mounted on

the wall or ceiling.

Don’t worry about big rooms or rooms with hard to reach seats. The Pro-

gramme “T” Series speakers have a transformer to allow the use of many

more speakers than you would normally use. Use of the transformer is high-

lighted in the Connections/ Wiring Section.

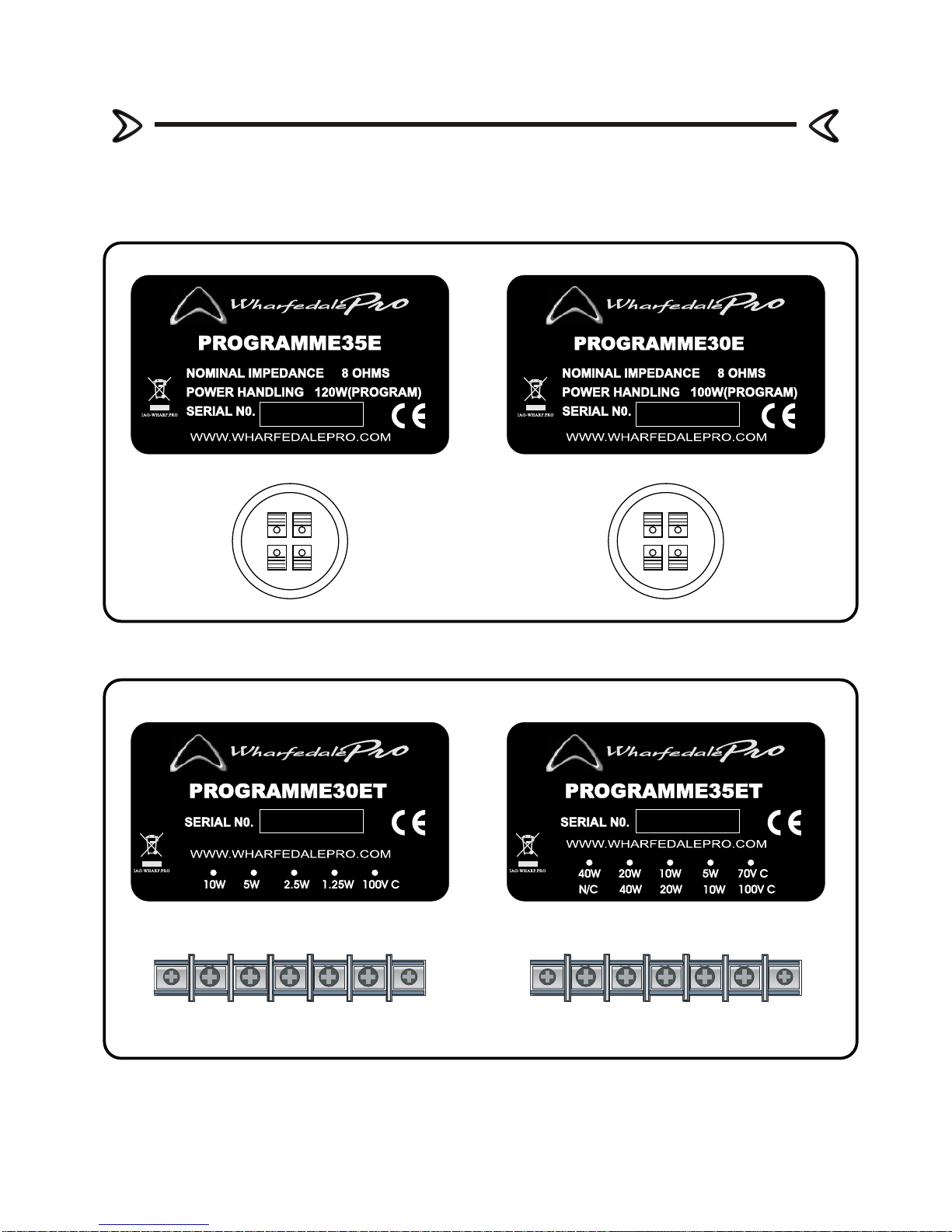

Pro 30E/35E Line picture of the panel

Programme Series 30E/30ET/35E/35ET

CONNECTIONS/ WIRING

Be sure to connect your speakers in proper polarity (what many refer to

erroneously, as phase). This means that in normal operation; connect one

end of the same wire to the Red terminal on the amplifier and the other end

to the Red connector on the speaker. Black is always the ground or common.

Because the Programme Series is so flexible, you can wire many speakers

in parallel or series or a combination of Series/Parallel. Follow the diagram

below for wiring schemes .

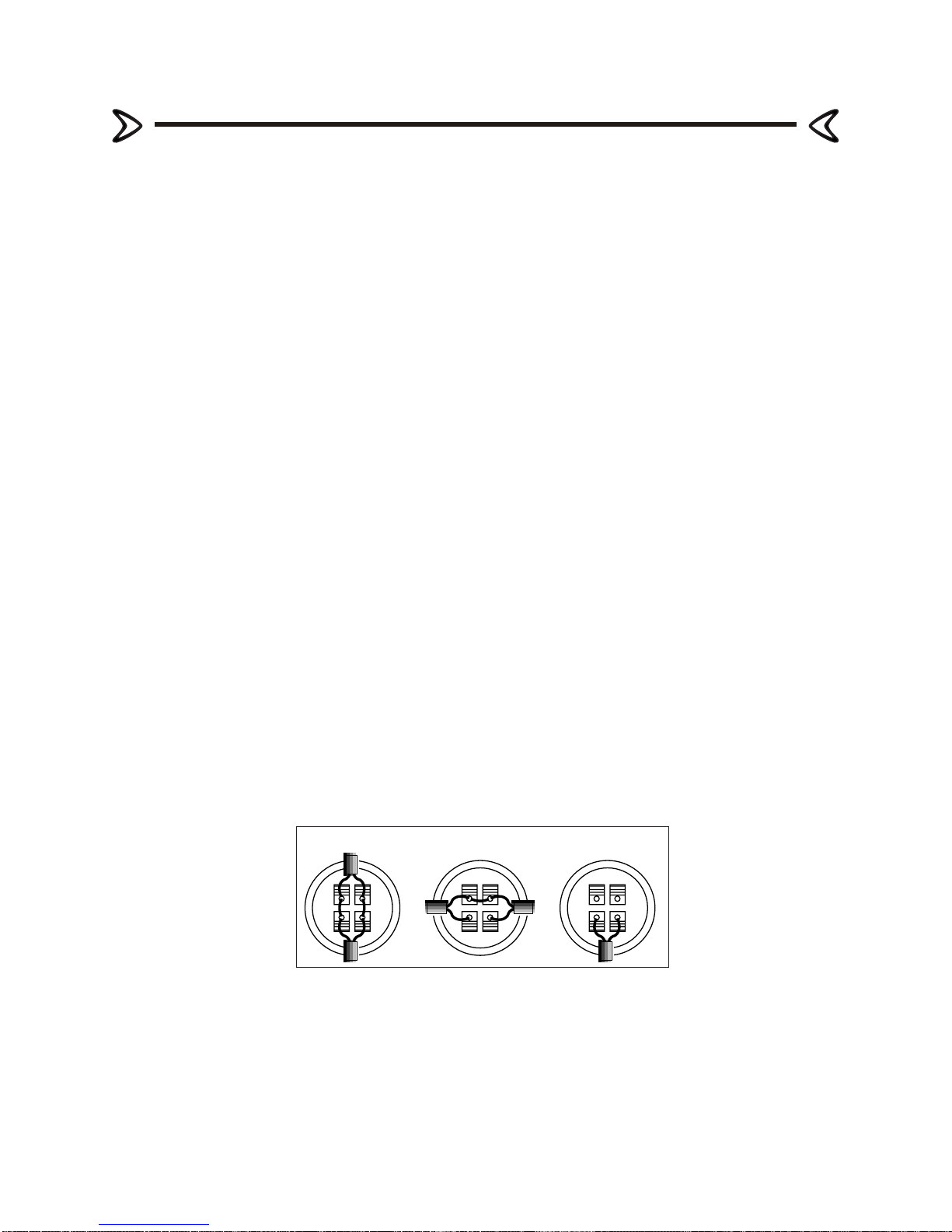

G G

B R

G G

B R

G G

B R

Series

Connection

Parallel

Connection Normal

Connection

Programme Series 30E/35E

Wiring and setting up your Programme 30E/30ET/35E/35ET is as easy as

plugging in a household appliance. You simply run your speaker cables from

your amplifier to one of the parallel spring style input connectors on the Pro-

gramme 30E/30ET/35E/35ET input panel.

The Programme 30E/30ET/35E/35ET accept stripped bare end cables.

Attach the speaker cable securely to your Programme Series unit and power

amplifier (the amplifier should be off). Use the correct gauge of speaker cable

according to the power handling ability of your Programme Series cabinet.

Use stranded insulated cable for speaker runs. It is always advisable to use

heavier gauge (lower number) cables on longer runs.

HIGH-IMPEDANCE/CONSTANT-VOLTAGE SYSTEM:

If you are using the Pro30ET/35ET, wiring is just as easy - with a few more

steps. You connect your speaker cable from the 70.6v or 100v output of your

amplifier (or to an external line transformer) to the input terminals of the

speaker. You will then have to adjust the wattage of the transformer to the

correct setting.

As you would with any audio system, you will need to figure out how many

speakers that you want to use and then divide that into the wattage of your

power amplifier - you should not exceed that load, otherwise, you will

encounter distortion.

Because of the low wattage limitations of the individual speakers, this set up

is normally used in office sound systems and areas where you only want to

hear background music, or occasional messages to everyone within a facility.

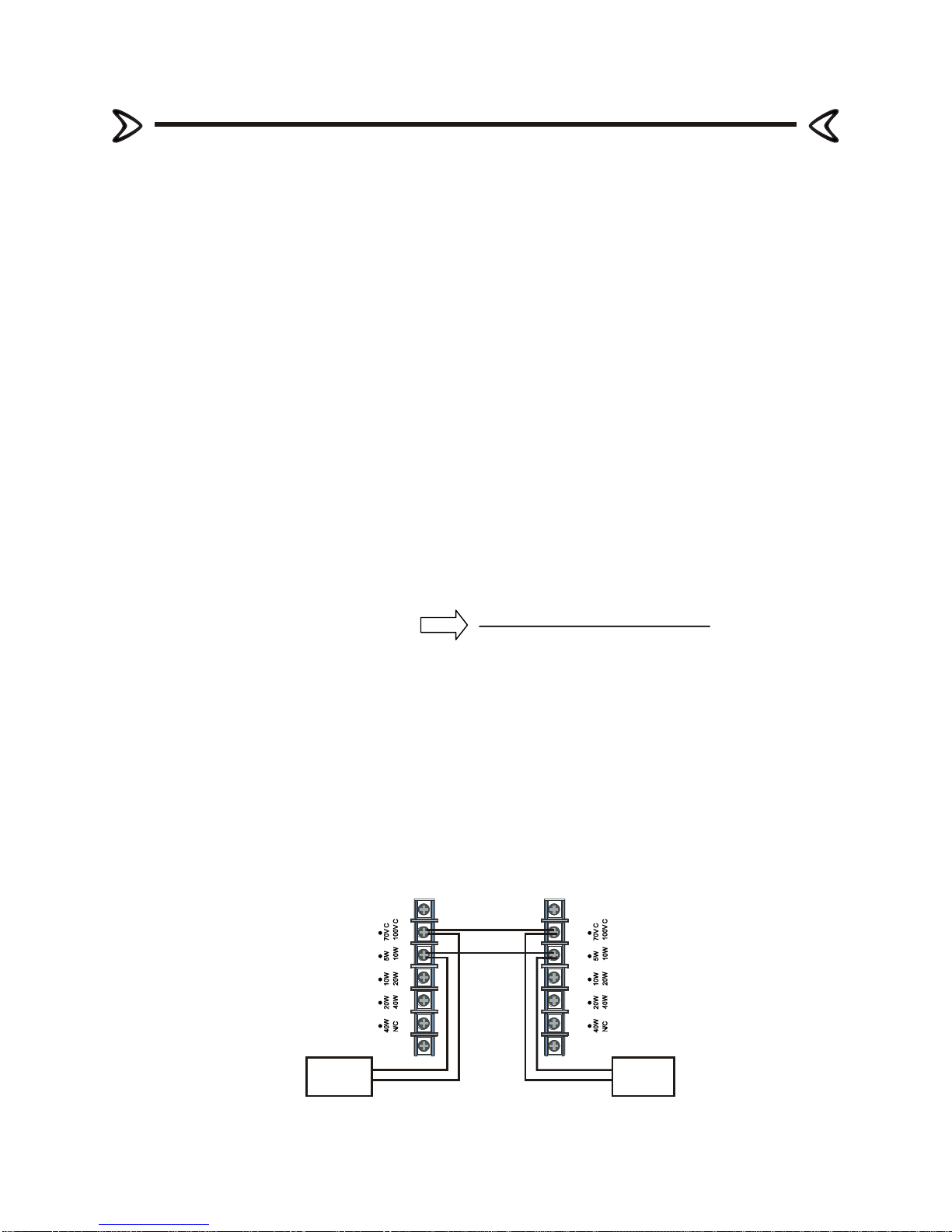

You connect the +(positive) side to the + connector and the –(negative) to

the ground connector. If you are adding more speakers, connect your

speaker wire from the LEFT side connector and run it to the + (positive)

connector on the next speaker.

Amplifier Power

Transformer tap (W)

Number of Speakers

70V C

100V C

10W

5W10W20W40W 20W40WN/C

70V C

100V C

10W

5W10W

20W

40W 20W40WN/C

Programme Series 30ET/35ET

The Programme 30ET features an internal line-matching transformer with

four power/impedance selections for 100-volt line. In speaker systems,

anything over 32Ω is considered high impedance. Smaller wire can be used

without excessive power loss. The four switchable power taps are 1.25W,

2.5W, 5W and 10W (Pro30ET) and 5W, 10W, 20W, 40W (Pro35ET).

FROM

AMPLIFIER TO NEXT

SPEAKER
