Wharfedale Pro GPL Series Manuel utilisateur

GPL Series

General Purpose Loudspeakers

USER MANUAL

GPL-5 & 5T GPL-8 & 8T GPL-12 & 12HQ GPL-15 & 15HQ

GPL-28B GPL-115B GPL-118B GPL-218B

www.wharfedalepro.com

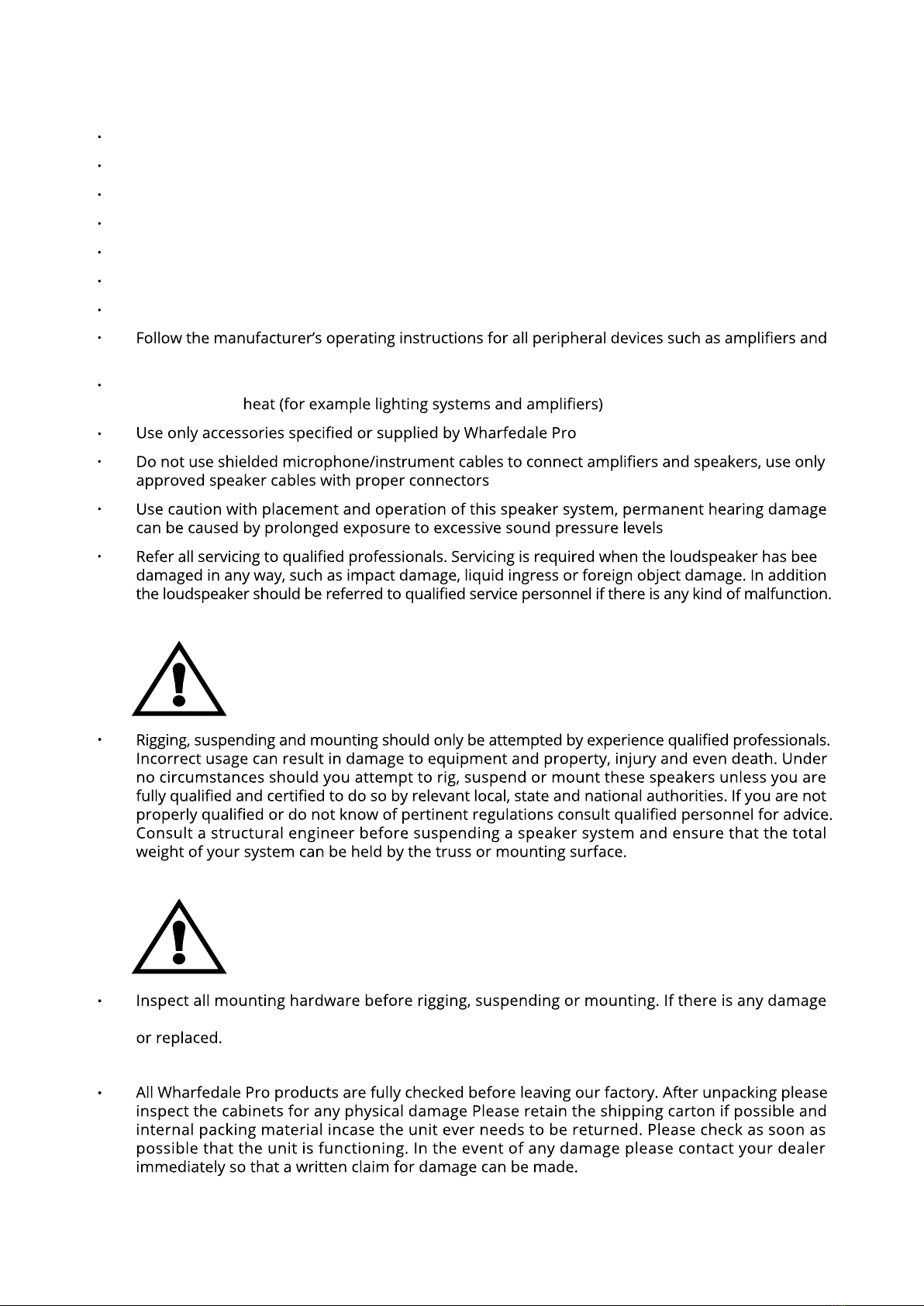

Important Warnings & Safety Instructions

Read these instructions

Follow these instructions

Keep these instructions for future reference

Heed all warnings

Do not use this system near moisture or water

Clean only with a dry cloth

Install in accordance with these Wharfedale Pro operating instructions

processors

Do not install near heat sources such as radiators, heat registers, stoves or any other apparatus

that produces

or distortion to any mounting hardware do notproceed until any damaged hardware is repaired

UNPACKING

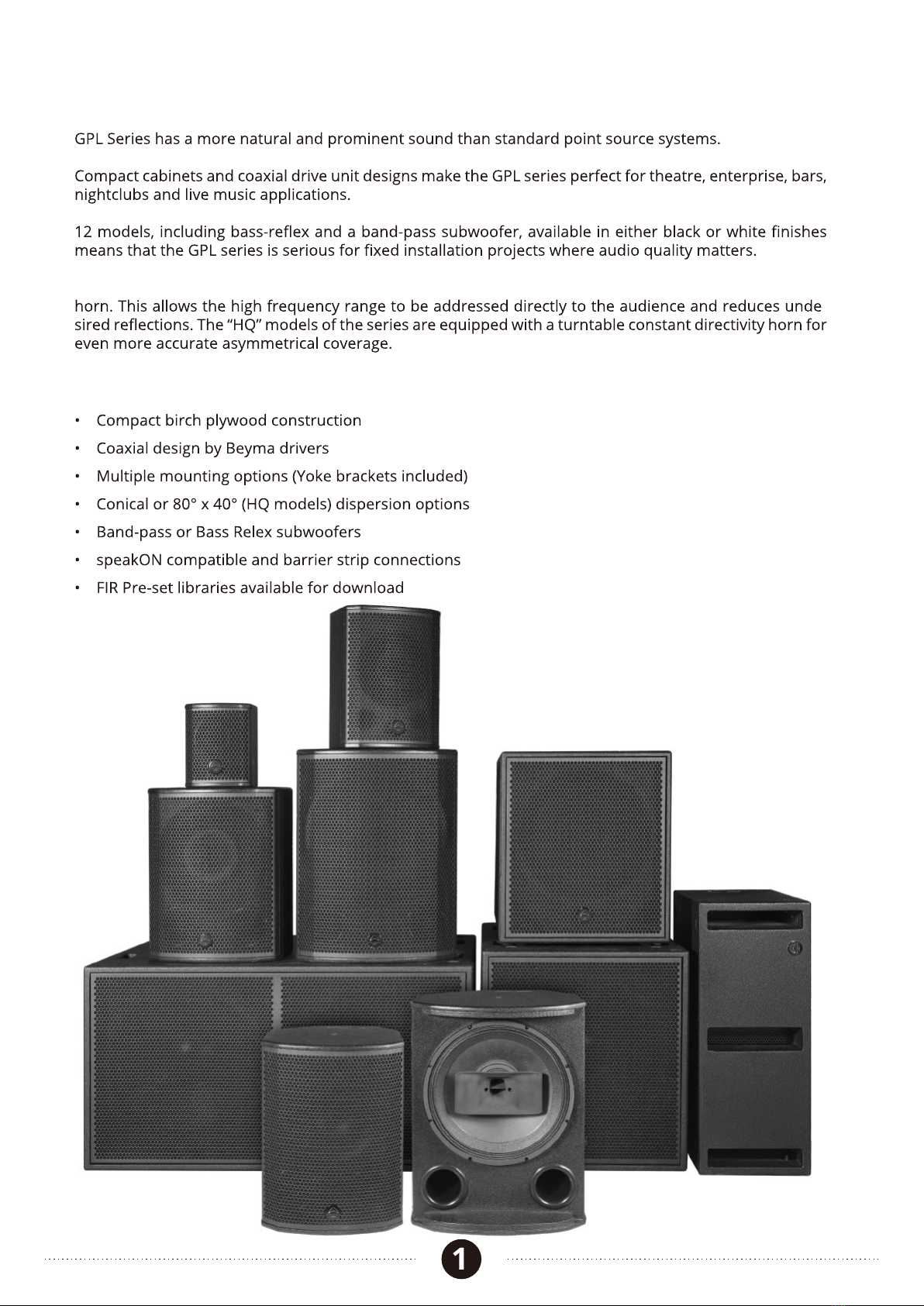

A unique characteristic of the GPL series is that all full range models feature an original design waveguide

ABOUT GPL Series

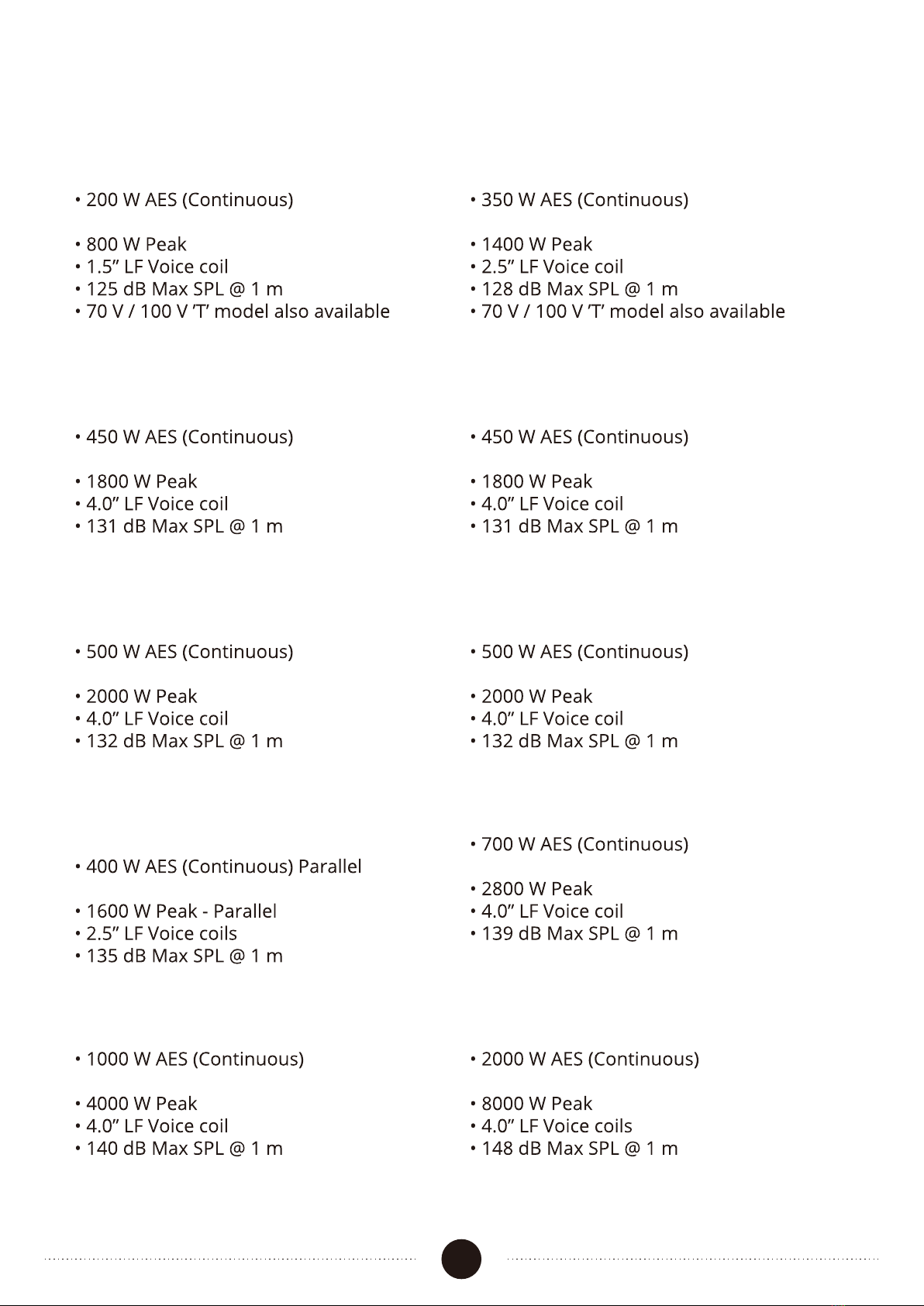

Product Features

GPL-5 & 5T

• 70° conical coverage

• 400 W Programme

GPL-8 & 8T

• 70° conical coverage

• 700 W Programme

• 60° conical coverage

• 900 W Programme

GPL-12

• 80° x 40° constant directivity waveguide

• 900 W Programme

GPL-12HQ

• 60° conical coverage

• 1000 W Programme

GPL-15

• 80° x 40° constant directivity waveguide

• 1000 W Programme

GPL-15HQ

• Discrete and Parallel modes

• 800 W Programme - Parallel

GPL-28B

• 1400 W Programme

GPL-115B

• 2000 W Programme

GPL-118B

• 4000 W Programme

GPL-218B

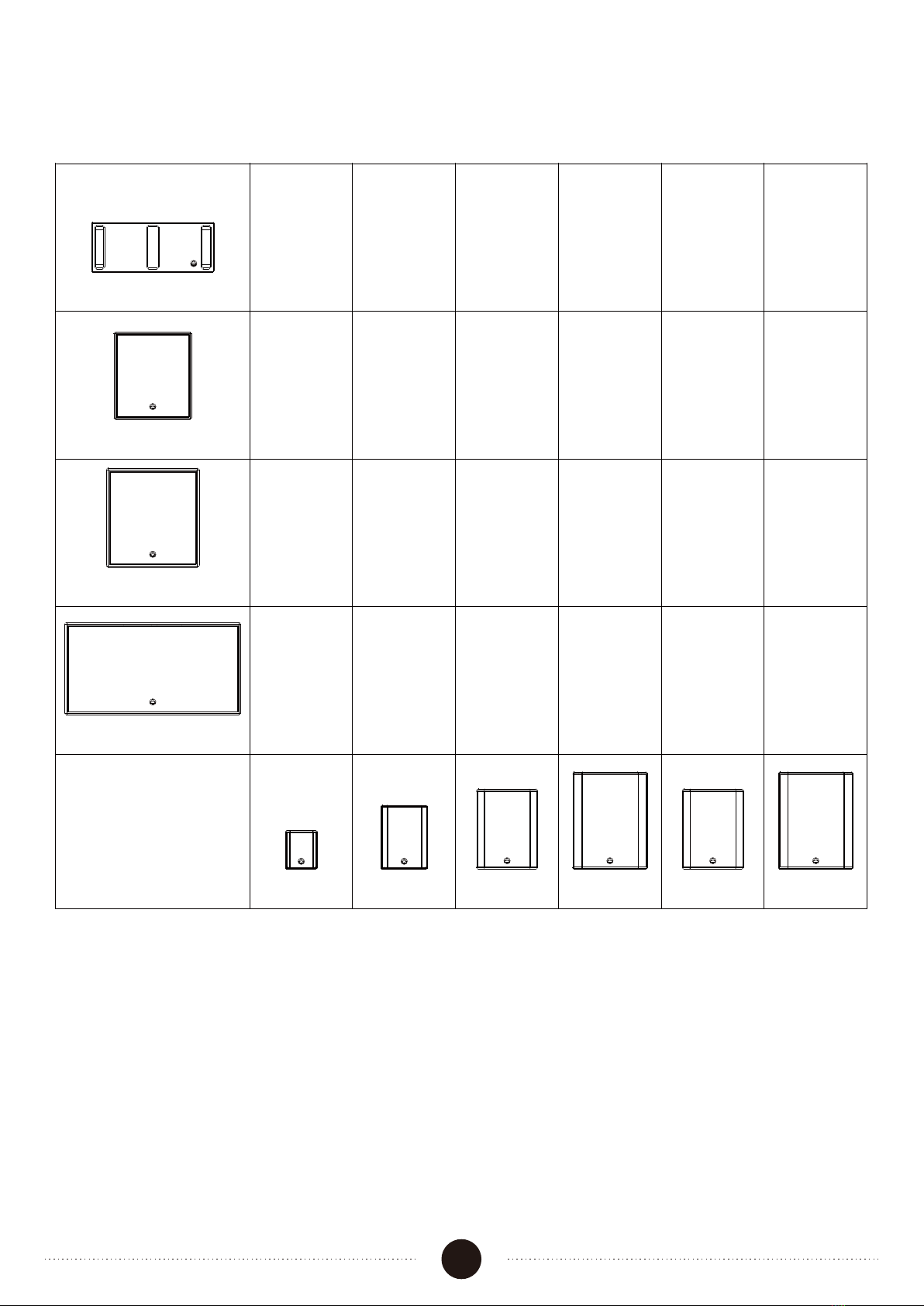

GPL Series Recommended systems

2 x

Up to 4 x

Up to 4 xUp to 8 x

1 1

1 1 12 x

2 x 2 x 2 x 2 x

GPL-5 GPL-8 GPL-12 GPL-15 GPL-12HQ GPL-15HQ

GPL-28B

GPL-115B

GPL-118B

GPL-218B

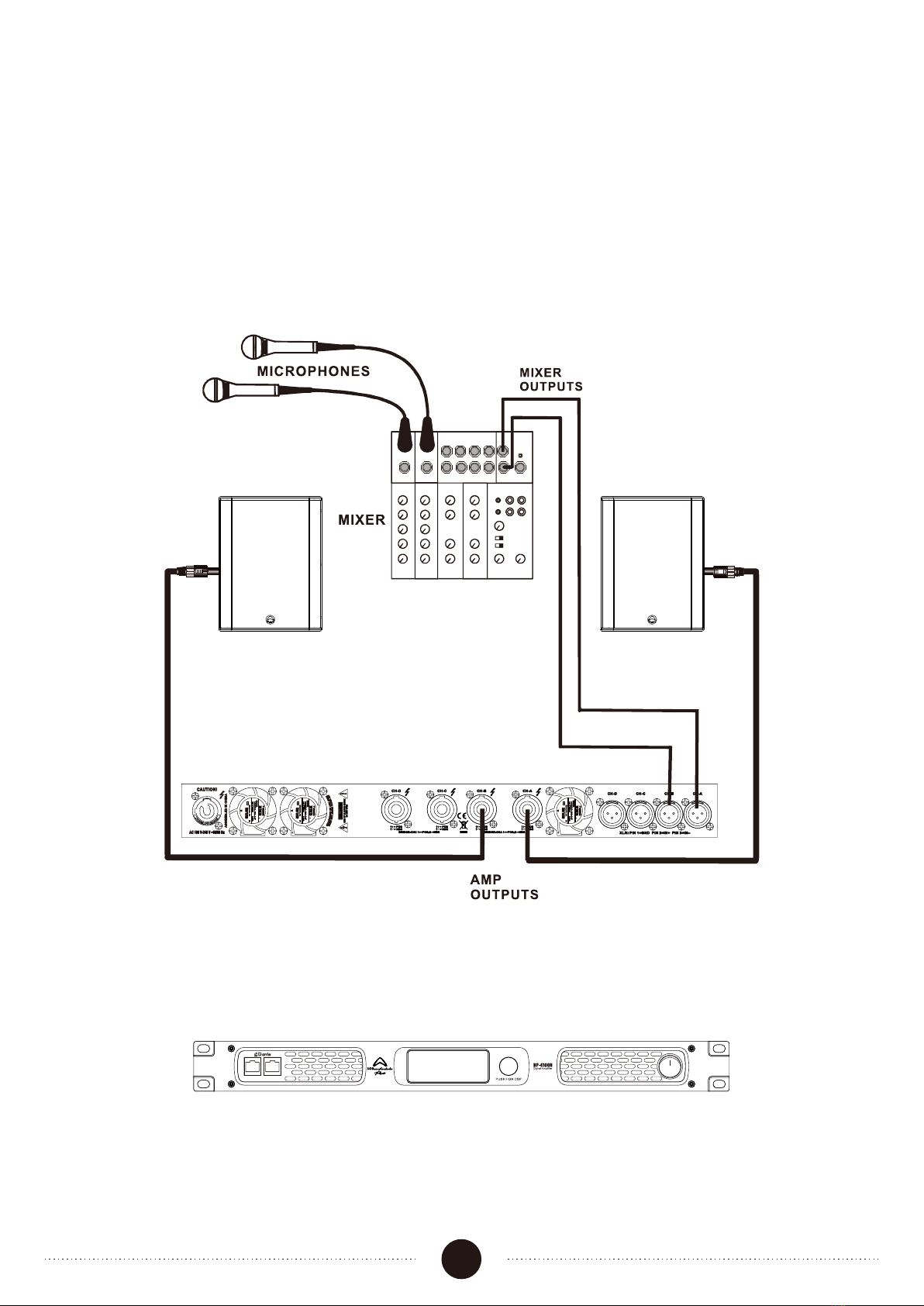

GPL Series sound system example

GPL-15/15HQ sound system example

DP-4100N(F) Amplifier

GPL-15HQGPL-15HQ

DP-4100N(F) Amplifier

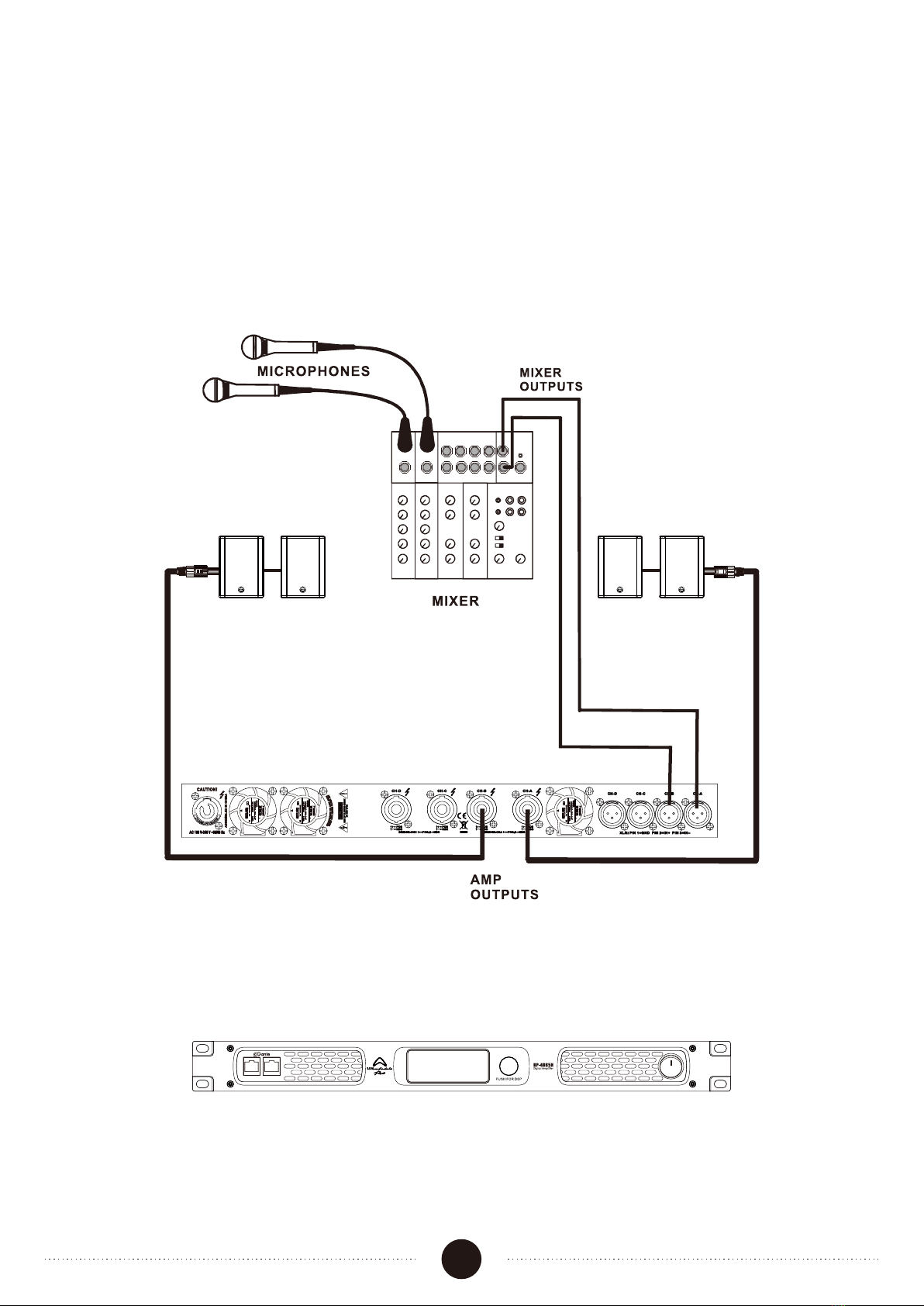

GPL Series sound system example

Parallel Connection of Two GPL-8

Two Way Enclosures

DP-4065N(F) Amplifier

GGPL-8 GPL-8 GPL-8 GPL-8

DP-4065N(F) Amplifier

GPL Series sound system example

Two GPL-118B and Two GPL-12

sound system example

DP-4100N(F) Amplifier

GPL-12GPL-12

GPL-118B GPL-118B

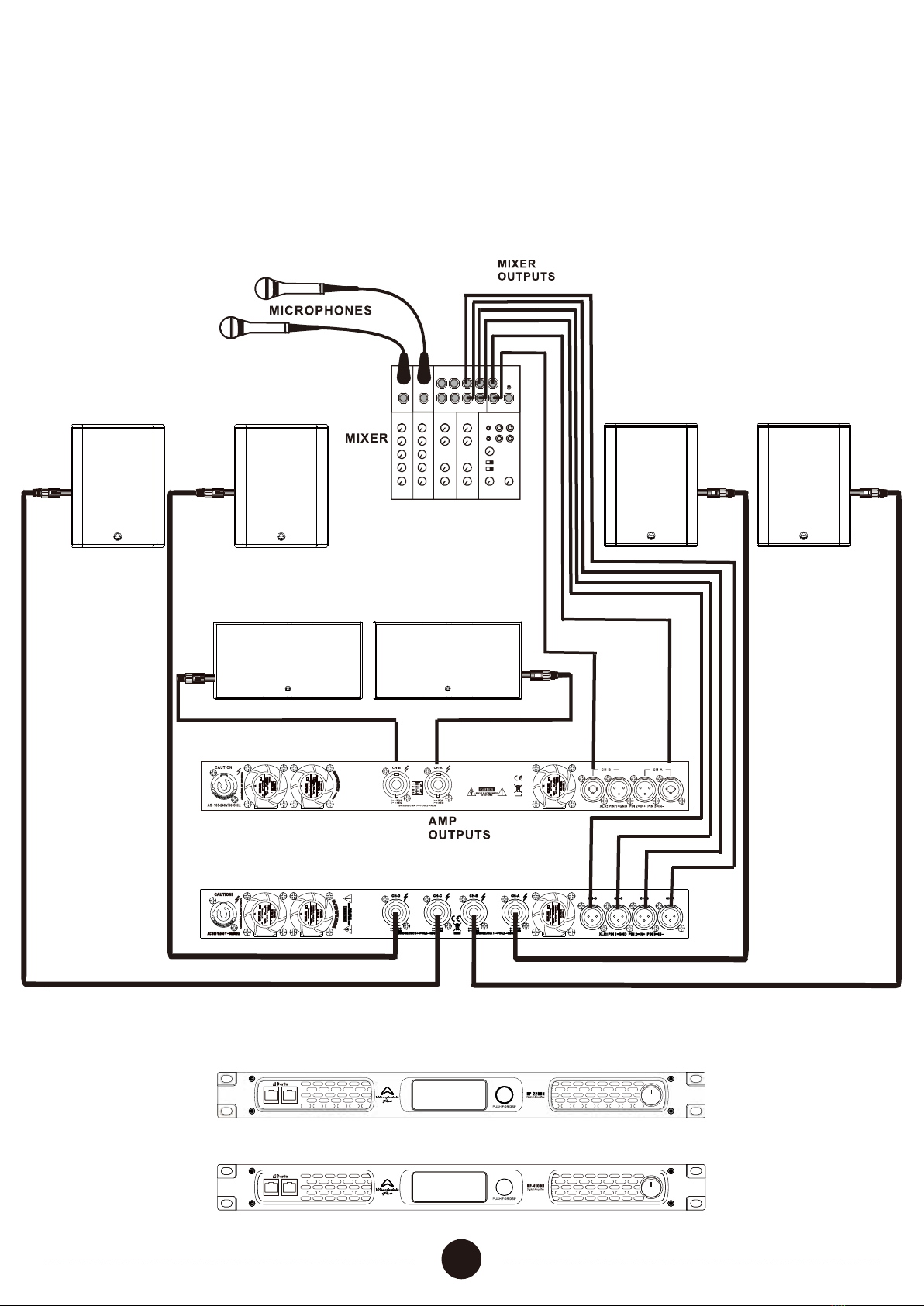

GPL Series sound system example

GPL-15/15HQ and GPL-218B

sound system example

DP-4100N(F) Amplifier

DP-2200N(F) Amplifier

GPL-15/15HQ

DP-2200N(F) Amplifier

DP-4100N(F) Amplifier

GPL-15/15HQ GPL-15/15HQGPL-15/15HQ

GPL-218B GPL-218B

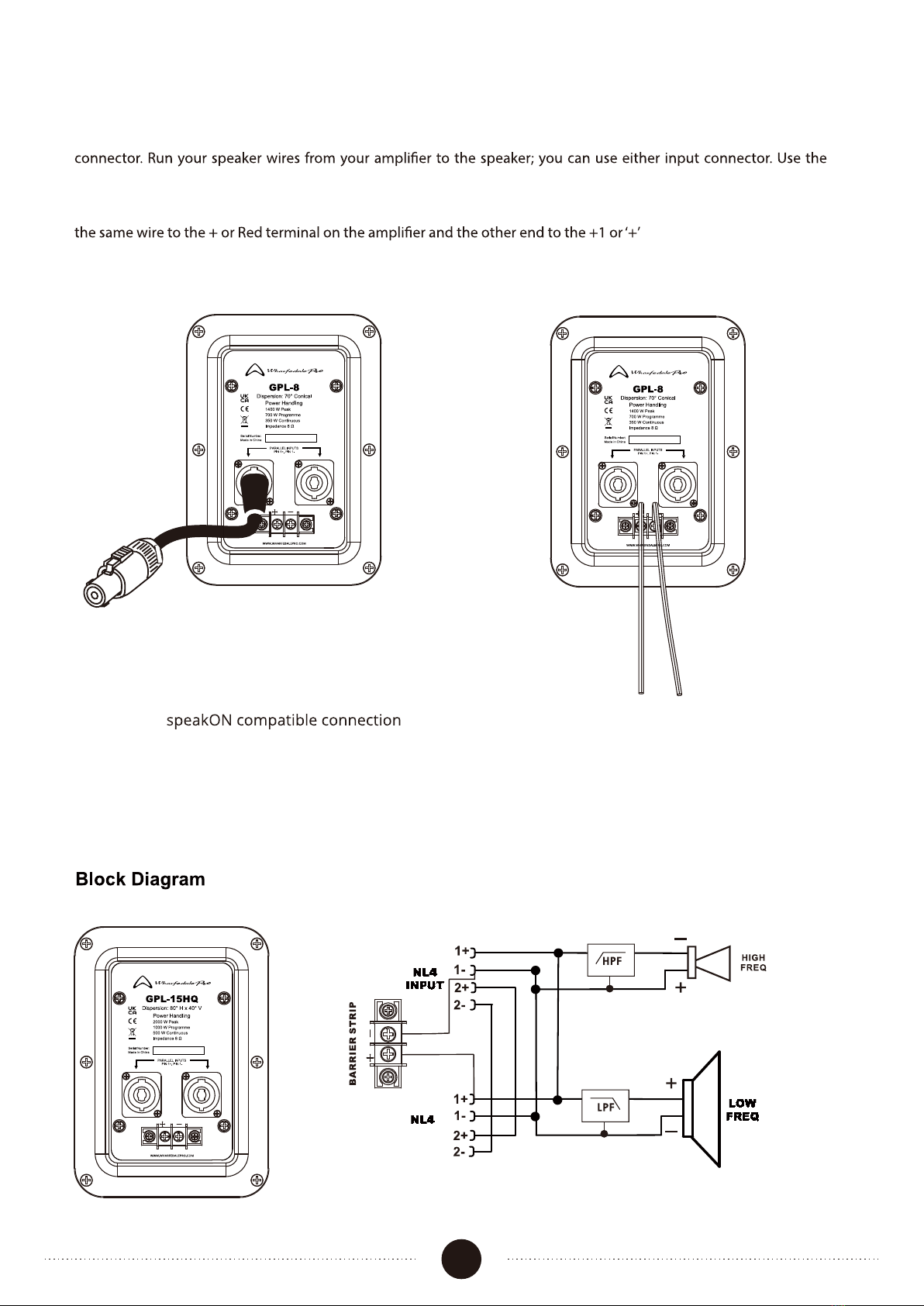

Connecting the GPL Series to your system is easy. The rear panel includes two (2) parallel NL4 and a barrier strip

correct gauge of stranded insulated speaker cable according to the power handling ability of your GPL Series cabinet.

It is always advisable to use heavier gauge (lower number) cables on longer runs. Be sure to connect your speakers in

proper polarity (what many refer to erroneously, as phase). This means that in normal operation, connect one end of

terminal of the barrier strip

on the speaker. The other wire is connected to the –1 pin on the NL4 or the ‘–’ (negative) terminal on the barrier

strip.

GPL Series Connections

GPL-5/GPL-8/GPL-12/GPL-15

GPL-12HQ/GPL-15HQ

Barrier strip connection
