Whalen WMFP60FH-9 Manuel utilisateur

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Whalen Furniture Manufacturing Page 1 Factory No. 16015

Date 2015-05-24 Rev. 1 Factory: HECFUR

60" Fall Harvest Fireplace

Stock # WMFP60FH-9

ADULT ASSEMBLY REQUIRED

If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the

store where it was purchased. Please call our customer service number and have your instructions

and parts list ready to provide the model name, part name or factory number:

1-866-942-5362

Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday

Or visit our web site 24 hours a day, 7 days a week for product assistance at

www.whalenstyle.com

Or e-mail your request to parts@whalenfurniture.com

LOT NUMBER:

DATE PURCHASED:

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 2 Factory No. 16015

MANUFACTURER: Whalen Furniture Manufacturing

CATALOG: 60" Fall Harvest Fireplace (WMFP60FH-9)

DATE OF MANUFACTURE: June 2015

MADE IN CHINA

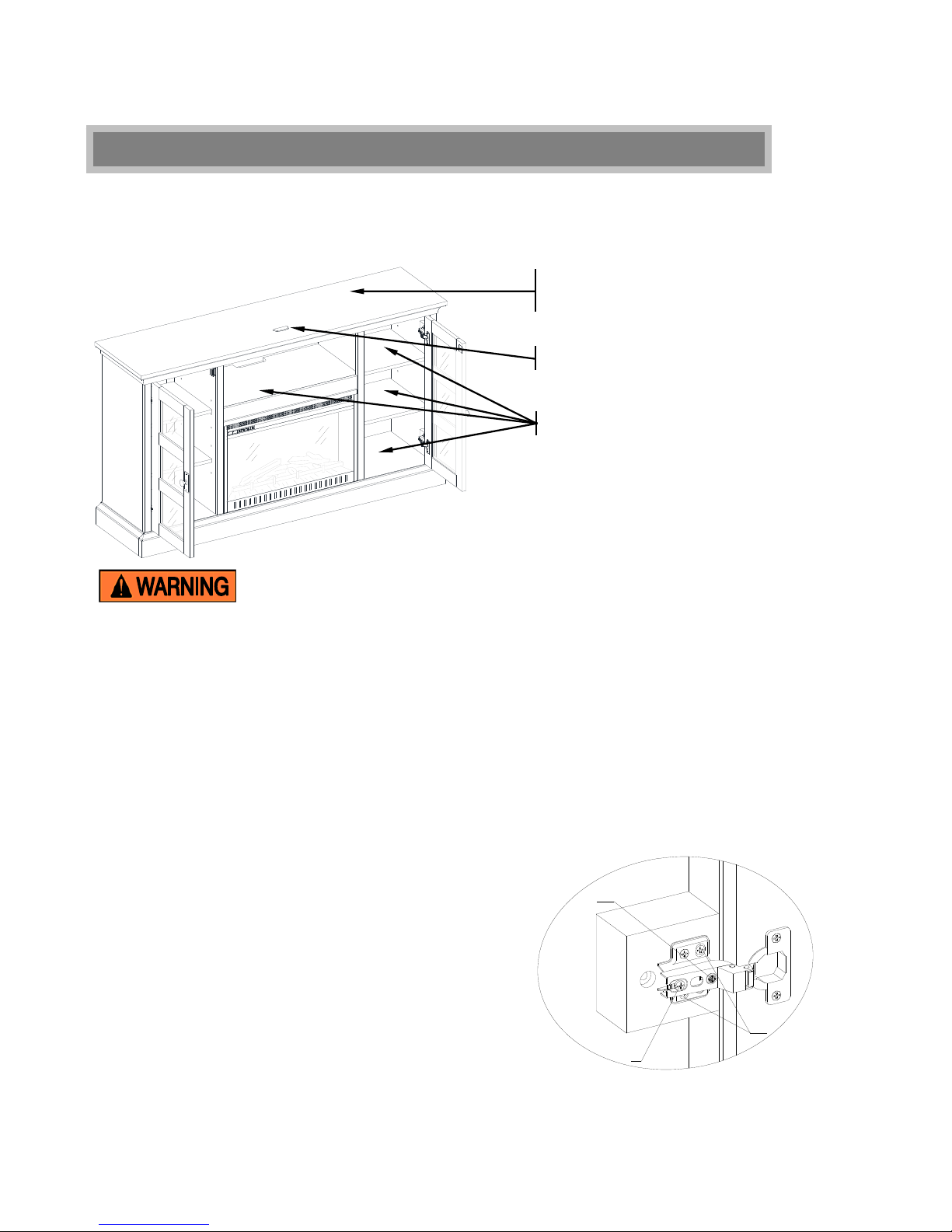

How to adjust the European adjustable hinges on doors

Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,

turn the appropriate screw, as illustrated.

1. TO ADJUST DOOR FORWARD OR BACKWARD.

2. TO ADJUST DOOR TO RIGHT OR TO LEFT.

3. TO ADJUST DOOR UP OR DOWN.

PLACE TV BEHIND THE STOPPER

IMPORTANT INFORMATION

MAXIMUM LOAD 50 lb. (22.6 kg)

FITS UP TO MOST 70” FLAT PANEL TVs

MAXIMUM LOAD 135 lb. (61.2 kg)

THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT

PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT

LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR

EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT;

THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF

THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL

TVS, OR FLAT PANEL TVS OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND

WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 3 Factory No. 16015

Important

Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-

abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

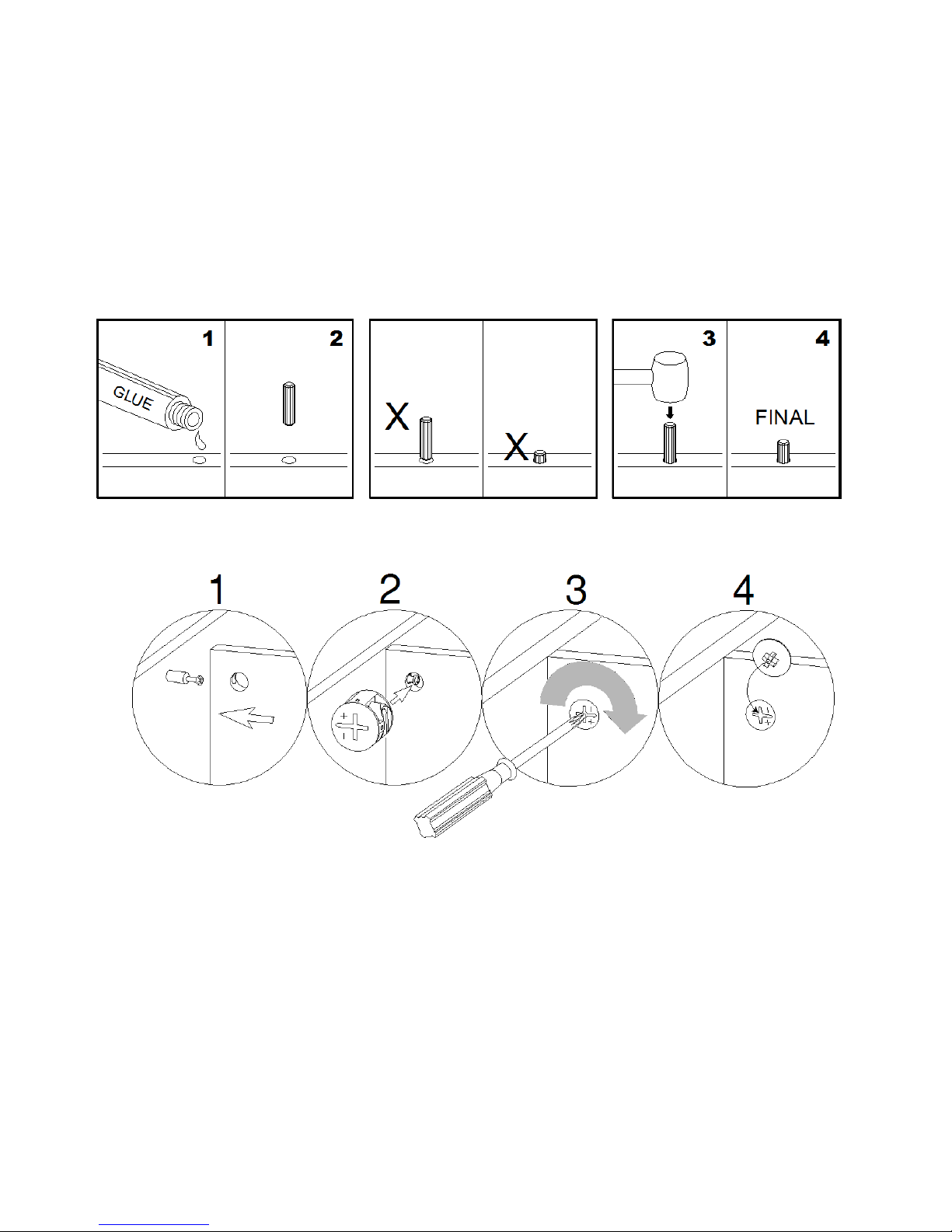

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED OFF

WITH DAMP CLOTH.

Insert Dowel at least half way by tapping lightly with a rubber mallet IF NECESSARY.

CAM LOCK SYSTEM OPERATION

HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS

1. Screw Cam Bolt into the pre-drilled small holes on panel. Connect both panels together; making sure Cam

Bolt goes into pre-drilled hole on the end of panel with Cam Lock.

2. Insert Cam Lock into pre-drilled large hole on panel. Make sure arrow on Cam Lock is pointed toward

Cam Bolt.

3. Once Cam Bolt is connected inside Cam Lock, take a Phillips screwdriver and tighten Cam Lock clockwise.

4. Plug Cam Cap into the cross slot of the Cam Locks to conceal the cam.

You are now ready to assemble the KD unit.

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 4 Factory No. 16015

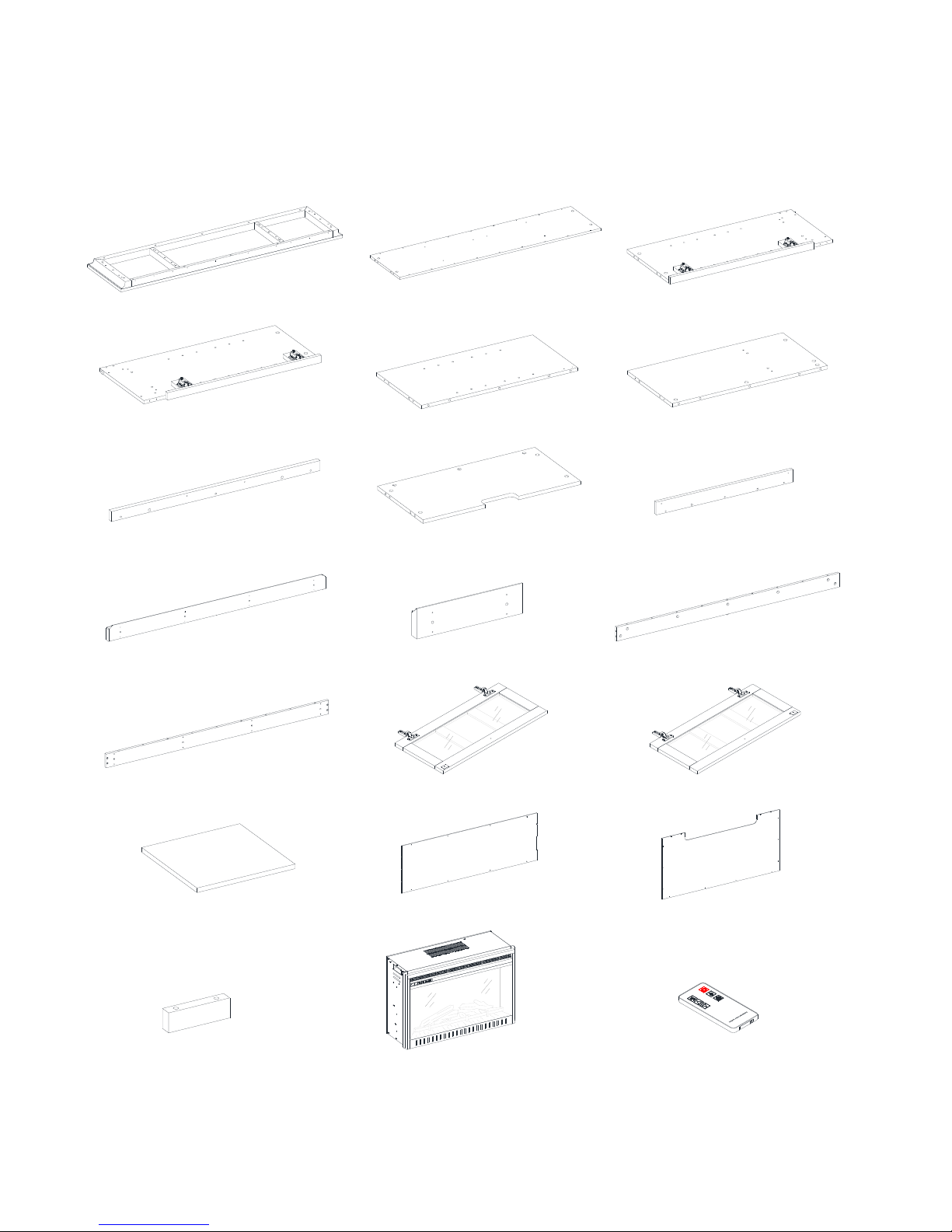

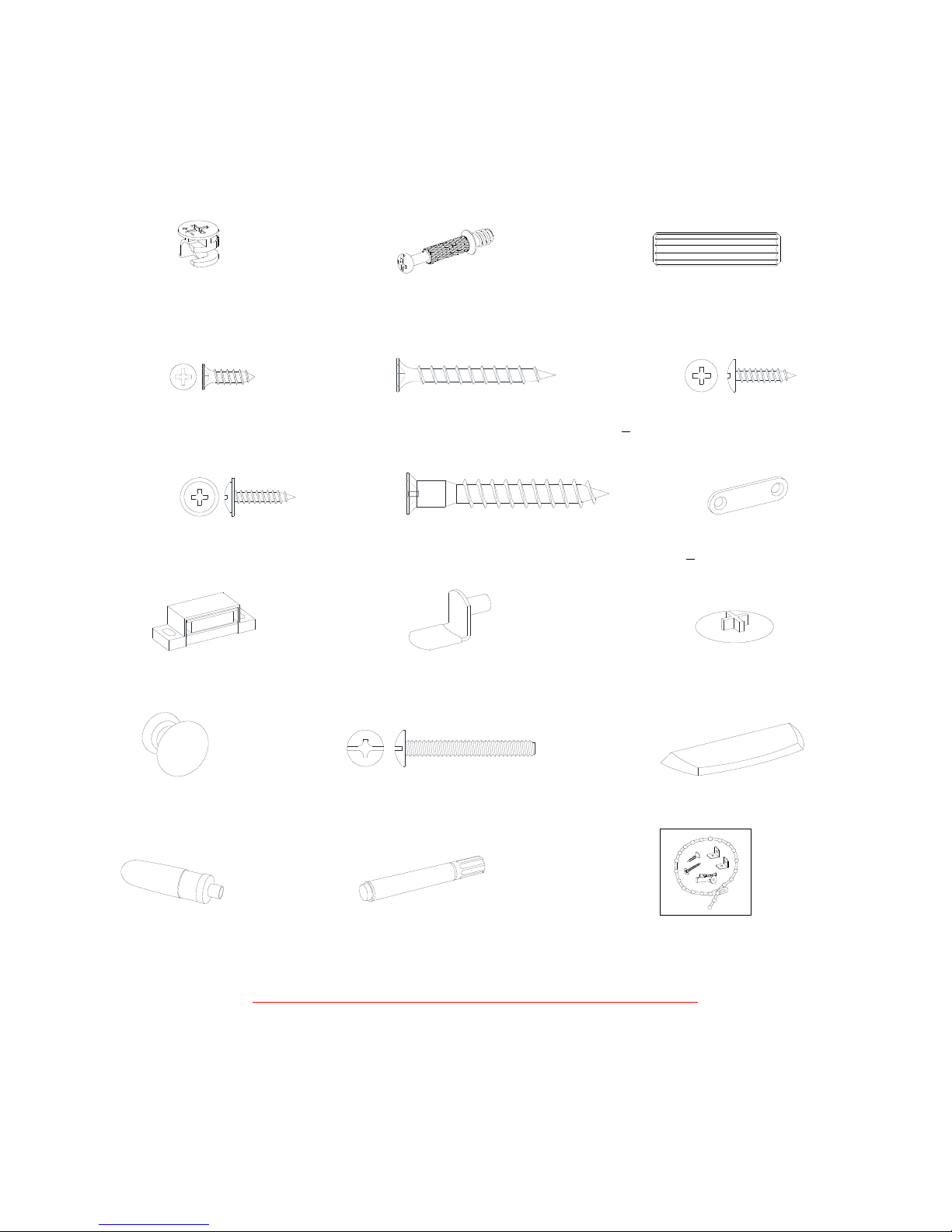

Parts and Hardware List

Please read completely through the instructions and verify that all listed parts and hardware are present

before beginning assembly.

A- Top Panel (1) B- Bottom Panel (1) C- Left Side Panel (1)

D- Right Side Panel (1) E- Left Partition Panel (1) F- Right Partition Panel (1)

G- Partition Panel Molding (2) H- Fixed Shelf (1) I- Middle Crossbar (1)

J- Front Skirting (1) K- Side Skirting (2) L- Base Rear Stretcher (1)

M- Base Front Stretcher (1) N- Left Door (1) O- Right Door (1)

P- Adjustable Shelf (4) Q- Center Back Panel (1) R-Side Back Panel (2)

S- Firebox Support (1) Fireplace Insert (1) Remote Control with Battery (1)

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 5 Factory No. 16015

Parts and Hardware List

Please read completely through the instructions and verify that all listed parts and hardware are present

before beginning assembly.

(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel

(37+1 extra) (37+1 extra) (44+2 extra)

(4) M3 x 12 mm Screw (5) M4 x 38 mm Wood Screw (6) M3 x 15 mm Pan Head Screw

(4+1 extra) (24+1 extra) (4+1 extra)

(7) M3 x 15 mm Washer Head Screw (8) M7 x 50 mm Shoulder Screw (9) Metal Bracket

(36+1 extra) (2) (2)

(10) Magnetic Catch (11) Shelf Support (12) Cam Lock Cover

(2) (16+1 extra) (20+1 extra)

(13) Knob (2) (14) 32 mm Knob Bolt (2) (15) Acrylic Stopper (1)

Glue (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (2)

(Included in plastic bag)

Tools required: Phillips screwdriver and Hammer (not provided).

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 6 Factory No. 16015

Assembly Instructions

1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a

carpeted floor or the empty carton to avoid any scratch.

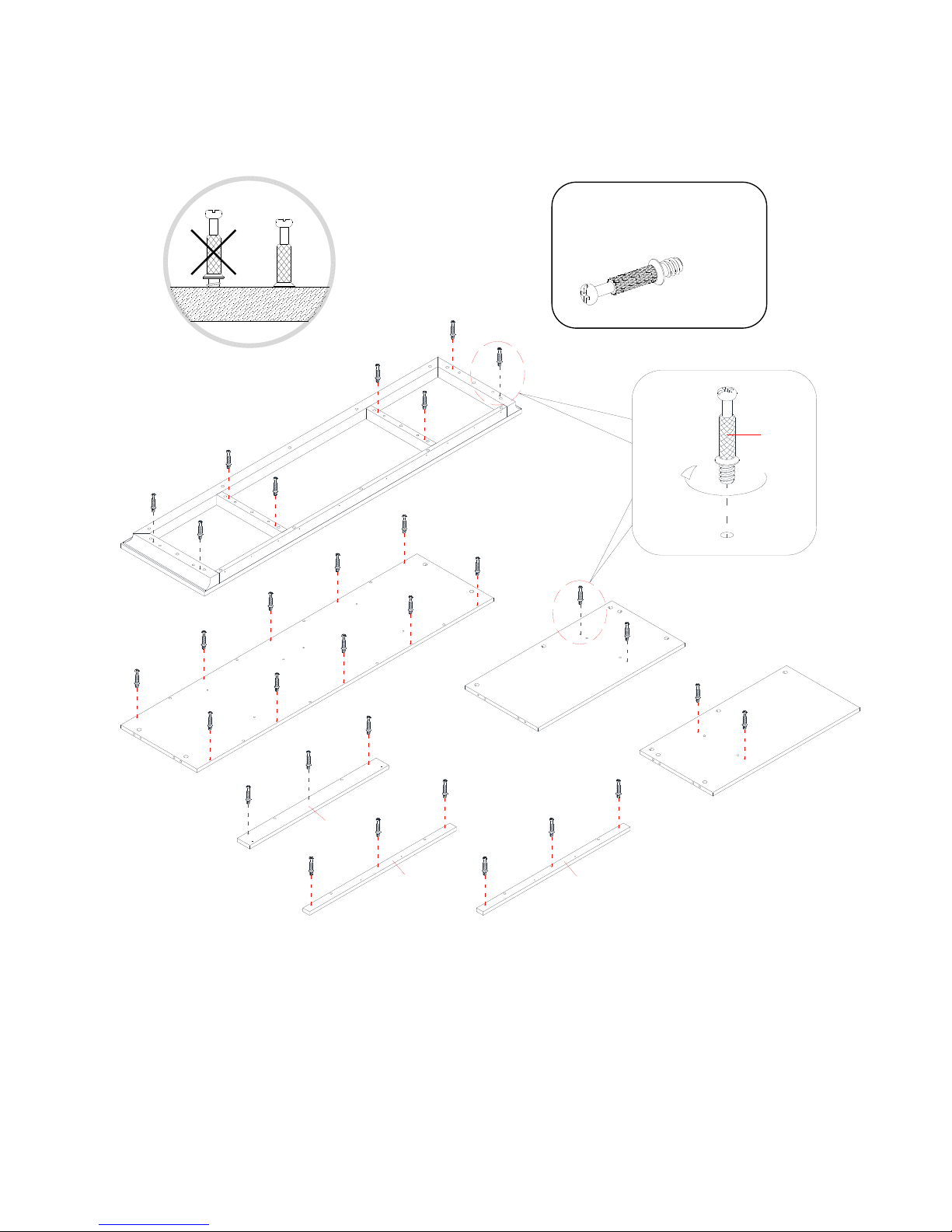

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Bottom Panel

(B), Partition Panels (E and F), Partition Panel Moldings (G) and Front Crossbar (I) by a Phillips

screwdriver, as shown in the illustration.

Cam Bolt

(31 used in this step)

②

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 7 Factory No. 16015

Assembly Instructions

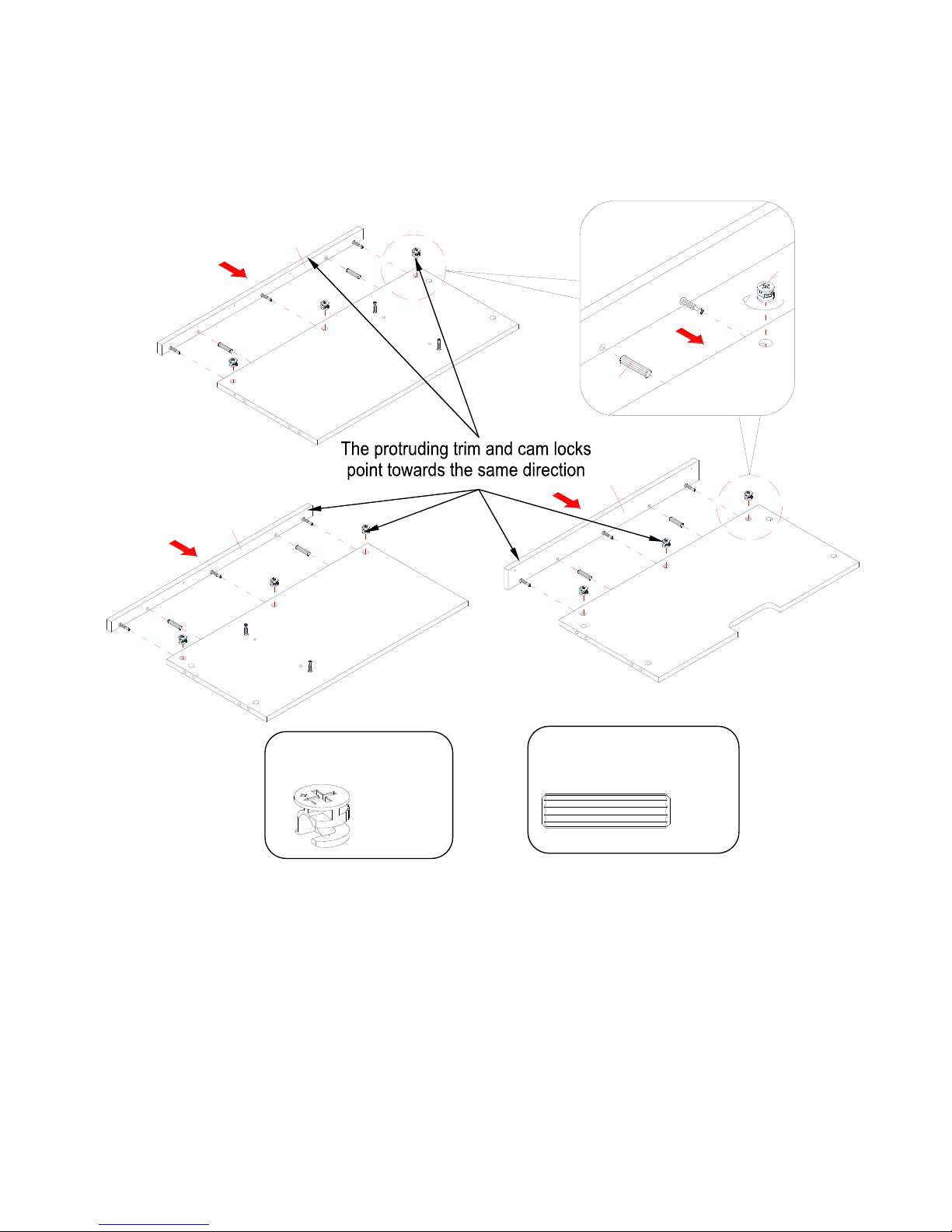

3. Insert two Wood Dowels (3) into the inner holes on the end of Left Partition Panel (E). Tap in with a

rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels.

4. Align the drilled holes on one Partition Panel Molding (E) with the inserted Wood Dowel (3) on the

Left Partition Panel (E), and then press them together as shown. Attach the Partition Panel Molding (G)

in place by engaging three Cam Locks (1) (Refer to page 3 on Cam Lock system operation supplement).

5. Repeat the same procedure to combine the Right Partition Panel (F) and the other Partition Panel

Molding (G), the Fixed Shelf (H) and the Middle Crossbar (I) together.

Wood Dowel

(6 used in this step)

③

Cam Lock

(9 used in this step)

①

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 8 Factory No. 16015

Assembly Instructions

6. Align and attach the Base Rear Stretcher (L) to the Bottom Panel (B) with four wood dowels (3) and

five cam locks (1). As shown.

Wood Dowel

(4 used in this step)

③

Cam Lock

(5 used in this step)

①

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 9 Factory No. 16015

Assembly Instructions

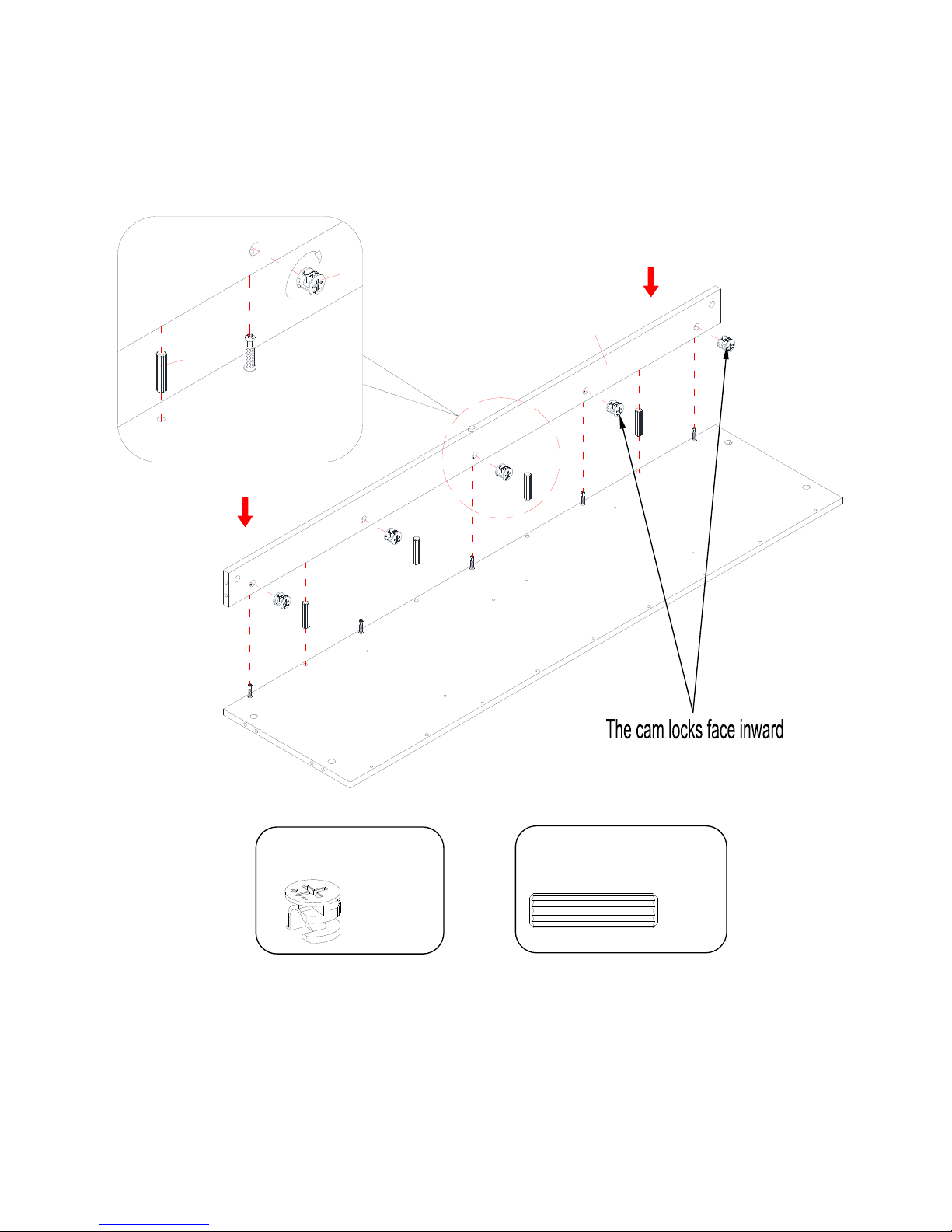

7. Insert four Wood Dowels (3) into the inner holes of Fixed Shelf (H) at both ends.

8. Align and attach the assembled Fixed Shelf (H) between the Left and Right Partition Panels (E and F)

(3) keep the Middle Crossbar (I) facing the bottom edge, using four Cam Locks (1) as shown.

NOTE: There are cam bolt holes on the bottom edge of partition panels.

Wood Dowel

(4 used in this step)

③

Cam Lock

(4 used in this step)

①

Stock # WMFP60FH-9

Please call for replacement parts or assistance: 1-866-942-5362

Whalen Furniture Manufacturing Page 10 Factory No. 16015

Assembly Instructions

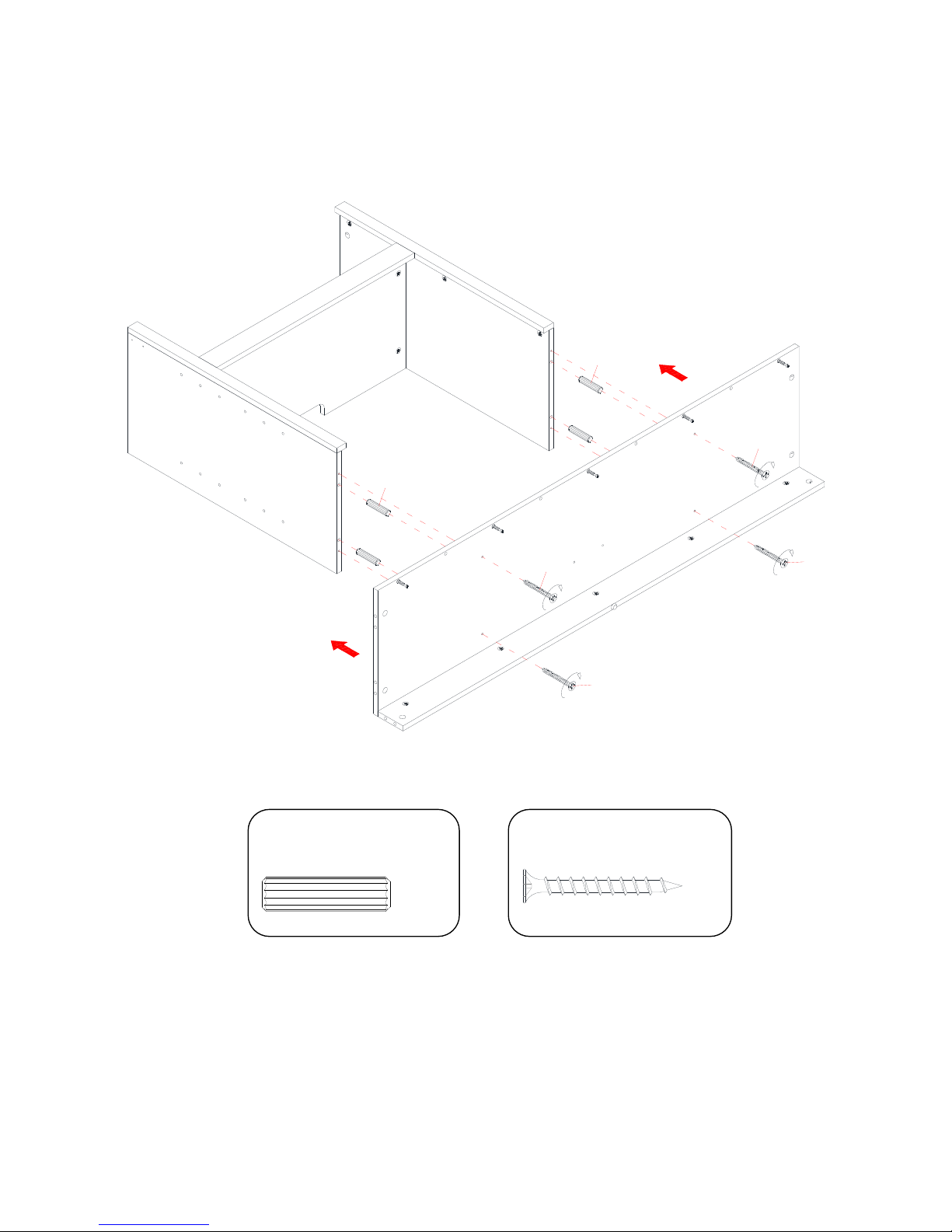

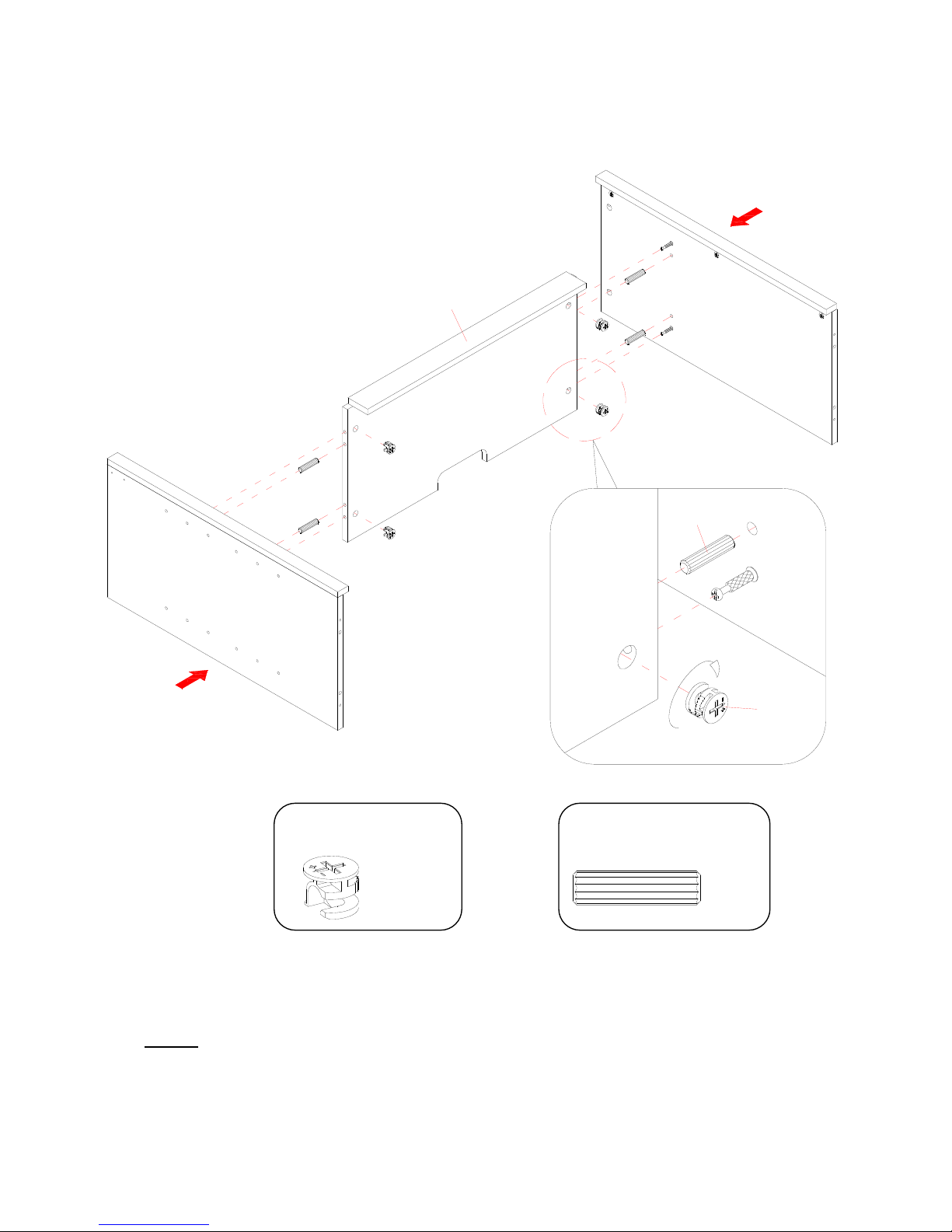

9. Insert four Wood Dowels (3) into the bottom inner holes of assembled Partition Panels (E and F) and

attach them to the Bottom Panel (B) with four 38 mm Screws (5) as shown. Tighten the screws with a

Phillips screwdriver.

Wood Dowel

(4 used in this step)

③

M4 x 38 mm Screw

(4 used in this step)

⑤
