Whalen WMFP41AE-13 Manuel utilisateur

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Date 2018-09-05 Rev. 0001-C

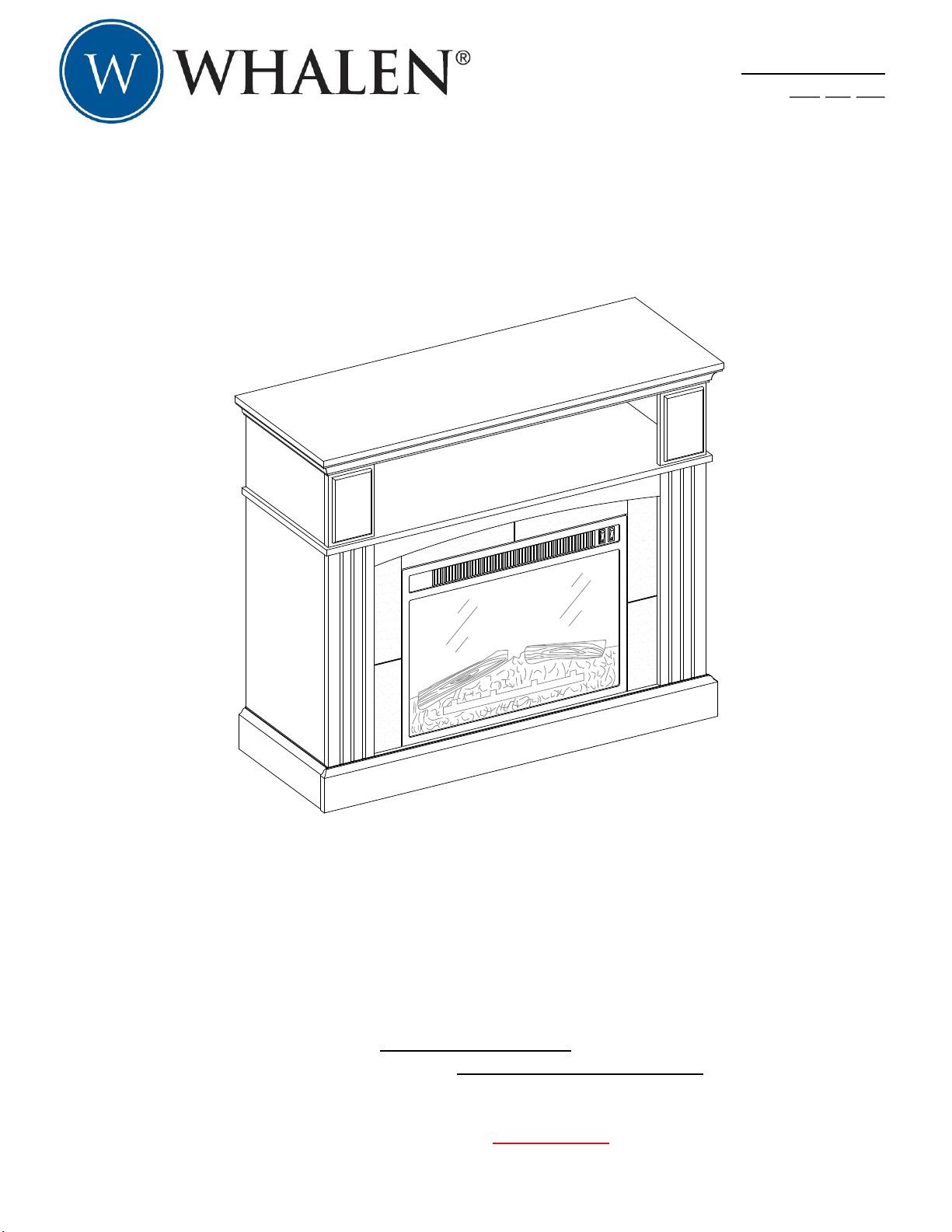

50" Media Fireplace

Stock # WMFP41AE-13

# WMFP41AE-13E

ADULT ASSEMBLY REQUIRED

If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the

store where it was purchased. Please call our customer service number and have your instructions

and parts list ready to provide the model name, part name or factory number:

866-942-5362

Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday

Or visit our web site 24 hours a day, 7 days a week for product assistance at

www.whalenstyle.com

Or e-mail your request to parts@whalenfurniture.com

LOT NUMBER:

DATE PURCHASED: / /

QUALITY GUARANTEE

We are confident that you will be delighted with your Whalen Furniture purchase.

Should this product be defective in workmanship or materials or fail under normal use, we will

repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is

designed to meet your highest expectations. We guarantee that you will immediately see the value of

our fine furniture.

This warranty gives you specific legal rights and you may also have other rights which vary from

State to State.

Customer Service: 866-942-5362

8:30 a.m. - 4:30 p.m., PST, Monday to Friday

www.whalenstyle.com

MANUFACTURER: Whalen Furniture Manufacturing

CATALOG: 50" Media Fireplace

MODEL #: WMFP41AE-13 / WMFP41AE-13E

MADE IN CHINA

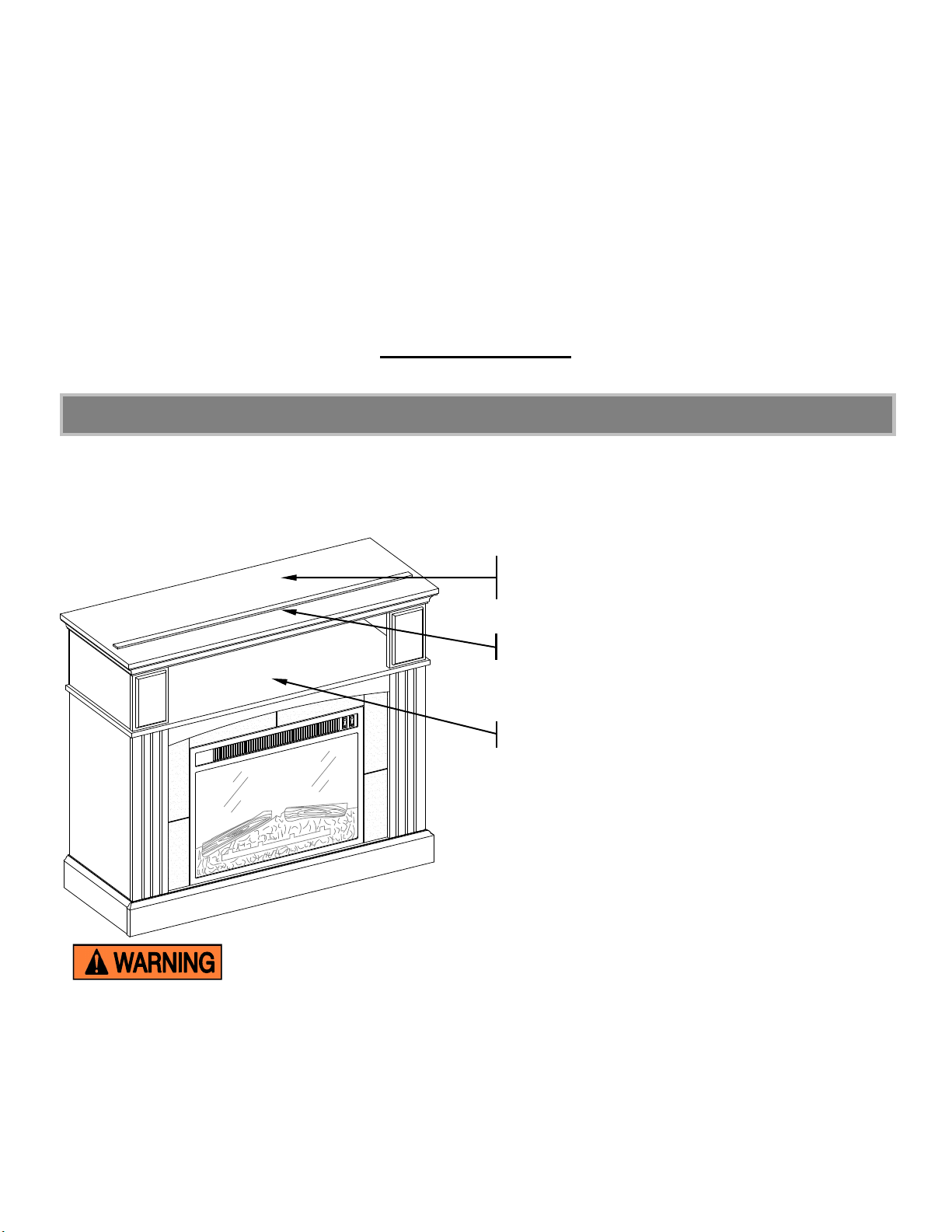

THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT

PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT

LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR

EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE

BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE

UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR

FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND

WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

M A X I M U M R E C O M M E N D E D W E I G H T L O A D S

FITS UP TO MOST 50” FLAT PANEL TVs

MAXIMUM LOAD 135 lb. (61.2 kg)

MAXIMUM LOAD 50 lb. (22.7 kg)

PLACE TV BEHIND THE STOPPER

IMPORTANT

Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-

abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED

OFF WITH DAMP CLOTH.

Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.

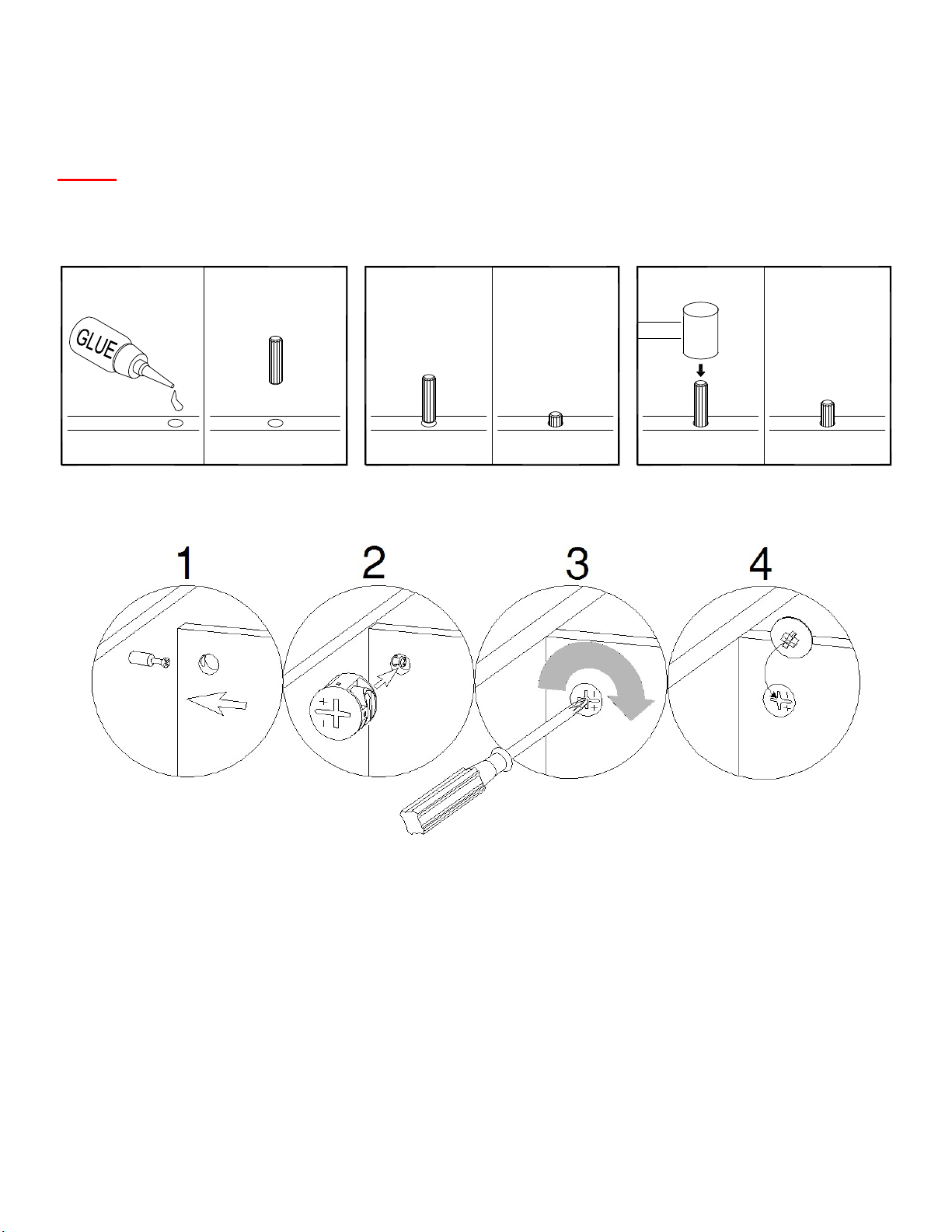

CAM LOCK SYSTEM OPERATION

HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS

1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam

Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.

2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam

Lock faces out and points towards Cam Bolt.

3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.

4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.

You are now ready to assemble the KD unit.

FINAL

1 2 43

Parts and Hardware List

Please read completely through the instructions and verify that all listed parts and hardware are present

before beginning assembly.

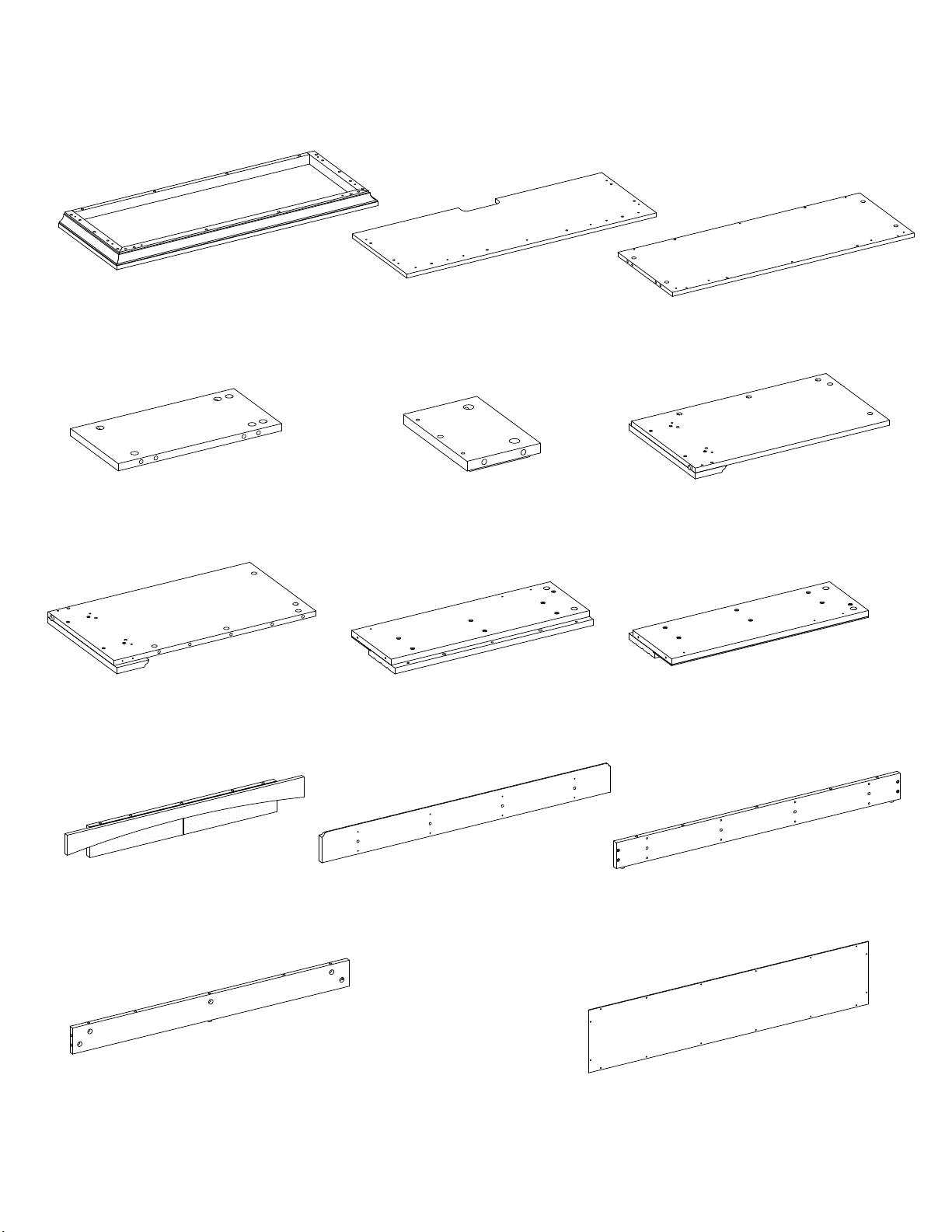

A- Top Panel (Qty. 1) B- Center Shelf (Qty. 1) C- Bottom Panel (Qty. 1)

D- Upper Side Panel E- Upper Front Panel F- Left Lower Side Panel

(Qty. 2) (Qty. 2) (Qty. 1)

G- Right Lower Side Panel H- Left Lower Front Panel I- Right Lower Front Panel

(Qty. 1) (Qty. 1) (Qty. 1)

J- Middle Crossbar Assembly K- Bottom Front Molding L- Bottom Front Stretcher

(Qty. 1) (Qty. 1) (Qty. 1)

M- Bottom Back Stretcher (Qty. 1) N- Back Panel (Qty. 1)

Parts and Hardware List

Please read completely through the instructions and verify that all listed parts and hardware are present

before beginning assembly.

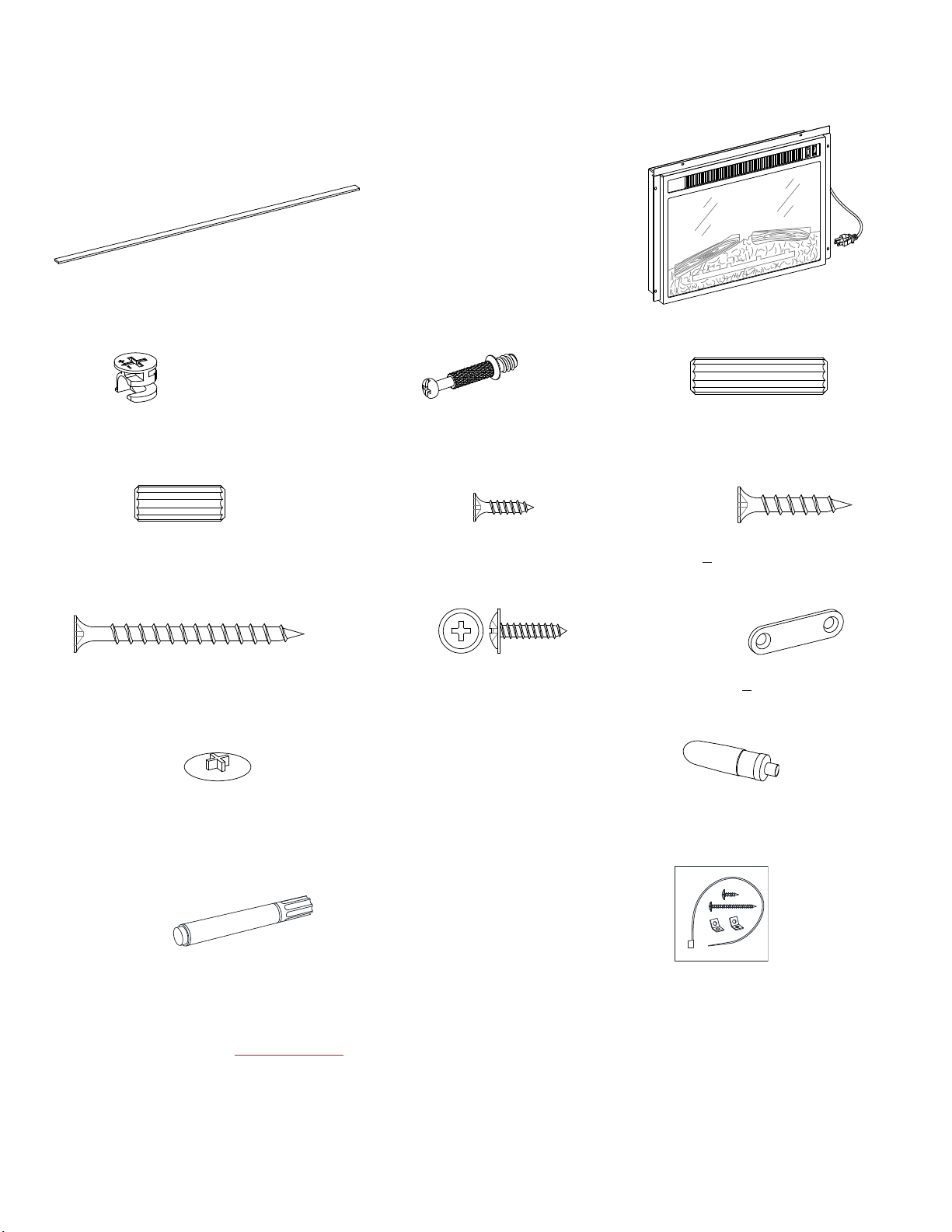

O- Stop Rail (Qty. 1) Fireplace Insert (Qty. 1)

(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel

(Qty. 45+2 extra) (Qty. 45+2 extra) (Qty. 36+1 extra)

(4) M8 x 20 mm Wood Dowel (5) M3.5 x 12 mm Flat Head Screw (6) M4 x 25 mm Screw

(Qty. 4+1 extra) (Qty. 4+1 extra) (Qty. 10+1 extra)

(7) M4 x 50 mm Screw (8) M3.5 x 15 mm Washer Head Screw (9) Metal Bracket

(Qty. 8+1 extra) (Qty. 16+1 extra) (Qty. 2)

(10) Cam Lock Cover (Qty. 12+1 extra) Glue (Qty. 2)

Touch-up Pen (Qty. 1) Tipping Restraint Hardware Kit (Qty. 2)

(Included in plastic bag)

Tools required: Phillips screwdriver and rubber mallet (not provided).

Assembly Instructions

1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a

carpeted floor or the empty carton to avoid any scratch.

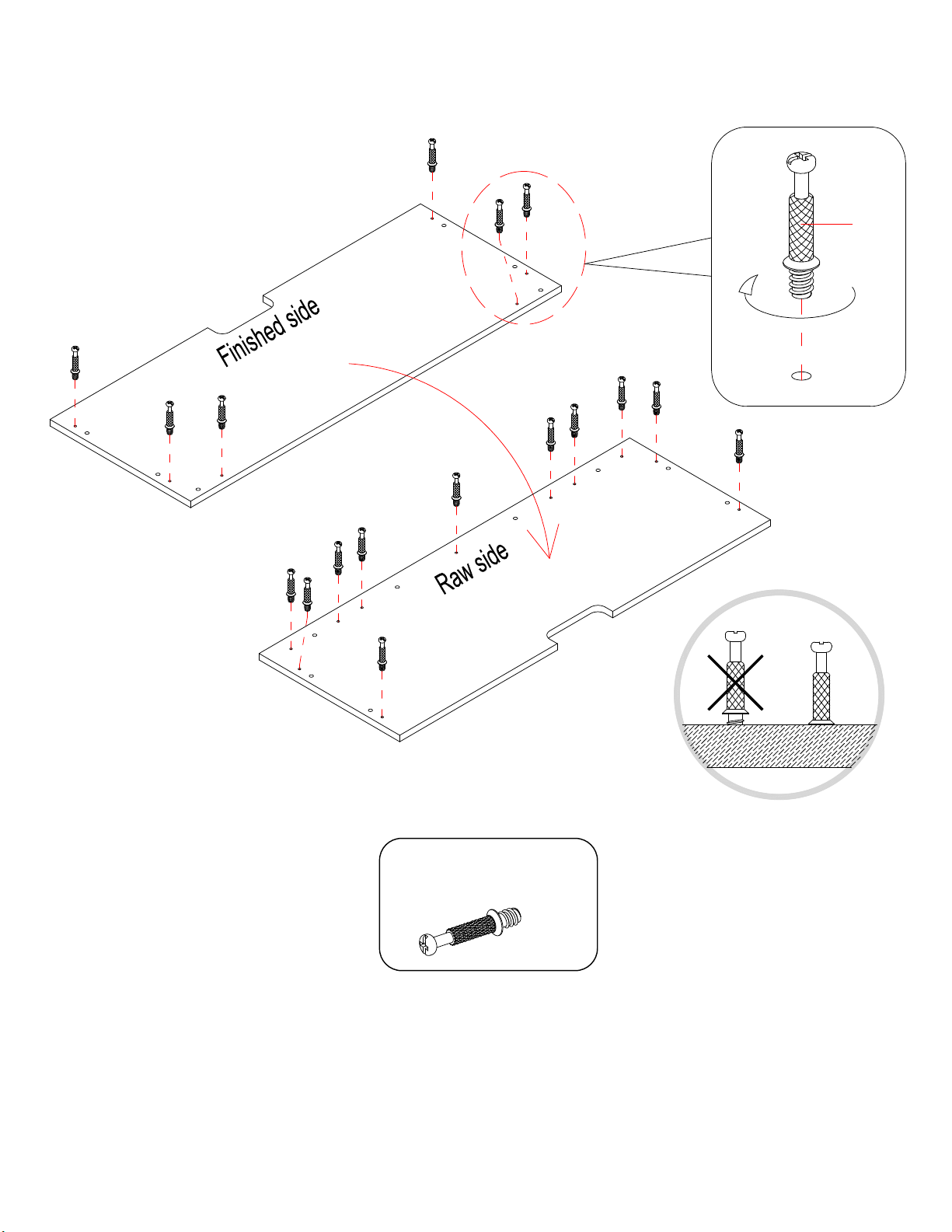

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Bottom Panel

Cam Bolt

(18 used in this step)

②

Assembly Instructions

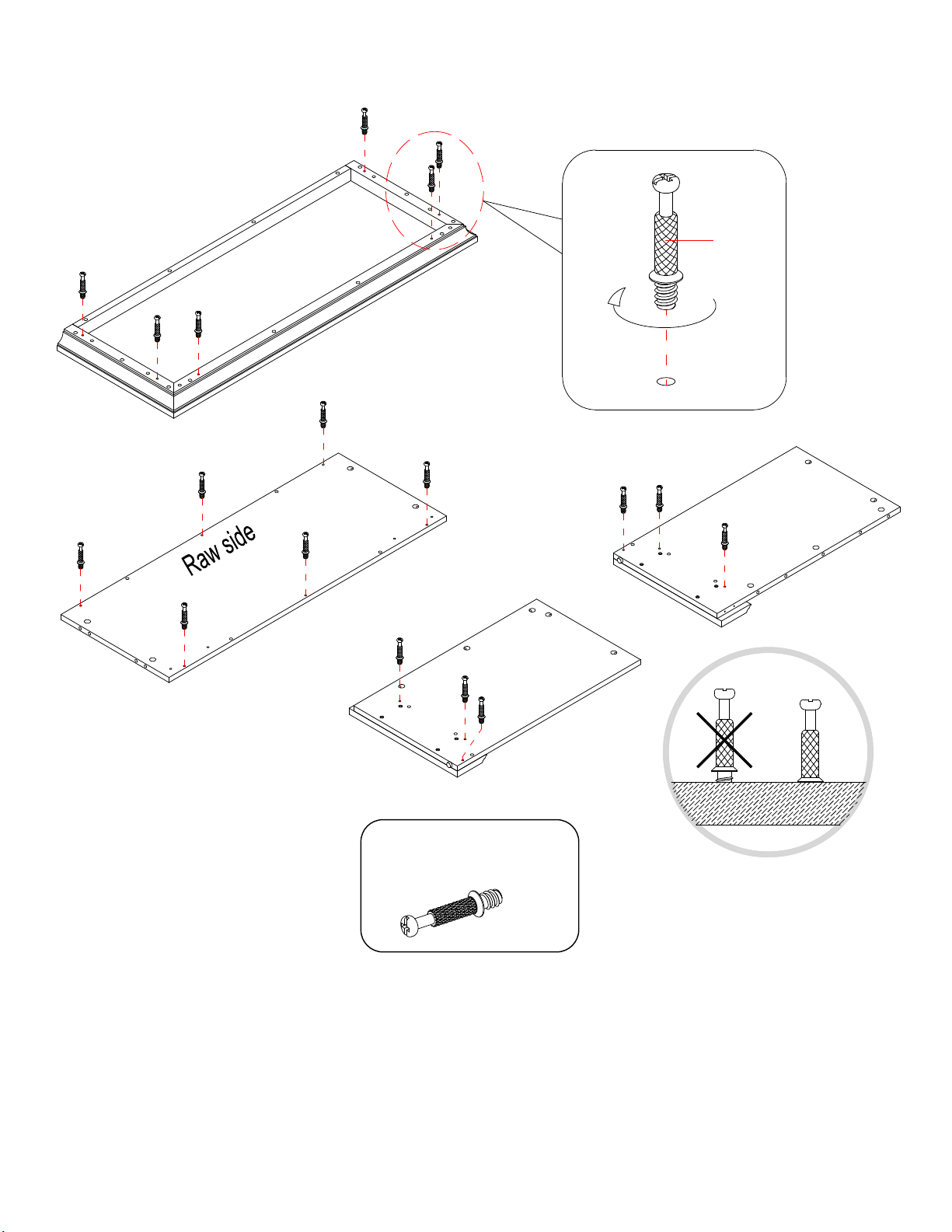

3. Securely screw the Cam Bolts (2) into the designated small holes on the Front Panels (E, H and I).

Cam Bolt

(10 used in this step)

②

Assembly Instructions

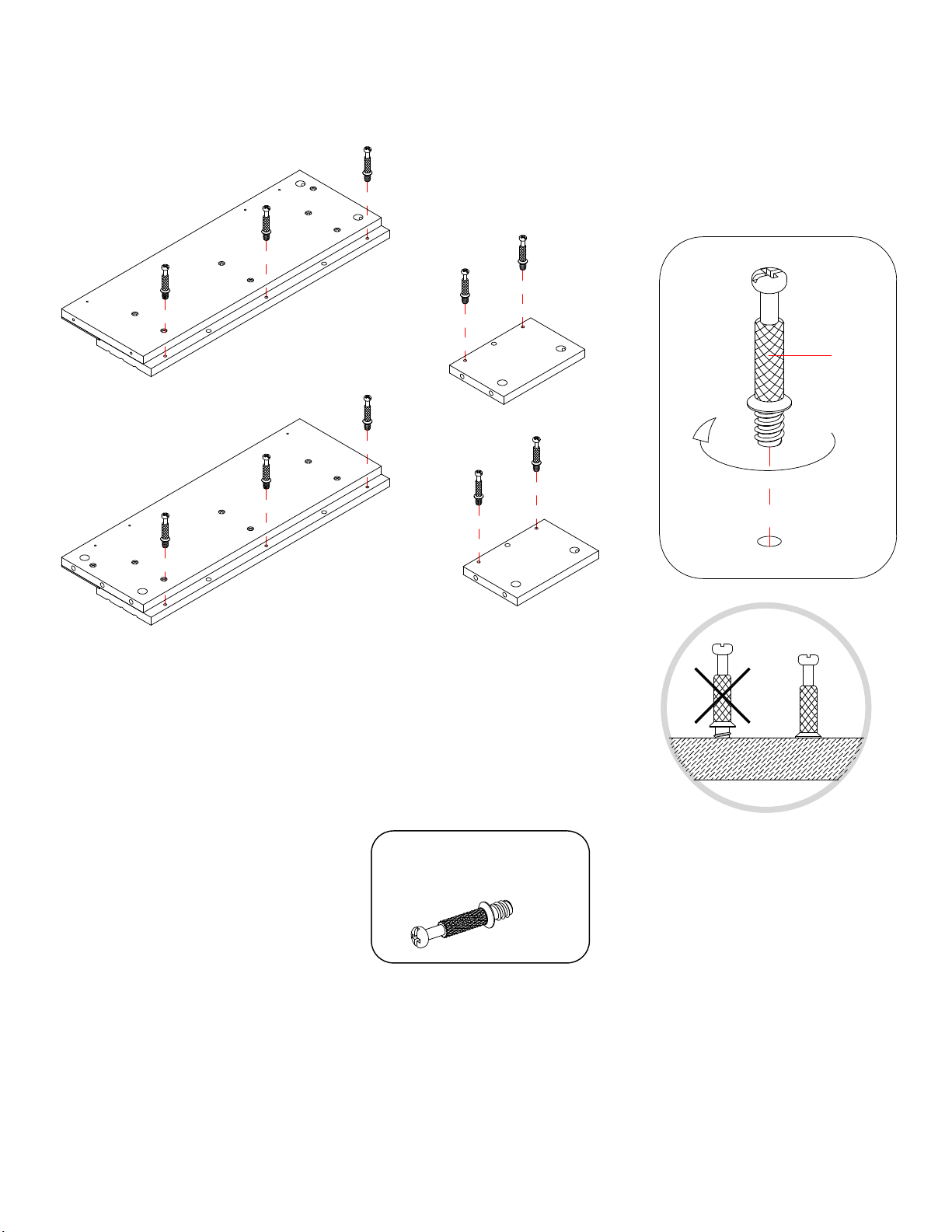

4. Securely screw seventeen Cam Bolts (2) into the designated small holes on the Center Shelf (B) on both

sides.

Cam Bolt

(17 used in this step)

②

Assembly Instructions

5. Glue two 30 mm Wood Dowels (3) into the inner holes of the Middle Crossbar Assembly (J) and attach

it to the Center Shelf (B) by engaging three Cam Locks (1) (Refer to page 3 on Cam Lock system

operation supplement).

Cam Lock

(3 used in this step)

①

M8 x 30 mm Wood Dowel

(2 used in this step)

③

Assembly Instructions

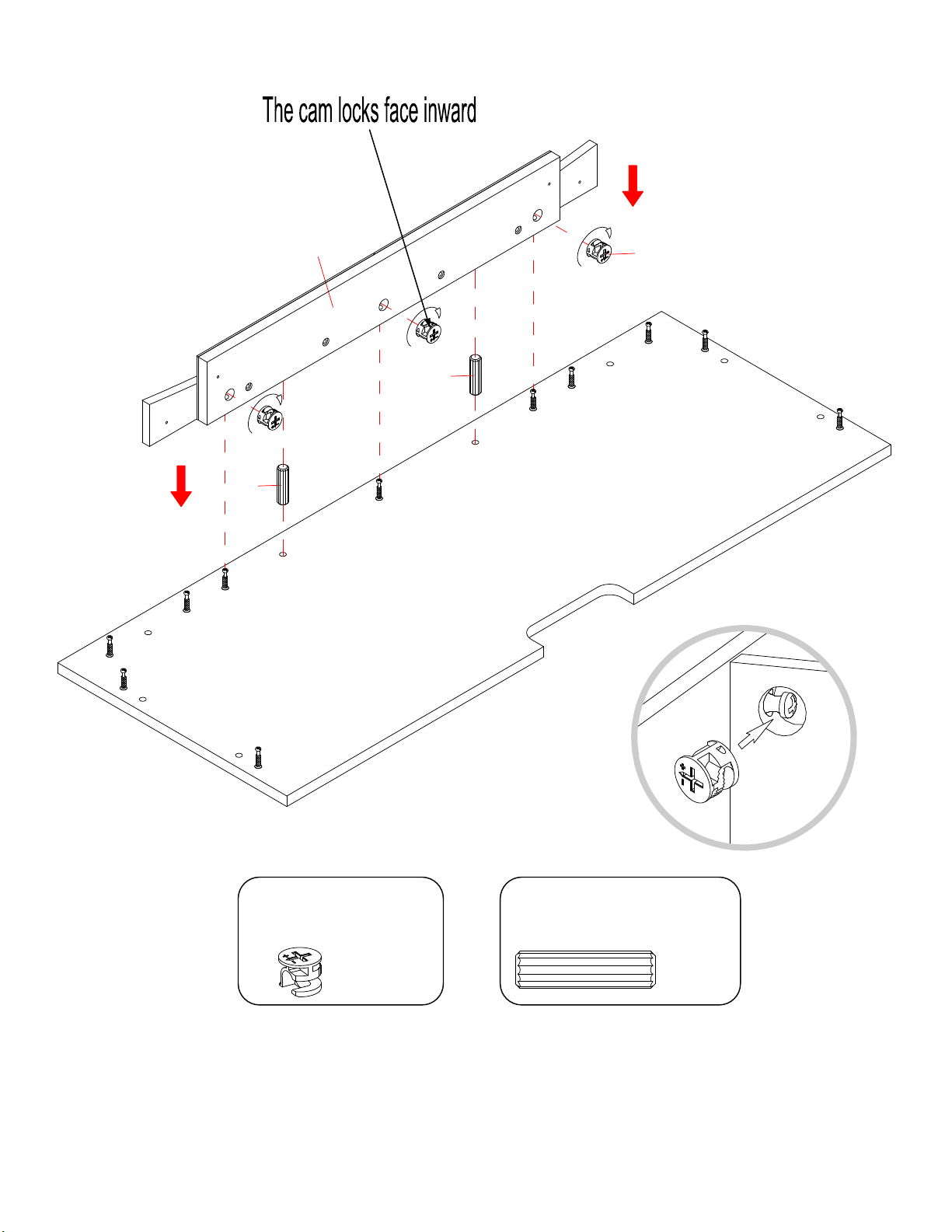

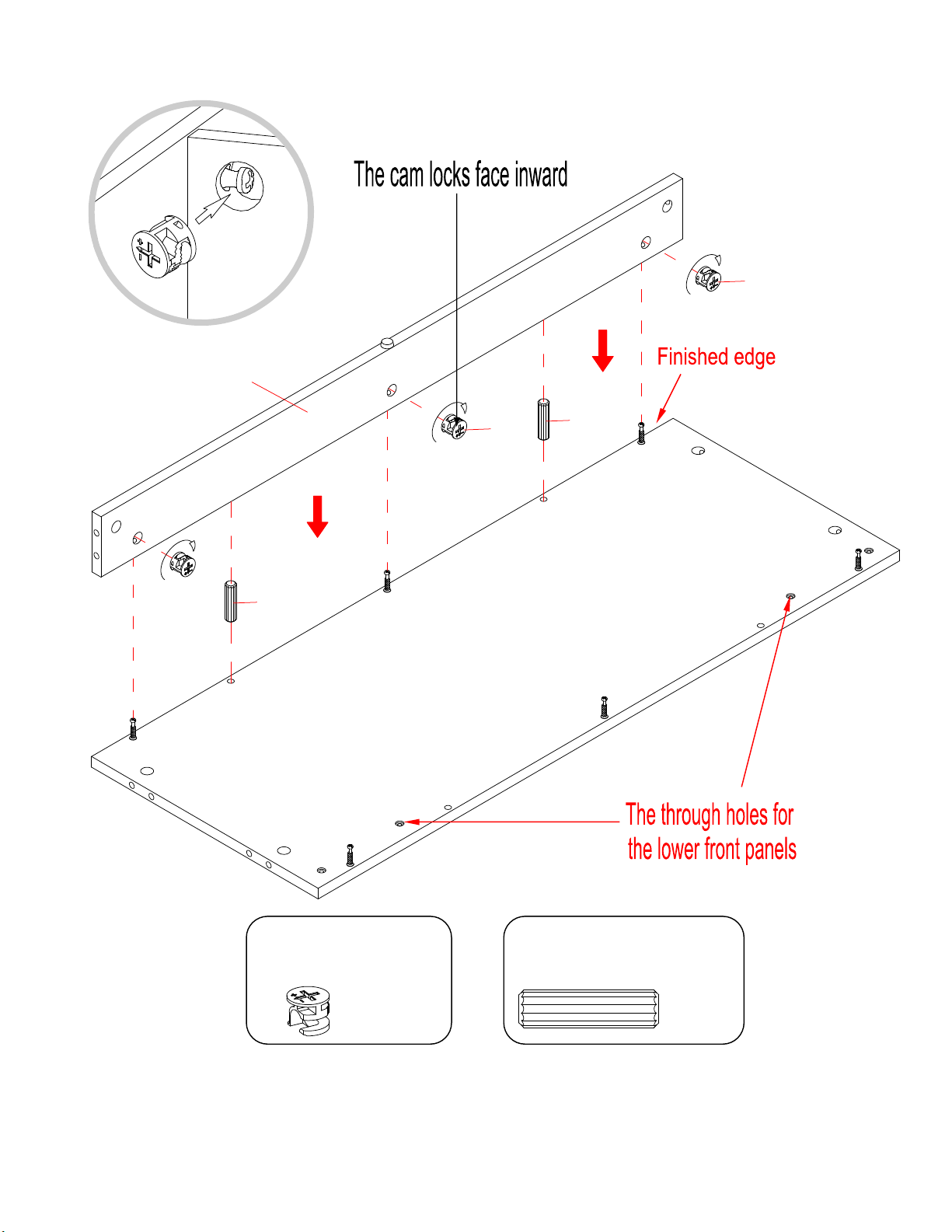

6. Attach the Bottom Back Stretcher (M) to the Bottom Panel (C) with two 30 mm Wood Dowels (3) and

three Cam Locks (1).

Cam Lock

(3 used in this step)

①

M8 x 30 mm Wood Dowel

(2 used in this step)

③
