Whalen WSF54AL30R-AG Manuel utilisateur
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-06-15 Rev. 0001-A Factory: GOCRFU
Alden 54" Fireplace Console
Model # WSF54AL30R-AG
#
WSF54AL30R-DB
#
WSF54AL30R-WA
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website www.whalenfurniture.com
Or e-mail your request to:
LOT NUMBER:
DATE PURCHASE
D
:
/
/
2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Alden 54" Fireplace Console
MODEL # WSF54AL30R-AG/WSF54AL30R-DB/WSF54AL30R-WA
MADE IN CHINA
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
MAXIMUM LOAD 6.9 kg / 15 lb
FITS UP TO MOST 165.1 cm / 65 in.
FLAT PANEL TELEVIONS
MAXIMUM LOAD 61.3 kg / 135 lb
MAXIMUM RECOMMENDED WEIGHT LOADS
PLACE TV BEHIND THE STOPPER
MAXIMUM LOAD 22.7 kg / 50 lb

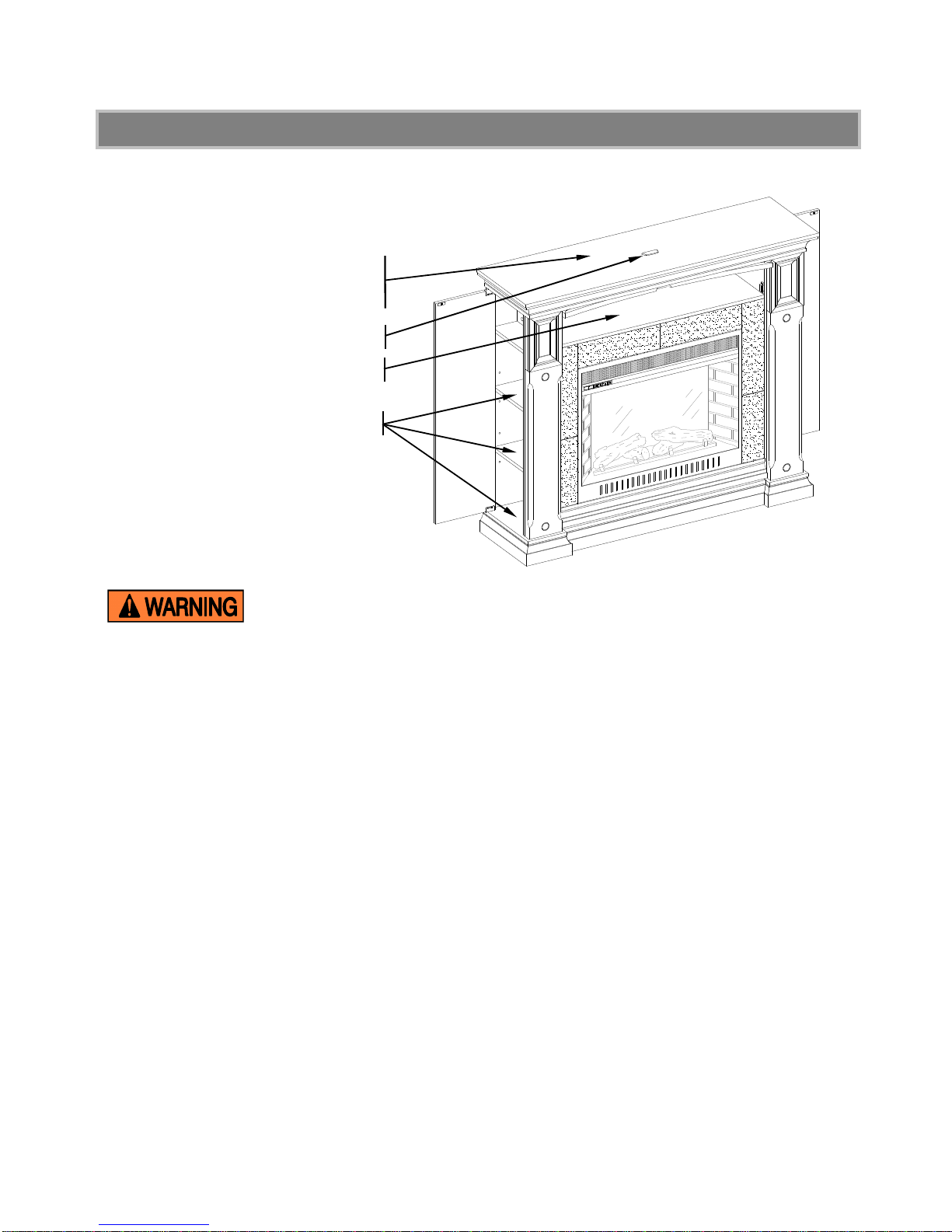

THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE
UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR
FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.

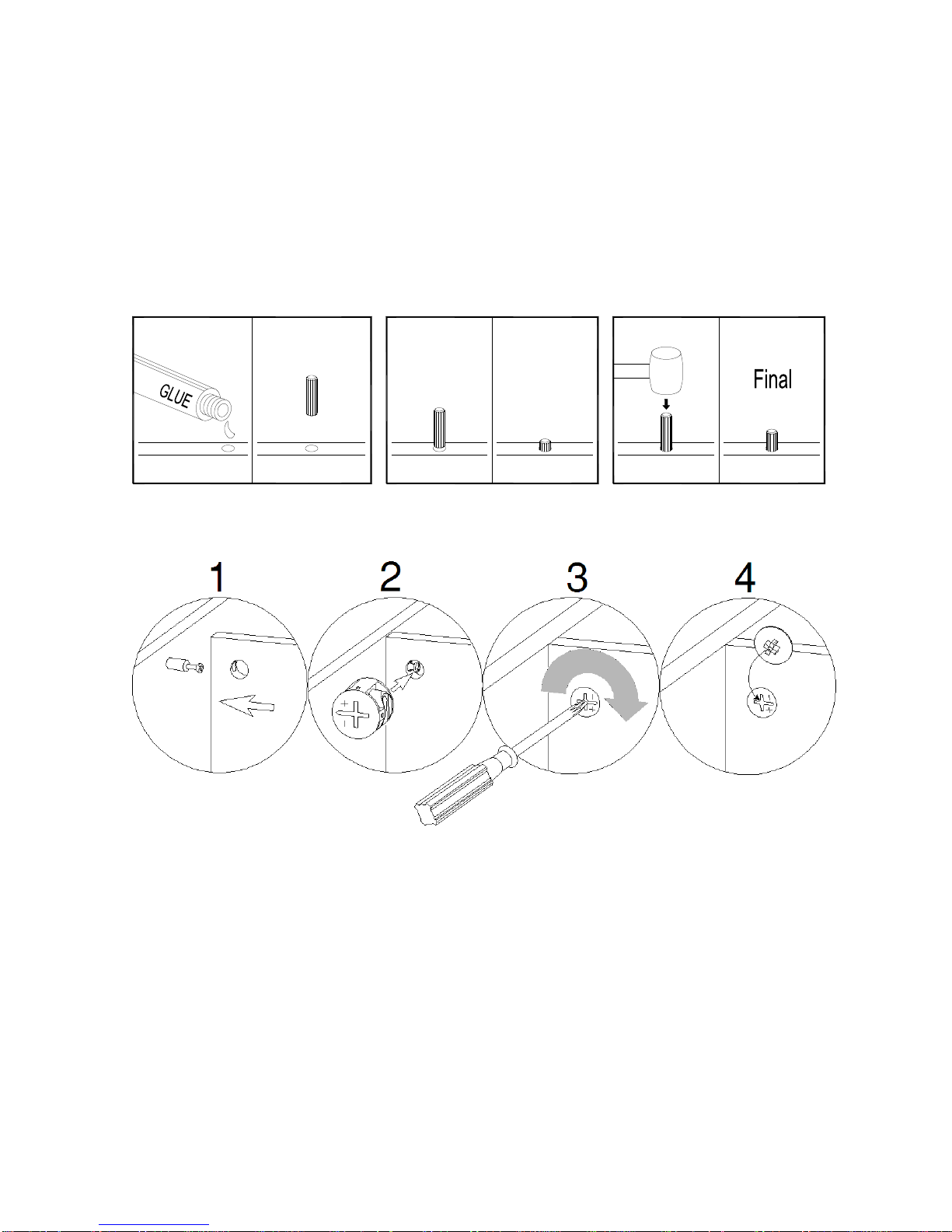

CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.
XX
1 2 43
4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

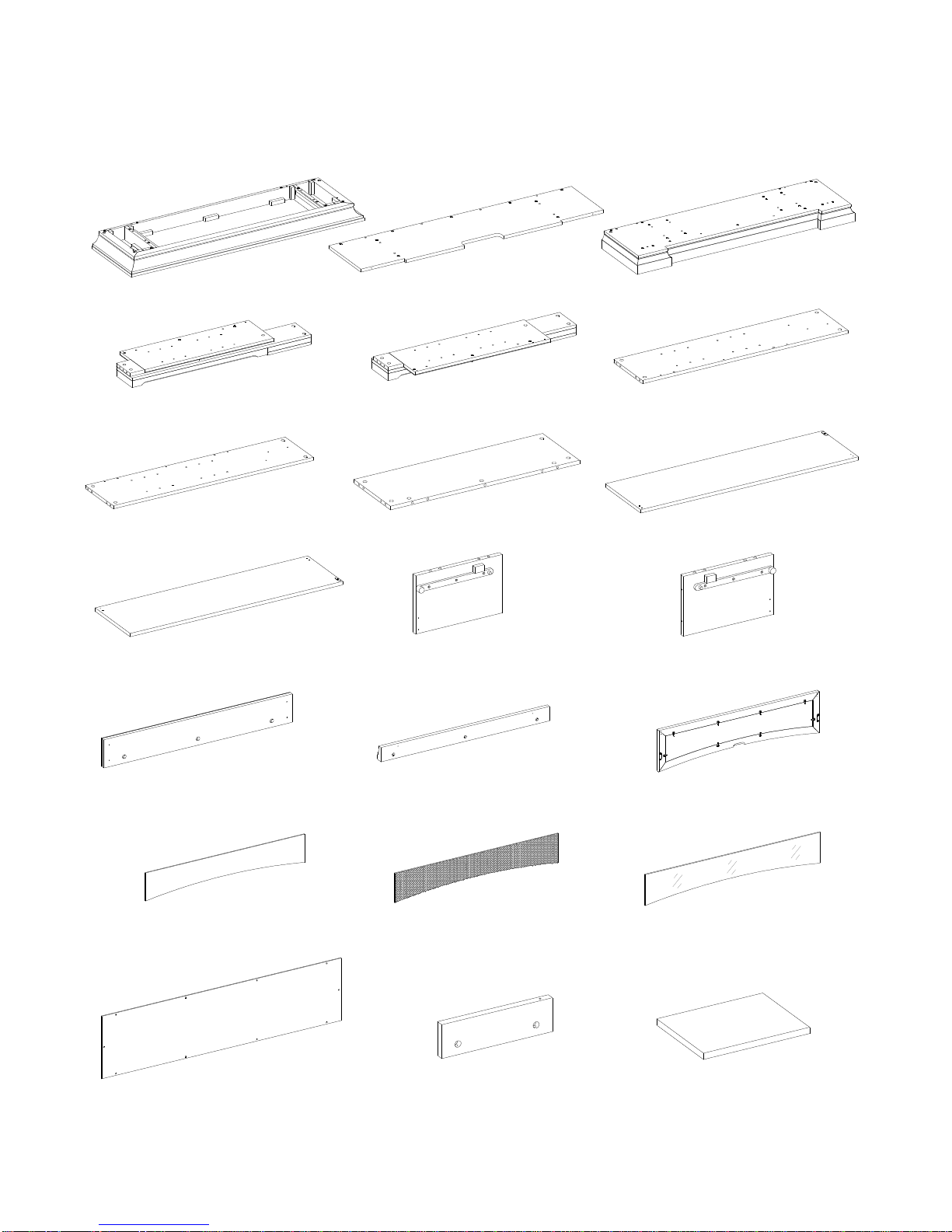

A- Top Panel (Qty. 1) B- Fixed Shelf (Qty. 1) C- Base (Qty. 1)
D- Left Front Panel Assembly E- Right Front Panel Assembly (Qty. 1) F- Left Back Panel
(Qty. 1) (Qty. 1) (Qty. 1)
G- Right Back Panel (Qty. 1) H- Side Panel (Qty. 2) I- Left Door (Qty. 1)
J- Right Door K- Barrister Door Left Support L- Barrister Door Right Support
(Qty. 1) (Qty. 1) (Qty. 1)
M- Middle Crossbar N- Bottom Crossbar O- Barrister Door
(Qty. 1) (Qty. 1) (Qty. 1)
P- Barrister Wood Door Panel (Qty. 1) Q- Speaker Grill (Qty. 1) R- Barrister Glass Door Panel (Qty. 1)
(Pre-attached)
S- Middle Back Panel (Qty. 1) T- Firebox Support (Qty. 2) U- Adjustable Shelf (Qty. 4)
5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1)

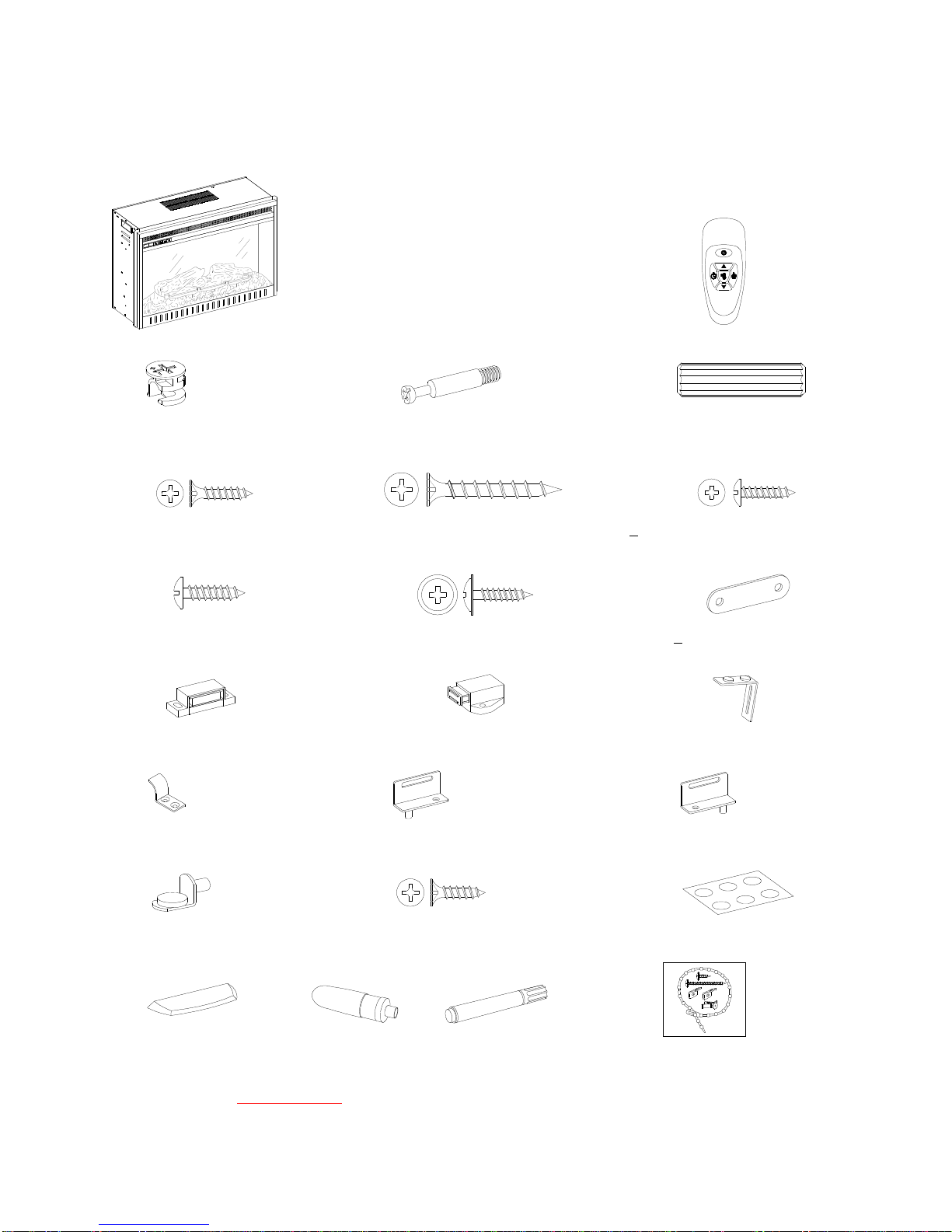

(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(Qty. 50+2 extra) (Qty. 50+2 extra) (Qty. 46+1
extra)
(4) M3 x 14 mm Flat Head Screw (5) M4 x 32 mm Screw (6) M3 x 12 mm Pan Head Screw
(Qty. 4+1 extra) (Qty. 12+1 extra) (Qty. 8+1 extra)
(7) M3 x 15 mm Pan Head Screw (8) M3 x 15 mm Washer Head Screw (9) Straight Metal Bracket
(Qty. 8+1 extra) (Qty. 12+1 extra) (Qty. 6)
(10) Magnetic Catch (11) Push Magnetic Catch (12) L-shaped Metal Brace
(Qty. 2) (Qty. 2) (Qty. 2)
(13) Hook (14) Left Bottom/Right Upper Pivot Hinge (15) Left Upper/Right Bottom Pivot Hinge
(Qty. 2) (Qty. 2) (Qty. 2)
(16) Shelf Support (17) M3 x 12 mm Flat Head Screw (18) Cam Lock Cover
(Qty. 16+1 extra) (Qty. 28+1 extra) (Qty. 50+2 extra)
(19) Acrylic Stopper Glue Touch-up Pen Tipping Restraint Hardware Kit (Qty. 2)
(Qty. 1) (Qty. 1) (Qty. 1) (Included in plastic bag)
Tools required: Phillips screwdriver and rubber mallet (not provided).
6
Assembly Instructions

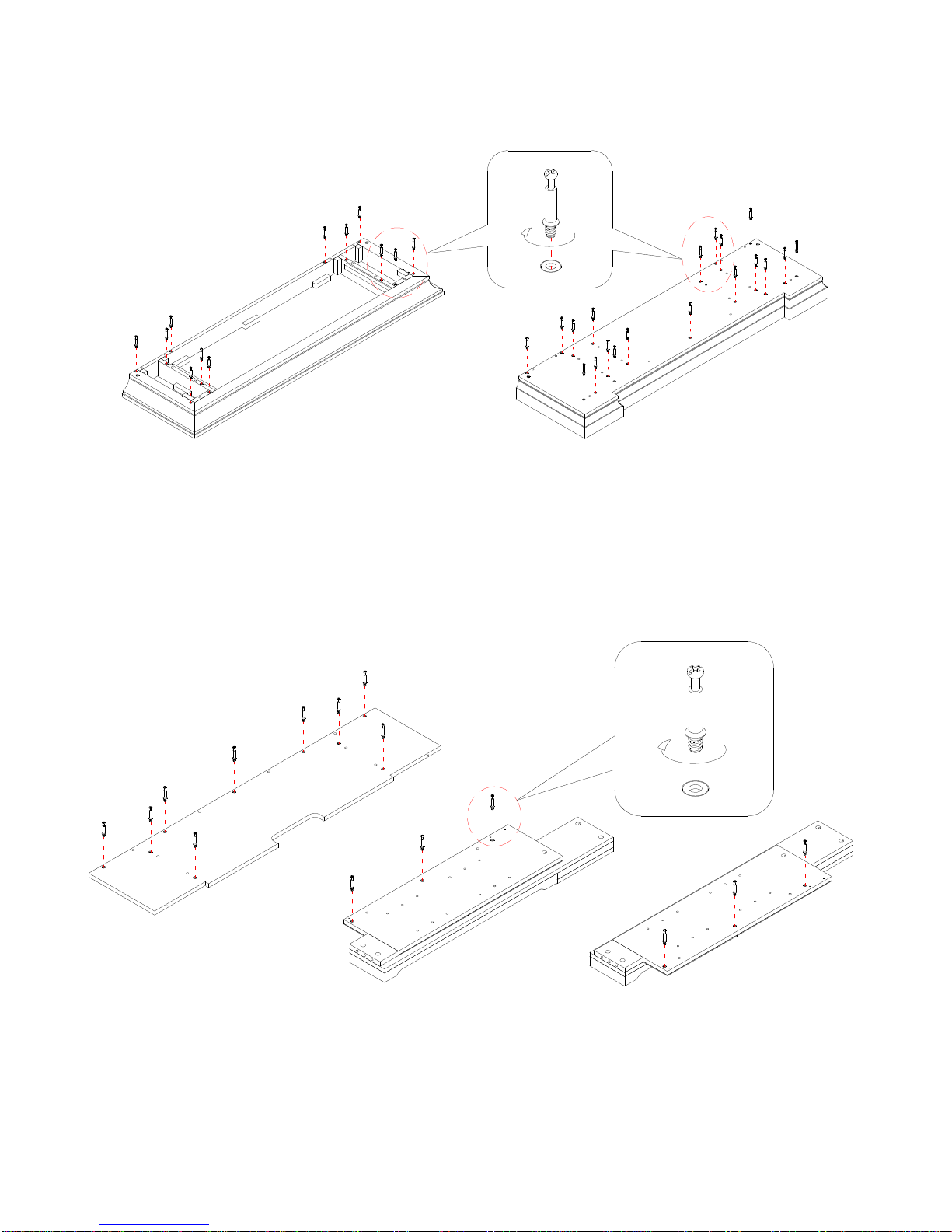

1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

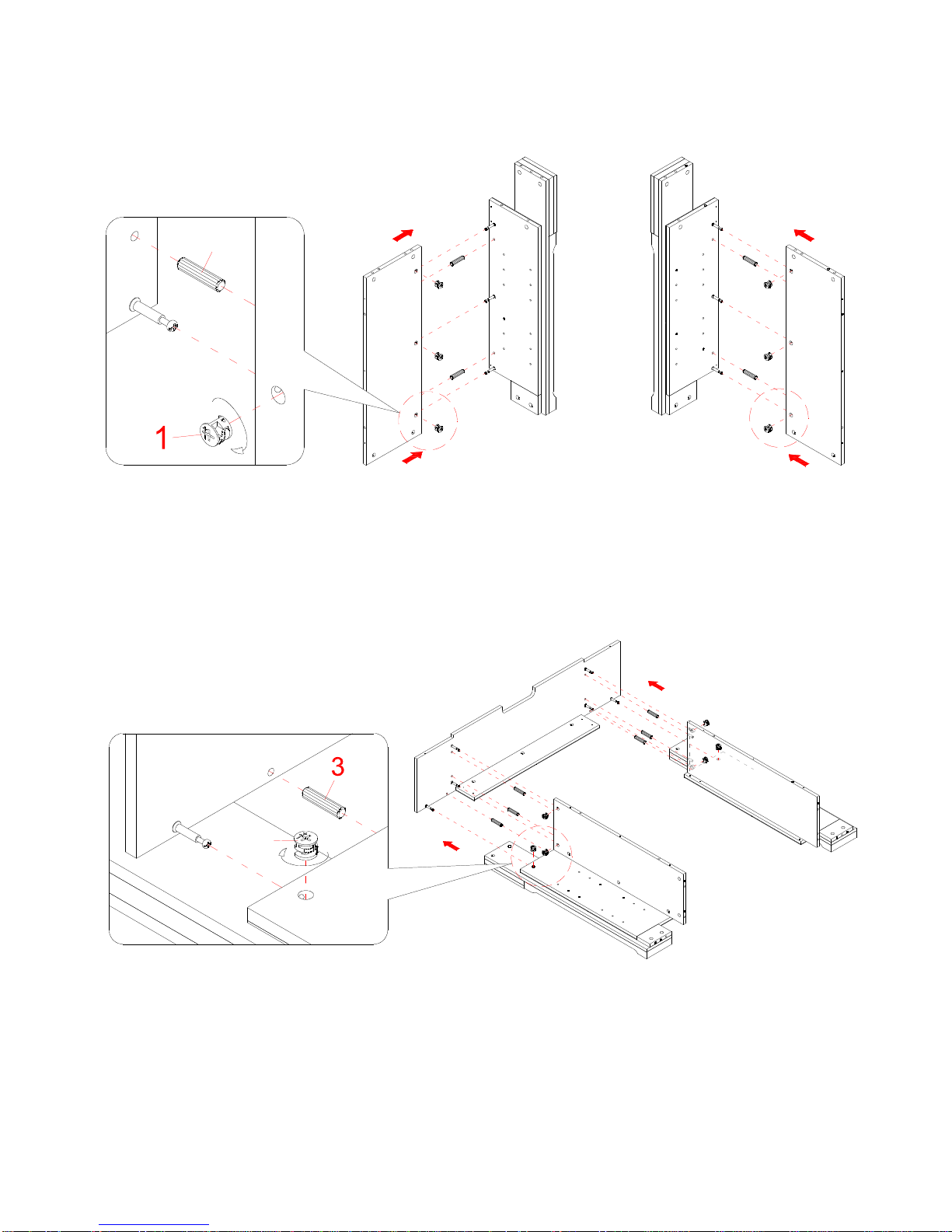

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) and the Base (C)
using a Phillips screwdriver.
3. Securely screw the Cam Bolts (2) into the designated small holes on the Fixed Shelf (B) and the Front
Panels (D and E).
B
DE
2
CA
2
7
Assembly Instructions
4. Insert two 30 mm Wood Dowels (3) into the inner holes of the Middle Crossbar (M). Tap in with a
rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
5. Align the drilled holes on the Fixed Shelf (B) with the inserted Wood Dowel (3) on the Middle Crossbar
(M), and then press them together. Attach the Middle Crossbar (M) in place by engaging three Cam
Locks (1) (Refer to page 3 on Cam Lock system operation supplement).

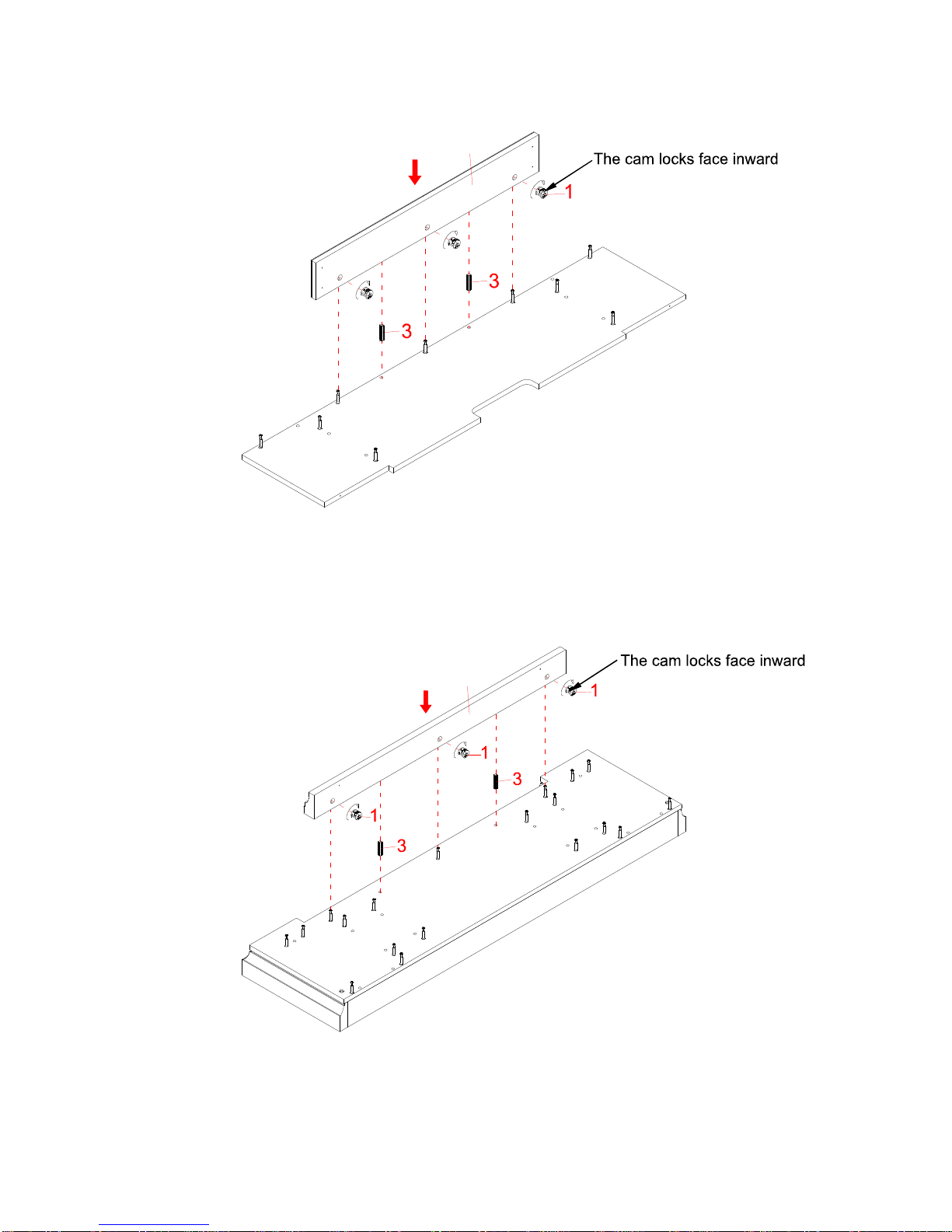

6. Attach the Bottom Crossbar (N) to the Base (C) with two 30 mm Wood Dowels (3) and three Cam
Locks (1).
B
M
C
N
8
Assembly Instructions

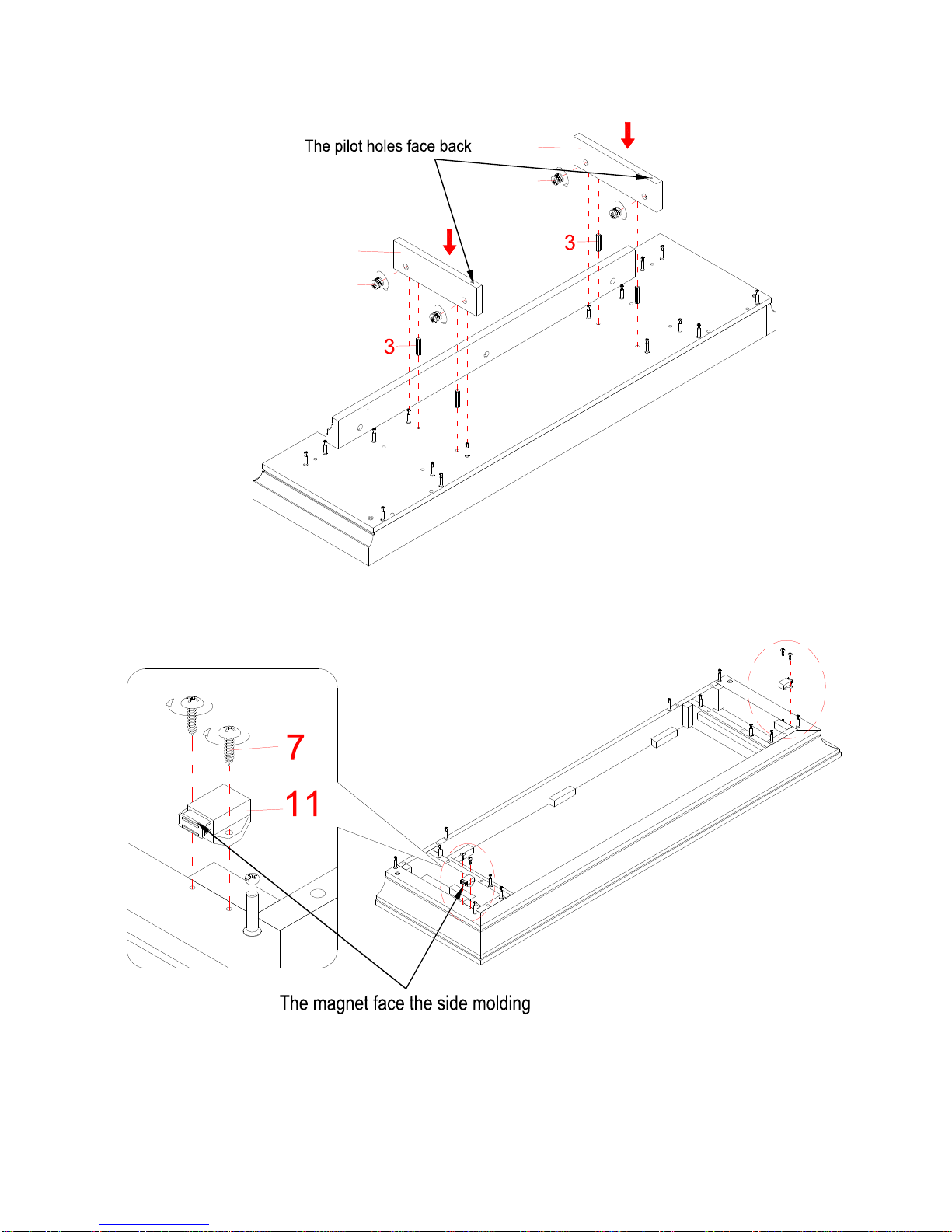

7. Attach two Firebox Supports (T) to the Base (C) with four 30 mm Wood Dowels (3) and four Cam
Locks (1) as shown.

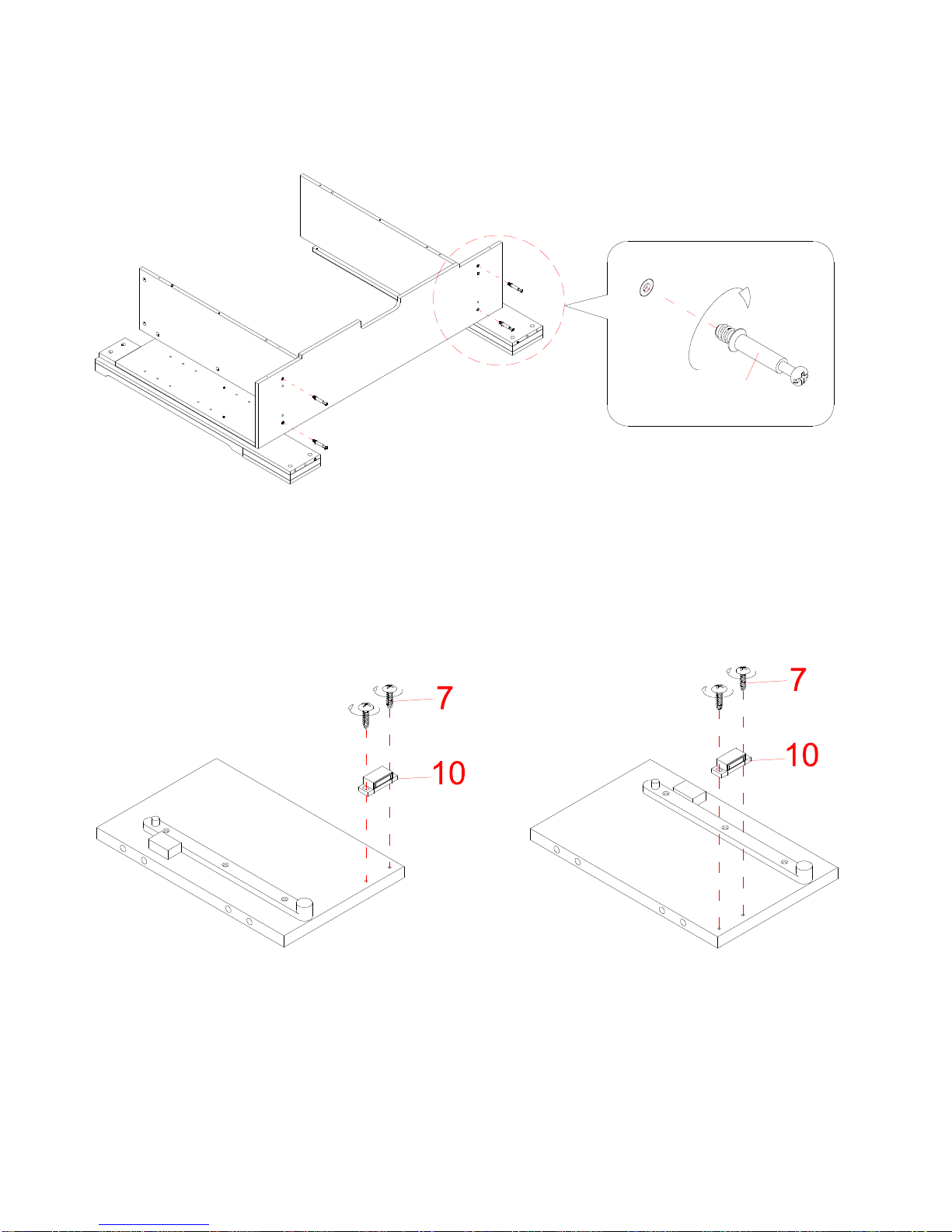

8. Align two Push Magnetic Catches (11) to the pilot holes on the Top Panel (A) with the magnet facing
the side molding, then using two 15 mm Pan Head Screws (7) to attach each catch to the Top Panel.
C
T
T
1
1
A
9
Assembly Instructions
9. Attach one Side Panel (H) to the Left Front Panel Assembly (D) with two 30 mm Wood Dowels (3) and
three Cam Locks (1).
10. Repeat the same procedure to combine the other Side Panel (H) with the Right Front Panel Assembly
(E).
11. Attach the Left and Right Front Panel Assemblies to the Fixed Shelf (B) with three 30 mm Wood
Dowels (3) and three Cam Locks (1) in each.
H
D
H
E
3
H
D
H
E
B
M
1
10
Assembly Instructions
12. Securely screw four Cam Bolts (2) into the designated small holes on the top of the Fixed Shelf (B).
13. Align the Magnetic Catch (10) on the pilot holes on the Barrister Door Left Support (K) with the
magnetic plates facing the against edge, then use two 15 mm
Pan Head Screws (7) to attach the catch in
place.
14. Repeat the same procedure to attach the other Magnetic Catch (10) to the Barrister Door Right Support
(L).
B
2
KL
