Whale UF1215 Manuel utilisateur

Universal Freshwater Pressure Pump

The following guidelines should be followed to achieve

optimum pump performance.

1. Locate in a dry position with adequate ventilation

and no more than 3 metres from the tank. Ensure the

pump cannot be submerged in water in normal use

and not likely to be sprayed.

2. Pump can be mounted horizontally or vertically (we

recommend the pump head is below motor level).

3. Feet positions are adjustable to allow replacement

of other pump types. Use No. 8 stainless steel screws

to fasten pump to solid surface, which supports the

pump securely.

1. Use specified fuse, as indicated on motor label, in

the circuit.

2. Connect red wire to positive, black wire to

negative - recommended wire size is 2.5mm² (AWG

13).

3. Fit an isolating switch with adequate current

rating on the positive side of the supply.

4. To prevent the pump running continuously, turn off

at isolating switch when vehicle is left unattended or

water supply has been allowed to empty.

1. Ensure that the strainer provided is attached to the

pump head inlet (as shown below).

2. Check pump flow direction (as indicated on pump

body).

3. Never use pipe sealant or sealing tapes on

threaded adaptors, as these may enter the pump and

cause failure.

If water is allowed to freeze in the system, serious

damage to the pipework and pump may occur. To best

avoid this damage, completely drain the water system.

1. Drain the tank either using the pump or a drain

valve.

2. Open all the faucets (including drain valve) and

allow pump to purge the water from the system, then

turn the pump off.

3. Disconnect the pump and turn on to purge into an

adequate basin. Only reconnect the pump when the

water system it is to be used.

4. Remember to leave all faucets including showers

open to avoid any damage.

AK1316- Replacement Head Service Kit

AK1317- Microswitch Service Kit

AK1319- Replacement Strainer

We herewith declare that the Universal Pump range

conforms to the requirements of the EMC directive

89/336/EEC, and to the CE Marking Directive 93/68/EEC

Plumbing

Winterizing

Electrical

Mounting Location

Installation and Operation Manual

Service Kits

Declaration of Conformity

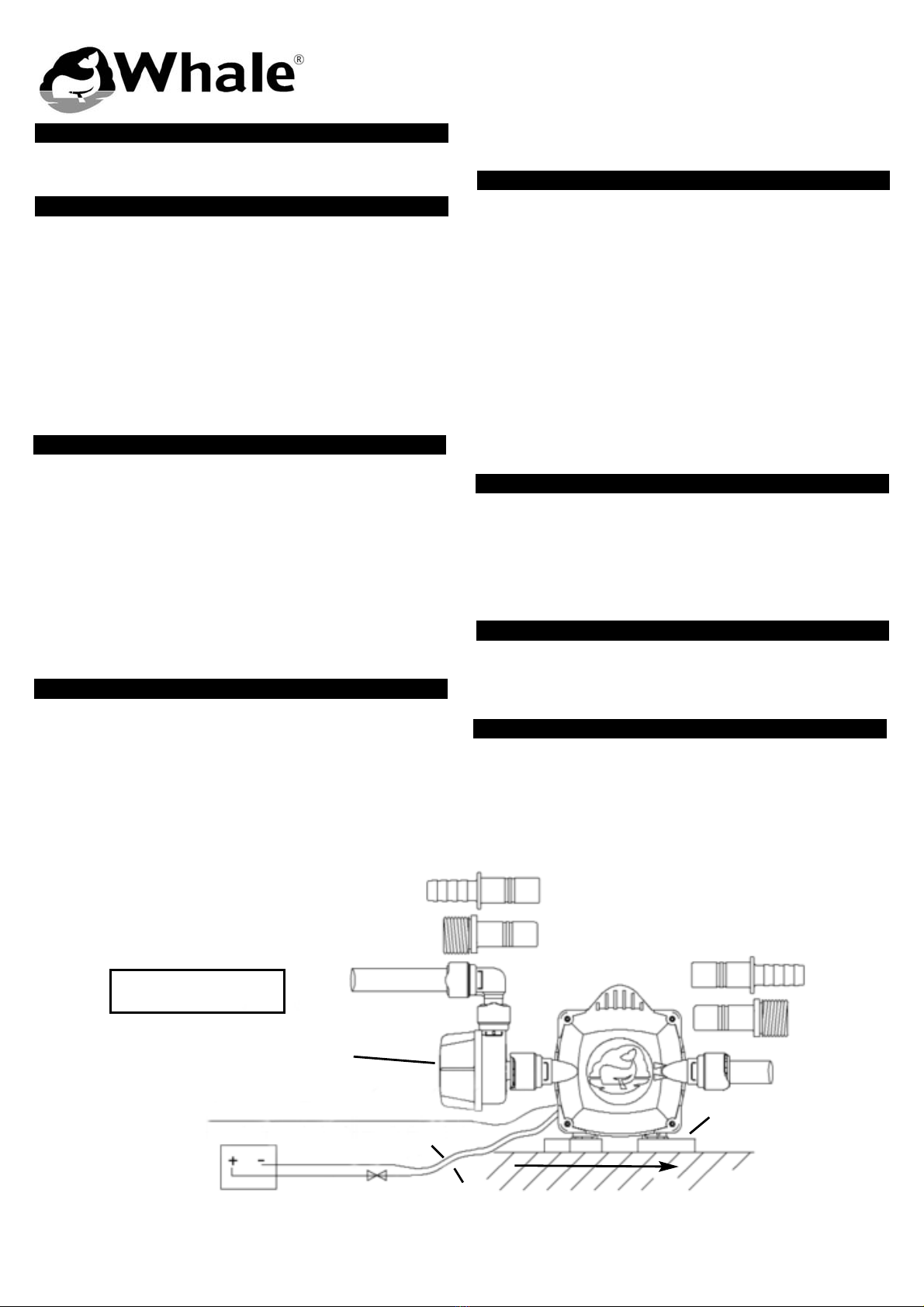

Red(+ve)

Black(-ve)

Fuse Flow Direction

Universal Filter / Strainer

(Included)

Battery

#8 Screw (Not Included)

For Flexible Hose Systems:

Use 1/2” Barbed Adaptor

(Retail Version Only: 2 fittings included)

(UF1215BL: ⅝” barbed adaptor included)

Fittings included in

retail models only

To Retro fit other Pumps:

Use 1/2” BSP Adaptor

(Retail Version Only: 2 fittings included)

White Signal Wire (Battery Voltage 12/24V +ve)

AK1318 - Replacement Head Service Kit

Fault Cause Solution

Pump does not run

No power to pump

Check power supply

Attach leads/clean connections

Check faucet microswitch if present

Fuse has blown Replace fuse

Blockage in pipework Check pipework for kinks

Pump runs but no water

appears

No water getting to pump

Check that water tank is not empty

Check strainer is not blocked

Check all connections from tank to inlet of pump

are secure - any air leaks will prevent prime

Water leaking at outlet side of

pump

Check pipework/fittings for leaks and repair

Check system drain plugs are closed

Pump runs but will not

switch off

Water leaking at outlet side of

pump

Check pipework/fittings for leaks and repair

Check system drain plugs are closed

No water Check water supply level

Pump cycles on and off

periodically when all the taps

are closed. (Normal with a

partially opened tap)

Water leaking at outlet side of

pump

Check pipework/fittings for leaks and repair

Check system drain plugs are closed

Pump cycles on and off

excessively when tap/s are

open

Excessive back pressure

Check pipework for kinks and filters etc. are clear

Check shower rose/taps for blockage and repair

Noisy operation

Pump drawing air see cause 'No water getting to pump' (see above)

Noise created by vibration

Check pump is secured to solid surface

Check pump body is not in contact with hard

surfaces

Locate away from interferring surfaces

Check pipework is securely supported

Low flow

Bore of pipework connection too

small

For 8 litre versions 8.5mm minimum bore

recommended

For 10 and 12 litre versions use 10mm minimum

bore recommended

Check for kinks in pipework

Check pipework is not blocked

Power supply to the pump

Check power supply to pump uses correct gauge

wire (2.5mm2/AWG 13) to give full voltage at

pump

Check battery is not discharged

Pipework / connections crushed

due to overtightened jubilee

clips

Replace damaged connections

Pump too far from water tank Pump should be situated beside water tank

Water leaking at outlet side of

pump

Check pipework/fittings for leaks and repair

Check system drain plugs are closed

Pump strainer clogged Remove clear lid, rinse and replace to main

strainer body (retain strainer mesh to lid)

Trouble Shooting
