Westinghouse Digital Electronics

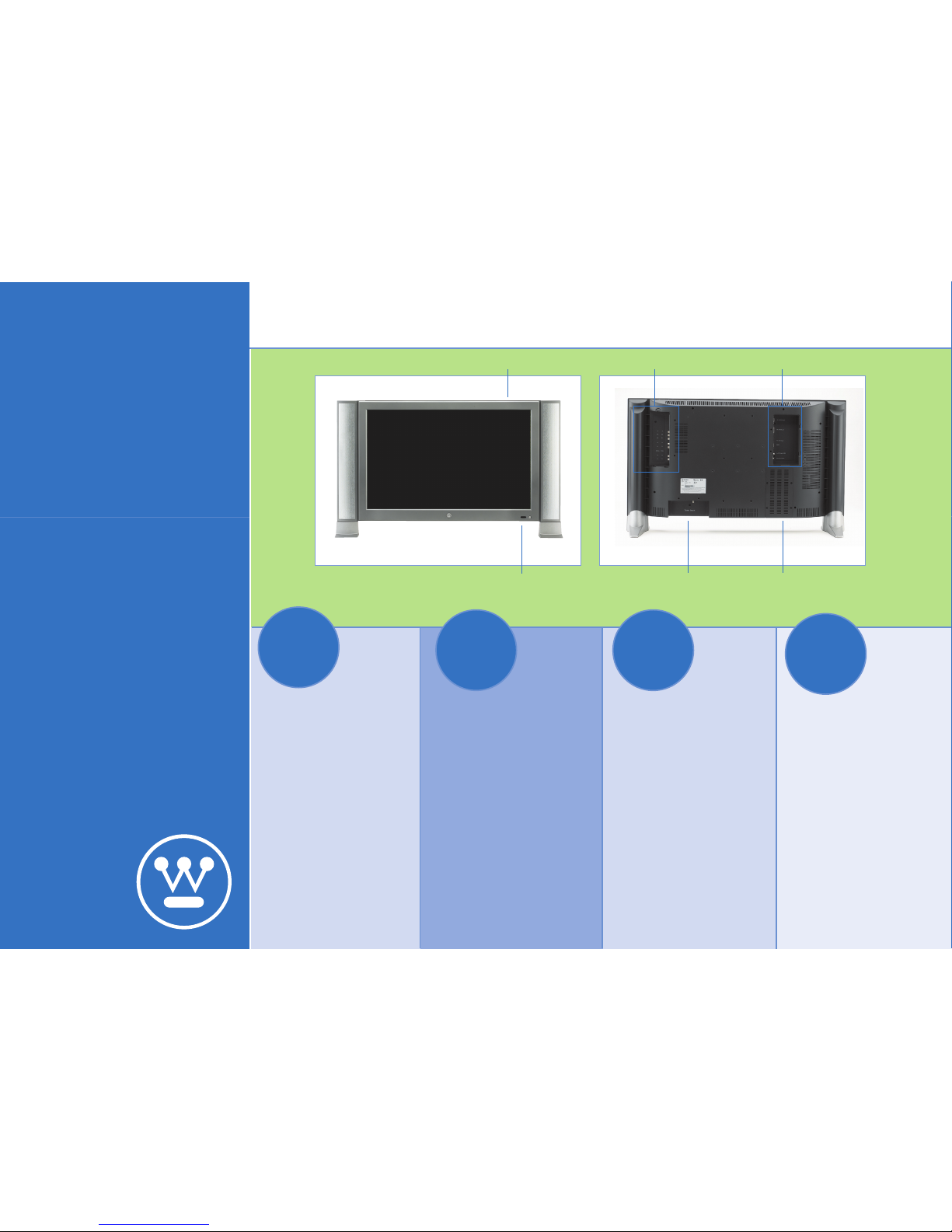

POWER INDICATOR

KEYPAD

TUNER CONNECTION

VIDEO CONNECTIONS PC CONNECTIONS

POWER CONNECTION

CONGRATULATIONS on pur-

chasing a state of the art LCD

TV! This Quick Connect Guide

will help you get started in 3

easy steps. On the back you will

find information to maximize

your LCD TV experience. For

complete installation, usage

instructions, and safety precau-

tions please refer to the User

Guide.

30”

QUICK

CONNECT

GUIDE

CONNECT THE

POWER

Use the enclosed A/C

power cable to connect

A/C power to the power

input on the LCD TV. The

power indicator on the

front side of the TV will

glow red.

CONNECT THE

TUNER

Connect either analog

cable or TV antenna wire

to the cable ready NTSC

tuner input. Note: this step

can be skipped if you do

not use these options.

CONNECT A DVD

PLAYER

Remove the dust covers

from the connector panels

on the back of the TV.

Connect your DVD player

to the component YPbPr

input and corresponding

audio inputs located in the

video connection panel.

Turn on the power by

pressing the Power but-

ton on the keypad. To

watch TV, run the “Auto

Fine Tune” menu option

to search for available

channels.

123GO!

www.westinghousedigital.com

W33001 LCD TV

HDTV Good Better Best

Digital Cable/

Satellite Receiver Good Better Best

DVD Player Good Better Better Best

Game Console Good Better Better Best

VCR Good Good Best

YPbPrYCbCr

480i only

AV S-VideoTV Tuner

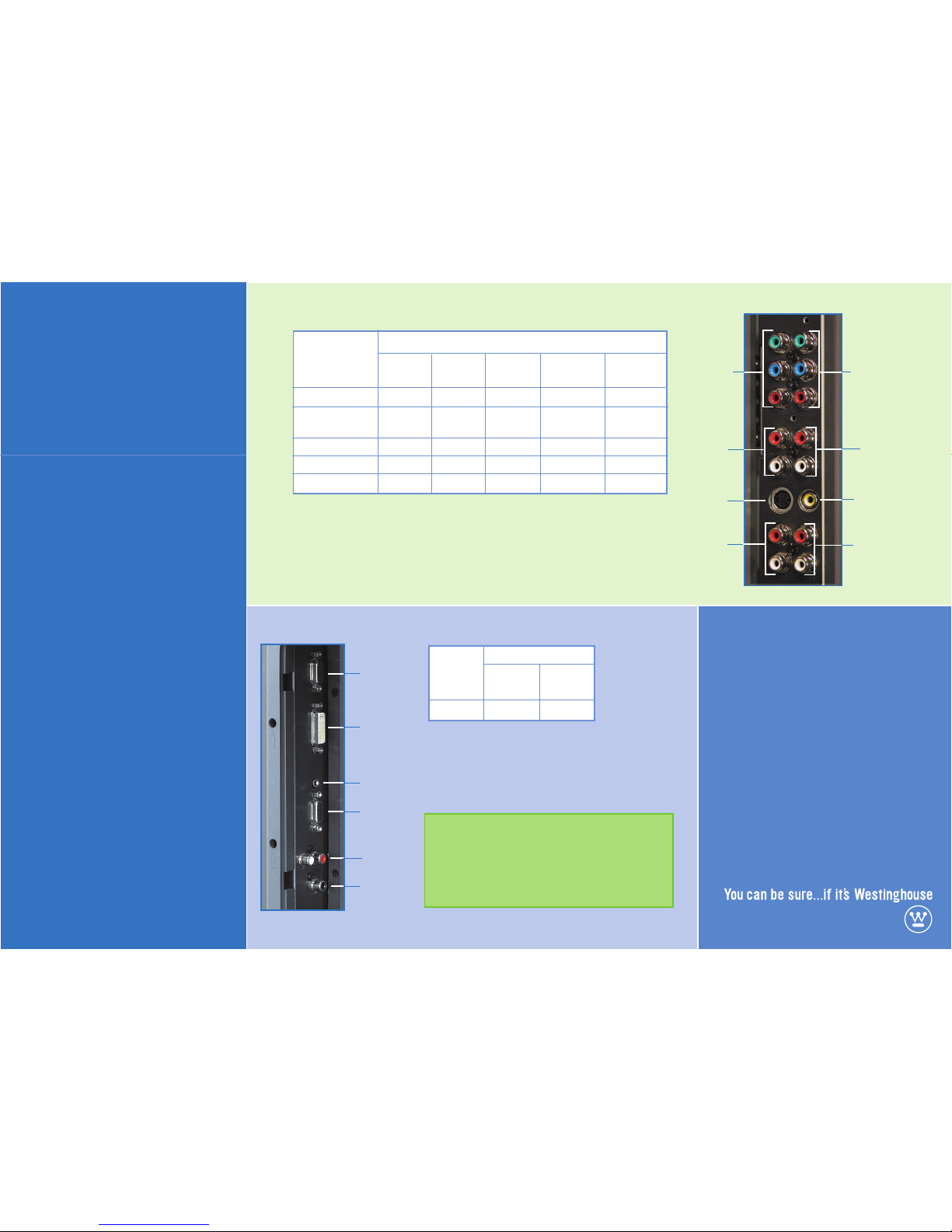

VIDEO INPUTS

MAXIMIZE

YOUR LCD TV

EXPERIENCE

You can attach your LCD TV to

a variety of electronic devices

including a digital cable or

satellite set top box, a game

console, a VCR, or a computer.

The charts show our recom-

mendations for the best quality

picture with these commonly

used devices. If you have trou-

ble connecting these or other

devices, please refer to the

User Manual.

YCbCr

Video In

(480i only)

YPbPr

Video In

(Component)

YCbCr

Audio In

R/L

YPbPr

Audio In

R/L

Audio for

S-Video In

R/L

Audio for

Video In

R/L

S- Video In AV In

TYPICAL SETUP

•True HDTV picture quality using YPbPr

•Non-progressive scan DVD players with YCbCr (480i only)

•Game console action using AV

•VCR viewing and editing with S-Video

PC RGB In

(Analog)

PC DVI

(Digital)

PC Audio

Input

Subwoofer

Output

Audio Output

(L/R)

RS232 In

PC INPUTS

DVIRGB

(VGA)

Monitor Good Best

DID YOU KNOW THAT

YOUR LCD TV ALSO HAS:

• Picture-in-Picture

• Preferred channels settings with

optional parental controls

• Wide screen viewing

CHECK OUT

www.westinghousedigital.com for our:

• Versatile Wall Mounting options

• Designer Art Frames with Acoustical

Mattes

reserved. Specifications subject to change without notice.

, Westinghouse and You can be sure... if it's Westinghouse are

trademarks of Westinghouse Electric Corporation and are used

under license.

MA-PS-0105-0401 www.westinghousedigital.com

•Set computer resolution to 1280 x 768

•Computer monitor and TV Picture-In-Picture!

Use the Source button on the remote control

or keypad to cycle between the different

inputs, or select the source directly using the

remote control buttons TV, S-Video, AV,

PC, DVI, or HDTV.
