Westinghouse CW39T8RW Manuel utilisateur
USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
CW39T8RW
1
Contents
Contents
Caution
Safety Information
Unit and Accessories
Product Feature
Introduction
1. Front View
2. Rear View
4. Remote Control
Basic Operation
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Parental Control menu
5. Setup menu
6. Others menu
Simple Troubleshooting
2
3
4
4
5-9
5
6
8-9
12
First Time Installation 10-11
13-21
13-14
15
16-17
18-19
20
21
22
23
3. Instruction for Wall Mount 7
2

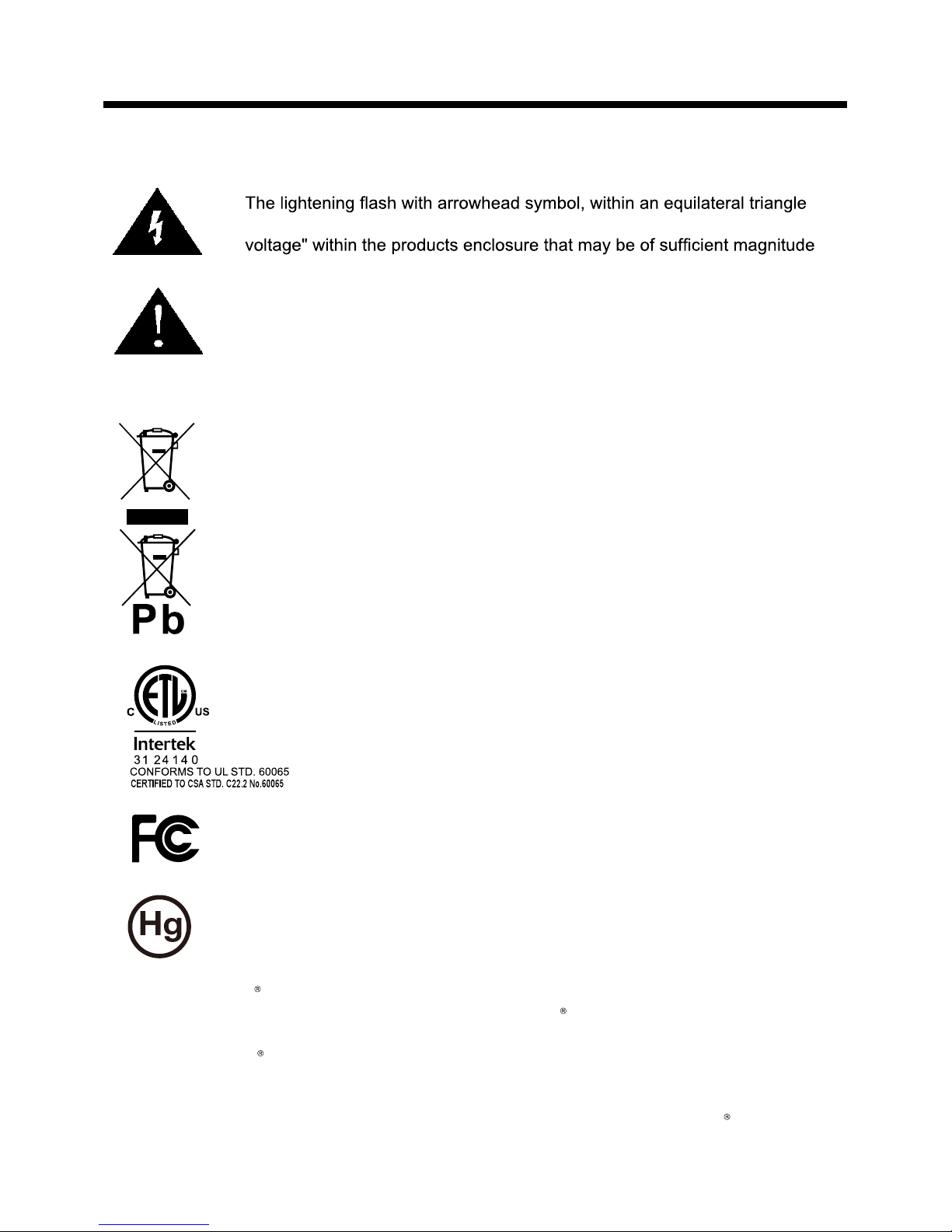

Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR
FEDERALLAWS.
ENERGY STAR :
This Westinghouse product has earned the Energy Star for meeting U.S. Federal energy
efficiency guidelines as set by the Department of Energy and Environmental Protection agency.
The Energy Star program exists to provide energy saving guidelines and help promote
energy efficient products and practices. Changes to certain features, settings and functions of
this TV can change and/or increase its power consumption. Depending on how settings are
changed, power consumption may exceed the limits required for Energy Star qualification.
This Westinghouse TV will operate at optimal energy efficiency in “Home” mode.
3

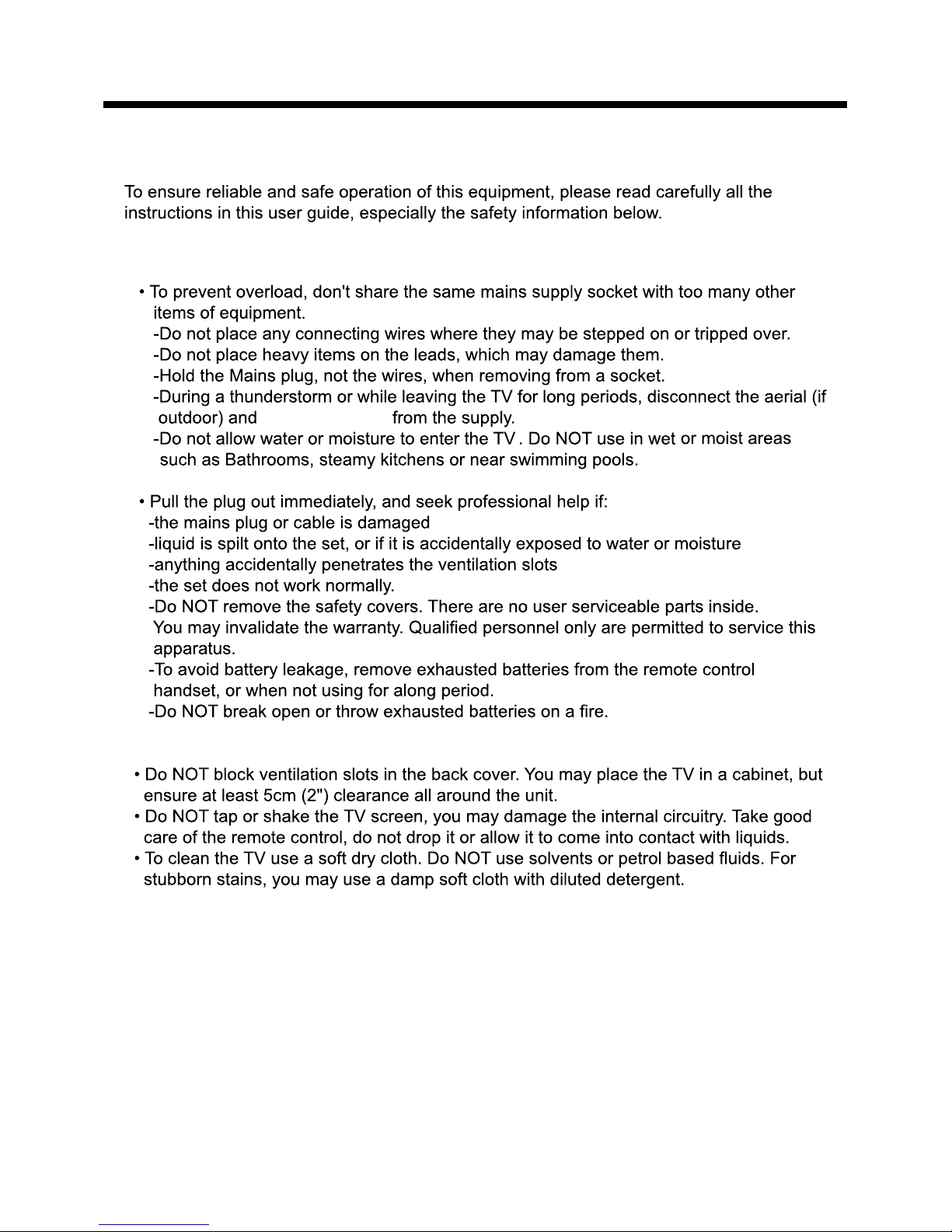

Safety Information
Safety Information
Electrical safety
Physical safety
the power cable
4

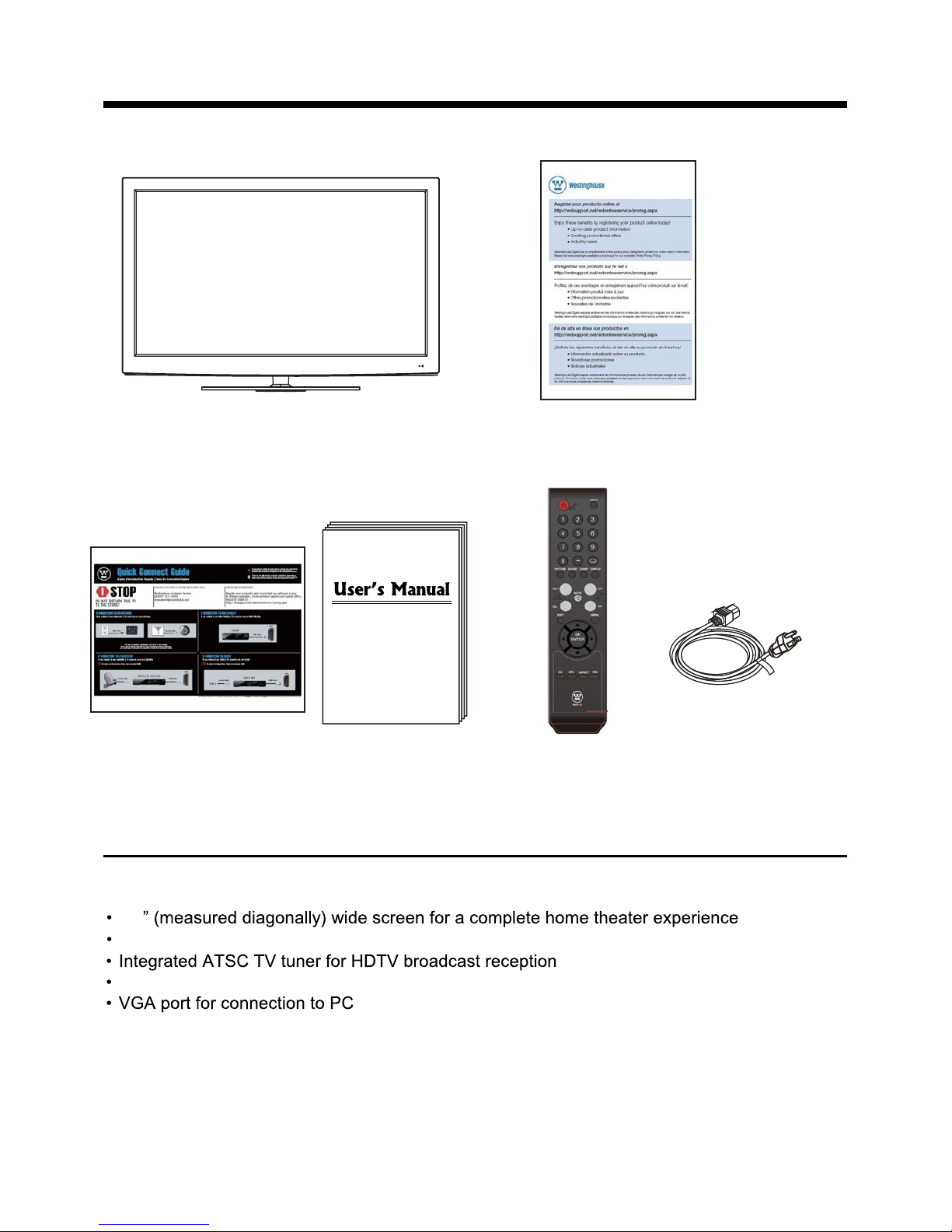

Unit and Accessories and Product Feature
Unit and Accessories
TV set
User's Manual Remote Control and
Batteries (AAA x2)
Product Feature
Warranty Card
39
Three HDMI inputs for true digital connections
HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.
Quick Connect Guide
®
1920 x 1080 native resolution for Full-HD(1080p) performance
Power Cord
5
Introduction
Introduction

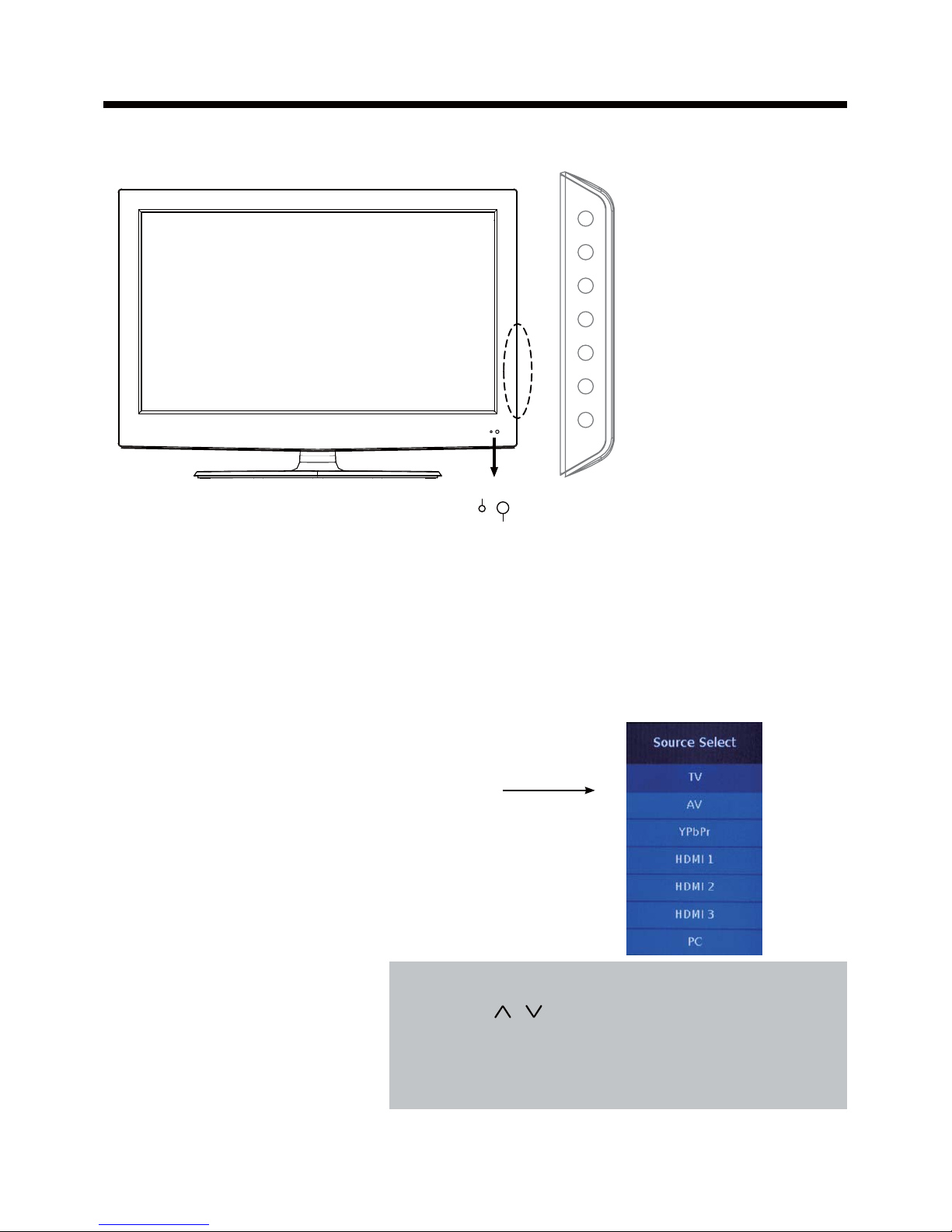

1. Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.
Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or / button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
Power Indicator
Remote Control window (Keep clear)
INPUT MENU CH+ CH- VOL+ VOL - POWER
6
Introduction

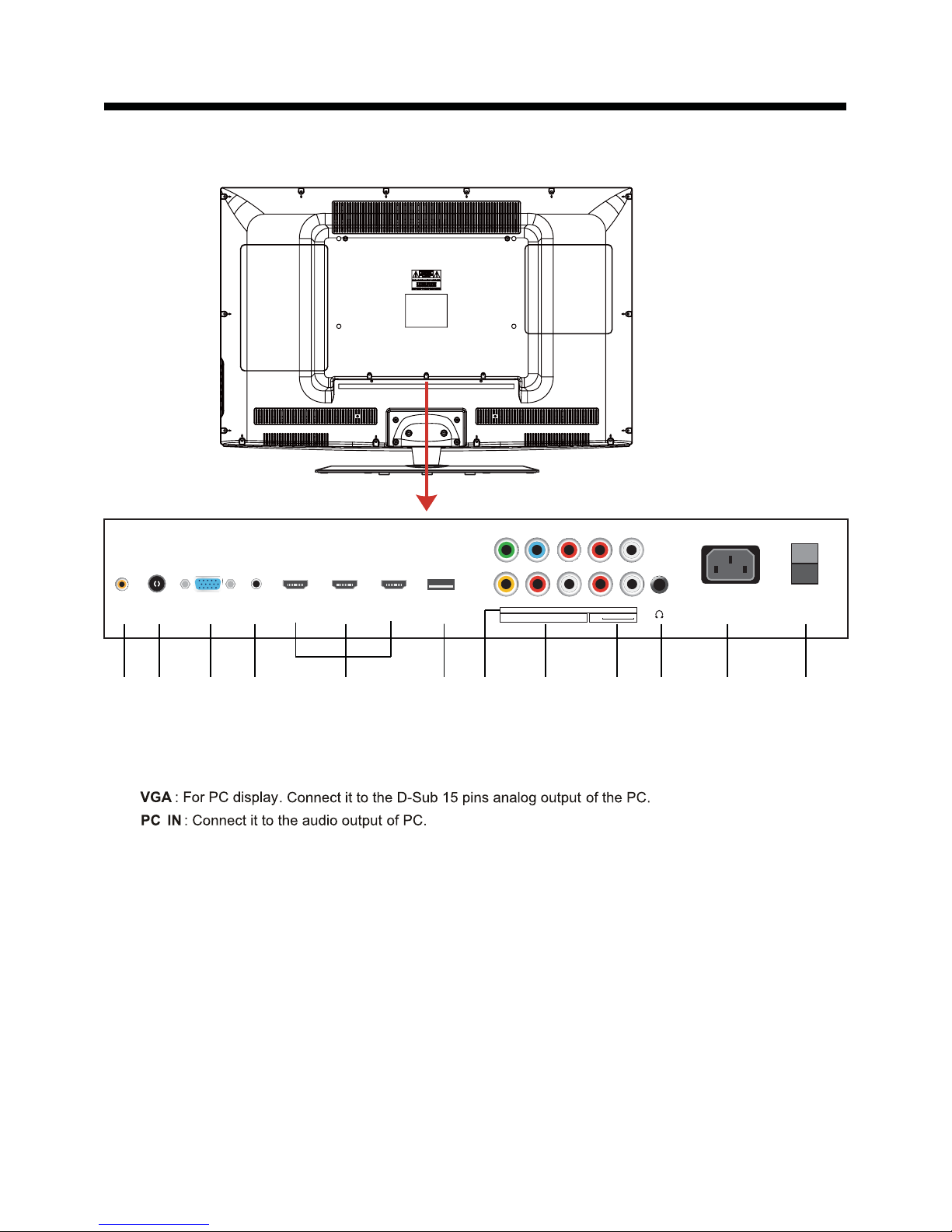

2. Rear View
10). Headphone out : Connect it to your headphone or audio equipments.
3).
2). RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
1). COAX : Digital audio output.
7). YPbPr : Connect them to the component video output of video device.
: Connect it to the HDMI output of video device.
5). HDMI1/2/3
L/R in : Connect them to audio output of video device.
L/R in : Connect them to audio output of video device.
9). L/R out : Connect them to audio equipments.
VIDEO : Connect it to video output of video device.
8).
6). Service : For service use only.
AC POWER IN: Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.
11).
SWITCH: Switch on/off the power supply.
12).
4).
AC POWER IN SWITCH
COAX RF VGA HDMI 1 HDMI 2 HDMI 3 USB
(SERVICE)
PC-IN
YPbPr R L
RL
VIDEO R in L in AUDIO OUT HEADPHONE OUT
1 2 3 4 5 6 8 97 10 11 12
7
Introduction

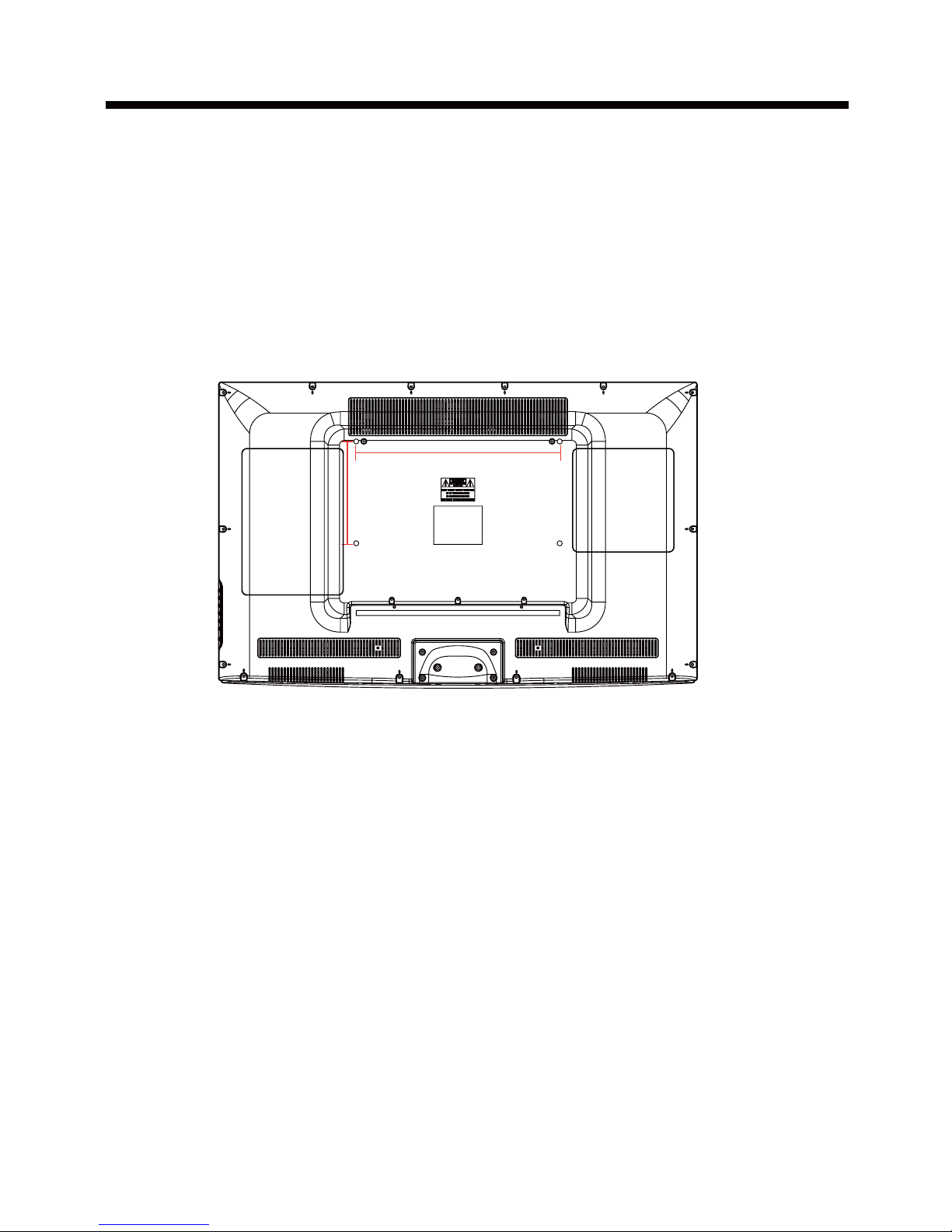

3. Instruction for Wall Mount
Dimensions for Mounting Hole Pattern
A wall mount kit (purchased separately) would allow you to mount your Westinghouse
TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. Westinghouse is not responsible for any damage to the product or injury
to yourself or others resulting from the wall-mounting.
-This Westinghouse TV is compatible with a 400mm x 200mm mounting hole
- Do not mount your Westinghouse TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
- 4 pcs of type M5 screws are required for installing the wall mount bracket to
your Westinghouse TV. Do not use screws that are longer than 15 mm. Screws
that are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. Westinghouse is not liable for these kinds
of incidents.
200mm
400mm
pattern.
8
Introduction

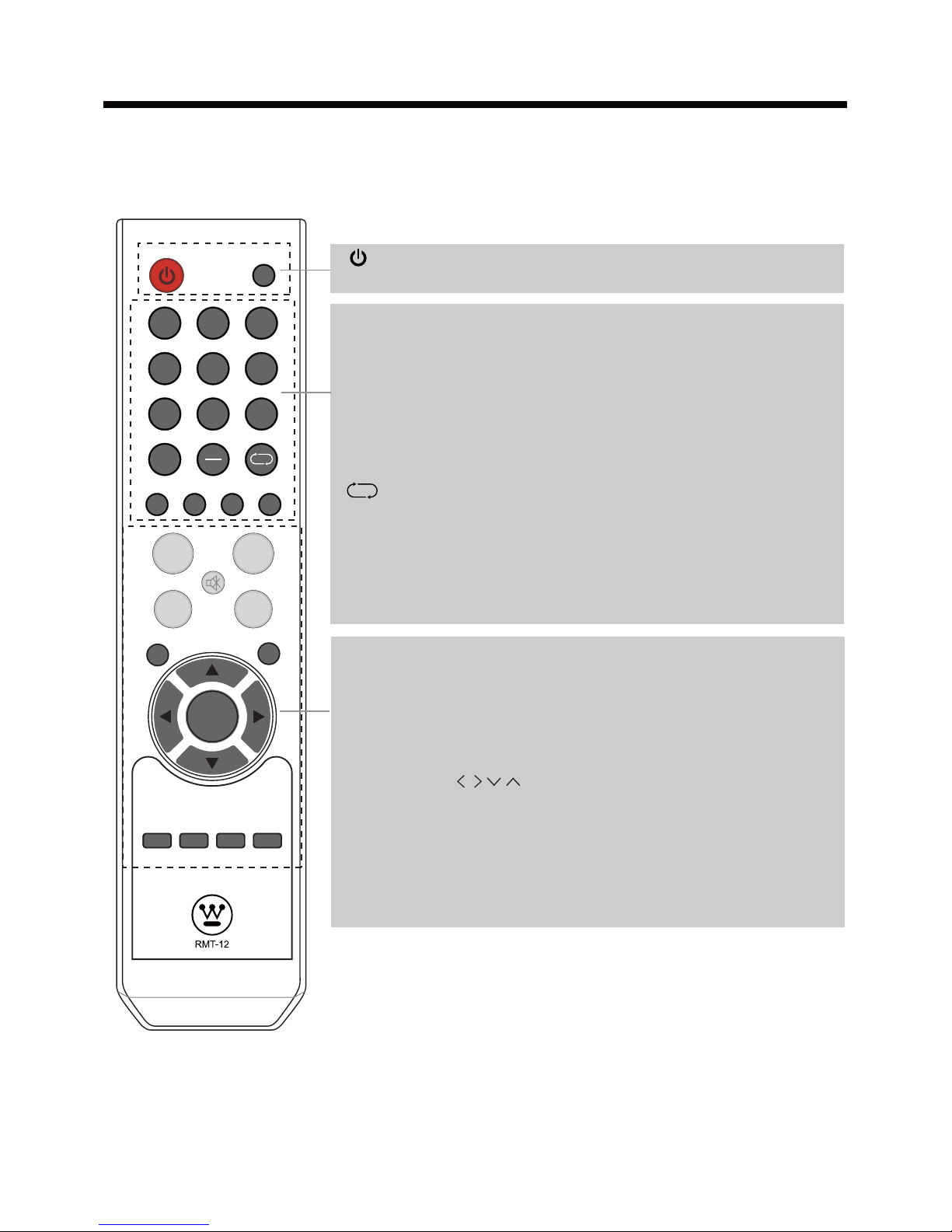

4. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CC: Press to display the closed caption.
MTS: Press to select the audio channels.
FAV: Press to add or remove favorite channel.
ASPECT : Press to change the aspect for pictures on screen.
DISPLAY: Display the information of current mode.
Thumbstick( ): Allows you to navigate the on-screen
menus and adjust the system settings to your preference.
OK: CONFIRM button.
MENU: Press to display the OSD menu.
EXIT: Press to exit the OSD menu.
MUTE: Press to mute the sound, press again or press VOL+ to
unmute.
VOL+/-: Press to adjust the volume.
CH+/-: Press to scan through channels.
SLEEP : Shutdown timer.
Number Buttons: Choose channel directly.
Select channel 5, Press button "5";
Select channel 62, Press button "6", then press button "2" in 2
seconds;
Select channel 151, Press button "1", and press button "5" in 2
seconds, and press button "1" in 2 seconds;
Select channel 5-1, Press button "5", and press button "-"
in 2 seconds, and press button "1" in 2 seconds;
PICTURE: Press repeatedly to cycle through the available
video picture modes.
SOUND: Press to cycle through the different sound settings.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
ENTER
CH+
CH-
123
456
789
0
FAV
CC
ASPECT
MTS
(RETURN): Return to the previous channel viewed.
POWER(red button): Turn the TV on/standby.
INPUT: Press to display the input source menu.
