User’s

Information Manual

Gas-ﬁredwaterboilers–Series3

Featuring

Flexibility

If the information in this manual is not followed exactly, a ﬁre or explosion may result,

causing property damage, personal injury or loss of life.

Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS —

• Donottrytolightanyappliance.

• Donottouchanyelectricalswitch;donotuseanytelephoneinyourbuilding.

• Immediatelycallyourgassupplierfromaneighbor’stelephone.Followthegassupplier’sinstructions.

• Ifyoucannotreachyourgassupplier,calltheredepartment.

Installation & service must be performed by a qualiﬁed installer, service technician or the gas supplier.

Part number 550-100-067/0608

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

The following deﬁned terms are used throughout this manual to bring attention to the presence of hazards of various risk

levels or to important information concerning the life of the product.

Indicates presence of hazards that will cause severe personal injury, death or

substantial property damage.

Indicates presence of hazards that can cause severe personal injury, death or

substantial property damage.

Indicates presence of hazards that will or can cause minor personal injury or

property damage.

Indicates special instructions on installation, operation or maintenance that are

important but not related to personal injury or property damage.

The Boiler manual is for use only by a qualiﬁed heating installer/service technician. Refer only to this User’s

Information Manual for your reference. Improper installation, adjustment, alteration, service or maintenance

can cause property damage, personal injury (exposure to hazardous materials) or loss of life. Installation and

service must be performed by a qualiﬁed installer, service agency or the gas supplier (who must read and follow

the supplied instructions before installing, servicing,or removing this boiler. This boiler contains materials that

have been identiﬁed as carcinogenic,or possibly carcinogenic,to humans).

Whencalling orwritingabouttheboiler—Pleasehavethe boilermodel numberfromtheboilerratinglabeland

the CP number from the boiler jacket.

Hazard deﬁnitions

Boiler service and maintenance

How to use this manual . . .

To . . . Read/use . . . See pages . . .

Learn precautions Warnings and deﬁnitions 1 – 3

Prevent air

contamination

Read the list of air contaminants you must avoid.

If found, either remove the products permanently, or have

your installer relocate boiler vent and air terminations to

an uncontaminated area.

Maintain the boiler Maintain the boiler using the schedule in this manual.

Schedule an annual start-up by a qualiﬁed service

technician before every heating season. 5 – 8

Start or shutdown the

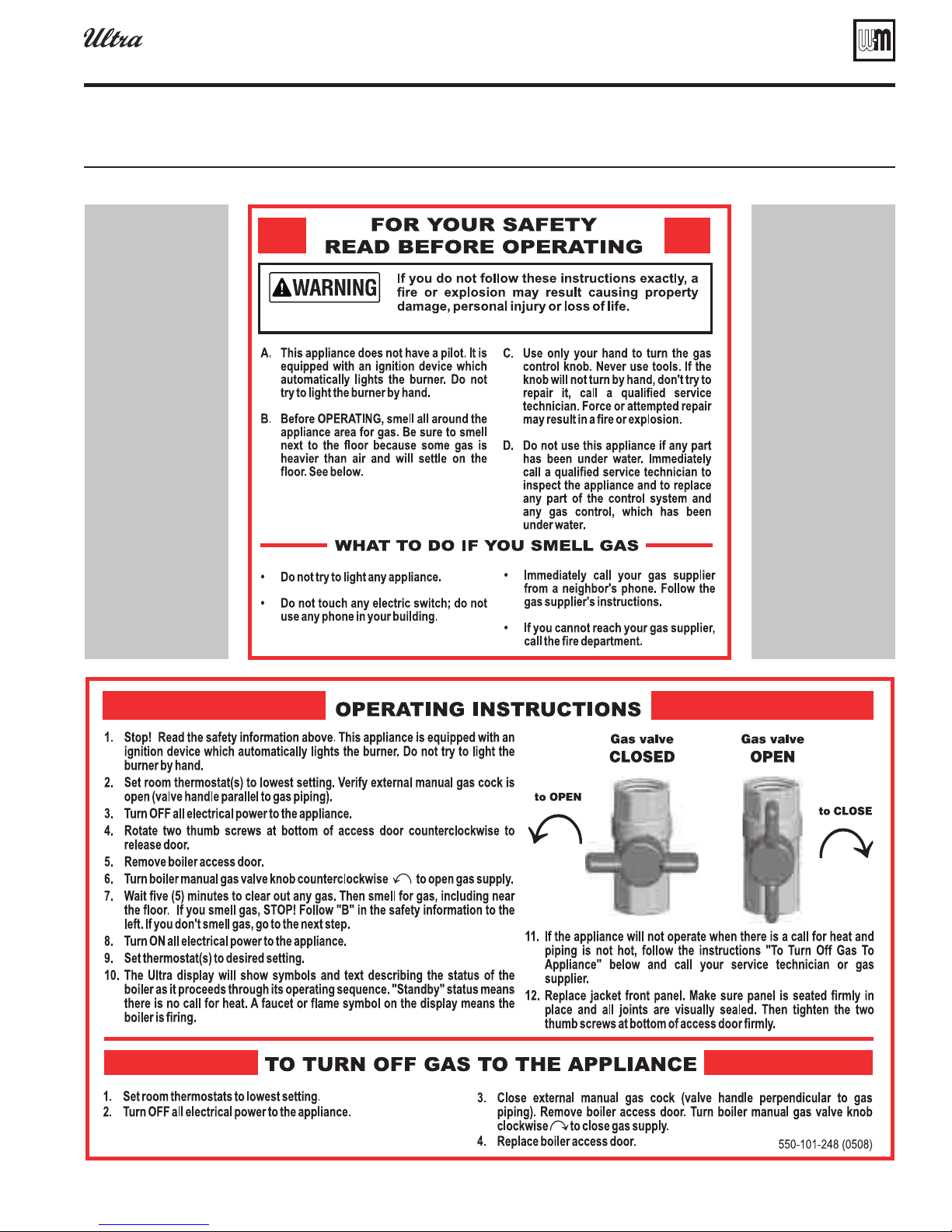

boiler Use the OPERATING INSTRUCTIONS 9

Boiler components &

the U-Control display These illustrations and callouts will show you the location

of main components and use of the U-Control display. 10 – 11

Part number 550-100-067/0608 3

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Failuretoadheretotheguidelinesonthispagecanresultinseverepersonal

injury,death or substantial property damage.

Boiler service and maintenance —

To avoid electric shock, disconnect electrical supply before performing mainte-

 nance.

To avoid severe burns, allow boiler to cool before performing maintenance.



Youmustmaintaintheboilerasoutlinedinthismanualand

 have the boiler started

up and serviced at least annuallybyaqualiﬁedservicetechniciantoensureboiler/

system reliability.

Boiler operation —

Do not block ﬂow of combustion or ventilation air to boiler.This boiler is equipped

 with a control which will automatically shut down the boiler should air or vent be

blocked.Ifventorairblockageiseasilyaccessibleandremovable,removeit.Theboiler

should attempt to restart. If blockage is not obvious or cannot be removed,have the

boiler and system checked by a qualiﬁed service technician.

Do not allow contaminated air to enter the boiler air inlet pipe. See page 4 for de-

 tails.

Should overheatingoccur or gassupplyfail toshutoff,do notturn off ordisconnect

 electrical supply to boiler. Instead, shut off the gas supply at a location external to

the appliance.

Do not use this boiler if any part has been under water. Immediately call a qualiﬁed

 service technician to inspect the boiler and to replace any part of the control system

and any gas control,which has been under water.

Boiler water —

Have boiler water chemistry checked at least annually by a qualiﬁed service techni-

 cian.

DONOTusepetroleum-basedcleaningorsealingcompoundsinboilersystem.Gas-

 kets and seals in the system may be damaged.This can result in substantial property

damage.

DO NOT use “homemade cures” or “boiler patent medicines”. Serious damage to

 boiler, personnel and/or property may result.

Continualfreshmakeupwaterwill reduceboiler life.Mineralbuild-up inboilerheat

 exchangerreducesheat transfer,overheatsthe metal,and causes heatexchangerfail-

ure.Addition of oxygen can cause internal corrosion in system components. Leaks

in boiler or piping must be repaired at once to prevent makeup water.

Do not add cold water to hot boiler. Thermal shock can cause boiler heat exchanger

 to crack.

STOP! READ THIS BEFORE PROCEEDING . . .

Part number 550-100-067/0608

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Prevent combustion air contamination

If theboiler combustionair inletislocatedin anyarealikelytocause contamination,or if productswhich

wouldcontaminatethe aircannotbe removed,youmust havethecombustionair andventre-piped and

terminated to another location. Contaminated combustion air will damage the boiler, resulting in pos-

sible severe personal injury, death or substantial property damage.

Do notoperate anUltra boilerif its combustionair inletis locatedin alaundryroomor pool facility,for

example.These areas will always contain hazardous contaminants.

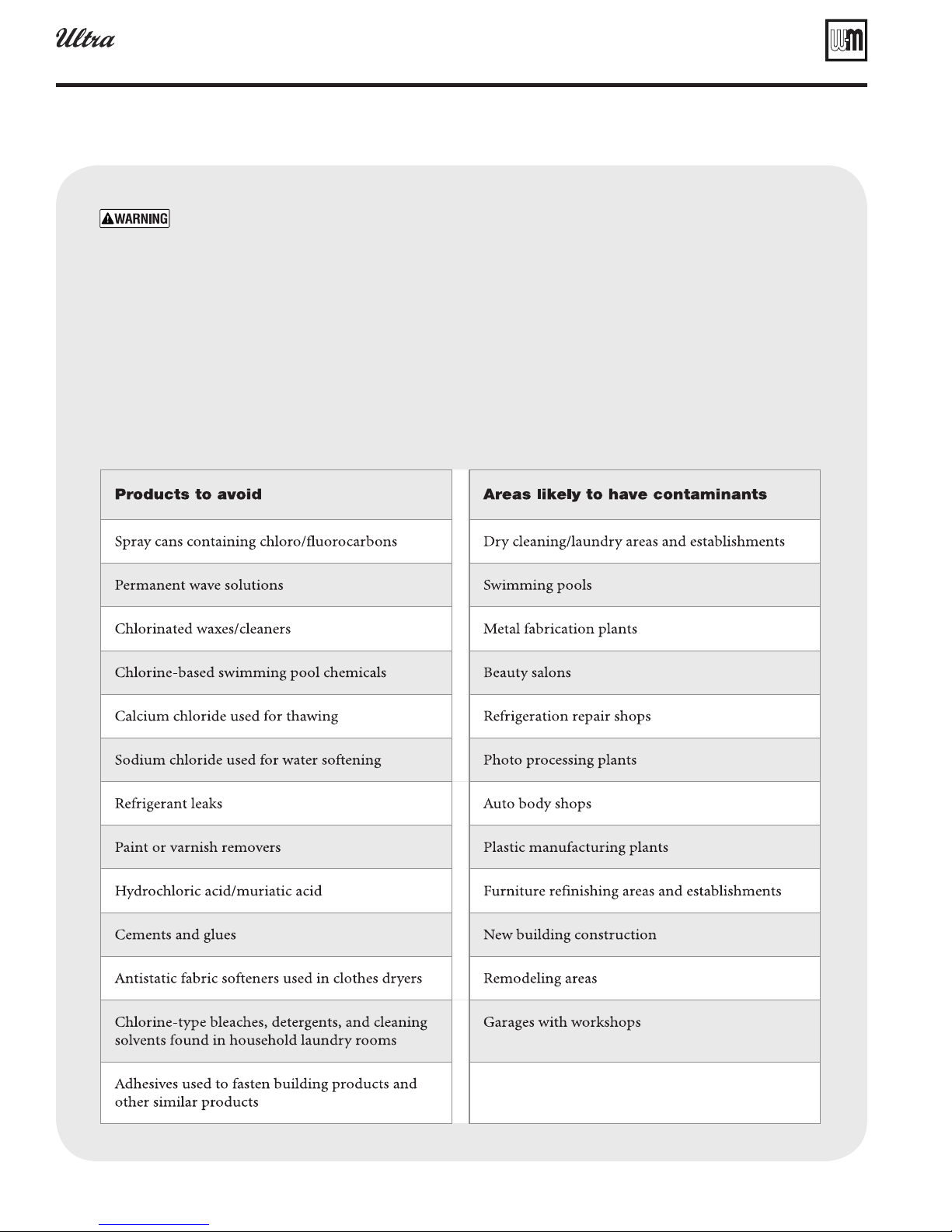

Poolandlaundryproductsandcommonhouseholdandhobbyproductsoftencontainﬂuorineorchlorine

compounds.When these chemicals pass through the boiler, they can form strong acids. The acid can eat

through the boiler wall, causing serious damage and presenting a possible threat of ﬂue gas spillage or

boiler water leakage into the building.

Please read the information listed below.If contaminating chemicals will be present near the location of

the boiler combustion air inlet, have your installer pipe the boiler combustion air and vent to another

location,per the Boiler manual.

Part number 550-100-067/0608 5

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Annual startup and general maintenance

Figure 1 Service and maintenance schedules

OWNER MAINTENANCE (see the following pages for instructions)

BEGINNING OF SEASON Contact your boiler service technician to inspect, service and start

up your boiler. You must have an annual start-up performed by a

qualiﬁed service technician to ensure reliable operation of the boiler

and system.

DAILY

Check boiler area

Check air openings

Check pressure/temperature gauge

Verify boiler front door is secure

MONTHLY

Check vent piping

Check air piping

Check relief valve

Check condensate drain system

Check automatic air vents (if used)

PERIODICALLY Test low water cutoff (if used)

Check time and date on the U-Control display

EVERY

6 MONTHS Check boiler piping (gas and water)

Operate relief valve

END

OF SEASON Shut boiler down (unless boiler used for domestic water)

Follow the service and maintenance procedures given throughout this manual and in component literature

shipped with the boiler.Failure to perform the service and maintenance could result in damage to the boiler or

system.Failure to follow the directions in this manual and component literature could result in severe personal

injury,death or substantial property damage.

Part number 550-100-067/0608

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Maintenance procedures — DAILY

Check air openings

Verify that combustion and ventilation air1. openings to the boiler room and/or building

are open and unobstructed.

Verifythatboilerventdischargeandairintake2. are clean and free of obstructions.

Remove any debris on the air intake or ﬂue3. exhaust openings.

If removing the debris does not allow the4. boilertooperatecorrectlyafterwards,contact

yourqualiﬁedservicetechniciantoinspectthe

boiler and vent/air systems.

Check the pressure/

temperature gauge

Make sure the pressure reading on the boiler1. pressure/temperature gauge does not exceed

25 psig.

Contactaqualiﬁedservicetechnicianif prob-2. lem persists.

Verify boiler front door is

secure

Visuallyinspectboilerfrontdoortobesureit1. is sealed all around its perimeter. Verify that

the two lower thumb screws are tight.

Reinstallthe jacket front doorafter

servicing. The boiler front door

must be securely fastened to the

boilertopreventboilerfromdraw-

ingairfrominsidetheboilerroom.

Thisisparticularlyimportantifthe

boilerislocatedinthesameroomas

otherappliances.Failuretokeepthe

door securely fastened could result

in severe personal injury or death.

Contactyourinstallerortechnician

immediately if the front door does

notcorrectly inplaceor if thedoor

gaskets are damaged.

The boiler must be serviced & maintained

The boiler must be inspected and started annually, at the

beginning of the heating season,by a qualiﬁed service tech-

nician. In addition, the maintenance and care of the boiler

designated on page 5 and explained on pages 6 through 9

mustbeperformedtoassuremaximumboilerefﬁciencyand

reliability.Failuretoserviceandmaintaintheboilerandsys-

temcouldresultinequipmentfailure,causingpossiblesevere

personal injury,death or substantial property damage.

Thefollowinginformationprovidesdetailedinstructionsfor

completingthemaintenanceitemslistedinthemaintenance

schedule,page 5.

In addition to this maintenance,the boiler must be serviced

and started up at the beginning of each heating season by a

qualiﬁed service technician.

Check boiler area

To prevent potential of severe personal injury,death or sub-

stantial property damage, eliminate all materials discussed

below from the boiler vicinity and the vicinity of boiler

combustion air inlet.If contaminants are found:

 •Removeproductsimmediatelyfromthearea.Iftheyhave

been there for an extended period, call a qualiﬁed service

technician to inspect the boiler for possible damage from

acid corrosion.

 •Ifproductscannotberemoved,immediatelycallaqualied

service technician to re-pipe vent and air piping and locate

vent termination/air intake away from contaminated areas.

Combustible/ﬂammable materials—Donotstorecom-

bustible materials, gasoline or any other ﬂammable vapors

or liquids near the boiler.Remove immediately if found.

Air contaminants —Productscontainingchlorineorﬂuo-

rine,ifallowedtocontaminatetheboilerintakeair,willcause

acidic condensate in the boiler. This will cause signiﬁcant

damage to the boiler if allowed to continue. Read the list of

potential materials listed on page 4 of this manual.If any of

these products are in the room from which the boiler takes

its combustion air, they must be removed immediately or

the boiler combustion air (and vent termination) must be

relocated to another area.

Part number 550-100-067/0608 7

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Maintenance procedures — MONTHLY

Maintenance procedures — PERIODICALLY

Test the low water cutoff (if installed)

Ifthesystemisequippedwithalowwatercutoff,testthelow1. water cutoff periodically during the heating season.Follow

the low water cutoff manufacturer’s instructions.

Reset the boiler control after testing.2.

Check U-Control date and time

Check the time shown on the U-Control display.1. If time is incorrect, set the correct date and time as shown2. on pages 10 and 11.

Check vent piping

Visuallyinspecttheﬂuegasventpipingforanysignsof block-1. age,leakageordeteriorationofthepiping.Notifyyourquali-

ﬁed service technician at once if you ﬁnd any problem.

Failure to inspect the vent system as noted above

andhaveitrepairedbyaqualifedservicetechnician

can result in vent system failure, causing severe

personal injury or death.

Check air piping

Visually inspect the air inlet to be sure it is unobstructed.1. Inspect entire length of air piping to ensure piping is intact

and all joints are properly sealed.

Call your qualified service technician if you notice any2. problems.

Check the relief valve

Inspect the boiler relief valve and the relief valve discharge1. pipe for signs of weeping or leakage.

Ifthereliefvalveoftenweeps,theexpansiontankmaynotbe2. workingproperly.Immediatelycontactyourqualiﬁedservice

technician to inspect the boiler and system.

Check the condensate drain system

While the boiler is running, check the discharge end of the1. condensatedraintubingandtheopentopof thecondensate

tee at the boiler (see Figure 3,page 10 for locations). Make

surenoﬂuegasisescapingfromthecondensatedraintubing

or tee by holding your ﬁngers in front of the opening.

If you notice ﬂue gas escaping, this indicates a dry conden-2. sate drain trap. See step 4 for procedure to ﬁll trap. Call

your qualiﬁed service technician to inspect the boiler and

condensate line and reﬁll the condensate trap if problem

persists regularly.

Under some circumstances an Ultra vent system

may not produce enough condensate to keep the

condensatetrapfullofliquid.Ifthetrapisnotfull,

smallamountsofﬂueproductscanbeemittedinto

theboilerroomthroughthecondensatedrainline

or tee.Follow procedure below to ﬁll trap.

Verify that the condensate drain line is unobstructed by3. slowlypouring water intothe topof thePVCteeon theside

of the boiler.The water should run out the end of the con-

densate drain line. If the water does not run out, call your

qualiﬁed service technician to inspect the boiler and clean

or replace the condensate drain line.

Toﬁllthecondensatetrap,if necessary,temporarilyplugthe4. endofthecondensatedrainline.Thenslowlypourwaterinto

the ½ inch plastic tee on boiler right side. Pour until water

ﬁlls drain line, then overﬂows into the boiler trap tubing.

Whenwaterﬁllsuptotopof½inchtee,stopﬁlling.Remove

temporary plug from end of condensate drain line.

Check automatic air vents (if used)

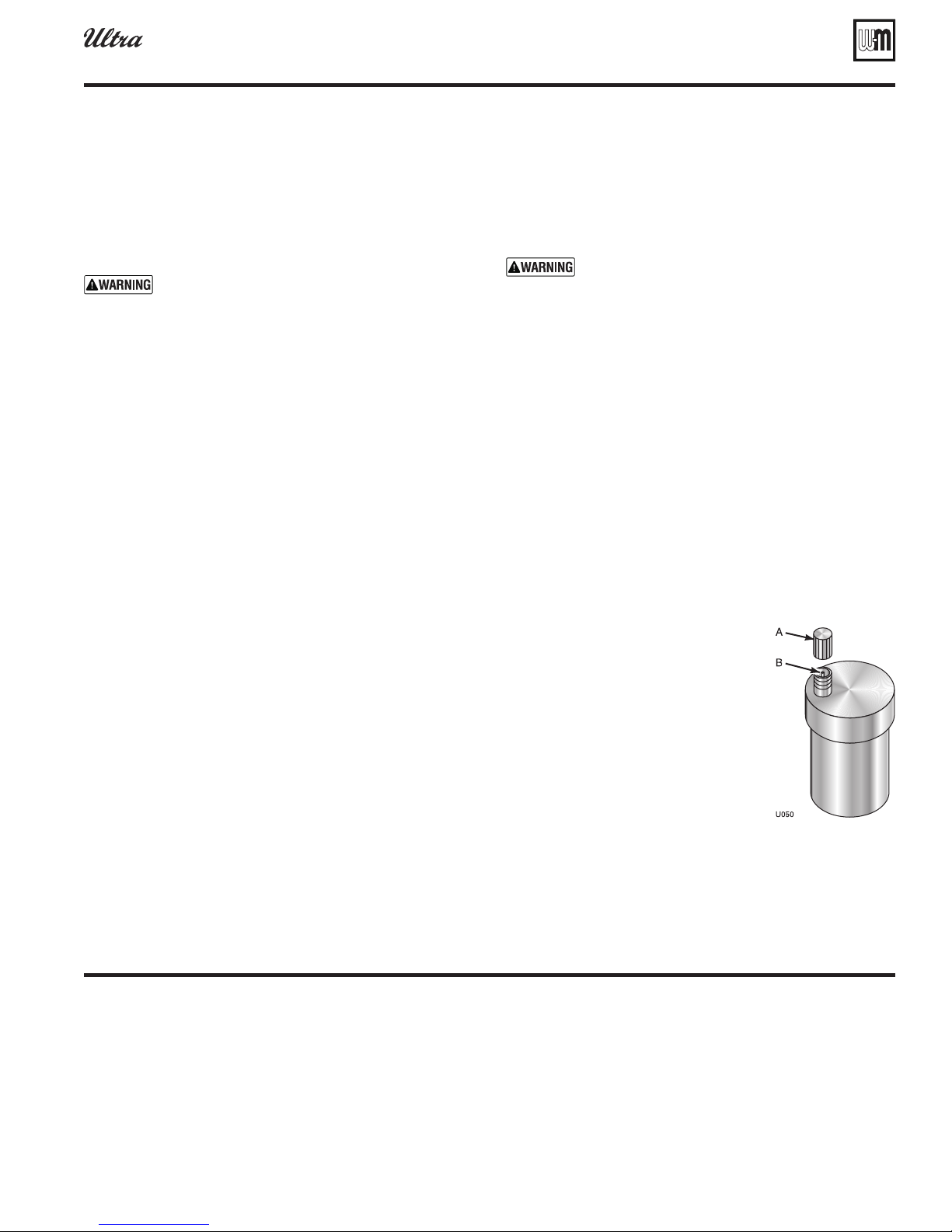

See illustration at right.1. Remove the cap from any automatic2. airventinthesystemandcheckoper-

ationbydepressingvalve“B”slightly

with the tip of a screwdriver.

If the air vent valve appears to be3. working freely and not leaking,

replace cap “A”, twisting all the way

on.

Loosencap“A”oneturntoallowvent4. to operate.

Have vent replaced if it does not5. operate correctly.

Part number 550-100-067/0608

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Maintenance procedures — END OF SEASON

Maintenance procedures — EVERY 6 MONTHS

Follow “TO TURN OFF GAS TO APPLIANCE” on page 91. of this manual.

Donotdrainsystemunlessexposuretofreezingtemperatures2. will occur.

Do not drain the system if it is ﬁlled with an antifreeze3. solution.

DONOTshutdownboilersusedfordomesticwaterheating.4. They must operate year-round.

Check the boiler piping

Remove boiler front access door and perform gas leak inspection per1. steps 1 through 7, Operating Instructions, page 9. If gas odor or leak

is detected, immediately shut down boiler following procedures on

page 9.Call a qualiﬁed service technician.

Visually inspect for leaks around internal water piping. Also inspect2. externalwaterpiping,circulators,reliefvalveandﬁttings.Immediately

call a qualiﬁed service technician to repair any leaks.

Have leaks ﬁxed at once by a qualiﬁed service technician.

Failuretocomplycouldresultinseverepersonalinjury,death

or substantial property damage.

Operate relief valve

Reinstall door securely after inspections.1.

Reinstallthejacketfrontdoorafterservicing.Theboilerfront

doormustbesecurelyfastenedtotheboilertopreventboiler

from drawing air from inside the boiler room. This is par-

ticularly important if the boiler is located in the same room

asotherappliances.Failuretokeepthedoorsecurelyfastened

couldresultinseverepersonalinjuryordeath.Contact your

installerortechnicianimmediatelyifthefrontdoordoesnot

correctly in place or if the door gaskets are damaged.

Before proceeding, verify that the relief valve outlet has been piped2. to a safe place of discharge, avoiding any possibility of scalding from

hot water.

To avoid water damage or scalding due

to valve operation, a metal discharge

line must be connected to relief valve

outletand runtoasafeplaceof disposal.

This discharge line must be installed by

a qualiﬁed heating installer or service

technician in accordance with the in-

structions in the Ultra Boiler Manual.

The discharge line must be terminated

so as to eliminate possibility of severe

burns or property damage should the

valve discharge.

Read the boiler pressure/temperature gauge to3. make sure the system is pressurized.Lift the relief

valve top lever slightly, allowing water to relieve

through the valve and discharge piping.

If waterﬂowsfreely,releasetheleverandallowthe4. valve to seat.Watch the end of the relief valve dis-

charge pipe to ensure that the valve does not weep

after the line has had time to drain. If the valve

weeps, lift the seat again to attempt to clean the

valveseat.Ifthevalvecontinuestoweepafterwards,

contactyourqualiﬁedservicetechniciantoinspect

the valve and system.

If water does not ﬂow from the valve when you5. liftthe lever completely,the valveor dischargeline

maybeblocked.Immediatelyshutdowntheboiler,

followingtheoperatinginstructionsonpage9.Call

your qualiﬁed service technician to inspect the

boiler and system.

Part number 550-100-067/0608 9

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Operating instructionsFigure 2

OPERATING INSTRUCTIONS

Part number 550-100-067/0608

g a s -f i r e d w at e r b o i l e r — User’s Information Manual

Ultra component locationsFigure 3

U-Control display turns red when boiler locks out — select MANUAL RESET to reset boiler as shown below.Figure 4

Boiler components & the U-Control display

Autres manuels pour Ultra Series 3

Table des matières

Autres manuels Weil-McLain Chaudière

Weil-McLain

Weil-McLain CGT-PIN Manuel utilisateur

Weil-McLain

Weil-McLain SVF 500 Manuel utilisateur

Weil-McLain

Weil-McLain WGO Manuel utilisateur

Weil-McLain

Weil-McLain GOLD CGa Manuel utilisateur

Weil-McLain

Weil-McLain SERIES 7 PFG Manuel d'utilisation et d'entretien

Weil-McLain

Weil-McLain GOLD CGa Manuel du produit

Weil-McLain

Weil-McLain HE (Series 2) Mode d’emploi

Weil-McLain

Weil-McLain AFG Manuel utilisateur

Weil-McLain

Weil-McLain SlimFit 550 Mode d’emploi

Weil-McLain

Weil-McLain Evergreen EVG 220 Manuel utilisateur

Weil-McLain

Weil-McLain CGi 4 Series Manuel utilisateur

Weil-McLain

Weil-McLain HE (Series 2) Manuel utilisateur

Weil-McLain

Weil-McLain Gold GV 3 Series Manuel utilisateur

Weil-McLain

Weil-McLain Ultra Electric Water Heater Manuel d'installation et d'exploitation

Weil-McLain

Weil-McLain SlimFit 1000 Mode d’emploi

Weil-McLain

Weil-McLain Series 4 Manuel utilisateur

Weil-McLain

Weil-McLain ULTRA Oil 3 Series Manuel utilisateur

Weil-McLain

Weil-McLain CGi Mode d’emploi

Weil-McLain

Weil-McLain CGt 2 Series Manuel utilisateur

Weil-McLain

Weil-McLain Ultra Ultra Series 1 Mode d’emploi

Weil-McLain

Weil-McLain HE (Series 2) Manuel utilisateur

Weil-McLain

Weil-McLain EG 6 Series Manuel utilisateur

Weil-McLain

Weil-McLain WTGO Series Manuel utilisateur

Weil-McLain

Weil-McLain Gold GV 3 Series Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
