Watermark Lily LLD4 Manuel utilisateur
Lily
Widespread Lavatory Set
Lily – Series 71 – Widespread Lavatory Set Page 1

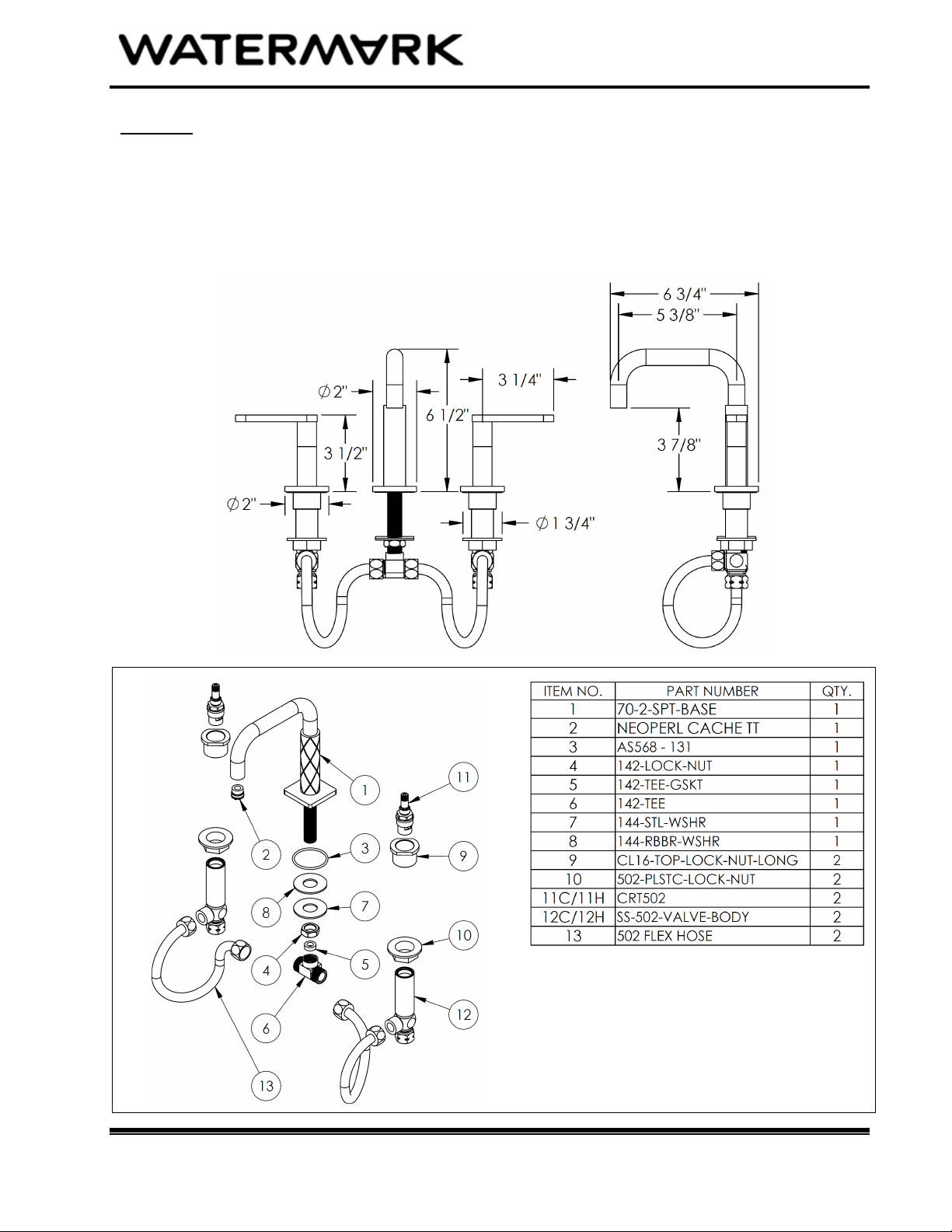

FEATURES
•¼ turn washerless ceramic disc valve cartridges
•Flexible hose connection for 8” to 16” spread
installations
•Flow rate 1.2 gpm (4.5 lpm) maximum flow rate
•Solid brass construction
•Listed by IAPMO, CSA, NSF, and other municipalities
•Warranty:
oLimited lifetime warranty
(residential use)
oOne year (commercial use)
•Shipping weight (lbs.): 10
•
Shipping dimensions (in.): 29x12x4
Lily
Widespread Lavatory Set
Lily – Series 71 – Widespread Lavatory Set Page 2

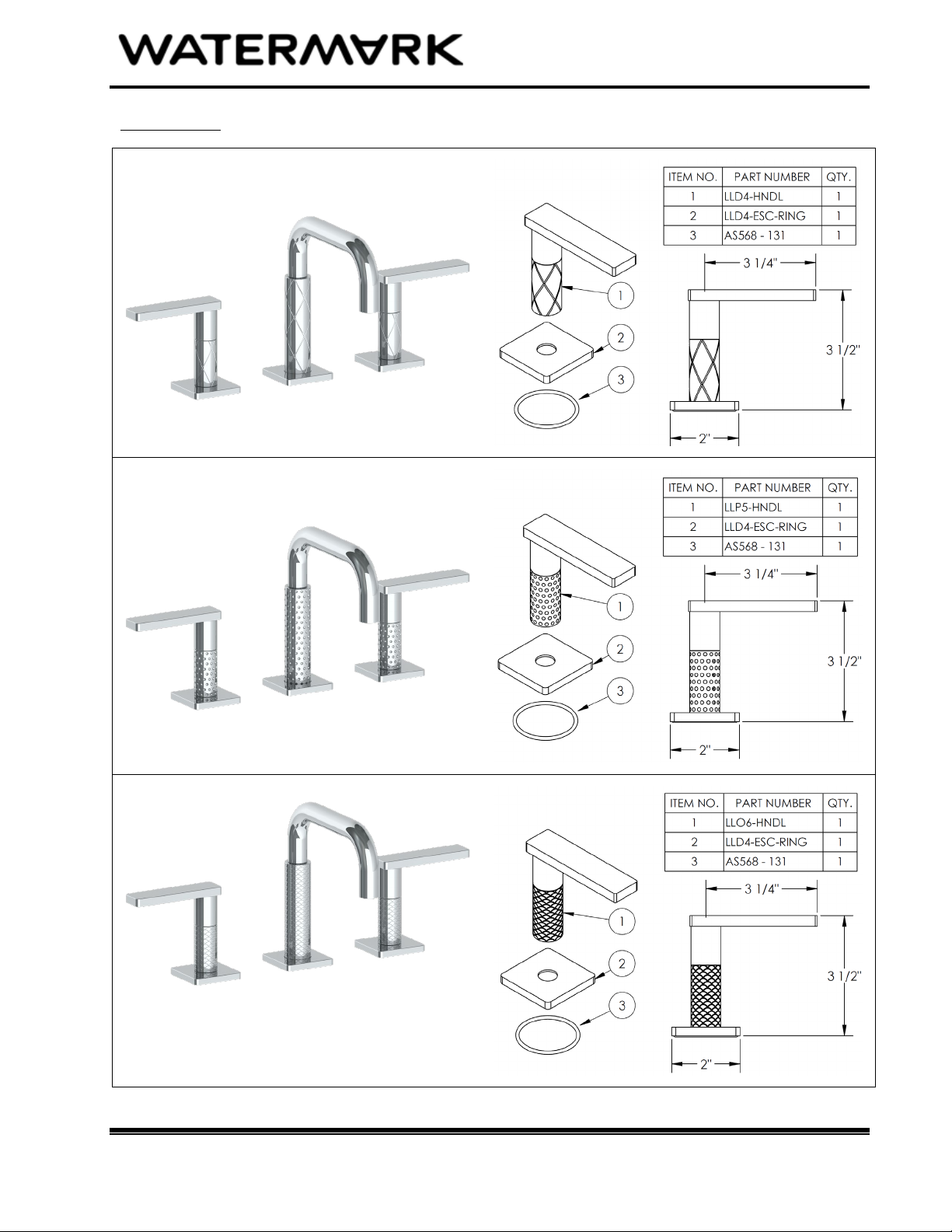

HANDLE TRIM
CODE: LLD4
CODE: LLP5
CODE: LLO6
Lily
Widespread Lavatory Set
Lily – Series 71 – Widespread Lavatory Set Page 3
IMPORTANT INSTALLATION INFORMATION
•USE TEFLON TAPE OR PIPE SEALANT FOR THREADED CONNECTIONS
•DO NOT USE PLUMBER’S PUTTY ON ANY OF THE BRASS COMPONENTS
This will cause the finish to tarnish and void the warranty. A non-corrosive Alkoxy Silicone is
recommended.
•DURING SWEATING OF LINES DO NOT OVERHEAT CASTING
Overheating may cause damage to internal mechanism
•COPPER ADAPTORS MAY BE REQUIRED TO COMPLETE YOUR INSTALLATION
For technical support, please call 718-257-2800
Rev. 3/20
