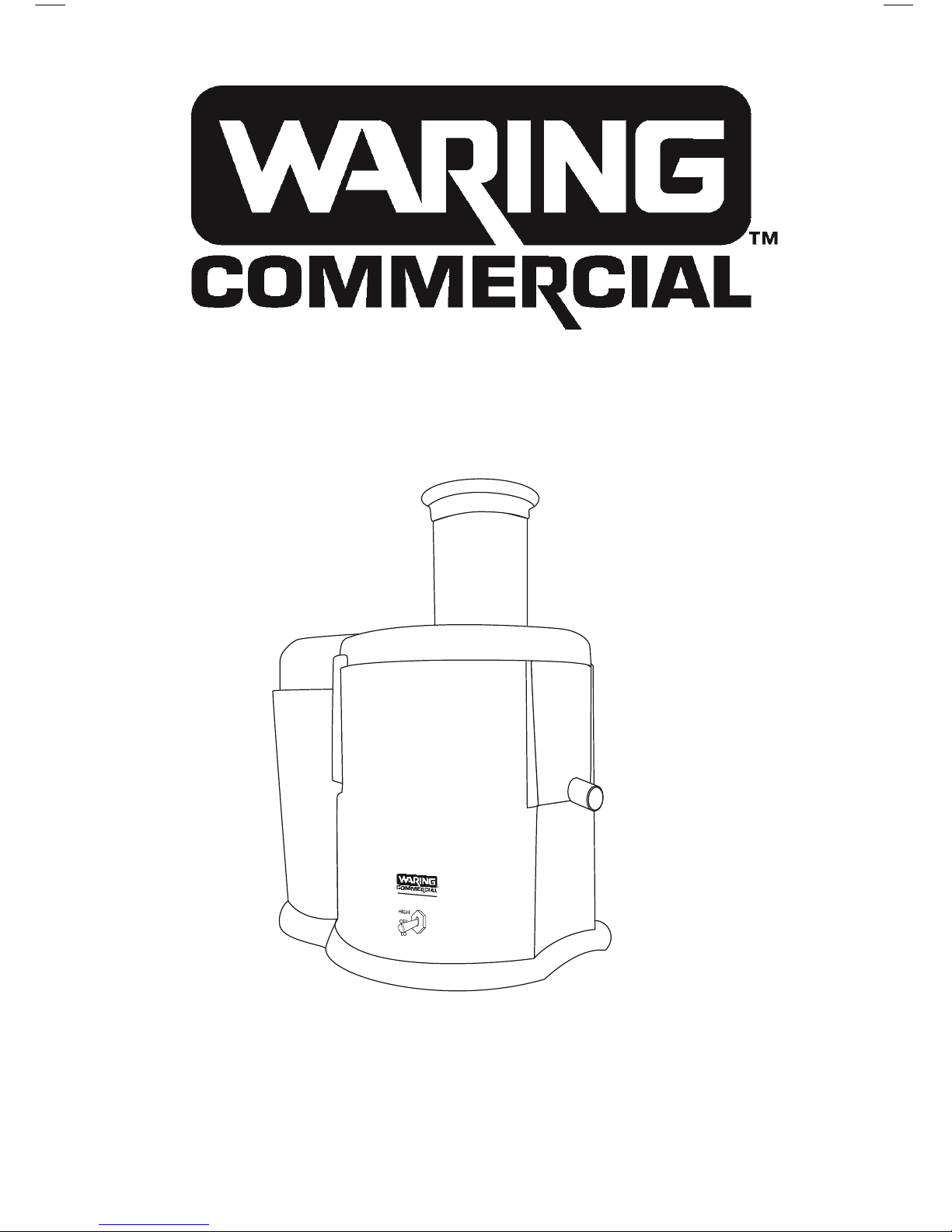

Waring WJX50 Manuel utilisateur

Juice Extractor

with Pulp Ejection

For your safety and continued enjoyment of this product,

always read the instruction book carefully before using.

WJX50

07wc30118_wjx50_ib.indd 1 9/24/07 9:47:50 AM

07wc30118_wjx50_ib.indd 2 9/24/07 9:47:50 AM

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions

should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

2. Always use the appliance on a dry, level surface.

3. Do not push produce into the feed chute with your

fingers. Always use the food pusher provided.

4. Do not touch the small cutting blades in the base of

the stainless steel filter basket.

5. Do not leave the juice extractor unattended when in

use. This appliance should not be used by or near

children or individuals with certain disabilities.

6. Always make sure the juice extractor is properly and

completely assembled before operating. The unit will

not turn on unless properly assembled.

7. Always disconnect the juice extractor from the

power outlet when not in use or when assembling.

8. Always make sure juice extractor cover is securely

in place before motor is turned on. Do not turn lid

while juicer is in operation. Be sure to turn switch to

off position after each use for your juicer. Make sure

the motor stops completely before disassembling.

9. Do not put your fingers or any other object into

the juicer opening while it is in operation. If food

becomes lodged in opening, use food pusher or

another piece of fruit or vegetable to push it down.

When this method is not possible turn the motor off

and disassemble juicer to remove the remaining food.

10. Do not operate any electrical appliance with a

damaged cord or plug or after the appliance has

malfunctioned or been damaged in any manner.

If damaged, immediately stop use and call Waring

Customer Service at (800) 269-6640 for examination,

adjustment or repair.

11. Do not let the cord hang over the edge of the table

or counter, or touch hot surfaces or become knotted.

07wc30118_wjx50_ib.indd 3 9/24/07 9:47:50 AM

12. Do not place this appliance on or near a hot gas or

electric burner, or where it could touch a heated oven.

13. Always turn appliance off at the power point and

remove cord from outlet

– if the appliance is left unattended

– if not in use

– before cleaning

– before putting on or taking off parts

– before moving the appliance.

14. For any maintenance other than cleaning call

(800) 269-6640.

15. This appliance has a 3-prong grounded plug.

To reduce the risk of electric shock, this plug is

intended to fit into a grounded outlet only one

way. If the plug does not fit, contact a qualified

electrician. Do not attempt to modify the plug in

any way.

16. To protect against risk of electrical shock do not put

motor, unit housing or power cord in water or other

liquid.

17. Avoid contact with moving parts.

18. The use of attachments not recommended or sold

by the manufacturer may cause fire, electric shock

or injury.

19. Do not use outdoors.

20. Do not use the appliance if the rotating sleeve is

damaged.

07wc30118_wjx50_ib.indd 4 9/24/07 9:47:50 AM

SAVE THESE INSTRUCTIONS

FOR COMMERCIAL USE ONLY

GROUNDING INSTRUCTIONS

This appliance must be grounded while in use to

protect the operator from electrical shock. The

appliance is equipped with a 3-conductor cord and

3-prong grounding-type plug to fit the proper

grounding-type receptacle. The appliance has a plug

that looks like the plug in drawing (1). An adapter, as in

drawing (2), should be used for connecting the appliance

plug to two-prong receptacles. The grounding tab which

extends from the adapter must be connected to a

permanent ground such as a properly grounded outlet

box as shown in drawing (3) using a metal screw.

GROUNDING METHOD

EXTENSION CORDS

Use only 3-wire extension cords which have 3-prong

grounding-type plugs and 3-pole cord connectors that

accept the plug from the appliance. Use only extension

cords which are intended for indoor use. Use only extension

cords having an electrical rating not less than the rating

of the appliance. Do not use damaged extension cords.

Examine extension cord before using and replace if

damaged. Do not abuse extension cord and do not yank

on any cord to disconnect. Keep cord away from heat

and sharp edges.

07wc30118_wjx50_ib.indd 5 9/24/07 9:47:50 AM

INTRODUCTION

Raw juices derived from fresh fruits and vegetables are

invaluable as an aid in maintaining a balanced diet. Raw

juice contains, in its most natural and complete form,

precious vitamins, minerals, bioflavonoids and enzymes.

Nutritional authorities claim that raw juice is food in one

of its most easily digestible forms.

The Waring™Commercial Juice Extractor is the result

of intensive research and engineering efforts, and we

are sure you will be delighted with its performance.

07wc30118_wjx50_ib.indd 6 9/24/07 9:47:50 AM

PARTS

1. Food pusher

2. Extra-wide feed chute

3. Top cover

4. Stainless steel filter basket and shredder disc

5. Polycarbonate juice bowl

6. Motor housing

7. Pulp container (10-cup capacity)

8. Pulp container handle

9. Lo/Off/High toggle switch

10. Reset button (not shown)

located under unit base

07wc30118_wjx50_ib.indd 7 9/24/07 9:47:51 AM

Assembling Your Waring™Commercial Juice Extractor

NOTE: The juice extractor will not operate until the pulp

container and lid are locked into position. To assemble

this unit the following steps must be followed in the

order given.

Step 1

Place juice bowl on top of the motor

housing.

Step 2

Place the stainless steel filter basket

inside the center of the juice bowl. Make

sure it snaps into hub. Press firmly on the

stainless rim of the filter basket. To avoid

injury do not press on shredder disk.

Note: Make sure the stainless steel filter

basket is pushed down firmly until it clicks

into place.

Step 3

Place the top cover over the top of the

motor housing. Lock juice cover into

place by turning right to left (counter-

clockwise) until cover locks into position.

Follow instructional arrows on top cover.

Step 4

Grab handle of pulp container and slide

under cover by tilting forward. Push

bottom of pulp container into unit until

it is seated properly.

Note: Unit will not operate if top cover

and pulp container are not properly

positioned.

Step 3

Step 1 and 2

Step 4

07wc30118_wjx50_ib.indd 8 9/24/07 9:47:53 AM

Step 5

Slide the food pusher down the feed

chute by aligning the flat area of the food

pusher with the flat area of the feed chute.

Food pusher is marked with an arrow for

proper alignment. Continue to slide the

food pusher down the feed chute.

Disassembling Your

Waring™Commercial Juice Extractor

Step 1

Turn the Waring™Commercial Juice Extractor toggle switch

to the OFF position. Remove the plug from the power outlet.

Step 2

Remove the pulp container by tilting it slightly to remove

from base.

Step 3

Remove the lid by twisting it left to right (clockwise) as far

as it will go to disengage; then lift up cover.

Step 4

Remove stainless steel filter basket and juice bowl at the

same time by holding onto the juice bowl spout and pulp

outer edge lip while putting pressure with your thumbs

on the top rim of housing and pulling gently in an upward

motion. For best cleaning results, we recommend

cleaning the filter basket with a cleaning brush.

THE STAINLESS STEEL FILTER BASKET

CONTAINS SMALL SHARP BLADES TO CUT

AND PROCESS FRUITS AND VEGETABLES.

DO NOT TOUCH BLADES WHEN HANDLING

THE FILTER BASKET.

Step 5

07wc30118_wjx50_ib.indd 9 9/24/07 9:47:53 AM

OPERATION

Note: The juice extractor will not operate until the top

cover and pulp container are locked into position. See

page 7.

Step 1

Wash your fruit and vegetables for juicing.

Note: Most fruit and vegetables such as apples, carrots

and cucumbers will not need to be cut to size as they will

fit into the feed chute whole.

Step 2

Ensure that the juice extractor is correctly assembled

and that a juice collector cup is placed under the spout

while juicing.

Step 3

Plug the power cord into a power outlet. For softer fruits

and vegetables such as melons, spinach, pears, etc., use

the low setting. For harder fruits and vegetables such as

carrots, beets, cabbage, etc., use the high setting.

Place juice collecting container underneath spout. Toggle

to the low or to the high position depending on the fruit

or vegetable being processed. Toggle to the off position

when process is completed. Place juice collecting con-

tainer underneath spout.

Step 4

With the motor running, place food down the feed chute.

Using the food pusher, gently guide food down the

chute. To extract maximum juice always push the food

pusher down slowly. Make sure flat area of food pusher

is aligned to flat area of feed chute. The food pusher is

marked with an arrow for proper alignment.

Step 5

Juice will flow into the juice collector container and the

separated pulp will accumulate in the pulp container.

07wc30118_wjx50_ib.indd 10 9/24/07 9:47:53 AM
