Wali MF002S Manuel utilisateur
2
Supplied Parts List
Step 1
3
Pole
A(x1)
Base
B(x1)
Arm
C(x1)
VESA Plate
D(x2)
Bolt
E(x2)
Bolt
F(x3)
Pole Cover
G(x1)
Allen Key 4mm
H(x1)
Allen Key 6mm
I(x1)
M4x12 Bolt
M-A(x4)
M4x16 Bolt
M-B(x4)
M5x12 Bolt
M-C(x4)
M5x16 Bolt
M-D(x4)
D5 Washer
M-E(x4)
Spacer
M-F(x4)
X 2
NOTE : SOME HARDWARE INCLUDED MAY NOT BE USED
B
H
A
F
Place the Pole Aonto the top center hole of Base B, connect Pole Aand Base Bfrom the bottom using Bolt F
and tighten with Allen Key 4mm H.
4
Step 2
Step 3
F
C
I
A
Put the Arm Cthrough the Pole A, adjust the preferred height and tighten using Allen Key 6mm I.
Press Pole Cover Ginto the top hole of Pole A .A
G
5
Step 4
Step 4.1
D
Step 4.2a
Select M4x12 Bolt M-A or M5x12 Bolt M-C according to your TV/Monitor,connect VESA Plate Dtogether
with D5 Washer M-E into the mounting holes on the back of TV/Monitor,tighten with screwdriver.
(Screwdriver needed but not included)
M-E
M-E
M-C
M-A
G
Step 4.2b
D
M-E
M-F
Select M4x16 Bolt M-B or M5x16 Bolt M-D according to your TV/Monitor,connect VESA Plate D
together with D5 Washer M-E and Spacer M-F into the mounting holes on the back of TV/Monitor,
tighten with screwdriver.(Screwdriver needed but not included)
M-B
M-D
6

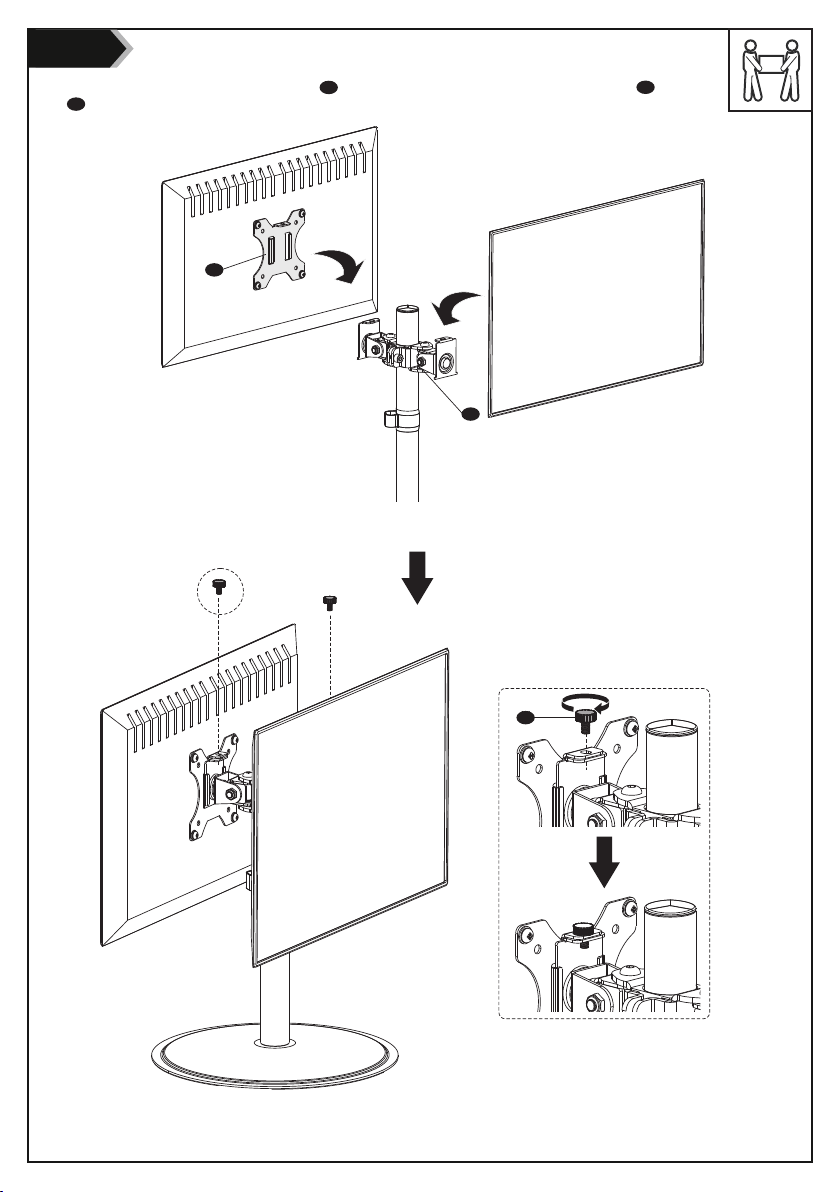

Step 5
H
Put the assembled TV/Monitor onto the Arm Cand ensure the stability, connect the VESA Plate Dusing
Bolt Eand tighten by hand.
E
C
D
7
Step 6
Step 7
1
Tighten/Loosen the side bolt of Arm Cwith Allen Key 6mm I, store Allen Keys in the Cable Management Clip Holder,
guide the cable through the Cable Management Clip Holder.
Manually swivel,tilt or rotate the angle for the best operating environment.
±15°
+15°
-15°
±1 8 0 °
I
2
I
H
If you have any questions,please contact us.
We support the technology that brings your home to life.
We offer high quality products, professional customer service,
and extensive technical support.
