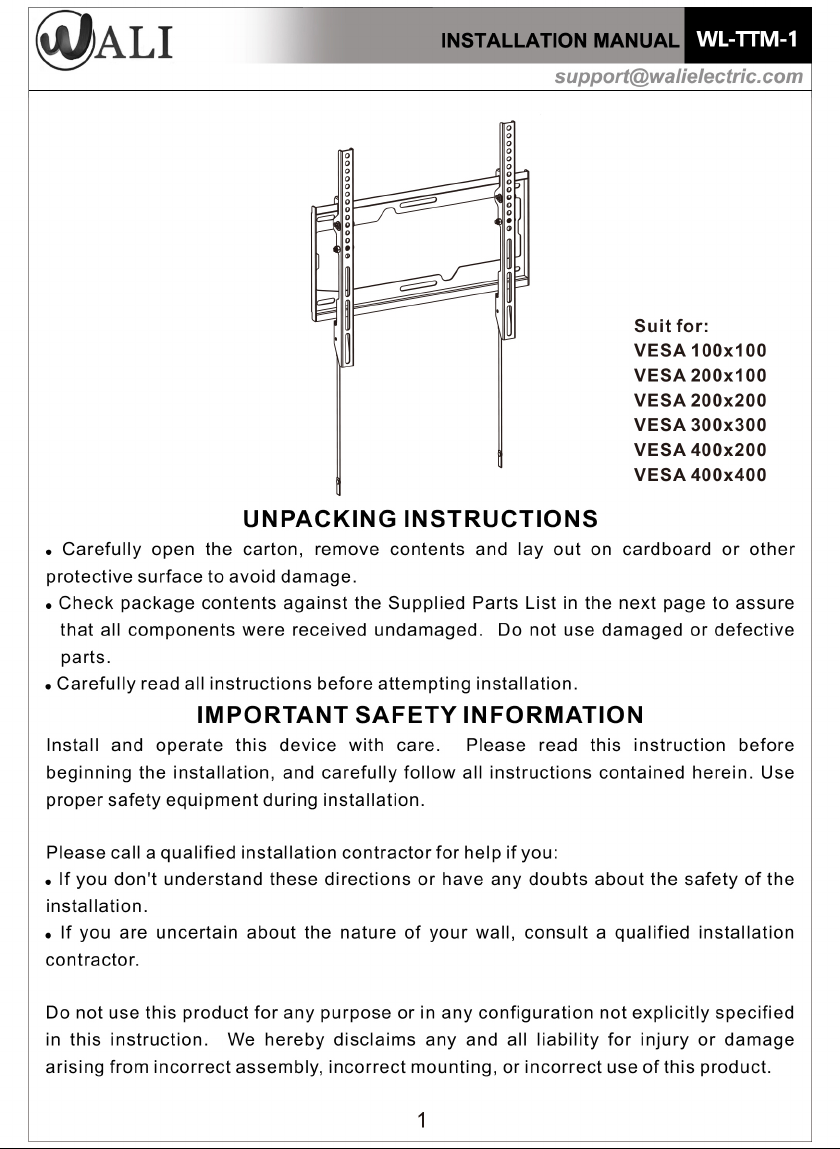

Wali WL-TTM-1 Manuel utilisateur

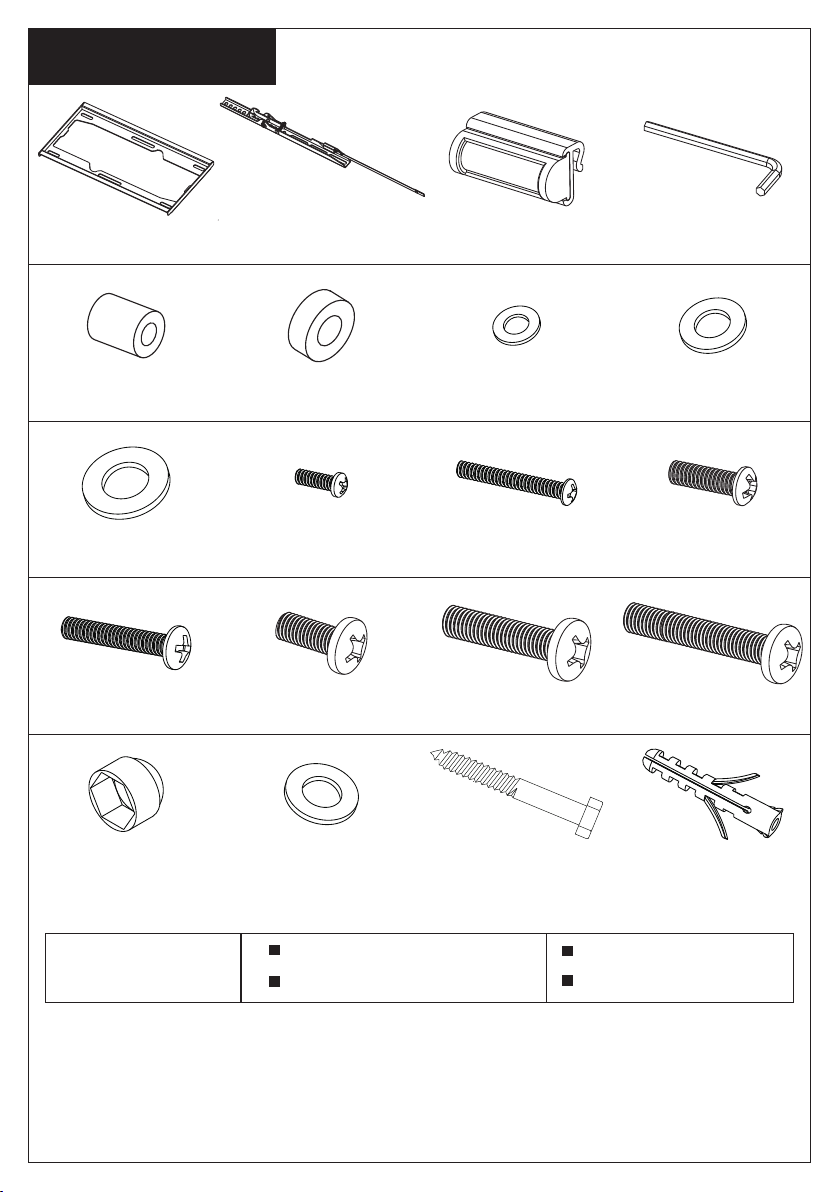

Supplied Parts List

2

(4)M4x12 Bolt-h (4)M4x30 Bolt-i (4)M6x20 Bolt-j

(2)Monitor Bracket (1)Bubble Level-a

Note: The mounting components and hardware supplied in this package are

not designed for installations to walls with steel studs or to cinder block walls.

If the hardware you need for your installation is not included, please consult

your local hardware store for proper mounting hardware for the application.

Tools Required 4mm Drill Bit

Phillips Screwdriver

10mm Masonry Bit

Carpenter's Level

(4)M6 Washer-f(8)M6/M8 Spacer-d (4)M4 Washer-e

(4)M8x20 Bolt-l (4)M8x35 Bolt-m (4)M8x50 Bolt-n

(4)Lag Bolt-q(4)Lag Bolt Washer-p (4)Concrete Anchor-r

(4)M8 Washer-g

(1)Wall Plate

(4)M4 Spacer-c

(4)M6x35 Bolt-k

(4)Bolt Cover-o

(1)Allen Key-b

65mm

4mm

Wood Studs Wall

16"(406mm)

qp

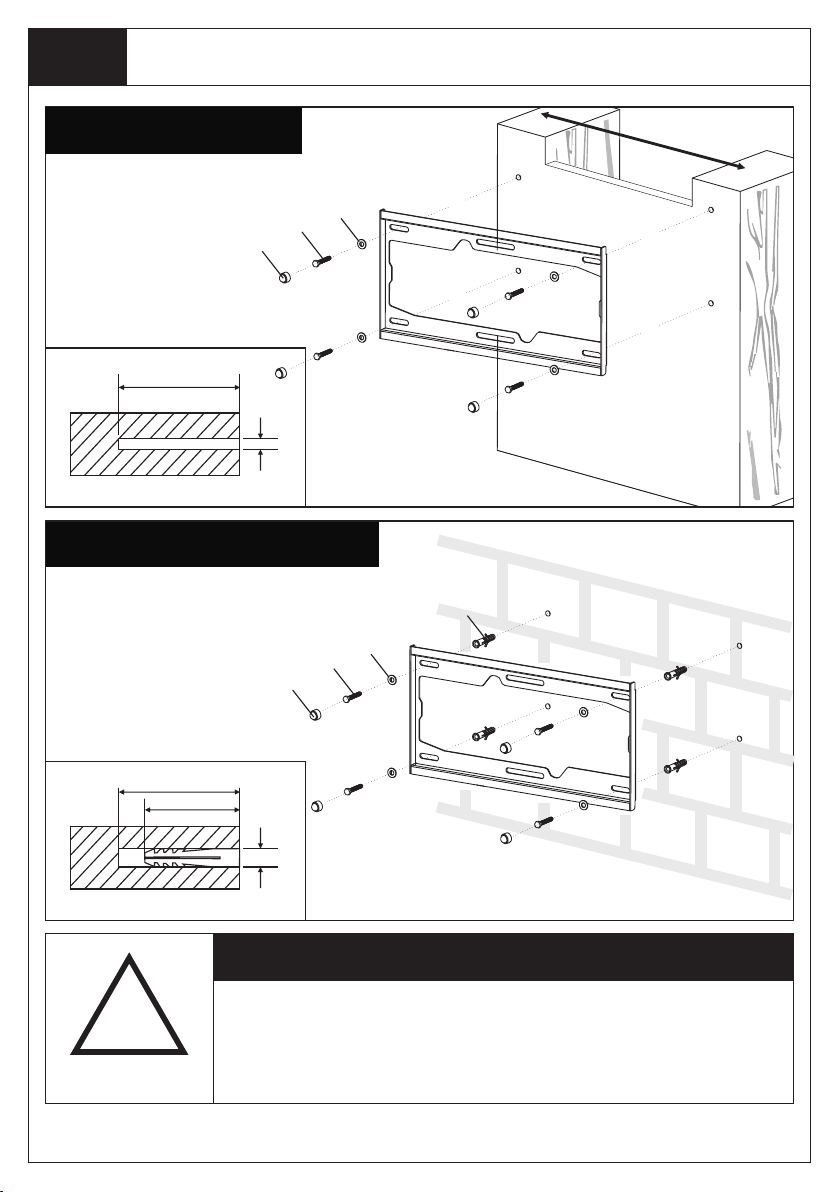

Step 1 Mounting the Wall Plate to the Wall

3

CAUTION!

WARNING

!This TV mount must be securely attached to the

vertical wall. If the mount is not properly

installed it may fall, resulting in possible injury

and/or damage.

Brick or Concrete Wall

60mm

65mm

10mm

qp

r

o

o

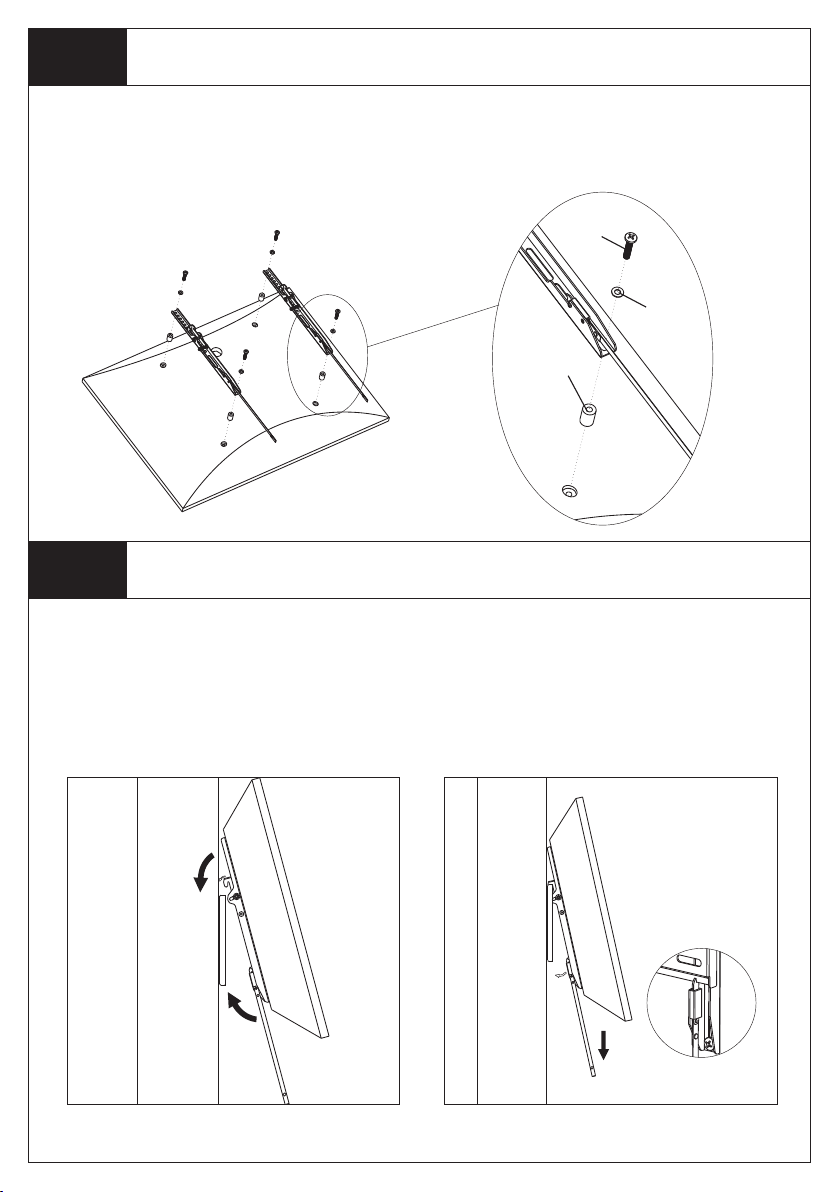

Step 2 Mounting the Monitor Brackets to a TV

First of all, Once you have

determined the correct diameter, please see the diagram as below. You will thread the

Bolt into the TV using the correct Washer(e,f,g), and using the spacer(c,d) if necessary.

Please make sure the Monitor Brackets are vertically centered and level with each

other.

make sure the diameter of the Bolt(h to n) your TV requires.

4

Step 3 0

Attaching TV to Wall Plate-Make Sure the Tilting Angle is 0

Warning: Some TVs may require two people to lift! We are not responsible for

personal injury or product damage.

First hook the Monitor Brackets over the top of the Wall Plate, then let the bottom of the

Monitor Brackets rotate to the bottom of the Wall Plate as shown in the diagram 3.1 and

3.2. Pull down straps to lock the Monitor Brackets to Wall Plate. Finally the Monitor

Brackets will sit behind the bottom tab on the Wall Plate as shown in the diagram 3.3.

3.1

3.2 3.3

h to n

e,f,g

c,d

(if necessary)

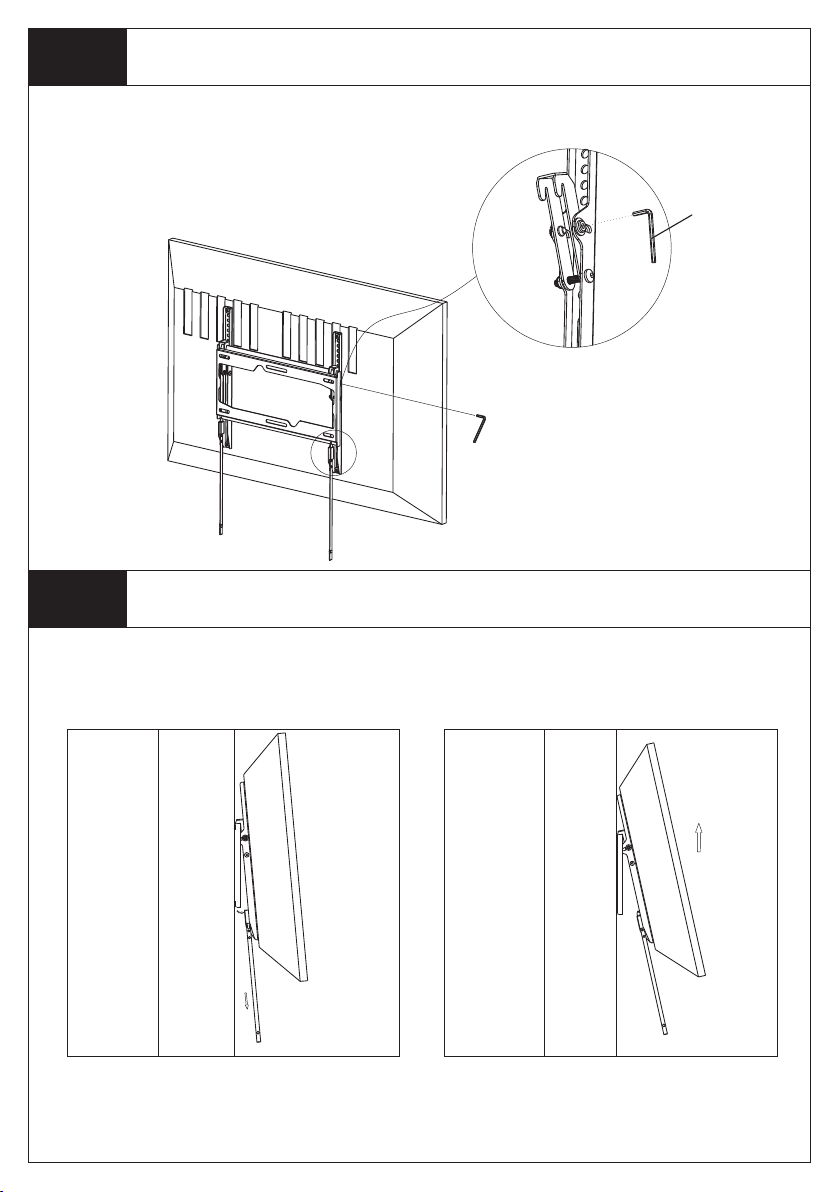

Step 4 Adjust the Tilting Angles

First loosen the bolts, then pull the TV to the desired angle, finally fasten the bolts.

Using the provided Allen Key(b).

5

Step 5 Remove the TV from the TV Mount

To take off the TV from the TV mount, you need to adjust the tilting angle to 0 degree

firstly. Then pull the straps to release the spring locking system. Hold the TV upward to

unlock the top hooks from the wall plate.

5.1

5.2

b
