Pulse Generator Version: 1.0 www.VSpeak-modell.de Page 1/4

Pulse Generator

Manual Version 1.0

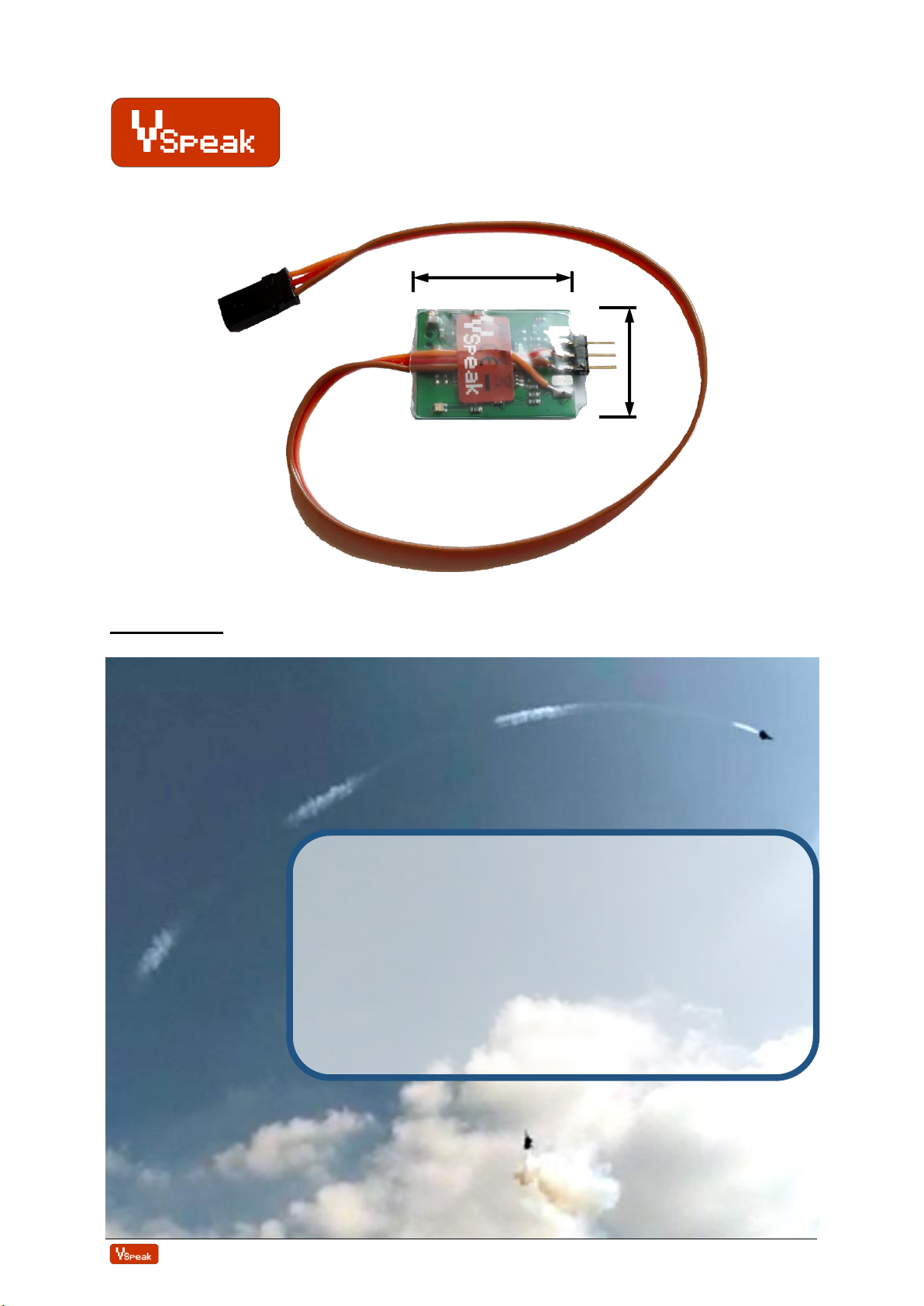

Introduction

22 mm

30 mm

As the name already suggests, the pulse generator can be used to

generate ON / OFF pulses in the model. Both the times for the

ON and OFF duration can be set, as well as the ON and OFF

positions. With a 3 step switch, from the transmitter can then

select the respective operating mode between OFF, PULSE and

ON.

One possible application would be e.g. the control of a smoke

pump, in flight would thus be "smoke clouds" of equal length and

at equal intervals possible.

Pulse Generator Version: 1.0 www.VSpeak-modell.de Page 2/4

1Connection

1.1 Input

The pulse generator is plugged with its servo plug either at any receiver power slot, or at the

PowerBox system at the slot designated P²-Bus, . . . or for programming:

on a JetiBox or –

using the JetiBox emulation of a Jeti DC / DS transmitter - with

ext. marked slot of the Jeti receiver

For the relevant servo channel, a 3-step switch can now be programmed in the transmitter with

the values -100% (OFF) 0% (PULSE) +100% (ON).

1.2 Output

In principle, all devices that are otherwise directly plugged into a servo slot of the receiver can

be connected to the output, the 3-pin post connector.

Attention: The pin marked + has the same voltage as the input, ie. When the output is not

connected, special care must be taken with regard to a short circuit.

1.3 LED Indicator

LED: green(ON) →servo output position ON

green (flashing) →servo output in PULSE operation, with the LED ON time

corresponding to the servo output ON duration

red (ON) →servo output position OFF

red (flashing) →only if the JetiBox is plugged in to program the ON / OFF times:

Display of the ON duration

The blue LED is blinking every second to signal the normal function of the

Pulse Generator.

blue LED

LED green/red

Servo output

Pulse Generator Version: 1.0 www.VSpeak-modell.de Page 3/4

2Parameterization

With a JetiBox, a JetiBox emulation of a Jeti DC / DS transmitter or with the PowerBox core,

settings can be made to the pulse generator.

The values shown in the pictures are the set values at delivery.

Example JetiBox emulation:

The parameter selection is done with the button or

Value change with the buttons: : resp.

Example PowerBox

With the PowerBox system, the same settings as with the JetiBox are possible via the

P²-Bus. In addition, you can also select the servo channel (1 ... 26), with which the Pulse

Generator is controlled, and the setting of the priority for the status telemetry value. It can

be chosen between: low / high / higher / at highest . . . where low is sufficient.

The status displays the current switch position: OFF, PULSE or ON.

ON / OFF –servo output ON position

-150 . . . +150 %

ON / OFF –servo output ON duration

0,1 . . . 5,0 s

Pulse Generator Version: 1.0 www.VSpeak-modell.de Page 4/4

3Technical data

Power supply

3,5 … max. 15V from receiver

Current consumption

~20 mA (at 7,4V)

Dimensions

30 x 22 x 4 mm

Weight

~7 g (incl. connection cable)

Connection

UNI servo plug (cable length ~ 30 cm)

4Instructions for disposal

Equipment marked with the symbol should not be disposed of within household

waste.

5EG Declaration of Conformity

Manufacturer

VSpeak-Modellbau (Volker Weigt)

Priestewitz

We hereby declare that the product

VSpeak Pulse Generator

complies with the following European directives:

2004/108/EC EMC Directive

2006/95/EC Low Voltage Directive (LVD)

2011/65/EC Restriction of Hazardous Substances (RoHS)

The presumption of conformity is taken by applying the following harmonized standards:

EN60065 Audio-, video- and similar electronic aparatus - Safety requirements

EN60332 Tests on electric and optical fibre cables under fire conditions

EN60950 Information technology equipment - Safety

EN61000-6-1 Electromagnetic compatibility (EMC)

EN61000-6-3

EN55022 Information technology equipment - Radio disturbance characteristics

Priestewitz, 2019/11/01 .................................................

Signature

Volker Weigt

Managing Director

6Contact

Volker Weigt

www.VSpeak-Modell.de

mail: [email protected]
