Vox Technologies SSC-5x86H Manuel utilisateur

SSC-5x86H Ver.C

Super 5x86H Half-sized

Single Board Computer

Manual second edition Nov.10,1996

The information in this document is subject to change without prior notice

in order to improve reliability, design and function and does not represent

a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,

incidental, or consequential damages arising out of the use or inability to

use the product or documentation, even if advised of the possibility of such

damages.

This document contains proprietary information protected by copyright. All

rights are reserved. No part of this manual may be reproduced by any

mechanical, electronic, or other means in any form without prior written

permission of the manufacturer.

Trademarks

SSC-5x86H is registered trademarks of Acquire Inc., PC/104 is

trademarked of PC/104 Consortium, IBM PC is a registered trademark of

International Business Machines Corporation. Intel is a registered

trademark of Intel Corporation. AMI is registered trademarks of American

Megatrends, Inc. Other product names mentioned herein are used for

identification purposes only and may be trademarks and/or registered

trademarks of their respective companies.

Contents

1. Introduction.................................................................3

1.1 Specifications.........................................................................................4

1.2 What You Have......................................................................................5

2. Installation...................................................................6

2.1 SSC-5x86H Ver.C Layout ......................................................................6

2.2 Jumper Description ................................................................................8

2.3 CPU setting of SSC-5x86H Ver.C ..........................................................9

2.4 Watch-Dog Timer.................................................................................10

2.5 DiskOChip Flash Disk .........................................................................11

2.6 PS/2 Mouse Setting..............................................................................11

3. Connection................................................................12

3.1 Floppy Disk Drive Connector ...............................................................12

3.2 IDE Disk Drive Connector....................................................................13

3.3 Parallel Port.........................................................................................13

3.4 Serial Ports ..........................................................................................14

3.5 Keyboard Connector.............................................................................14

3.6 External Switches and Indicators..........................................................15

3.7 External Power Connector....................................................................15

3.8 External Speaker..................................................................................16

3.9 PS/2 Mouse Port .................................................................................16

3.10 PC/104 Connection Bus .......................................................................16

4. AWARD BIOS Setup................................................18

4.1 Getting Start ........................................................................................18

4.2 Standard CMOS Setup.........................................................................20

4.3 BIOS Feature Setup..............................................................................21

4.4 Chipset Feature Setup ..........................................................................22

4.5 Power management Setup.....................................................................23

Appendix A. Watch-Dog Timer.....................................25

Introduction

Welcome to the SSC-5x86H Super 5x86 Half-sized Single

Board Computer. The SSC-5x86H board is an ISA and

PC/104 form factor board, which comes equipped with high

performance 486DX/DX2/DX4 or the latest Cyrix/AMD 5x86

CPU and advanced high performance multi-mode I/O,

designed for the system manufacturers, integrators, or VARs

that want to provide all the performance, reliability, and

quality at a reasonable price.

An advanced high performance super AT I/O chip UMC

UM8669 is used in the SSC-5x86H board. Both on-chip

UARTs are compatible with the NS16C550. The parallel port

and IDE interface are compatible with IBM PC/AT and XT

architecture's. The UM8669 incorporates sophisticated power

control circuitry(PCC). The PCC supports multiple low power

down modes.

In addition, the SSC-5x86H provides two 72-pin SIMM sockets for

its on-board DRAM. The 72-pin accepts 1MB, 2MB, 4MB, 8MB,

16MB, and 32MB SIMM. So, the total on-board memory can be

configured from 1MB to 64MB.

SSC-5x86H uses the ALI chipset, M1489 and M1487, which

are 100% ISA compatible chipset.

The new Ver.C board have built-in DiskOnChip Flash Disk

Function and ESD +/-15KV protection RS-232 ports. The new

version will only need +5V power supply. It will be more

suitable for embedded application.

1.1 Specifications :

The SSC-5x86H Super 5x86 Half-sized Single Board Computer

provides the following specification:

•CPU : 486SX/DX/DX2/ DX4 or Cyrix/AMD 5x86

•Bus : ISA bus and PC/104 bus

•DMA channels : 7

•Interrupt levels : 15

•Chipset : M1489 and M1487

•Real-time clock/calendar : DS-12887 chip and quartz oscillator,

128B CMOS memory, powered by lithium battery for over 10

years of data retention.

•RAM memory : 1MB to 64MB,EDO and standard DRAM

supported

•E-IDE hard disk drive interface : up to two PCI Enhance IDE

hard drives.

•Floppy disk drive interface : two 2.88 MB, 1.44MB, 1.2MB,

720KB, or 360KB floppy disk drives.

•Two high speed Series ports : NS16C550 compatible UARTs

•Bi-directional Parallel Port

•Watch-dog timer : can be set by 1,2,10,20,110 or 220 seconds

period. Reset or NMI was generated when CPU did not

periodically trigger the timer. Your program use hex 043 and 443

to control the watch-dog and generate a system reset.

•External power connector

•Keyboard connector

•Mouse : PS/2 Mouse Port on-board.

•Power Consumption : +5V @ 1.75A ( 5x86-133, 4MB RAM)

•Operating Temperature : 0°~ 60°C ( CPU needs Cooler)

1.2 What You Have

In addition to this User's Manual, the SSC-5x86H Ver.C

package includes the following items:

•SSC-5x86H Ver.C Super 5x86 Half-sized SBC

•Printer Cable

•FDD/HDD Cable

•6-pin Mini-Din to 5-pin Din Keyboard Adapter Cable

If any of these items is missing or damaged, contact the

dealer from whom you purchased the product. Save the

shipping materials and carton in case you want to ship or

store the product in the future.

Installation

This chapter describes how to install the SSC-5x86H. At first,

the layout of SSC-5x86H is shown, and the unpacking

information that you should be careful is described. The

jumpers and switches setting for the SSC-5x86H's

configuration, such as CPU type selection, system clock

setting, and interrupt IRQ setting for serial ports and parallel

port, are also included.

2.1 SSC-5x86H Ver.C Layout

< reference next page >

2.2 Jumper Description

You can change the SSC-5x86H's configuration by setting jumper

switches on the board. The board's jumpers are preset at the factory.

Under normal circumstances, you should not need to change the

jumper settings.

A jumper switch is closed (sometimes referred to as shorted with

the plastic cap inserted over two pins of the jumper). A jumper is

open with the plastic cap inserted over one or no pin(s) of the

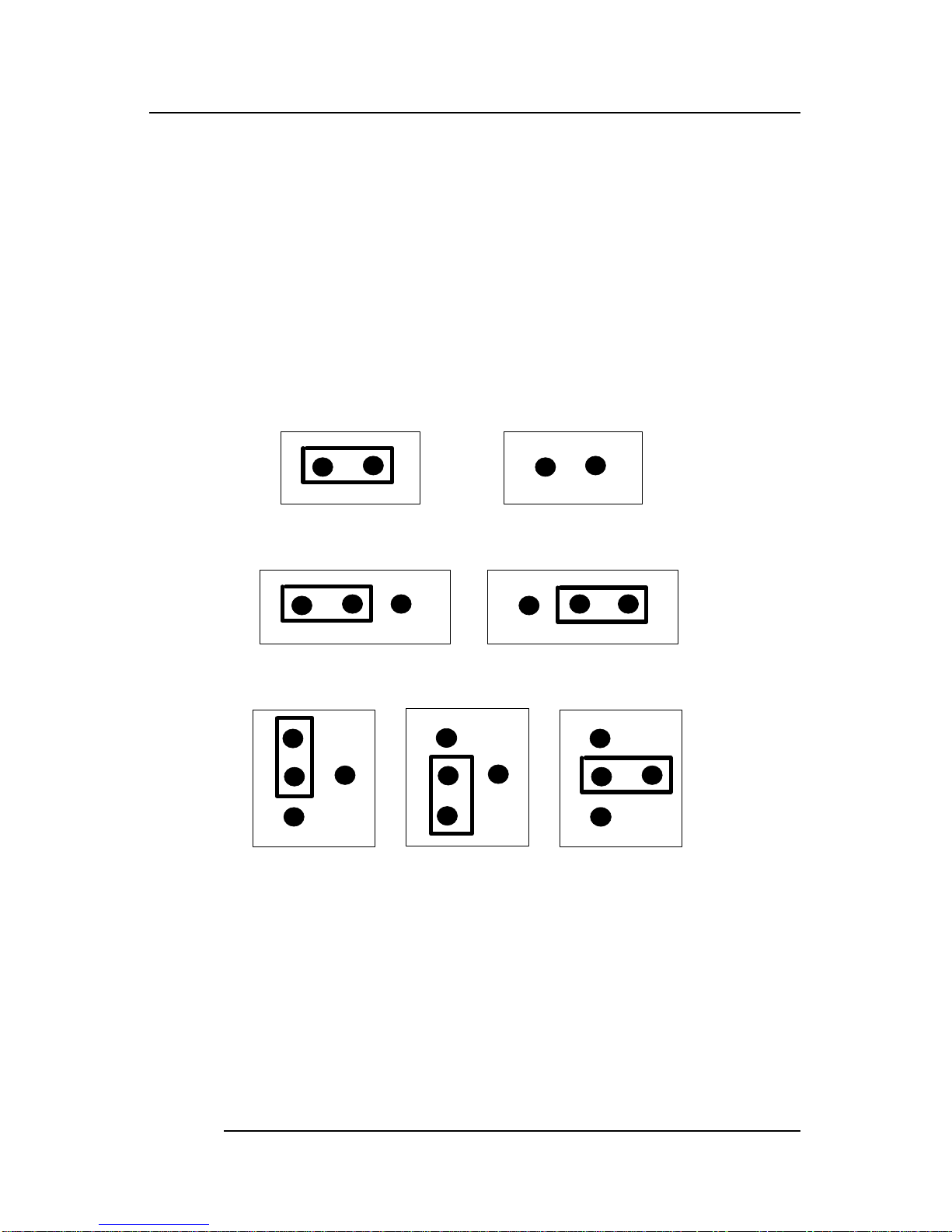

jumper. Figure 2.2 below shows different jumper settings which

will be used in this chapter.

CLOSED OPEN

1-2

12-3

1-2

2-3

2-4

Figure 2.2
