VOSS IES980RF Manuel utilisateur
USER
MANUAL
EN User Manual
Steam oven
IES980RF
CONTENTS
1. SAFETY INFORMATION............................................................................................3
2. SAFETY INSTRUCTIONS..........................................................................................4
3. INSTALLATION.......................................................................................................... 8
4. PRODUCT DESCRIPTION...................................................................................... 10
5. CONTROL PANEL................................................................................................... 10
6. BEFORE FIRST USE............................................................................................... 12
7. DAILY USE...............................................................................................................13
8. CLOCK FUNCTIONS............................................................................................... 20
9. AUTOMATIC PROGRAMMES................................................................................. 21
10. USING THE ACCESSORIES................................................................................. 21
11. ADDITIONAL FUNCTIONS.................................................................................... 25
12. HINTS AND TIPS................................................................................................... 27
13. CARE AND CLEANING..........................................................................................31
14. TROUBLESHOOTING............................................................................................36
15. ENERGY EFFICIENCY.......................................................................................... 37
16. ENVIRONMENTAL CONCERNS........................................................................... 39
DEAR CUSTOMER
Thank you for choosing this Voss-Electrolux product. We have created it to give you
impeccable performance for many years, with innovative technologies that help make
life simpler – features you might not find on ordinary appliances. Please spend a few
minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.voss.dk
Register your product for better service:
www.voss.dk
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.voss.dk2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children of less than 8 years of age and persons with
very extensive and complex disabilities shall be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the
built-in structure.
ENGLISH 3
•Disconnect the appliance from the power supply
before carrying out any maintenance.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
•Use only the food sensor (core temperature sensor)
recommended for this appliance.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•Excessive spillage must be removed before the
pyrolytic cleaning. Remove all parts from the oven.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• Keep the minimum distance from
other appliances and units.
• Before mounting the appliance, check
if the oven door opens without
restraint.
www.voss.dk4
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.

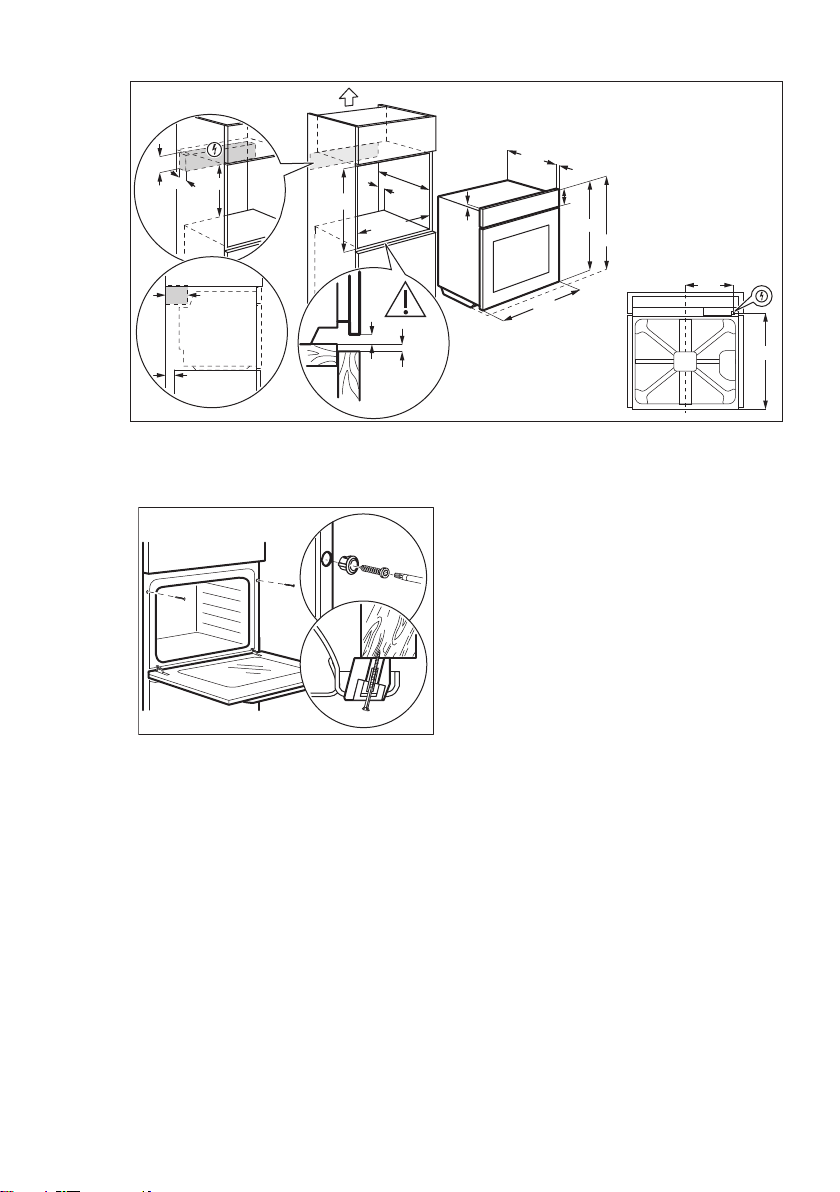

Cabinet minimum
height (Cabinet under
the worktop minimum
height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of
the appliance
594 mm
Height of the back of
the appliance
576 mm
Width of the front of
the appliance
595 mm
Width of the back of
the appliance
559 mm
Depth of the appli‐
ance
569 mm
Built in depth of the
appliance
548 mm
Depth with open door 1022 mm
Ventilation opening
minimum size. Open‐
ing placed on the bot‐
tom rear side
560x20 mm
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1500 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door before
you connect the mains plug to the
mains socket.
• This appliance is supplied only with a
main cable.
Cable types applicable for installation
or replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-
F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
ENGLISH 5
Total power (W) Section of the ca‐
ble (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household
(indoors) use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance operates. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
www.voss.dk6
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on its packaging.
2.5 Pyrolytic cleaning
WARNING!
Risk of Injury / Fires /
Chemical Emissions
(Fumes) in Pyrolytic Mode.
• Before carrying out a Pyrolitic self-
cleaning function or the First Use
please remove from the oven cavity:
– any excess food residues, oil or
grease spills / deposits.
– any removable objects (including
shelves, side rails etc., provided
with the product) particularly any
non-stick pots, pans, trays,
utensils etc.
• Read carefully all the instructions for
Pyrolytic cleaning.
• Keep children away from the
appliance while the Pyrolytic cleaning
operates.
The appliance becomes very hot and
hot air is released from the front
cooling vents.
• Pyrolytic cleaning is a high
temperature operation that can
release fumes from cooking residues
and construction materials, as such
consumers are strongly advised to:
– provide good ventilation during
and after each Pyrolytic cleaning.
– provide good ventilation during
and after the first use at maximum
temperature operation.
• Unlike all humans, some birds and
reptiles can be extremely sensitive to
potential fumes emitted during the
cleaning process of all Pyrolytic
Ovens.
– Remove any pets (especially
birds) from the vicinity of the
appliance location during and
after the Pyrolytic cleaning and
first use maximum temperature
operation to a well ventilated
area.
• Small pets can also be highly
sensitive to the localized temperature
changes in the vicinity of all Pyrolytic
Ovens when the Pyrolytic self
cleaning program is in operation.
• Non-stick surfaces on pots, pans,
trays, utensils etc., can be damaged
by the high temperature Pyrolytic
cleaning operation of all Pyrolytic
Ovens and can be also a source for
low level harmful fumes.
• Fumes released from all Pyrolytic
Ovens / Cooking Residues as
described are not harmful to humans,
including children, or persons with
medical conditions.
2.6 Steam Cooking
WARNING!
Risk of burns and damage to
the appliance.
• Released Steam can cause burns:
– Do not open the appliance door
during the steam cooking
operation.
– Open the appliance door with
care after the steam cooking
operation.
2.7 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
ENGLISH 7
2.8 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.9 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Building in
18
594
589
114
21548
595+-1
min. 550
20
600
min. 560
3
5
60
20
80
520
60
198
523
(*mm)
www.voss.dk8
min. 550
20
595+-1
18
590
min. 560
594
589
114
21548
3
5
70
60 520
60
20
198
523
(*mm)
3.2 Securing the oven to the
cabinet
ENGLISH 9
4. PRODUCT DESCRIPTION
4.1 General overview
6
12
10
9
5
4
11
8
5
4
1
2
3
3
2 3
7
1
1Control panel
2Electronic programmer
3Water drawer
4Socket for the food sensor
5Heating element
6Lamp
7Fan
8Shelf support, removable
9Draining pipe
10 Water outlet valve
11 Shelf positions
12 Steam inlet
4.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
•Food sensor
To measure how far the food is
cooked.
•Telescopic runners
With the telescopic runners you can
put in and remove the shelves more
easily.
5. CONTROL PANEL
5.1 Electronic programmer
21 3 4 5 8 9 10 1176
Use the sensor fields to operate the appliance.
Sensor
field
Function Comment
1- Display Shows the current settings of the oven.
www.voss.dk10
Table des matières
Autres manuels VOSS Four
