Volt VSPL-9001-25-BBZ Manuel utilisateur

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

V O LT ®Solar Area Light Kit

ITEM: VSPL-9001-25-BBZ

INSTALLATION INSTRUCTIONS

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

V O LT ®Solar Area Light Kit - VSPL-9001- 25-BBZ

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

PACKAGE CONTENTS

A. (1) Area Light

813.978.3700 • [email protected] • www.voltlighting.com

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes

and instructions may result in serious injury, property damage and void

the warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PER-

SONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Lamp gets HOT quickly!

2. Do not touch the hot lens, guard or enclosure.

3. Keep lamp away from materials that may burn.

4. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

5. Do not operate the luminaire tting with a missing or damaged

shield.

SAVE THESE INSTRUCTIONS

Parts Required (sold separately)

A. (1) Solar Panel with Bracket

PRODUCT DIMENSIONS

813.978.3700 • [email protected] • www.voltlighting.com

23.25”

7.5”

Install Stake

Determine the desired location

for mounting the stake. Ham-

mer the stake into the ground

until ange of stake is ush to

grade. To avoid damage to the

stake, place a board on top of

the stake while hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

Stake

Ground

Soil

V O LT ®Solar Area Light Kit - VSPL-9001- 25-BBZ

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

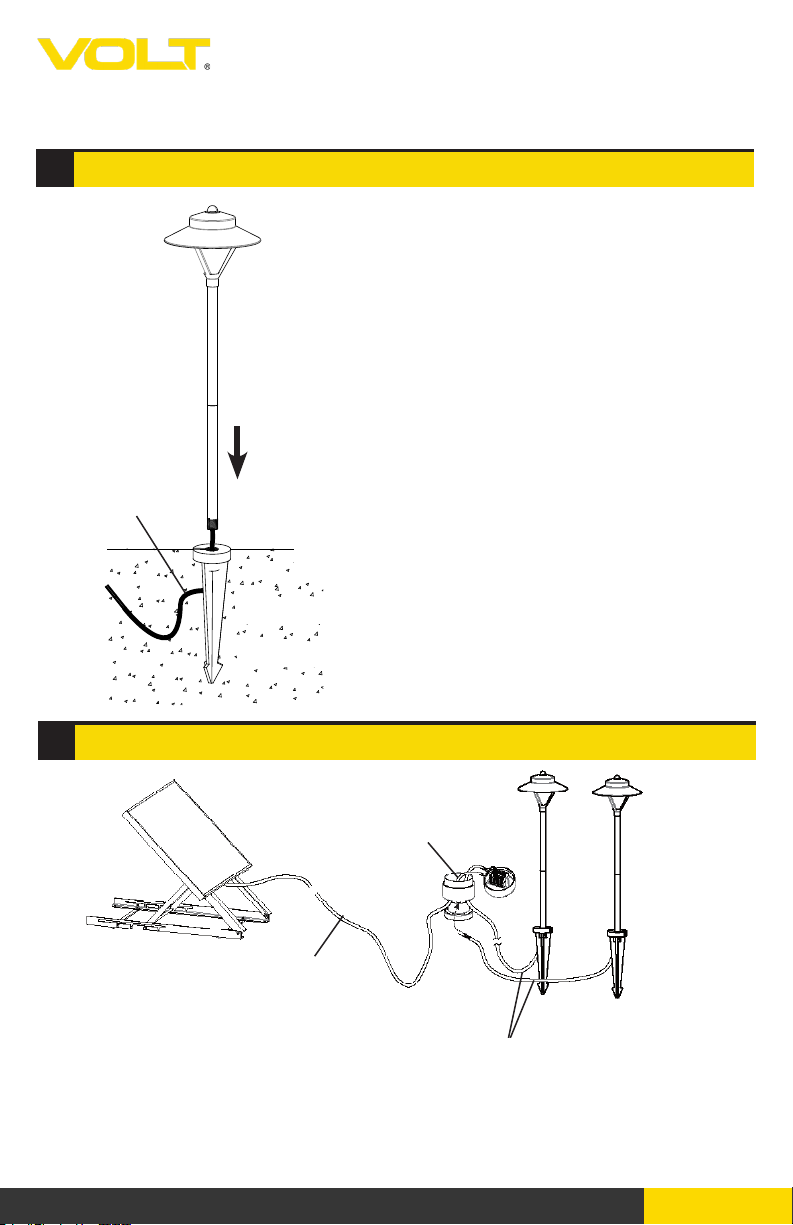

Install Fixture to Stake

Pass the xture wire

through the center hole of

the stake. Thread the x-

ture onto the stake. Hand

tighten until snug.

Fixture

Fixture Wire

Ground

Stake

Soil

Wire Connection: Option A

Solar Panel

Connection Hub

Area Light

Area Light Supply

Wire

Solar Panel Supply

Wire

Option A: Connect with Connection Hub

813.978.3700 • [email protected] • www.voltlighting.com

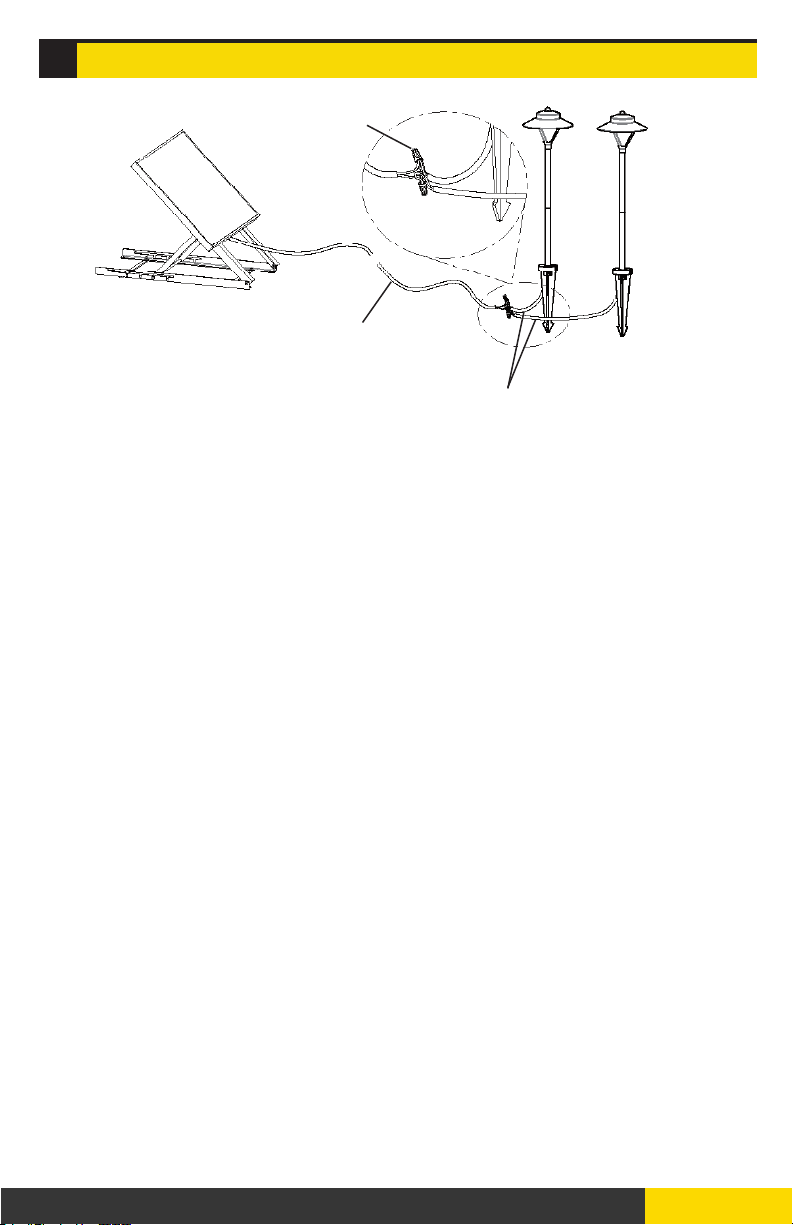

Wire Connection: Option B

You can choose from Option A or Option B to complete the

installation. Option A is the recommended method to install

the solar lights.

Optional A: Strip the supply wire leads from the solar panel

and the supply wire leads from the area lights. Insert both the

lead wires into the connection hub. There is a maximum of 7

xtures that can be connected to the hub.

Optional B: Strip the supply wire leads from the solar panel

and the supply wire leads from the area light. Using two wire

connectors (sold separately), connect the leads from the

solar panel to the area light.

Wire Connector

Solar Panel

Solar Panel Supply Wire

Area Light Supply Wire

Area Light

Connect with Wire Connectors

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
