INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

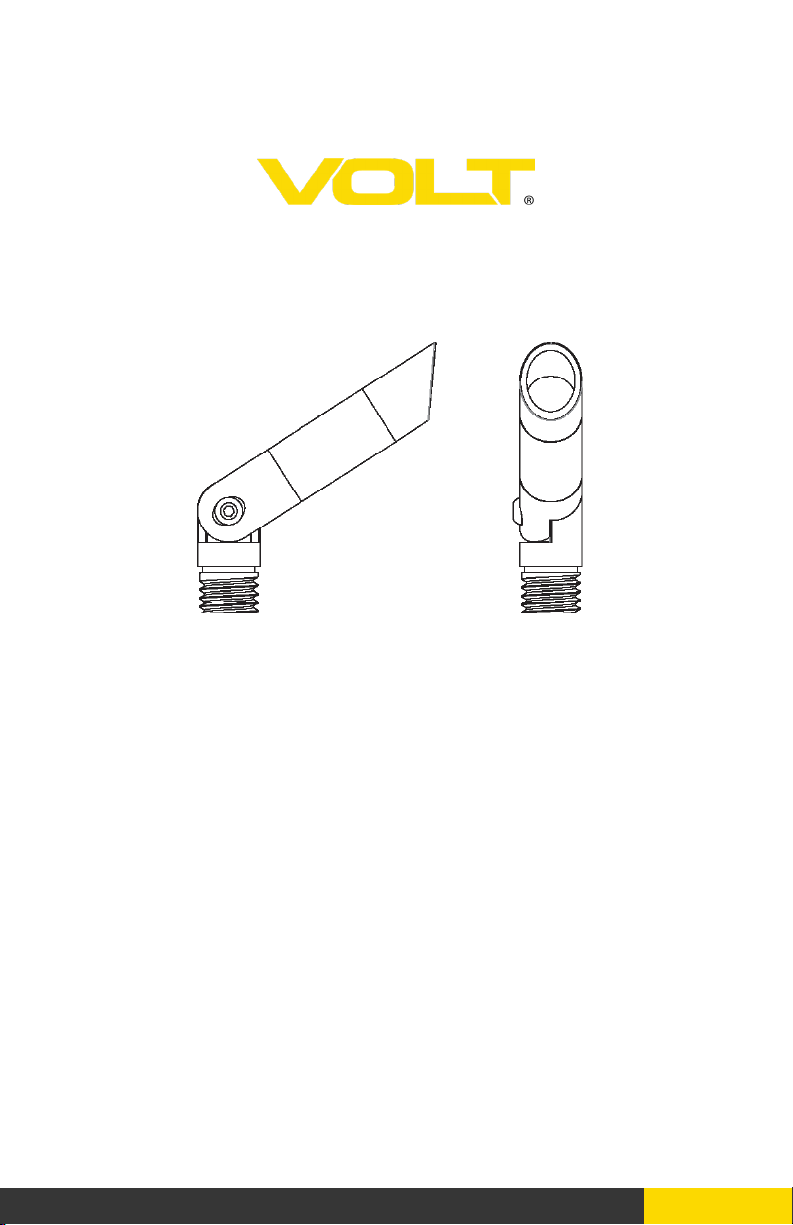

VOLT®- Nano Integrated LED Brass Spotlight

ITEM: VAL-2049-35-4-BBZ

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT® Nano Integrated LED Brass Spotlight -VAL2049-35-4-BBZ

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within

6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

LIGHTED LAMP IS HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before reducing lamp.

2. Lamp gets HOT quickly!

3. Do not touch the hot lens, guard or cowl.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time.

6. Use a soft cloth.

7. Oil from skin may damage lamp.

8. Do not operate the xture with a damaged or missing lens or shield.

813.978.3700 • [email protected] • www.voltlighting.com

PACKAGE CONTENTS

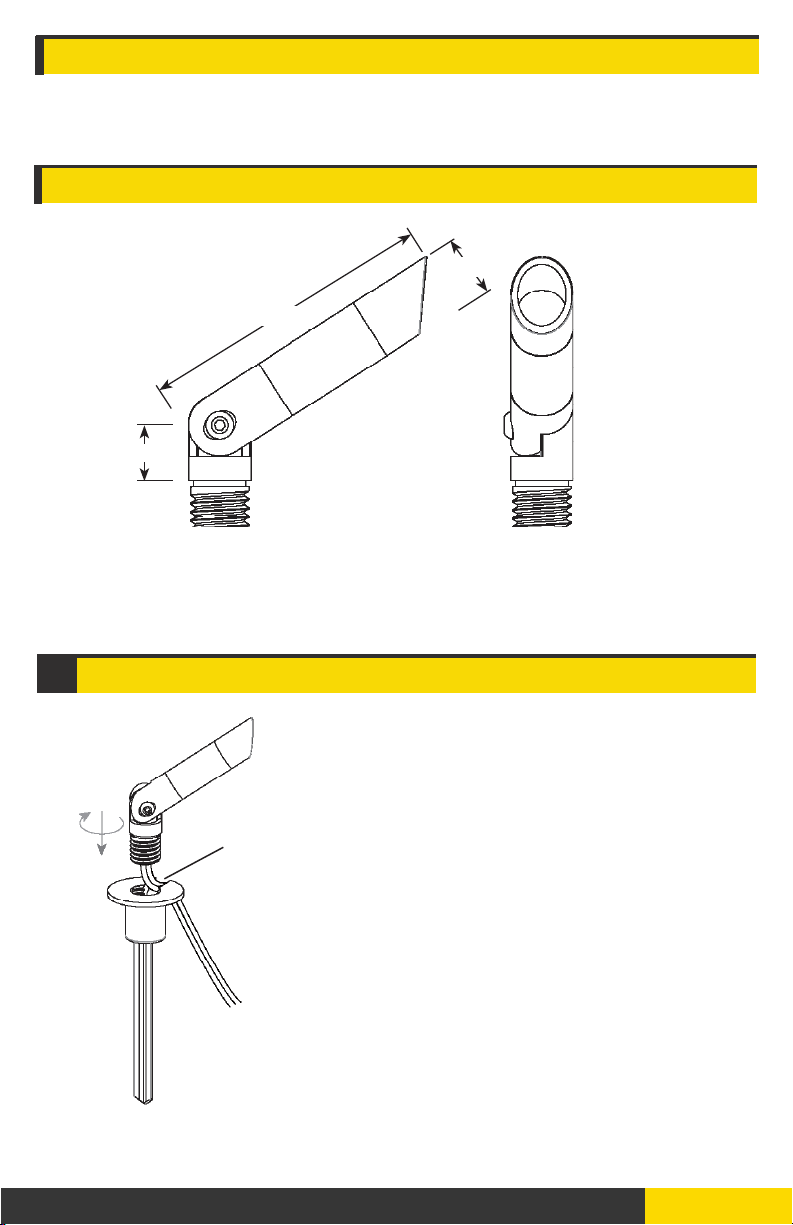

PRODUCT DIMENSIONS

INSTALL FIXTURE BODY TO STAKE

813.978.3700 • [email protected] • www.voltlighting.com

A. (1) Fixture Body

B. (1) Allen Wrench

C. (1) Stake

2.39”

0.5”

0.45”

Pass the supply wire of the xture

body through the wireway slot on

the stake. Thread the xture body

onto the stake.

Fixture Body

Wireway Slot

Supply Wires

Stake

INSTALL STAKE INTO SOIL

Wire Connections

Pigtail

Main Supply Cable

Wire Connectors

813.978.3700 • [email protected] • www.voltlighting.com

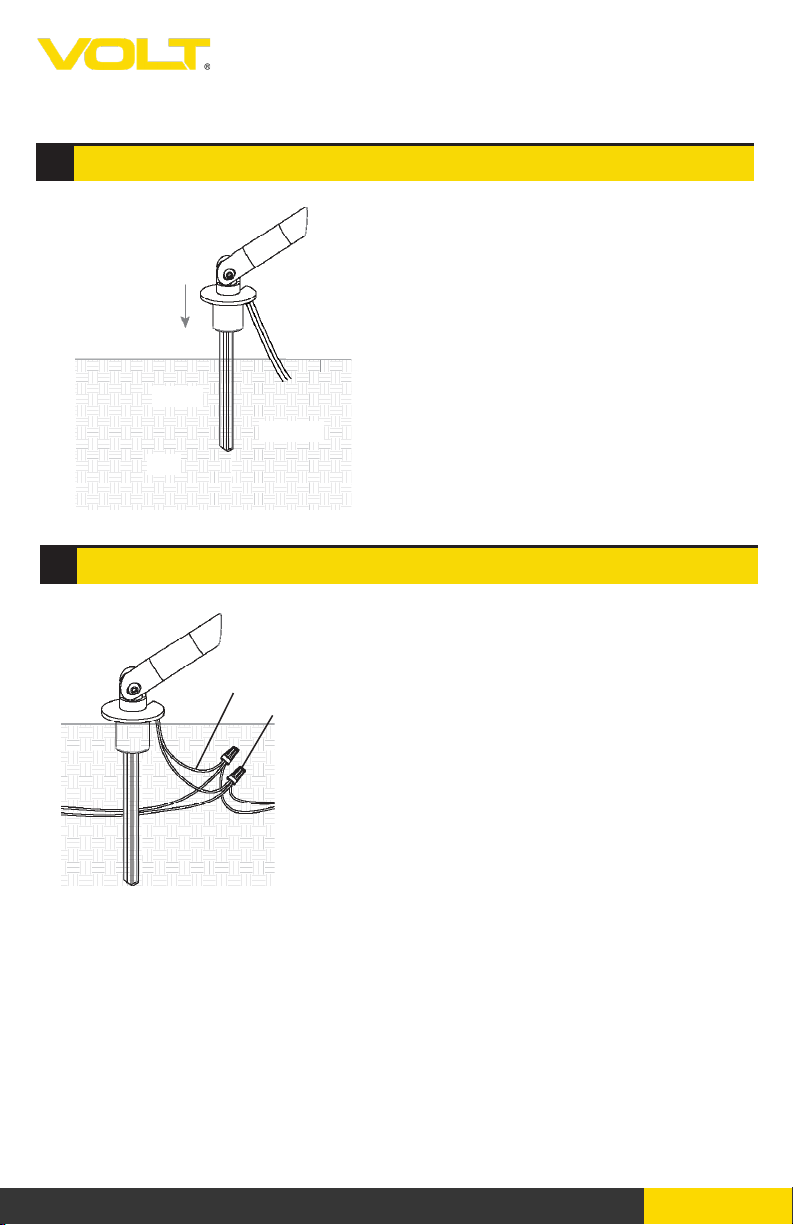

Insert the stake into the soil until

ange of stake is ush to the

ground.

Ground

Soil

Fixture Body

Supply Wires

Stake

Strip both the leads from the

luminaire pigtail. Using two UL

listed wire connectors (sold

separately), connect the leads

from the luminaire to the main

supply cable leads.

INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS

VOLT® Nano Integrated LED Brass Spotlight -VAL2049-35-4-BBZ

Adjust Directions

Fixture Body

Screw

813.978.3700 • [email protected] • www.voltlighting.com

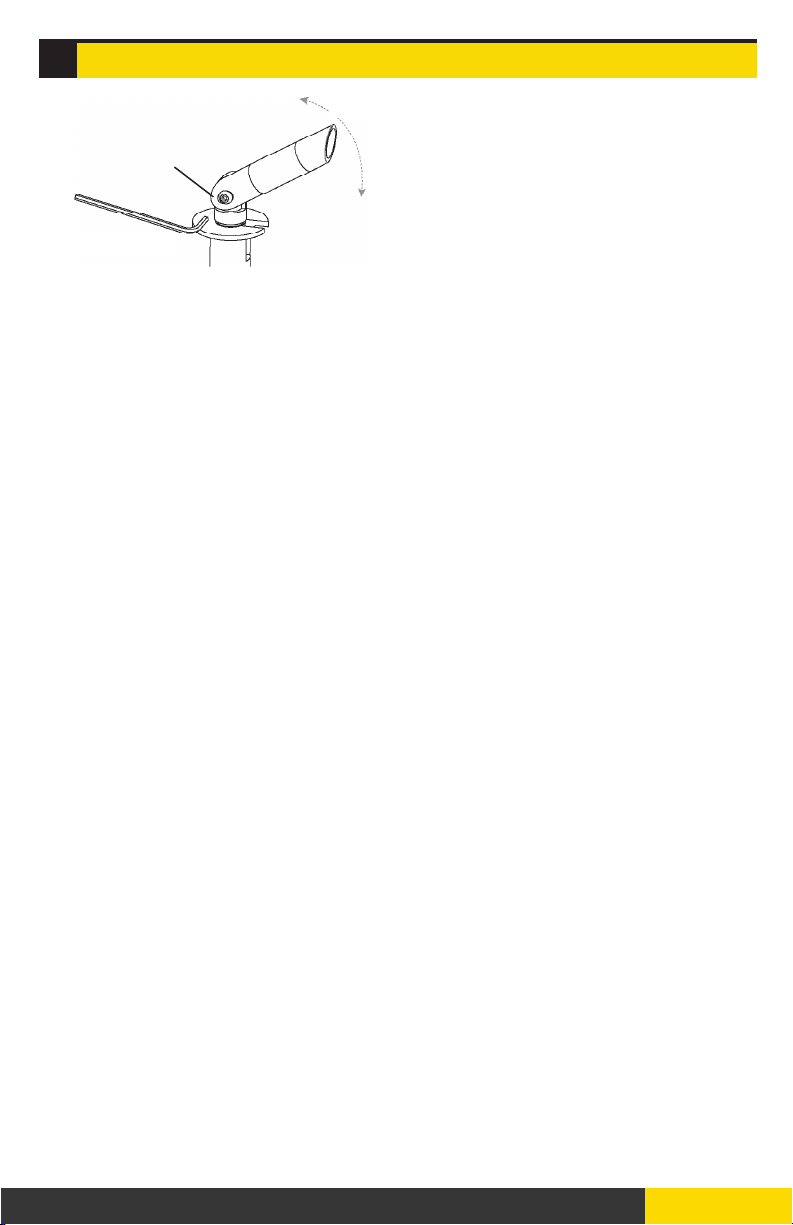

By using the Allen wrench,

loosen the screw at the joint

and adjust the luminaire to the

desired direction. Once the

desired direction is achieved,

tighten the screw.

ROTATE

Allen Wrench

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
