- 1 -

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Important Safety Instructions

- 2 -

VOLT®Solar Integrated LED Path Light

VSPL-1045-BBZ and VSPL-1045-PBK

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

Please note that these solar xtures are equipped with built-in photocells, so

they will not turn on until it is dark enough. These xtures will also require

plenty of sunlight to function properly. It’s best to have the xture in an

area where the sun will get to it at all times throughout the day and where

no ambient lighting will affect the photocell at night. If your xture is not

functioning at night, be sure that the on/off button has been engaged. See

step one for details.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Lamp gets HOT quickly!

2. Do not touch the hot lens, guard or enclosure.

3. Keep lamp away from materials that may burn.

4. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

5. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3700

- 3 -

Product Dimensions

Package Contents

Parts Required

A. (1) Fixture Body

A. Riser B. Mounting Accessory

8.7”

7.5”

4”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

Install Riser

Test Solar Light

VOLT®Solar Integrated LED Path Light

VSPL-1045-BBZ and VSPL-1045-PBK

Slide the ON/OFF switch of the xture to the “ON” position.

Cover solar panels completely by using black materials. The xture will

light up when the solar panel is covered and turn back off when it is

uncovered.

Now you can proceed to next steps of installations knowing the xture is

in ON mode.

Black Material

On/Off Switch

Solar Panel

Thread the riser onto the xture

and hand tighten until snug.

Fixture

Riser

[email protected] • 813.978.3700

- 5 -

Install Riser to Stake

Install Stake

Determine the desired location

for mounting the stake mount.

Hammer the stake into the

ground until ange of stake

is ush to grade. To avoid

damage to the stake, place a

board on top of the stake while

hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

Ground

Soil

Stake

Riser

Thread the riser on to the stake

and hand tighten until snug.

Ground

Soil

Stake

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

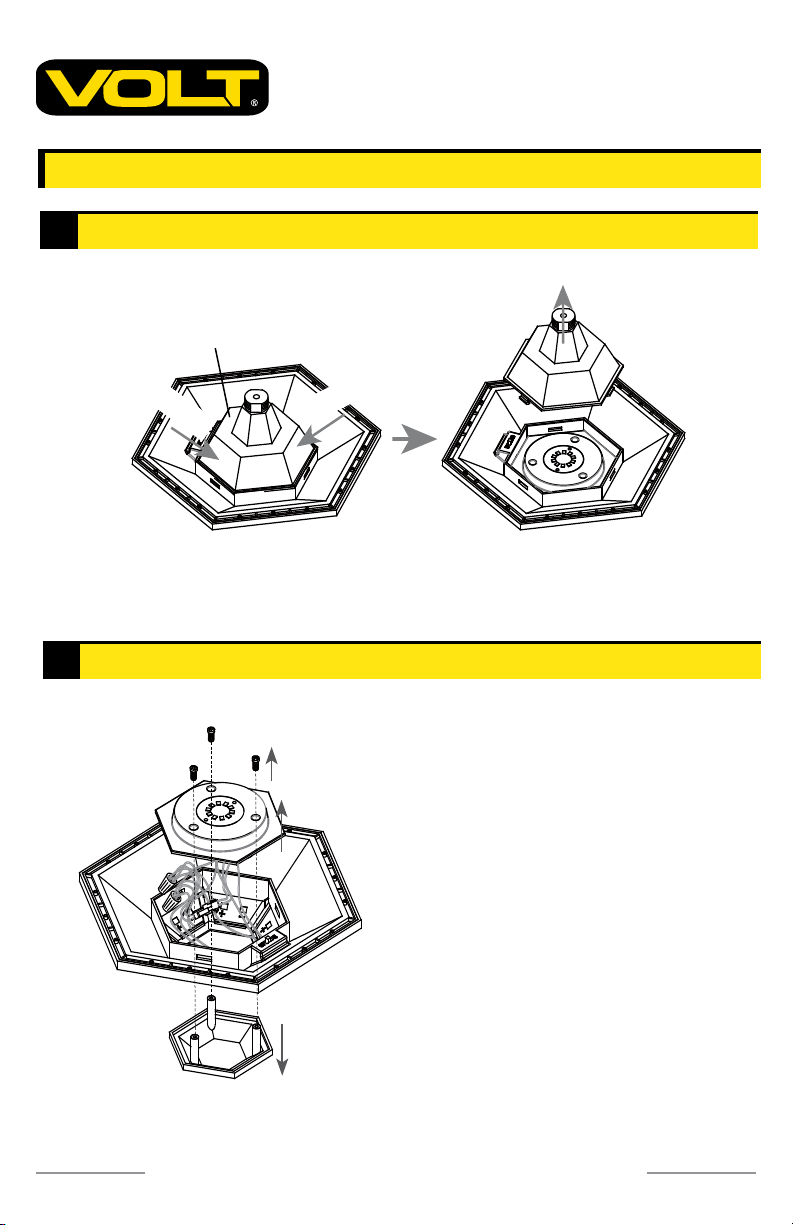

Remove Luminaire

Remove Shield

How to Replace Battery

VOLT®Solar Integrated LED Path Light

VSPL-1045-BBZ and VSPL-1045-PBK

Shield

Press

Press the sides of the shield to remove it from the xture body.

Using a screwdriver, remove the

3 screws. Then take the light

source out of the hat.

Screw

Cap

[email protected] • 813.978.3700

- 7 -

Remove Circuit Board

Replace Battery

Remove the battery cover

from the luminaire by using a

screwdriver and removing the

screws.

Screw

Battery Cover

Luminaire

Screw

Press Battery Holder

Luminaire

Quick Connector

Disconnect the quick connector by pressing the tabs on the side. Remove

the old battery by removing the two screws. Replace the battery and

secure it with the previously removed screws. Then connect the tabs of

the quick connector back together.

Reinstall the solar panel to the xture body and secure with previously

removed screws.

- 8 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VSPL-1045-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
