Volt Guardsman VPL-1011 Manuel utilisateur

VOLT®Low Voltage Landscape Lighting

VOLT® Guardsman Post Top Light

VPL-1011

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®Guardsman Post Top Light

VPL-1011

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

Important: Please Read Before Installation

IMPORTANT SAFETY INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that are suitable

for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact

www.voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

Package Contents

Product Dimensions

A. (1) Fixture Body

B. (1) Stake

C. (4) Self-tapping Screws

[email protected] • 813.978.3700

6”

7”

6”

This xture can be mounted to a piece of wood (4X4 post recommended) or a

stake. Please refer to the respective installation instruction steps as below.

- 3 -

Parts Required

A. (1) Extenion Pole

B. (1) Wooden Post

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Guardsman Post Top Light

VPL-1011

Install Support Extension Pole to Fixture

Thread the extension pole onto the

bottom of the xture body. Hand tighten

until snug.

Fixture

Body

Extension Pole

Install Stake

Board

Stake

Soil

Ground

- 4 -

OPTION A: MOUNT TO STAKE

Determine the desired location for mounting

the luminaire. Hammer the stake into the

ground until ange of stake is ush to grade.

To avoid damage to the stake, place a board on

top of the stake while hammering.

NOTE: If the ground is hard and the stake

is dicult to install, make a crosscut in the

ground using a at shovel.

[email protected] • 813.978.3700

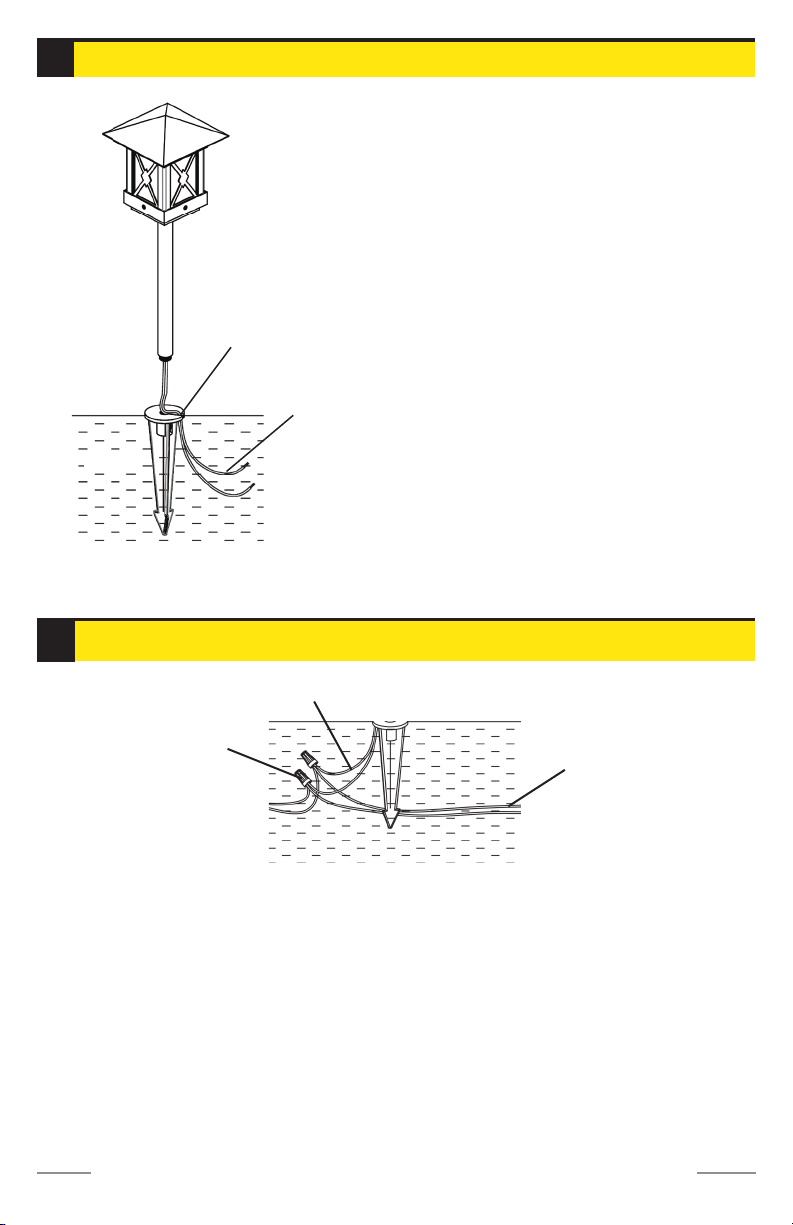

Install Fixture Body to Stake

Fixture Body

Stake

Pigtail

Wireway Slot

Extension Pole

- 5 -

Wire Connection

Pigtail

Main Supply Cable

Wire Connectors

Clear away an area in the ground at

the wireway slot on top of the stake.

Lay the luminaire pigtail into the

wireway slot and screw the stem onto

the stake. If the assembly does not

look straight, adjust by pushing or

pulling on the stake only. Use a bubble

level against the side of extension pole

to make sure it is perpendicular to the

ground. Tighten until snug to secure

Strip both leads from the luminaire pigtail. Using two wire connectors

(sold separately), connect the leads from the luminaire to the main low

voltage supply cable leads.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Guardsman Post Top Light

VPL-1011

- 6 -

Remove Cage from Base

Install Base to Wood

By using a screwdriver, unscrew the

screws on the side of the base and

remove the cage from the base.

Attach the base onto the desired

wooden surface and secure with the

self-tapping screws. Hand tighten until

snug with a screwdriver.

Screw

Self-tapping Screw

(not included)

Remove

Wooden Post

Cage

Base

OPTION B: MOUNT TO A PIECE OF WOOD

[email protected] • 813.978.3700

- 7 -

Screw

Cage

Base

Install Cage to Base

Attach the cage back onto the base

and secure with the screws previously

removed. Hand tighten until snug with

a screwdriver.

Wire Connection

Strip both leads from the luminaire pigtail. Using two wire connectors

(sold separately), connect the leads from the luminaire to the main

supply cable leads.

Pigtail

Main Supply Cable

Wire Connectors

- 8 -

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

IS-VPL-1011-ver2.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
