IP Surveillance

Installation Guide

IP9165-LPC-A

License Plate Capturing Solution

(Street)

Rev. 1.0

Ordering part no.:

IP9165-LPC-A (Street): 199004500G

Document part no.: 625048300G

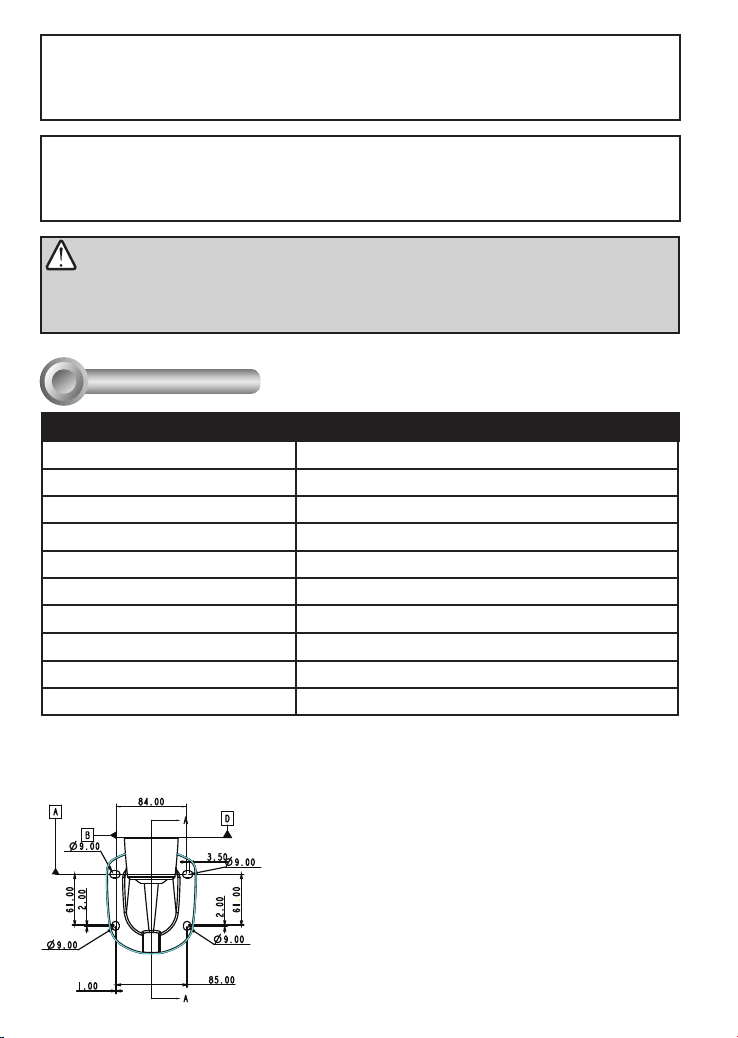

Specications

Model Number LPC enclosure

Power Input 24V AC

Max. Output power budget 48W (Street);

Power Consumption Window heater: 10W; Blower: 2W; Camera: 6 ~ 8W

Environmental Operation Temp. -20°C ~ +50°C (-4°F ~ +149°F)

Protection Level IP68, IK10

Mounting Bracket Fully-cable Management

Construction Die-cast Aluminum Alloy

Coating White epoxy powder coating

Dimensions 502.8 (L) x 170 (W) x 400 (H) mm

Net Weight 6,482g (9.24 lb)

CAUTION:

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

UNPACKING:

Unpack carefully. Electronic components can be damaged if improperly handled or

dropped. If an item appears damaged in shipment, place it properly in its carton and

notify the shipper.

IMPORTANT!:

1. Read and follow Instructions: All operating and user instructions should be read and

followed before the unit is to be operated.

2. Electrical Connections: Only a qualied electrician is allowed to make electrical

connections.

AM-21E

Below are the mounting hole dimensions for the mounting brackets. Chances are you may

need to plan for the locations of the brackets.

English

Mounting Conguration & Dimensions

Swivel Positions and Directions

226 mm

318 mm

108 mm

105 mm

502.8 mm

135.5 mm

158.5 mm

170 mm

400 mm

77.4 mm

USABLE

AREA

255 mm

USABLE AREA

415 mm

206.9 mm

170 mm

400 mm

135 mm

88.05 mm

87.01 mm

AE-23A

AI-109

AE-21E

Installation Suggestions

If you plan to install this camera enclosure into a tropical, sea coastal, or an environment

where salt water or corrosive industrial waste water/moist are present, please seal each

stainless steel screws and ttings with a silicon grease compounds. This will help prevent

electrolysis to occur and extend the life span of the camera and housing.

IMPORTANT:

1. Disconnect devices: A readily accessible disconnect device in the building installation wiring

should be incorporated.

2. Electrical Connection: Only a qualied electrician is allowed to make electrical connections.

Component Description

III

• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared

protection glasses, when working with the product. Always use camera live view to oberve IR

lighting effects.

WARNING:

Camera Mounting Platform

M16 1/2" Waterproof cable glands

AC/DC or PoE Power

distribution board

Ventilation fan Window frame

heater coil

VAIR module

Ground

English

Installation

1. Install the wall-mount bracket to a preferred location at your installation site. Drill

mounting holes and a cable routing hole (if preferred) on a wall. Install the bracket.

Prepare and route the wiring, Ethernet and 24V power source.

Note that the AC 110V-to-24V power adapter should have a capcity of at least 4A.

2. If you need to install an IR illuminator, remove the metal cover from the bottom of the

housing using a T15 anti-tamper screwdriver.

4. Prepare power wires, a ground wire, and a CAT5e Ethernet cable. Pass them through

the M16 waterproof connectors under the housing.

Ethernet cable Ø4 ~ 6.5mm

Power wires & DI/DO wires,

a combo cable from IR illuminator

(if applied)

3. Orient and secure the IR illuminator to the housing using the 4 mounting holes at the

bottom.

English

5. When done, tighten up and install the waterproof connectors.

6. Assemble the camera components, e.g., the CS ring and lens module. Secure the

mounting plate to the bottom of the camera (the label side) using the included screw.

There is a plastic mount pad in the package. You do not need the mounting pad

using the VIVOTEK camera.

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

You may need to remove the RJ45 connector, and use a crimping tool to connect the

Ethernet wires to an RJ45 connector inside the enclosure. Use an Ethernet cable of the

width of 4 ~ 6.5mm.

7. Adjust the camera's position so that the lens module can ush align with the tempered

glass. Secure the camera using the screws and washers to the bottom of the housing.

8. Connect 24V power source to the power input terminal. Connect power wires from the

DC 12V output to the camera. Below is the distribution board drawing power from 24V AC/

DC.

Lens flush

w/ edge of

enclosure

Heater

Blower

IR angle selector

I/O terminal block

Camera heater

24V AC/DC IN 12V DC OUT

24V AC/DC OUT

Connectors to the front IR

Power LED

English

You should prepare a power adaptor of the sufcient capacity for supplying 24V input.

Below are the requirements:

Total consumption Power adaptor

LPC Street 48W 4A

10. Also pass the combo cable of the IR illuminator through a waterproof connector.

11. Connect the day/night signal lines from the housing to the DI/DO connectors on the

camera's terminal block.

12345678910

9. Connect the Ethernet cable to the camera's RJ45 socket.

AWG26

AC24V

AWG20

DO2

DI2

DI-

RS485-

RS485+

DO1

DI1

DO+

DC12V

Tank ctrl

Wiper ctrl

GND

IR LED

IR ctrl

5V VCC

Camera Terminal Block

Enclosure Terminal Block

DI1+

DO2-

DI2+

DI-

RS485-

RS485+

AC/DC+ PW

AC/DC- PW

DO1-

DO+ (5V)

Below are the parameters of the IR illuminator. Use the onboard jumpers to congure the

beam angle for a different effective illumination range.

VAIR 48W

no. of LEDs 18P/Dual

Beam angle 10°20°25°30°

Distance (meter) 350m 280m 210m 150m

Conguring IR illuminator

The following enclosures comes with adjustable IR

lights: AE-23A

LL LH HL HH
