Vivo STAND-V012F Manuel utilisateur

Dual Monitor Extra Tall Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v012f

SKU: STAND-V012F

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

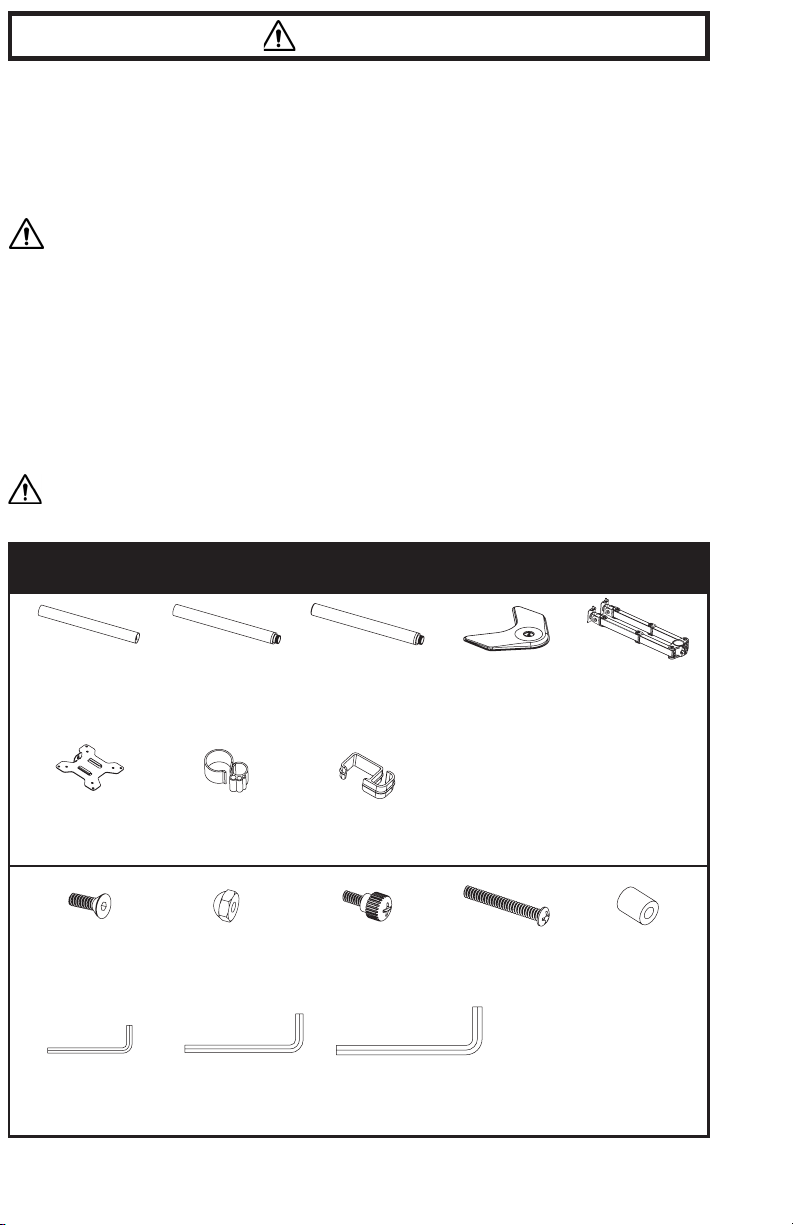

PACKAGE CONTENTS

WARNING!

A (x1)

Bottom Pole

E(x1)

Arm

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

F(x2)

VESA Plate

S-A (x3)

M5x14mm Screw

S-B (x2)

Security Nut

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

G (x3)

Pole Cable Clip

H (x4)

Arm Cable Clip

T-A (x1)

3mm Allen Wrench

M-A (x8)

M4x12mm

Thumbscrew

M-B (x8)

M4x30mm Screw

M-C (x8)

M4 Spacer

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD

OR BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

T-B (x1)

5mm Allen Wrench

T-C (x1)

6mm Allen Wrench

B (x1)

Middle Pole

C (x1)

Top Pole

D (x1)

Base

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

Phillips

Screwdriver

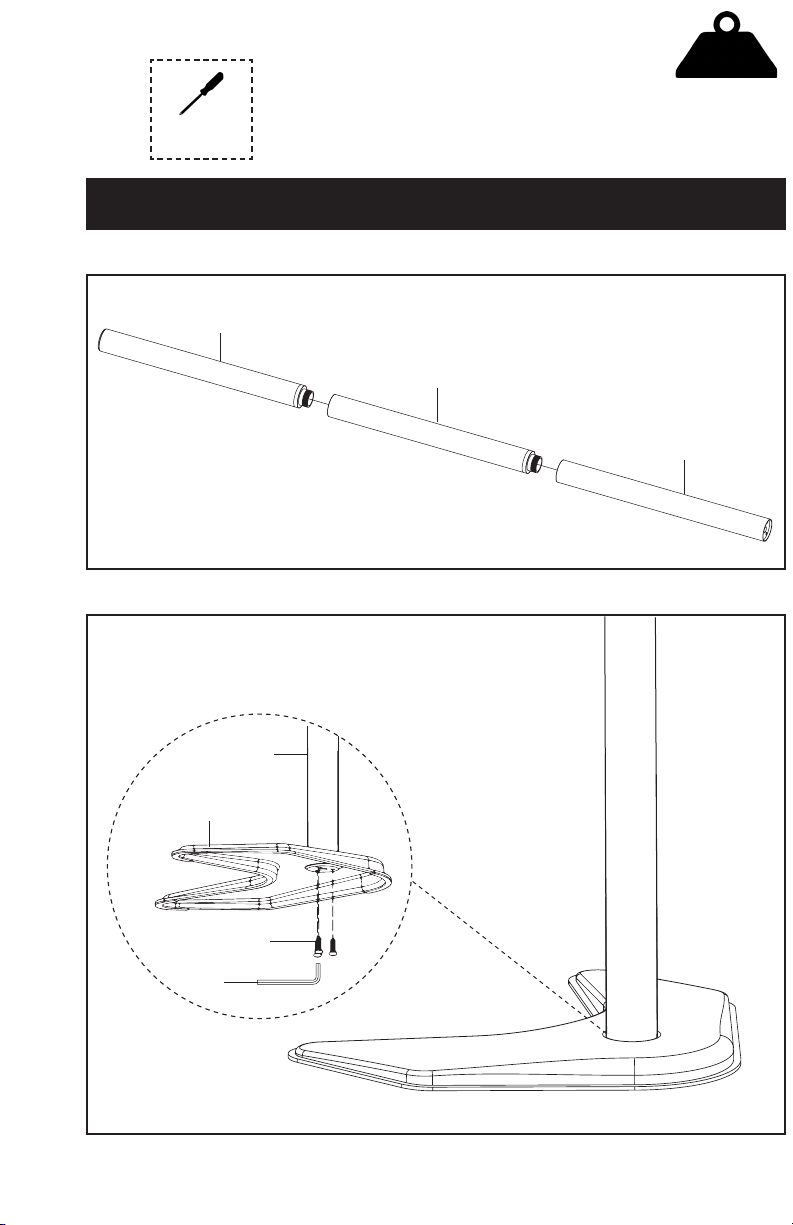

Assemble Bottom Pole (A) to Base (D) using M5x14mm Screws (S-A)

and 3mm Allen Wrench (T-A).

STEP 2

Thread Bottom Pole (A), Middle Pole (B), and Top Pole (C) together as shown below.

22 lbs

(10 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

S-A

T-A

STEP 3

STEP 4 (Option A)

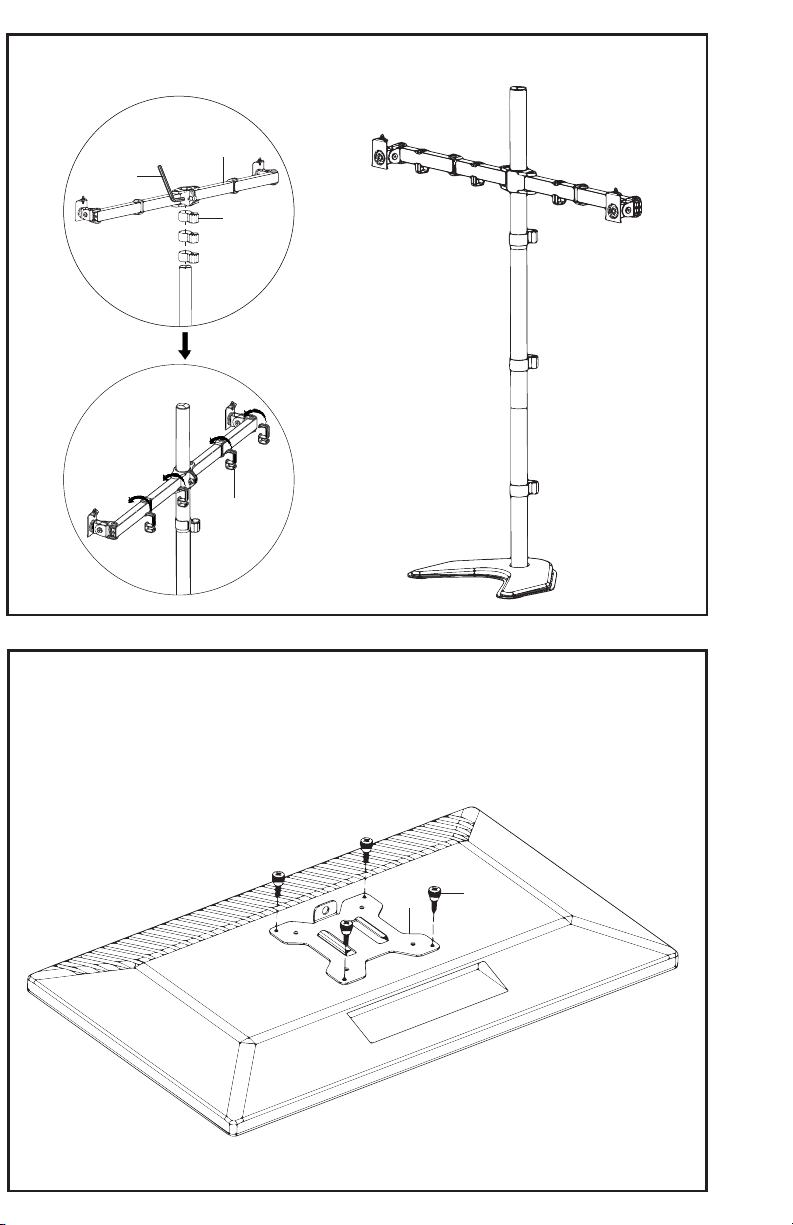

Slide Pole Cable Clips (G) and Arm (E) onto the pole assembly. Secure Arm (E) using 6mm Allen

Wrench (T-C). Assemble Arm Cable Clips (H) to Arm (E).

Flat Back Monitor

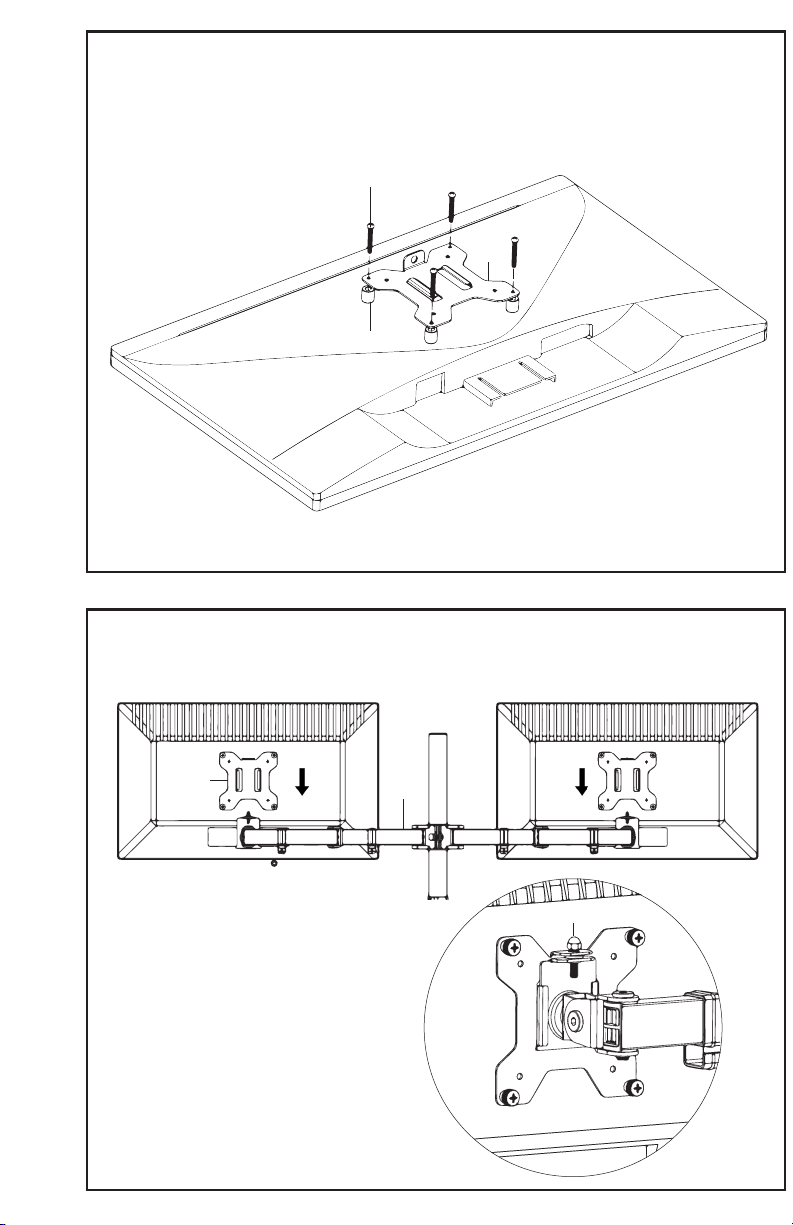

Assemble VESA Plates (F) to the monitors using M4x12mm Thumbscrews (M-A).

NOTE: Hand tighten screws to avoid stripping the plastic screw heads.

T-C

M-A

Curved Back Monitor

Assemble VESA Plates (F) to the monitors using M4 Spacers (M-C) and M4x30mm Screws (M-B).

Tighten with a Phillips screwdriver.

STEP 5

Slide VESA Plates (F) with the monitors onto Arm (E). Secure the monitors in place using Security

Nuts (S-B).

STEP 4 (Option B)

M-C

M-B

S-B

STEP 6

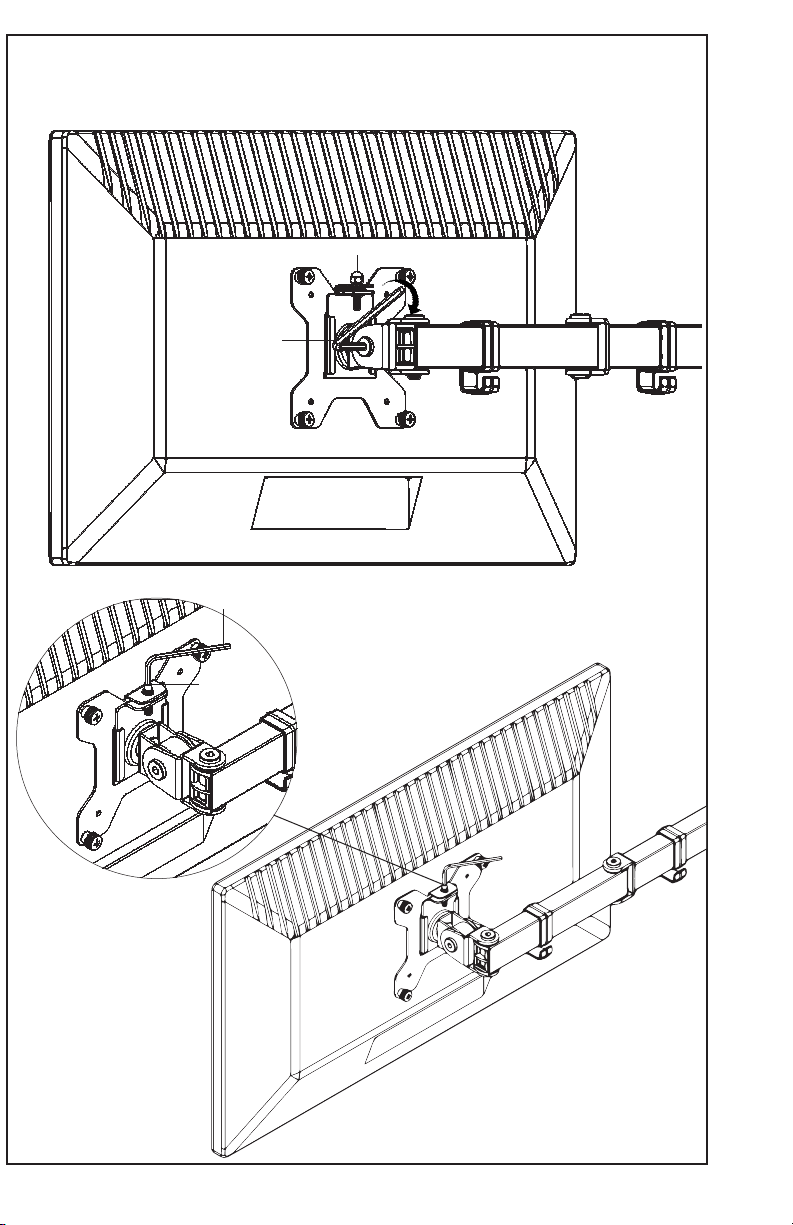

Adjust the tilt using 5mm Allen Wrench (T-B). To level the monitors, remove Security Nut (S-B) and

turn the adjustment screw with the 3mm Allen Wrench (T-A) to raise or lower the monitor.

T-A

T-B

S-B

Adjustment

Screw

STEP 7

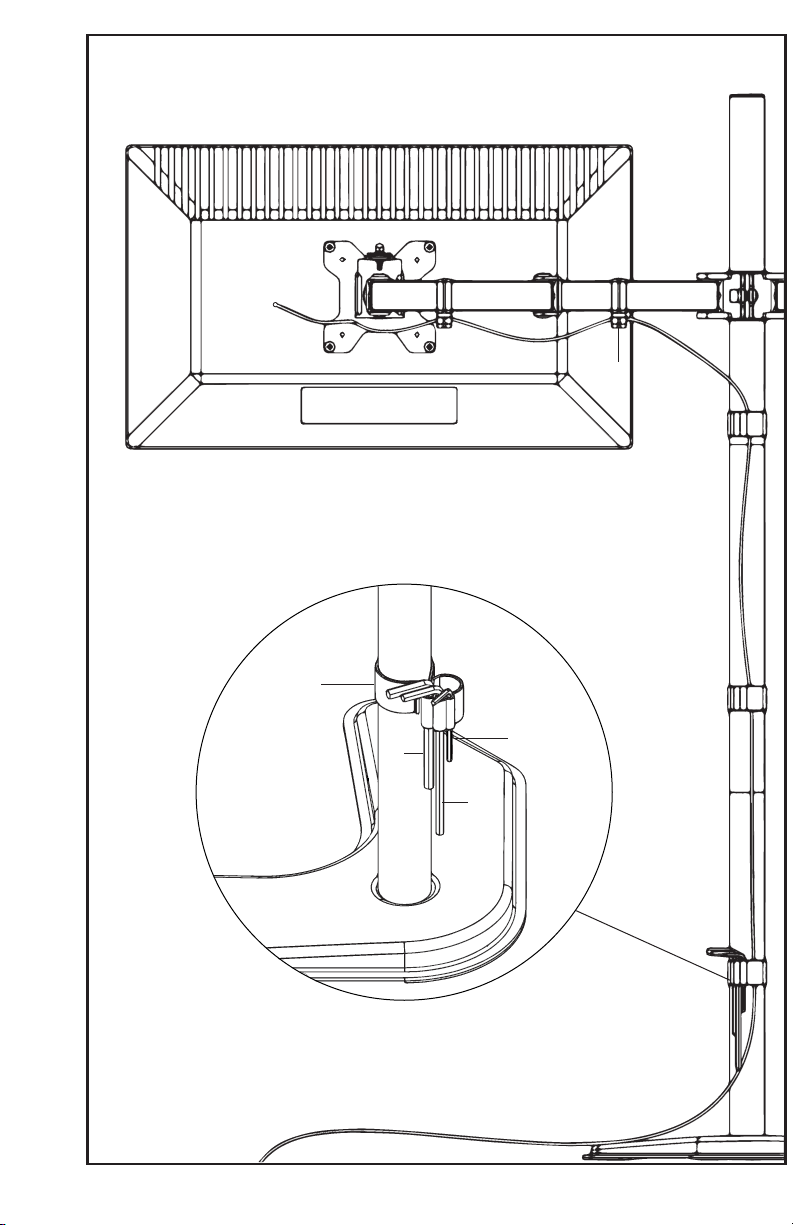

Manage cables using Arm Cable Clips (H) and Pole Cable Clips (G). Store Allen wrenches in Pole Cable

Clip (G) for future adjustments.

T-A

T-B

T-C

LAST UPDATED: 03/08/2022

REV2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
