Vivo MOUNT-AD4X2 Manuel utilisateur

VESA Monitor Adapter 50x50mm to 400x200mm

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-ad4x2

SKU: MOUNT-AD4X2

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

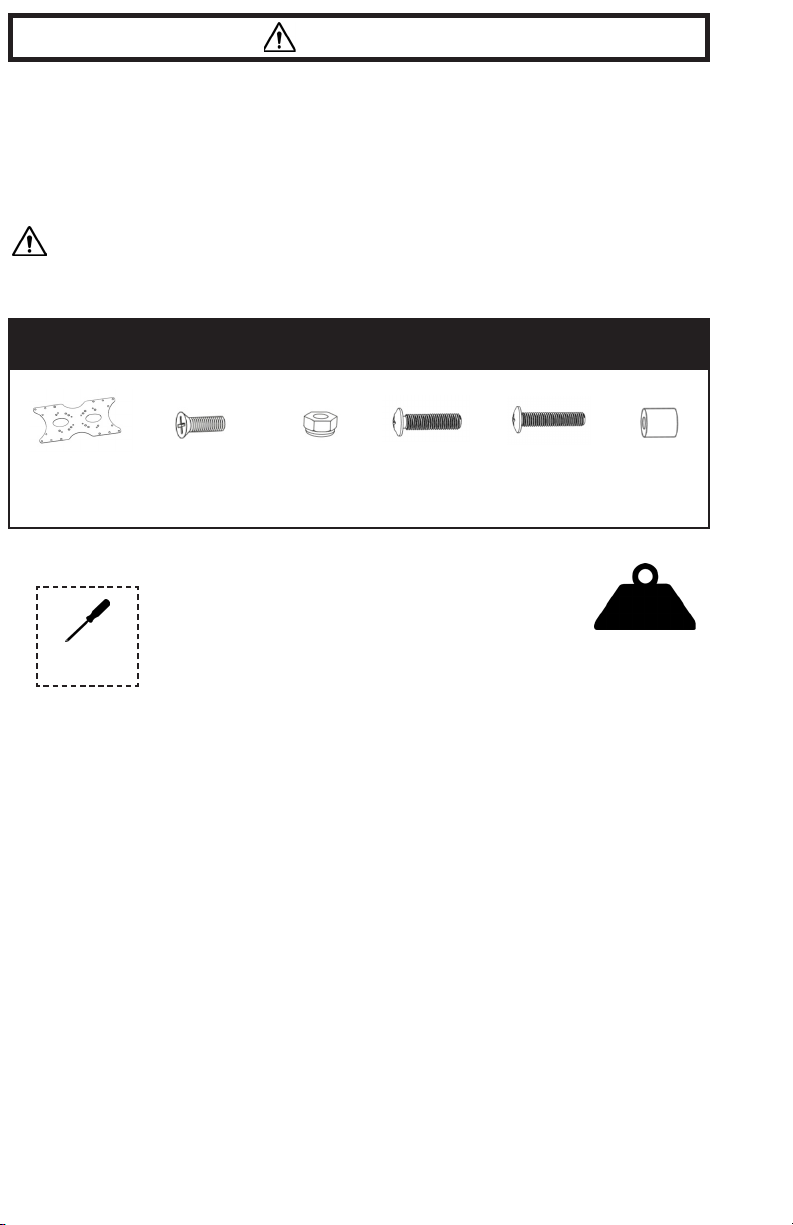

PACKAGE CONTENTS

TOOLS NEEDED

66lbs

(29.94kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

VESA Plate

B(x4)

Flathead Bolt

C(x4)

Nut

M-C (x4)

Spacer

M-A (x4)

M6x30

M-B (x4)

M8x30

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

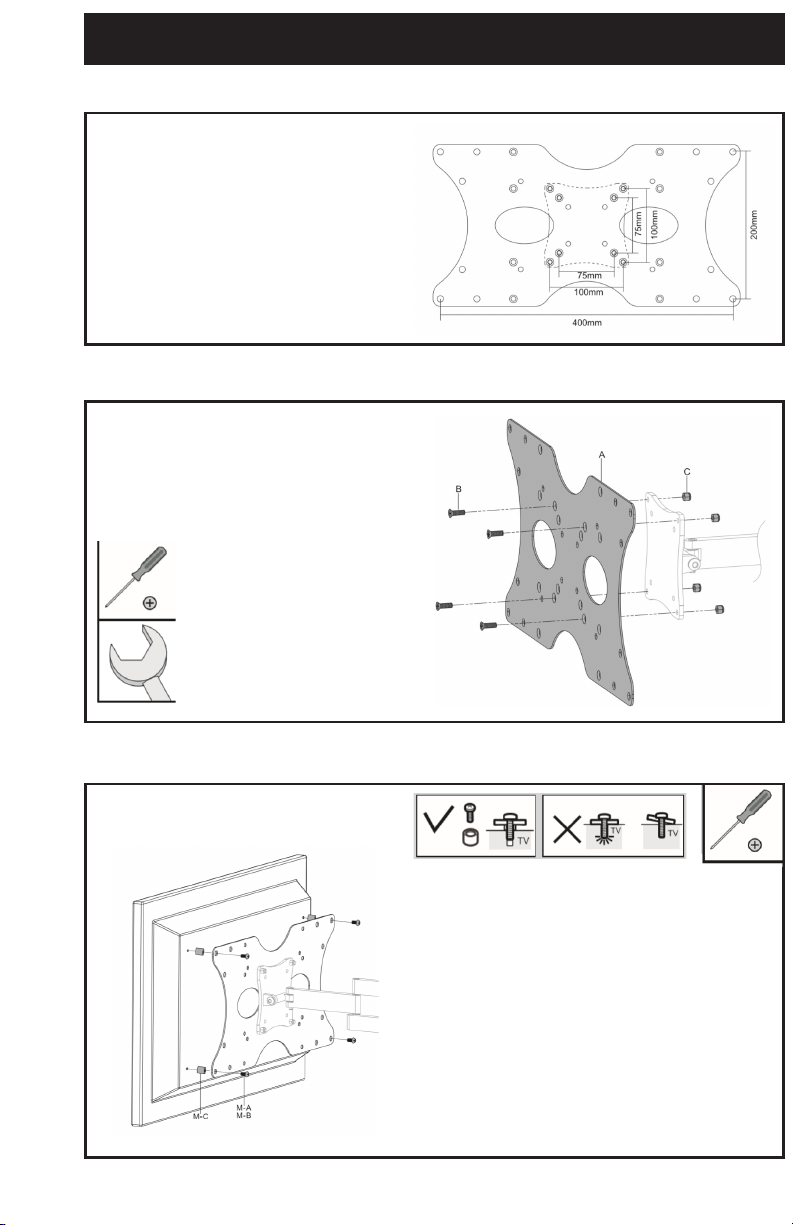

STEP 1

This VESA adapter plate is designed to fit to

the VESA 50x50mm, 75x75mm or 100x100mm

mounting holes of an existing TV or monitor

mount, allowing a TV or monitor with a VESA

hole pattern of 200x100mm, 200x200mm,

300x200mm or 400x200mm to be attached to

the mount.

STEP 2

STEP 3

Mount TV/monitor to VESA plate using bolts

(M-A or M-B) with spacers (M-C).

Attach VESA plate (A) to TV/monitor mount using

flat head bolts (B) and nuts (C).

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
