Vivo MOUNT-PC02S Manuel utilisateur

Under Desk Adjustable Strap PC Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pc02s

SKU: MOUNT-PC02S

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

ASSEMBLY STEPS

STEP 1

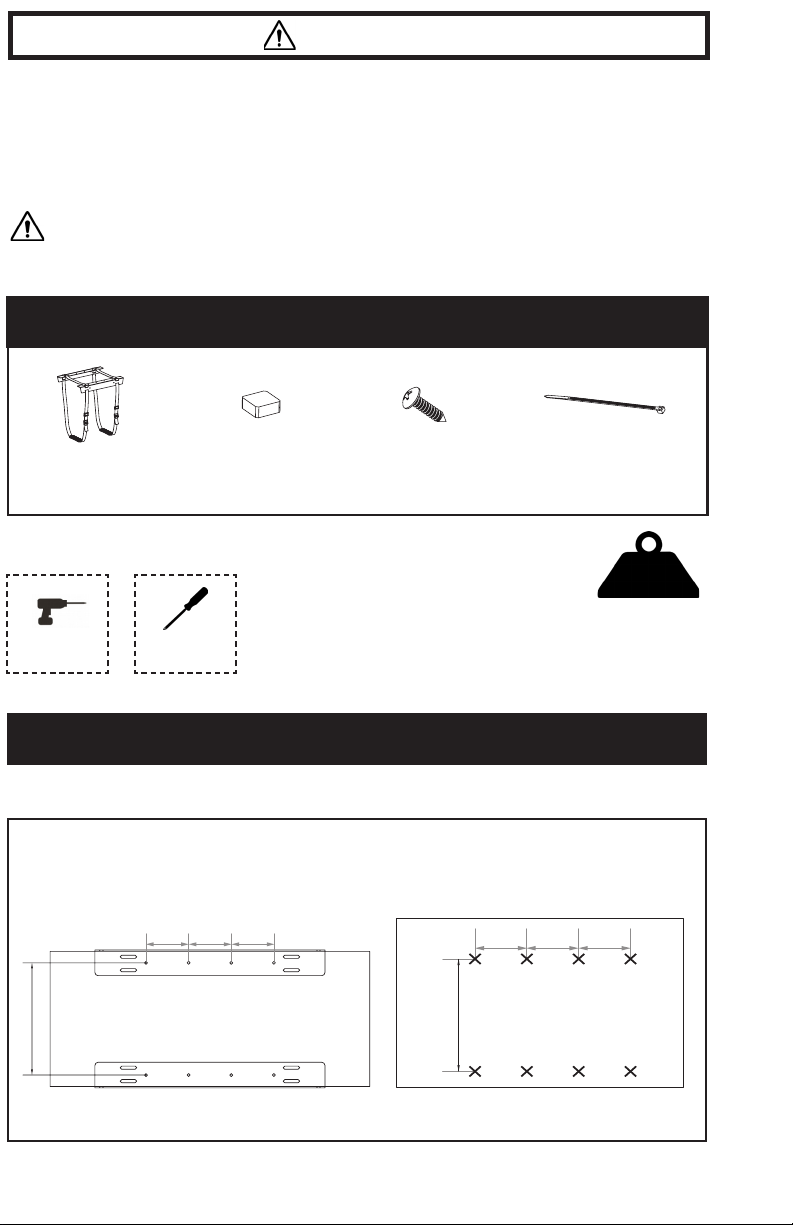

Place mount (A) on top of CPU and measure distance “a” between mounting holes using a tape

measure. Make 8 marks under desktop as shown in diagram.

PACKAGE CONTENTS

TOOLS NEEDED

22lbs

(9.98kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Mount

B(x4)

So Pad

C(x8)

M4x16

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

Drill

D(x2)

Cable Tie

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

66.7mm 66.7mm 66.7mm

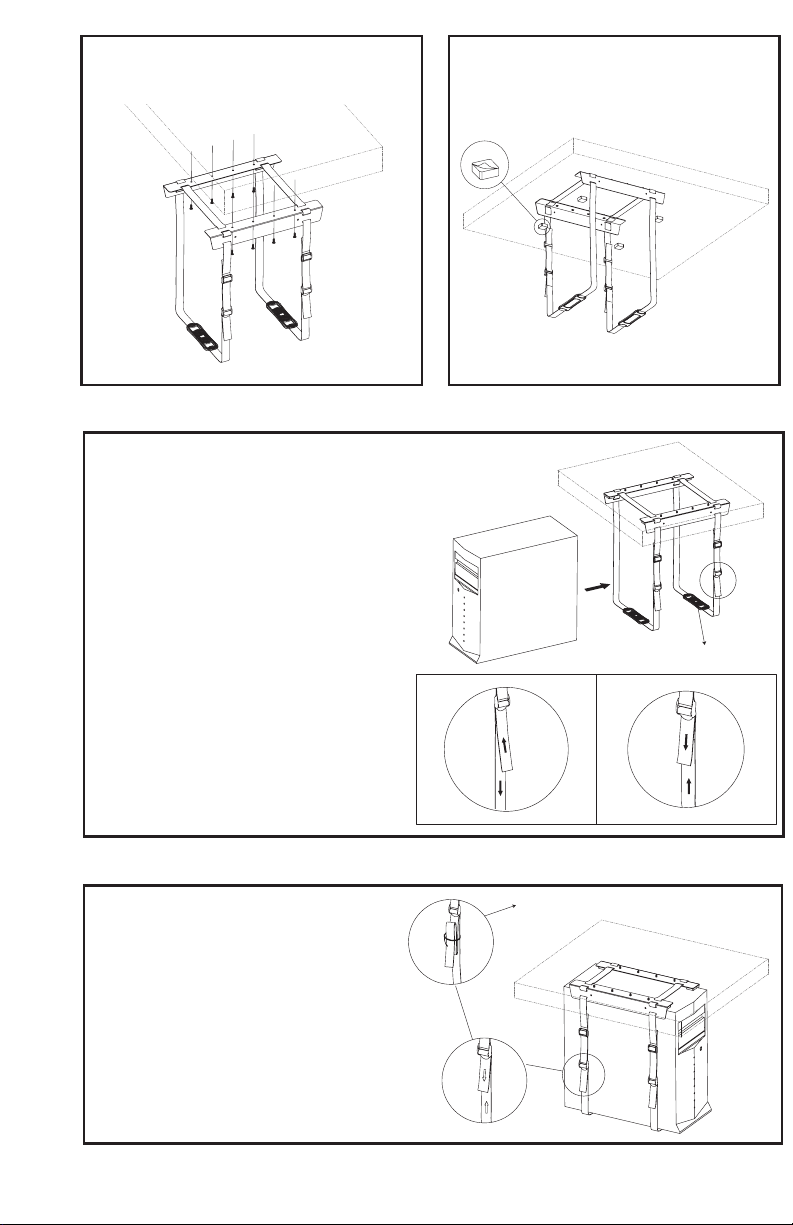

STEP 2

Using a 1/16” bit, drill ⅜” into mounting holes.

Attach mount (A) to marked locations using

screws (C) and a phillips screwdriver.

STEP 3

Stick so pads (B) to mount (A) as shown in

diagram.

STEP 4

Attach CPU to mount (A) making sure base

pads are placed in middle of CPU bottom.

Adjust straps to secure CPU in place.

WARNING: If strap gets stuck and won’t

continue to easily pull through while

tightening, STOP and either loosen strap

slightly or pull slack through clip before

continuing to

tighten. Failure to do so may result in

breaking the plastic clip. base pad

TightenLoosen

STEP 5

Use cable ties (D) to tie up ends of straps.

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
