Vivo STAND-TV17 Manuel utilisateur
Black TV Stand for Treadmills & Ellipticals
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-tv17
SKU: STAND-TV17
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

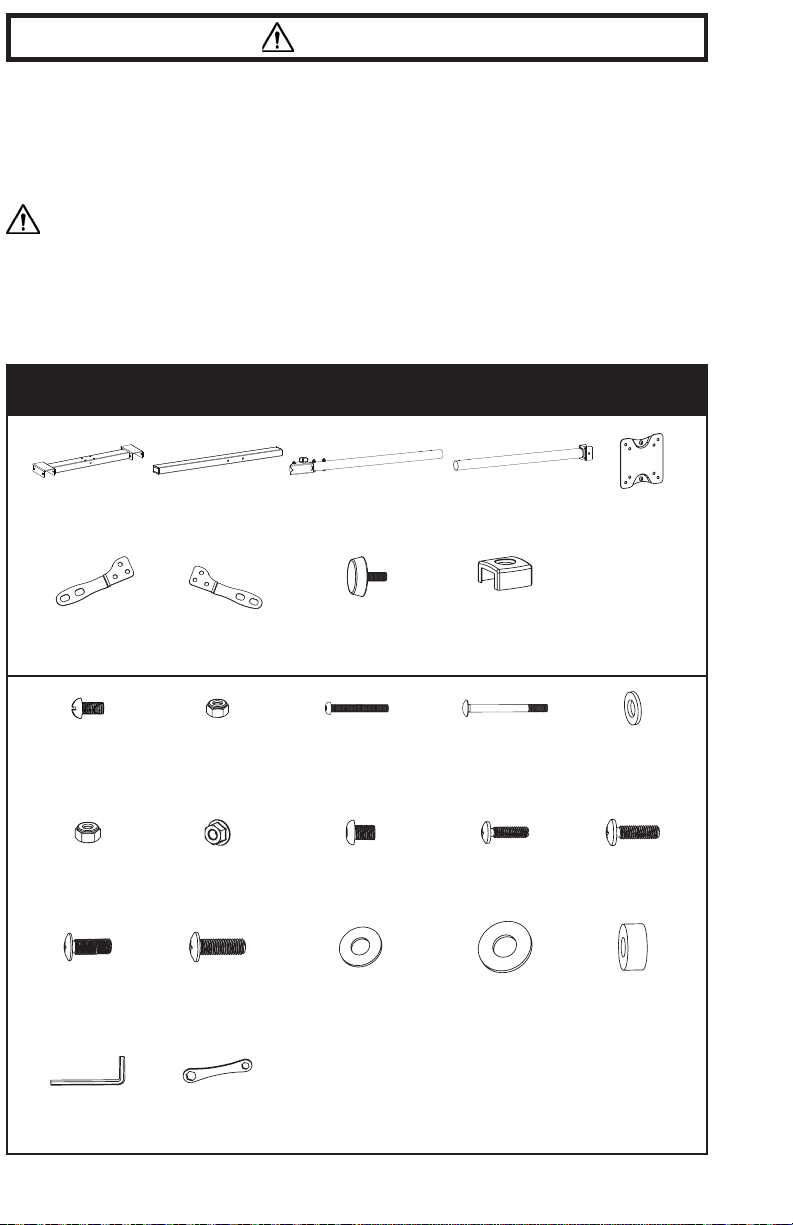

PACKAGE CONTENTS
WARNING!
A (x1)
Base
B(x2)
Feet
C(x1)
Upper Pole
S-B (x8)
M5 Nut
S-D x5)
M6x65mm
Carriage Bolt
S-E (x9)
M6 Washer
S-F (x7)
M6 Lock Nut
S-A (x8)
M5x10mm Screw
F (x2)
VESA Adapter
G (x2)
VESA Adapter
I (x1)
Plastic Cover
H (x4)
Foot Pad
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
S-H (x4)
M6x12mm Screw
S-G (x1)
M6 Flange Nut
T-A x1)
5mm Allen Wrench
M-F (x4)
M8 Washer
M-G (x8)
Spacer
M-E (x4)
M5 Washer
M-A (x4)
M4x14mm Screw
M-B (x4)
M5x14mm Screw
M-D (x4)
M8x20mm Screw
M-C (x4)
M6x14mm Screw
T-B x1)
Wrench
D (x1)
Lower Pole
E (x1)
VESA Plate
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV CART.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
S-C x2)
M6x50mm Screw
3
ASSEMBLY STEPS

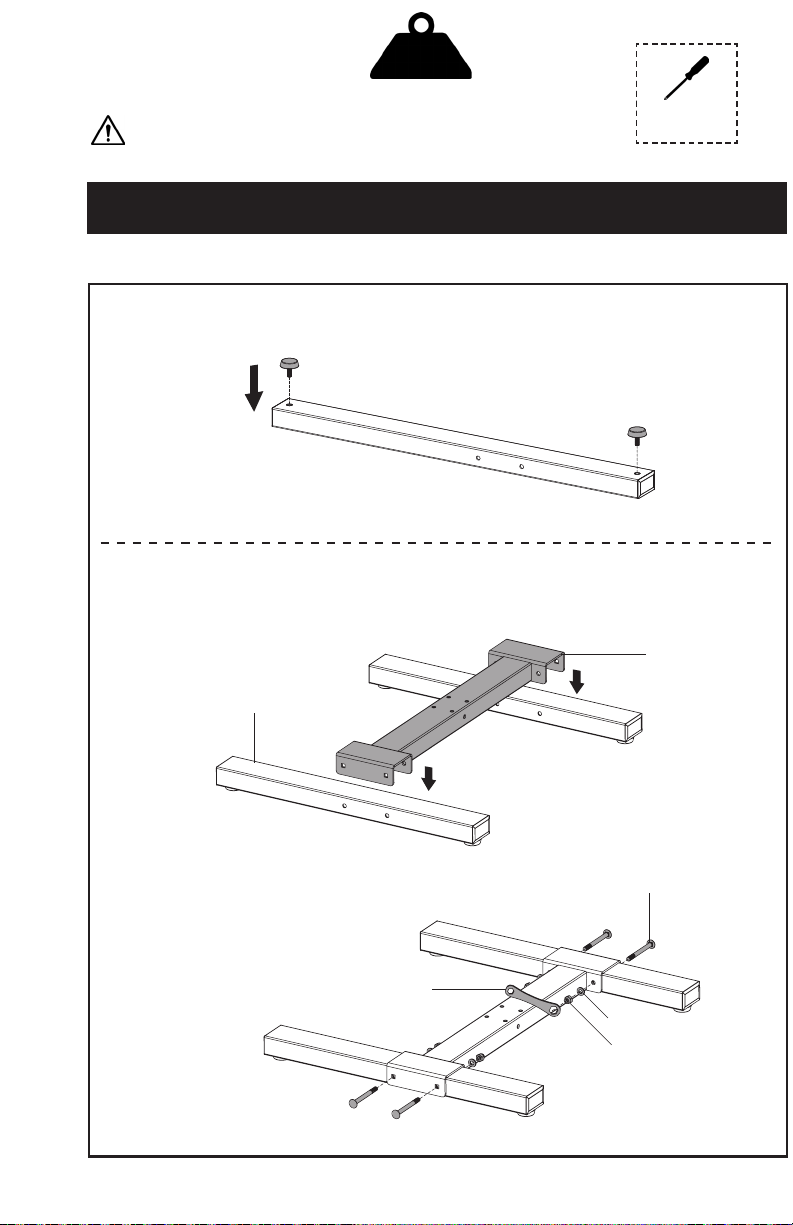

STEP 1
Secure Foot Pad (H) to underside of Feet (B).
Turn Feet (B) right side up. Attach Base (A) to Feet (B) using M6x65mm Carriage Bolts (S-D), M6
Washers (S-E), and M6 Lock Nuts (S-F). Tighten using Wrench (T-B).
44lbs
(19.96kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver
A
B
S-D
T-B
S-E
S-F
4

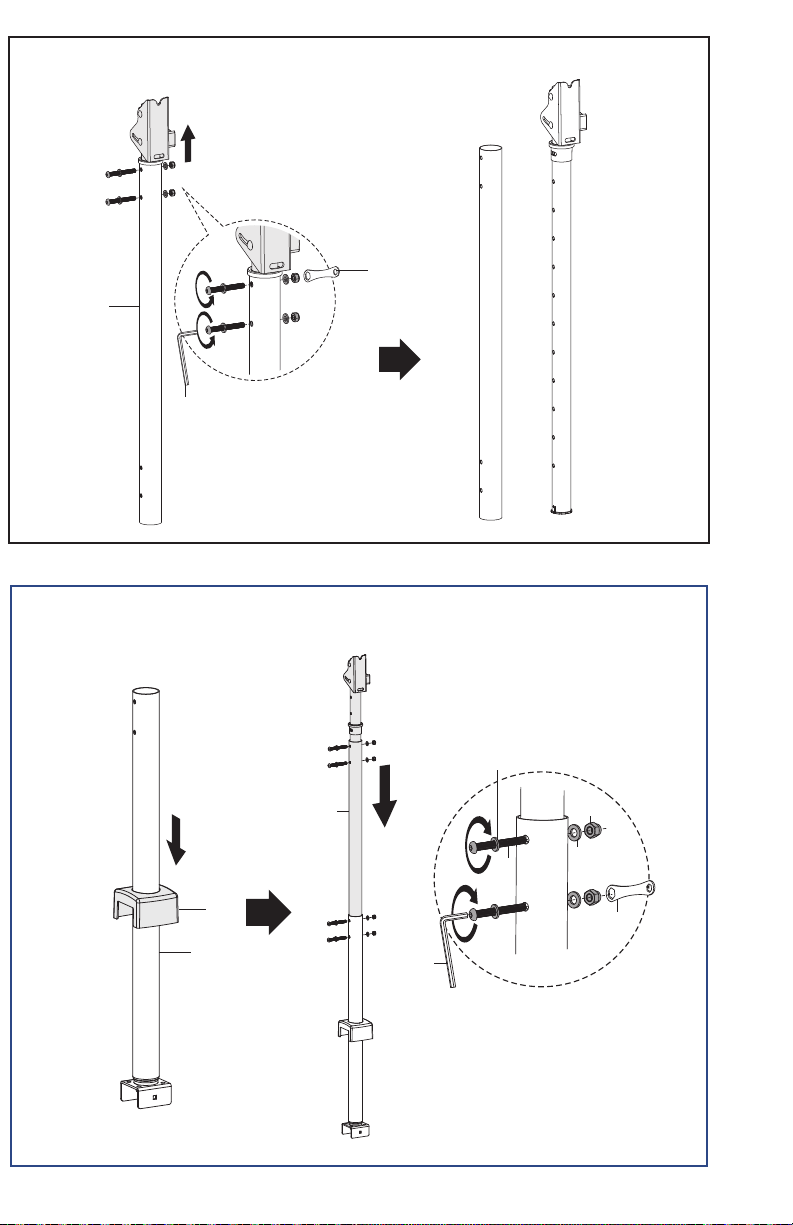

STEP 2
Remove the two screws, four washers, and two nuts from Upper Pole (C) using 5mm Allen Wrench
(T-A) and Wrench (T-B). Seperate Center Pole (C) into two segments.
STEP 3
Slide Plastic Cover (I) over Lower Pole (D). Assemble the Upper Pole (C) segments using the previously
removed hardware and M6x50mm Screws (S-C), M6 Washers (S-E), and M6 Lock Nuts (S-F). Tighten
using 5mm Allen Wrench (T-A) and Wrench (T-B).
C
T-A
T-B
D
I
C
T-A
T-B
S-C
S-E
S-E
S-F
5

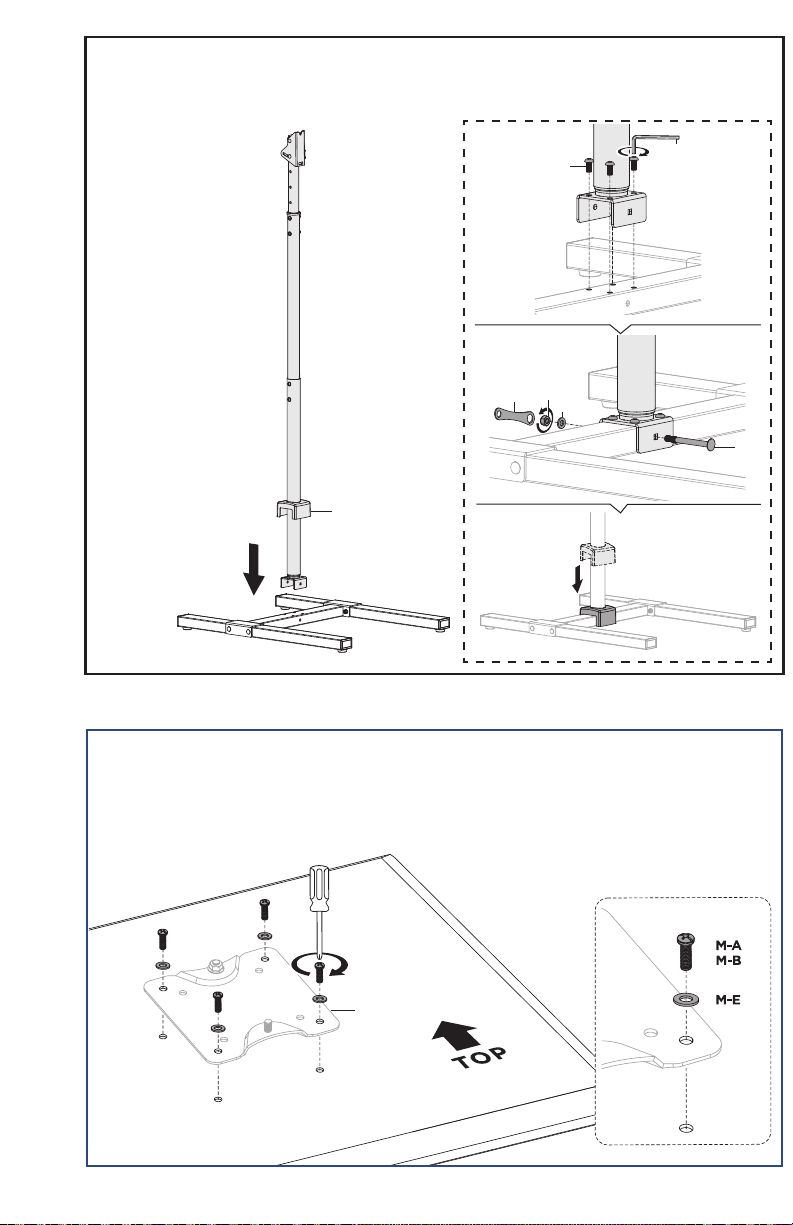

STEP 5 (Option A)
VESA Plate Only
Use Screws (M-A or M-B) along with M5 Washers (M-E) to attach VESA Plate (E) without the adapters
to the monitor.
STEP 4
Li Plastic Cover (I) and connect assembled pole to Base (A) using M6x12mm Screws (S-H) to secure
the top. Tighten using 5mm Allen Wrench (T-A). Insert M6x65mm Carriage Bolt (S-D), M6 Washer
(S-E), and M6 Lock Nut (S-F) through the front of Base (A). Tighten using Wrench (T-B). Lower Plastic
Cover (I).
I
S-D
T-B S-F
S-E
S-H
T-A
E
6

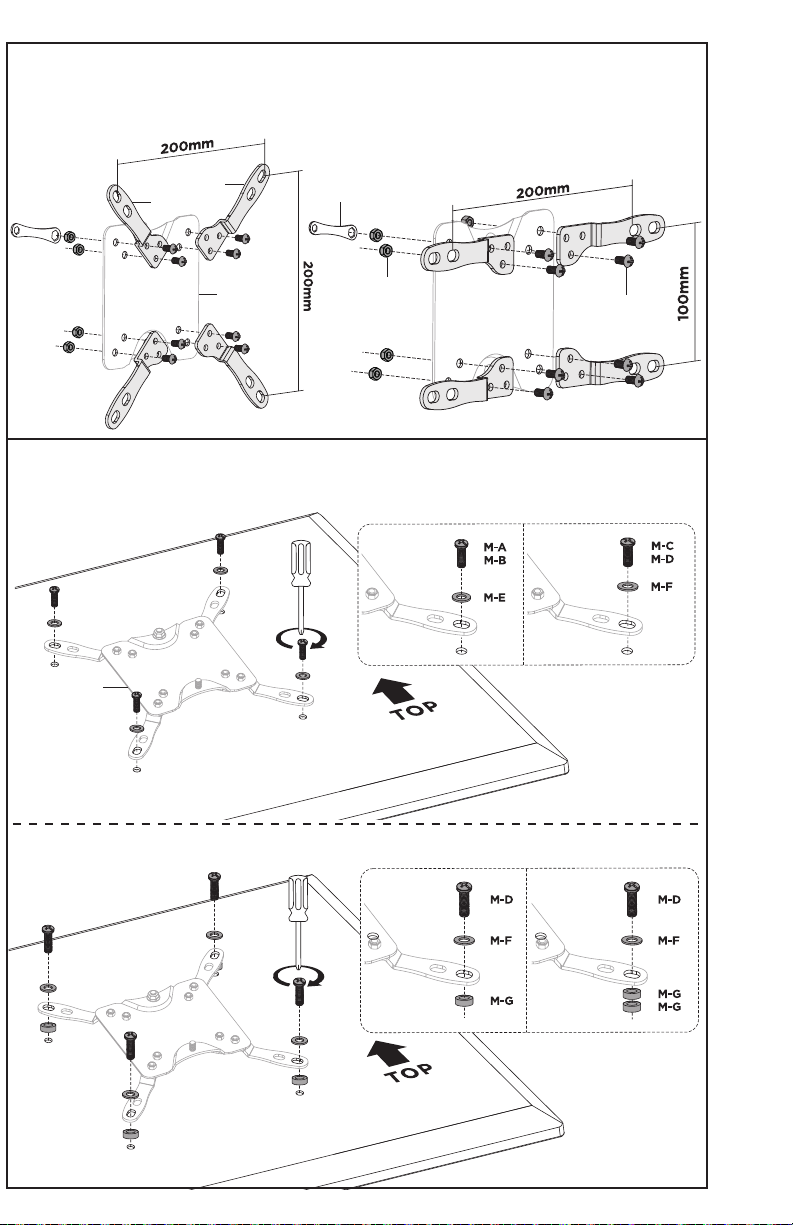

STEP 5 (Option B)
VESA Plate with Adapters
For TVs with VESA mounts at 200mm x 200mm or 200mm x 100mm, VESA Adapters (F, G) are required.
Attach VESA Adapters (F,G) to VESA Plate (E) using M5x10mm Screws (S-A) and M5 Nuts (S-B). Tighten
using Wrench (T-B) and a Phillips screwdriver.
VESA Plate with Adapters (Continued)
Use Screws (M-A throught M-D) along with Washers (M-E, M-F) to secure VESA Plate (E) with the
adapters to the back of your television. Make sure the “VIVO” logo is right side up.
OR
F
G
ES-A
S-B
T-B
E
For a curved television, Spacers (M-G) may be required.
7

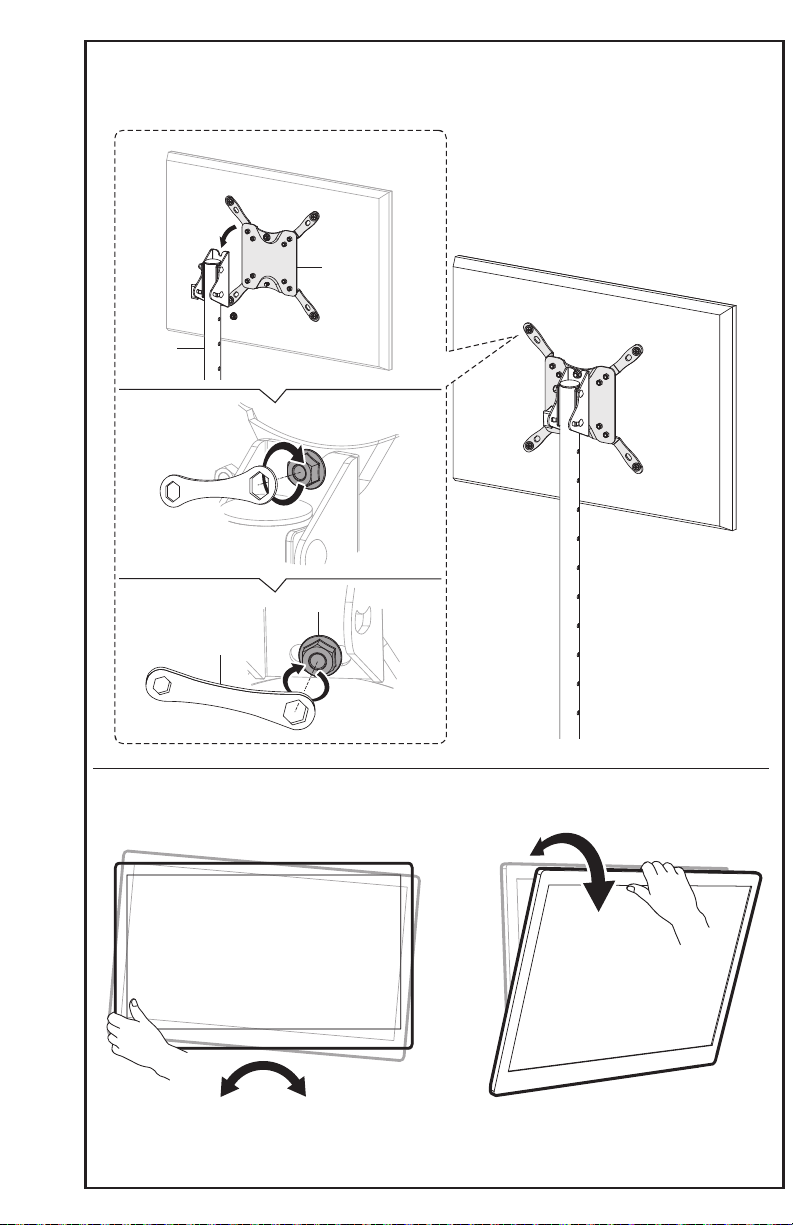

STEP 6
To attach the TV to the stand, loosen the nut at the top of the VESA Plate (E) and slide into the slot on
top of the mounting plate on Upper Pole (C). Secure the top of VESA Plate (E) to the stand by tightening
the nut using Wrench (T-B). Secure the bottom of VESA Plate (E) using M6 Flange Nut (S-G) and wrench
(T-B).
E
C
T-B
S-G
LAST UPDATED: 11/18/2022
REV1.1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
