Vivo MOUNT-E-MT100 Manuel utilisateur

Electric TV Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-e-mt100

SKU: MOUNT-E-MT100

[email protected]om www.vivo-us.com 309-278-5303

PACKAGE CONTENTS

110lbs

(49.90kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

A (x1)

Level

B(x2)

M6x80

C(x2)

M5x10

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

D(x2)

Stopper

E (x1)

Allen Wrench

F (x4)

M6x12

G (x4)

M6x25

H(x4)

M8x12

I(x4)

M8x25

J(x4)

Washer

K (x4)

Spacer

L (x4)

M8x63.5 and

M8 Washer

M (x4)

Anchor

N(x8)

M8x10

AA (x1)

Wallboard

Plate

BB (x2)

VESA Bracket

CC (x2)

Wallboard

Bracket

DD (x1)

Beam

EE (x1)

Motorized Arm

FF (x2)

Wallboard

Cover

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

PRE-ASSEMBLY

STEP 1

Temperature at the front edge of mantel should

never exceed 110°F (43°C).

STEP 2

If the main wall is wood frame, the spacing

between the studs center must be no more than

16.5” (42cm) if there is no center stud. The wall

covering (such as plaster or drywall) must be

no more than 5/8” (16mm) thick, and the wall

covering alone must never be used to support

the mount. All mounting screws must be secured

into a wood stud for proper support. NOTE: “CL”

= center line

STEP 3

Mantel must not extend from mounting surface

more than 14 inches.

110°F

MAX.

14 inches

MAXIMUM

If Mantle Extends: Wallboard Height Above Mantel:

< 8 inches 8 inches

8 - 10 inches 9 inches

10 -12 inches 10 inches

12 - 14 inches 11 inches

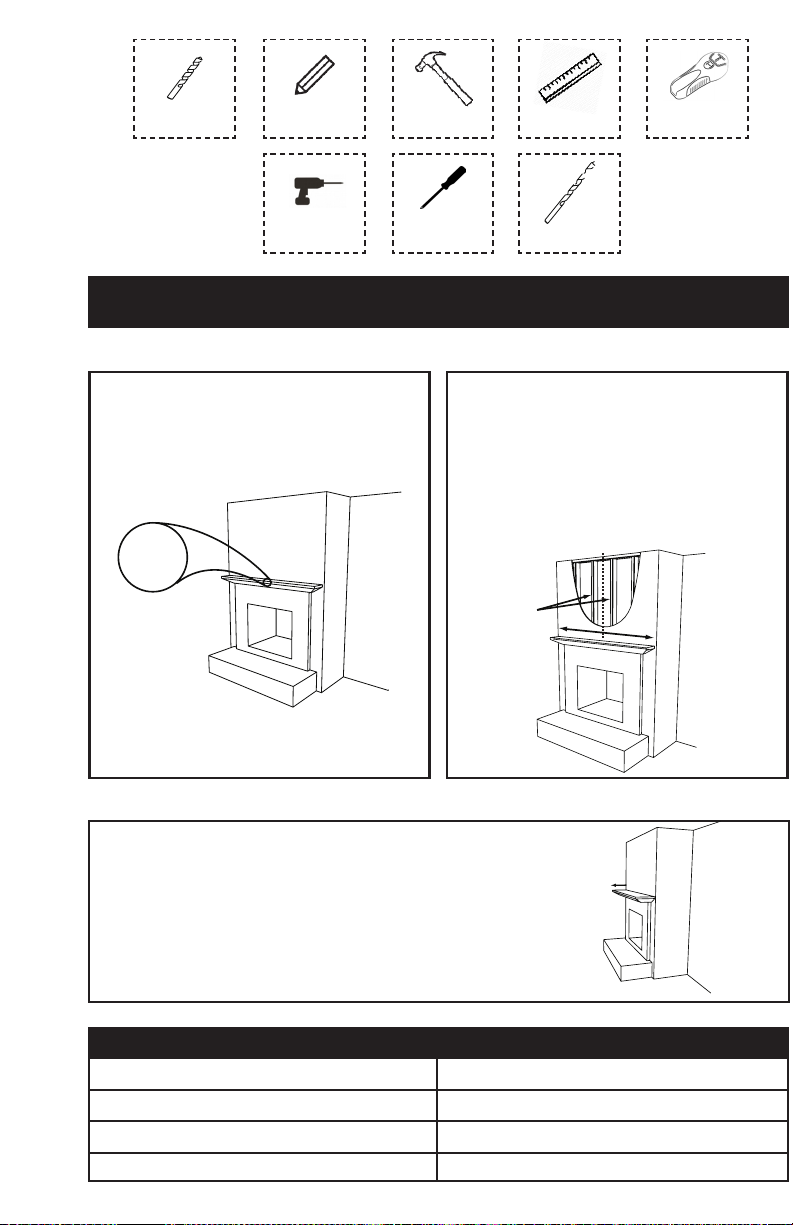

TOOLS NEEDED

3/8” Drill Bit Pencil

Phillips

Screwdriver

Drill 3/16” Drill Bit

Hammer Ruler Stud Finder

6mm(3/16”)

STEP 1

Measure the centerline of the mantel. Mark

with tape on the wall.

STEP 2

Locate studs using a stud finder and mark

locations with a pencil or marker. Make sure

markings are in line with the center of the

studs. Minimum stud spacing from, stud center

to stud center is 5”, and maximum spacing is

16.5”.

STEP 3

Please reference the table in Pre-Assembly for proper locations of mounting holes, making sure there

are no more than minor deviations from the diagram. Drill 2.7” (68mm) deep holes using a 3/16” (6mm)

drill bit. NOTE: Do not mount into drywall alone.

ASSEMBLY STEPS

Cutout shown

for reference

68mm

(2.7”)

6mm

(3/16”)

STEP 4

If the main wall is brick or concrete, plastic anchors (M) must be used. Please reference the table

in Pre-Assembly for proper locations of mounting holes, making sure there are no more than minor

deviations from the diagram. Drill 2.7” (68mm) deep holes using a 3/8” (10mm) drill bit, then press

plastic anchors into holes.

STEP 6

STEP 5

Assemble the Wallboard Brackets (CC) to the Wallboard Plate

(AA) using M8x10 Bolts (N), and tighten with Allen Wrench (E).

CUTAWAY VIEW

INCORRECT

CORRECT

wall plate

plaster/

drywall

concrete

wall plate concrete

plaster/

drywall

CAUTION

Do not drill into mortar joints!

10mm(3/8”)

10mm

(3/8”)

In order to have a better installa-

tion,it is necessary to inlay one

wire cassette on the wall.

Refer

to S3 for the location

68mm

(2.7”)

Mount assembled Wallboard with M8x63.5 Bolts + M8 Washers (L), using Level (A) to ensure Wallboard

is perfectly level.

STEP 7

Mount Motorized Arm (EE) to Wallboard using

M8x10 Bolts (N), and tighten with the Allen

Wrench (E).

STEP 10

Hang TV with VESA Brackets over Beam. Flip lower hooks on VESA Brackets up, and secure with M5x10

Bolts (C).

STEP 9

Mount VESA Brackets (BB) to TV.

For Flat Back TVs, use M6 Bolts (F) with Washers (J)

or M8 Bolts (H) .

For Curved or Recessed back TVs, use M6 Bolts

(G) with Washers (J) and Spacers (K) or M8 Bolts (I)

with Spacers (K).

STEP 8

Assemble Beam (DD) to Motorized Arm using

M6x80 Bolts (B) and tighten with the Allen

Wrench (E). Insert Stoppers (D) into ends

of Beam. Slide Wallboard Covers (FF) onto

Wallboard.

STEP 11

Plug the connected power adapter into the wall, then operate the mount using the included Remote.

“A” raises the TV, “B” lowers the TV, “C” swivels the TV to the le, and “D” swivels the TV to the right.

If needed, adjust the swivel motion limit as shown using the Allen Wrench (E). Tighten the screws to

reduce swivel motion limit, and loosen the screws to increase the limit.

NOTE: The best control distance is 3.28 to 22.97 feet (1m to 7m).

safe distance 2’’

NOTE: Make sure the TV will avoid impact

when swiveling side to side.

LEVEL

LAST UPDATED: 10/11/2019

Open Monday-Friday from 7:00am-7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times.

If any parts are received damaged or defective, please contact us.

We are happy to replace parts to ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]

www.vivo-us.com

309-278-5303

AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

AVG. RESOLUTION TIME (within oice hrs): < 15 M
