Vivo STAND-V032F Manuel utilisateur

Dual Monitor Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v032f

SKU: STAND-V032F

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

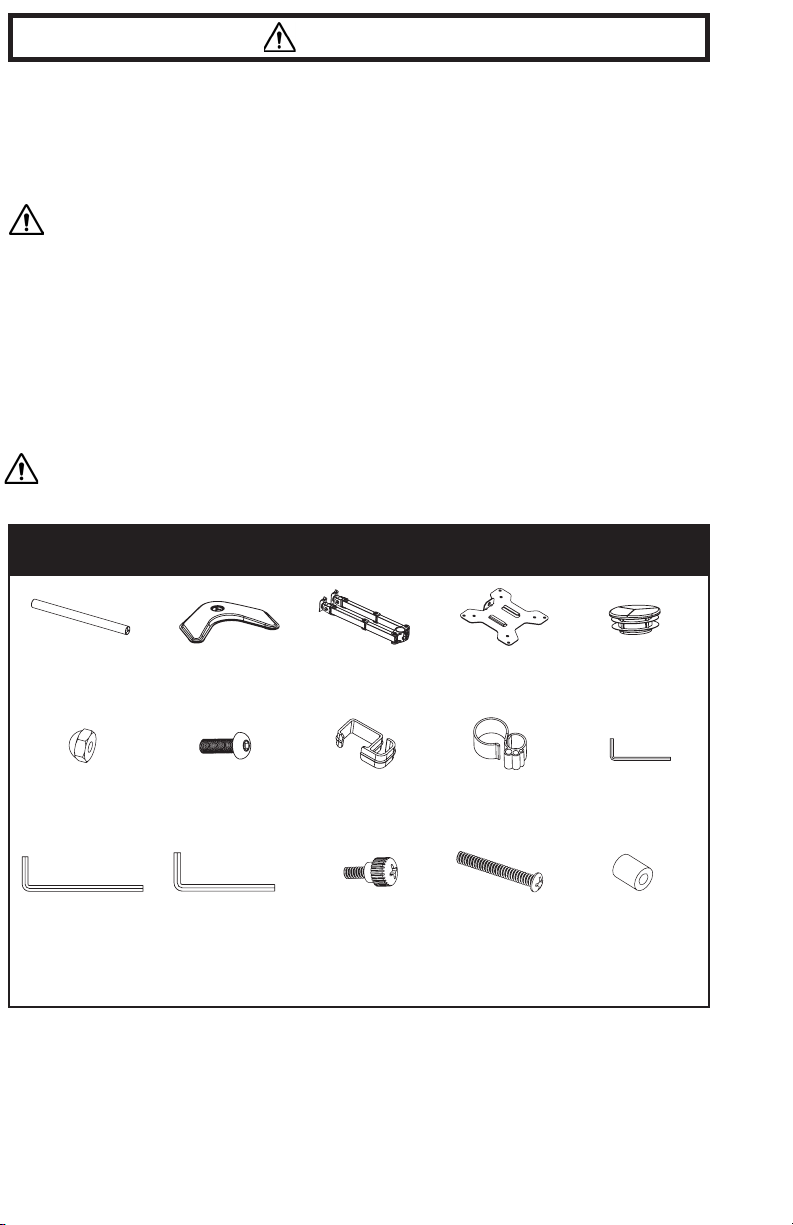

PACKAGE CONTENTS

WARNING!

A (x1)

Pole

B(x1)

Base

C(x1)

Swivel Arm

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D(x2)

VESA Plate

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

F (x2)

Nut

I(x1)

Wire Clip

H (x4)

Wire Clip

M-A (x8)

M4x12

Thumbscrew

M-B (x8)

M4x30 Screw

M-C (x8)

M6 Spacer

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD

OR BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

G(x3)

M6x16 Screw

E(x1)

Pole Cap

J (x1)

3mm Allen

Wrench

K (x1)

5mm Allen

Wrench

L (x1)

6mm Allen

Wrench

ASSEMBLY STEPS

STEP 1

Install the pole (A) to the base (B) using M6x16 Screw (G). Tighten with the 3mm Allen wrench (J).

TOOLS NEEDED

Phillips

Screwdriver

22 lbs

(10kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

STEP 2

OPTION A: Flat Back Monitor

Attach the VESA plates (D) to the monitors using M4x12 Thumbscrew (M-A).

NOTE: Hand tighten screws to avoid stripping the plastic screw heads.

STEP 3

Slide Wire Clip (I) and Swivel Arm (C) down onto the Pole (A) and tighten the screw with 6mm Allen

Wrench (L). Attach the Pole Cap (E) to the top of the Pole (A). Attach the Wire Clips (H) to the Arms.

M-A

STEP 3 (Continued)

STEP 4

OPTION B: Curved Back Monitor

Attach the VESA plates (D) to the monitors using M6 Spacers (M-C) and M4x30 Screws (M-B). Tighten

with a Phillips screwdriver.

Slide the monitors onto the heads of swivel arm and install the Security Nuts (F). Make sure the

security nuts are installed before you rotate the monitors.

M-C

M-B

STEP 5

Tighten the bolt on the side of the tilt joint with the 5mm Allen Wrench (K) to x the tilt angle.

To level the monitors, remove the security nut and turn the bolt with the 3mm Allen Wrench (J) to raise

or lower the monitor. Replace nut aer the adjustment.

Fix the tilt angle

Ignore this step if

monitors are level

STEP 6

Use the 5mm Allen Wrench (K) to adjust swivel joints if needed. Manage cables and store the Allen

Wrenches (J, K, L) in Wire Clip (I) for future use.

STEP 7

CAUTION: To prevent tipping, please be careful not to extend the arms beyond arrow range.

LAST UPDATED: 08/04/2022

REV1

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
