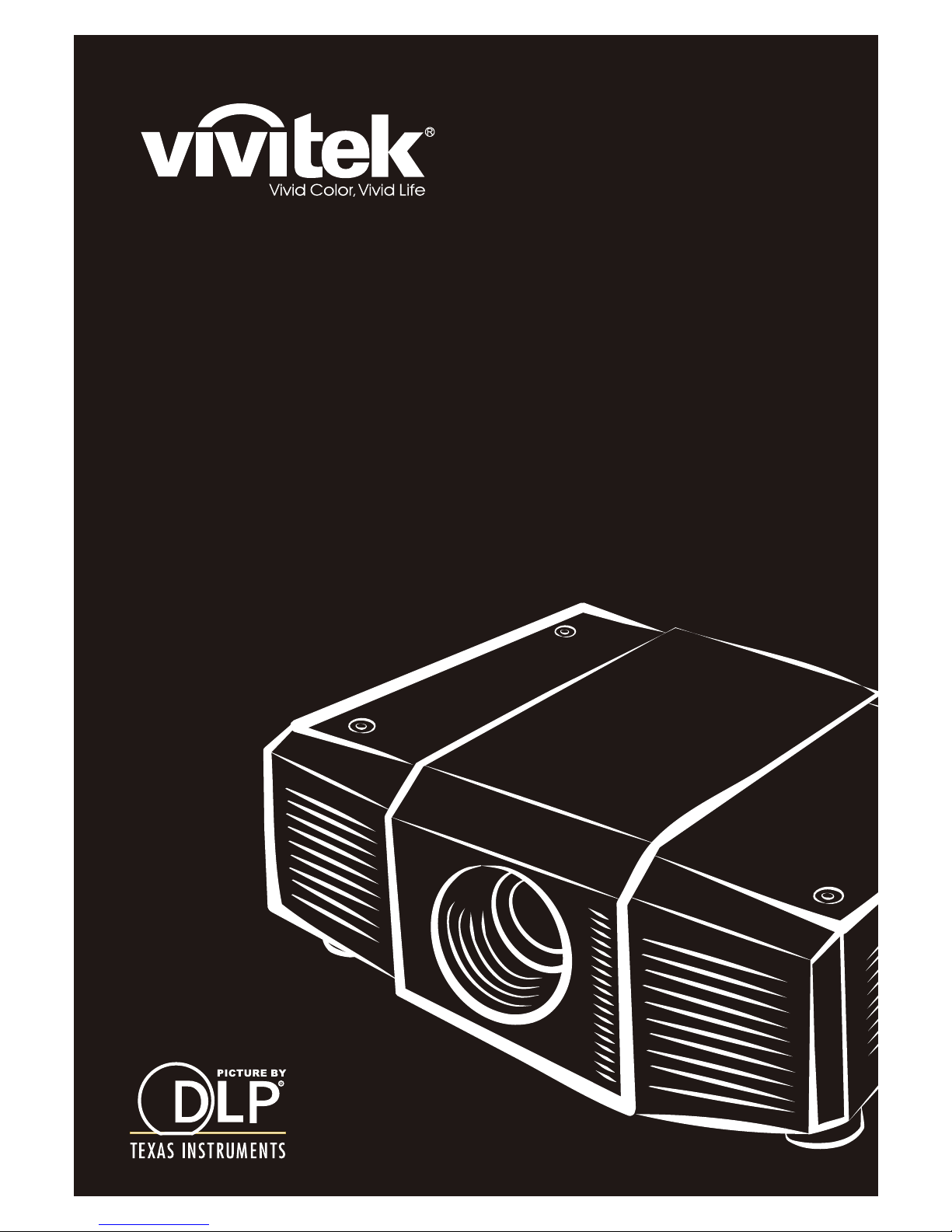

Vivitek D8800 Manuel utilisateur

User’s Manual

D8800 Series

Contents

yCopyright 4

yDisclaimer 4

yAbout this manual 4

IMPORTANT SAFETY INSTRUCTIONS 5

yDisposal of old electrical and electronic equipment 6

yImportant Recycle Instructions: 6

INTRODUCTION 7

yAbout This Manual 7

yDescription, Features and Benefits 7

yParts List 8

CONTROLS AND FUNCTIONS 9

yD8800/D8900/D8010W at a Glance 9

yI/O Panel 10

yKEYPAD 11

yRemote control 12

yTo install batteries in the remote control 13

yRange of effective remote control signal reception 13

Installation Considerations 14

yAmbient Light 14

yThrow Distance 14

yModes of installation 15

yAllow at least 50 cm clearance around the exhaust vent. 16

Lens Shift 17

yVertical Lens Shift 17

yHorizontal Lens Shift 17

Connecting the projector to other devices. 18

yHDMI Connection 18

yTrigger connection 18

yIR Input connection 19

yS-VIDEO, VIDEO connection 19

yCOMPONENT connection 20

yRS-232 Connection 20

yLAN Connection 21

Start using the projector - Adjustments 22

yConnecting to AC Power 22

yTurning on the Power 22

yChanging the OSD Language 23

yAdjusting the Picture Orientation 23

yLens Adjustments 24

Start using the projector - Operation 25

ySelecting An Input Source 25

ySelecting an Aspect Ratio 25

yUsing the OSD 25

Start using the projector - OSD Introduction 26

yOSD Menu Tree 26

yOSD Introduction - INPUT 28

yOSD Introduction - PICTURE 31

yOSD Introduction - LAMPS 34

yOSD Introduction - ALIGNMENT 35

yOSD Introduction - CONTROL 39

yOSD Introduction - SERVICE 45

Change Lamp 47

yTo replace the projector lamp1 47

yTo replace the projector lamp2 48

Change Lens 49

yTo replace the projector Lens 49

Change Filter 51

yTo replace the Filter on the left side of the projector 51

yTo replace the Filter on the right side of the projector 52

LED Status 53

yPower LED 53

yStatus LED 53

yLamp1/Lamp2 LED 53

yTemp LED 53

yShutter LED 53

SPECIFICATIONS 54

SERIAL INTERFACE SPECIFICATIONS 55

yTransfer Specifications 55

yRS-232 Commands 55

yIR Codes and Key names 55

yOperations Commands 56

Dimensions 62

Supported Timings 63

Projection Distance and Screen Size 64

yD8800 64

yD8900 67

yD8010W 70

DLP Projector - User’s Manual

This publication, including all photographs, illustrations and software, is protected under international copyright laws,

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or

warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes

from time to time in the content here without obligation of the manufacturer to notify any person of such revision or

changes.

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible,

relevant information such as an illustration and its description has been kept on one page. This printer-friendly format is

both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print

sections that are relevant to your needs.

DLP Projector - User’s Manual

IMPORTANT SAFETY INSTRUCTIONS

Thank you for your purchase of this quality product! For best performance, please read this manual carefully as it is your

guide through the menus and operation.

1. Read and Keep these instructions.

2. Heed all warnings.

3. Follow all instructions.

4. Do not use this apparatus near water. And not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

5. Clean only with a dry cloth.

6. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

7. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or

the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electri-

cian for the replacement of the obsolete outlet.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the

point where they exit from the apparatus.

9. Only use the attachments/accessories specified by the manufacturer.

10. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

11. Unplug this apparatus during lightning storms or when unused for long periods of time.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in

any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the ap-

paratus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. The +12V trigger only outputs 12V DC signal for triggering. Do not connect to any other power input or output.

This could cause damage to this unit.

14. Keep the packing material in case the equipment should ever need to be shipped.

15. Never look into the lens when the projector is on.

AVOID EYE CONTACT TO THE LIGHT

DLP Projector - User’s Manual

Disposal of old electrical and electronic equipment

(Applicable throughout the European Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not

be treated as household waste when you wish to dispose of it. Instead, it should be handed

over to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences to the environment and human health, which could otherwise be caused by

inappropriate disposal of this product. The recycling of materials will help to conserve natural

resources.This symbol is only valid in the European Union. If you wish to discard this product,

please contact your local authorities or dealer and ask for the correct method of disposal.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste

that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local,

state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.

EIAE.ORG.For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

DLP Projector - User’s Manual

INTRODUCTION

About This Manual

This User’s Manual describes how to install, set up and operate the D8800/D8900/D8010W. Throughout this manual,

the Projector is referred to as the “D8800/D8900/D8010W.”

Target Audience Vivitek has prepared this manual to help installers and end users get the most out of the D8800/

D8900/D8010W. Vivitek has made every effort to ensure that this manual is accurate as of the date it was printed. How-

ever, because of ongoing product improvements and customer feedback, it may require updating from time to time. You

can always find the latest version of this and other Vivitek product manuals on-line, at www.vivitekcorp.com.

Description, Features and Benefits

The Vivitek D8800/D8900/D8010W provide state-of-the-art technology for full HD (1920 x 1200, WUXGA 16:10) native

resolution for crystal clear, pristine images. The D8800/D8900/D8010W offer incredibly high definition images at to-

day’s highest avail-able resolutions. Equipped with precision optics, the D8800/D8900/D8010W include zoom, focus and

lens shift controls for a throw range of 1.85:1 to 2.40:1. For a smaller throw distance (1.56:1 to 1.86:1), the D8800/D8900/

D8010W can be fitted with a varying optics package (optional) to meet different requirements. Exceptional scaling and

film-to-video (3:2 pull-down) conversion is easily achieved. Combined with Vivitek’s sophisticated parameters for white

balancing, the D8800/D8900/D8010W’s proprietary de-interlacing technology provides the highest level of develop-

ment for gray-scale and color balancing and artifact-free images. Completing this engineering marvel are discrete infra-

red (IR) and RS-232 control, power and source selection controls for seamless, flexible operation.

Key Features and Benefits

The D8800/D8900/D8010W offer these key features and benefits:

yNative Resolution: 1920 x 1080 (16:10 Native Aspect Ratio).

yDLP system using high-performance Digital Micromirror Device (DMD).

yHDMI 1.3 Input with High-bandwidth Digital Content Protection (HDCP).

yHDTV Compatible.

yExcellent Video Processing on progressive and interlaced video inputs.

Green Product with:

yLead free solder used for soldering including circuit and component electronics.

yLead free glasses and coatings.

yRecycled paper used in the user manuals and packing cartons.

yEnergy Saving: High efficiency power switching and less than 1W power consumption in standby mode.

DLP Projector - User’s Manual

Additional Features of the D8800/D8900/D8010W

yHorizontal and vertical lens shift.

yKeystone adjustment.

Parts List

Your D8800/D8900/D8010W is shipped with the following items, if any items are missing or damaged, please contact

your dealer or Vivitek Customer Service.

Accessory Box List D8800/D8900/D8010W

Item Manual Assy Q’ty EU/ASIA US/TWN China

1CD-ROM 1● ● ●

2 WARRANTY CARD (US) 1 - ●-

3 WARRANTY CARD (EUR) 1 ●- -

4 WARRANTY CARD (CN) 1 - - ●

5 RoHS Card (CN) 1 - - ●

6 QC Pass Card (CN) 1 - - ●

7 Important Information (CN) 1 ● ● ●

8 POWER CORD 125Vac USA 1 - ●-

9 POWER CORD 250Vac USA-UL/CSA 1 - ●-

10 POWER CORD 250Vac EUR 1 ●- -

11 POWER CORD 250Vac CHINA 1 - - ●

12 VGA Signal cable 1 ●●●

13 SCREW M M4*0.7*70 PAN C SUS 1 ●●●

14 BATTERY 2 ●●●

15 REMOTE 1●●●

16 MODULE COLOR TYPE COLOR WHEEL 1 ●●●

DLP Projector - User’s Manual

CONTROLS AND FUNCTIONS

D8800/D8900/D8010W at a Glance

Air outlet

Adjustable

feet*4

Power inlet

Rear Infre-red window

(remote control) Power switch

Air inlet

yAir outlet

Warm air exits the projector through this vent. Ensure

that it is not blocked.

yAir inlet

Internal fans draw cool air into the projector through

this vent.

yAdjustable feet

Use these when the projector is installed in a table-

top configuration to level the image and/or adjust the

projection angle.

yPower Inlet

For input power from wall outlet to projector.

yRear Infre-red window

For receive the remote controller’s message.

DLP Projector - User’s Manual

I/O Panel

IN SDI OUT

LAN

HDMI

DVI-D

RGB

B/Pb G/YR/Pr

WIRED REMOTE TRIGGER

RS-232

S-VIEDOVIEDO

ySDI

Connect a BNC cable from a serial digital interface (SDI) device.

yHDMI

Connect an HDMI source.

yDVI

Connect a DVI source.

yComponent

Connect a Component (YUV HS/VS-CS) source.

yWIRED REMOTE

Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system.

yTRIGGER

(3.5-mm, mini phone jack) Offers 12 (+/- 1.5) V of output for 350mA monitor relay with short circuit protection.

yS-VIDEO

A standard S-Video input for connecting a DVD player, satellite receiver or Super VHS (S-VHS) VCR.

yVIDEO

Standard composite video input for connecting a VCR, laser disc player or other composite video source. Also pro-

vides composite sync input for RGBS sources.

yLAN

Connect an RJ45 ethernet cable.

yRGB

Provides a standard, 15-pin VGA-style connection to either an RGB or component high-definition source, or to a

personal computer.

The D8800/D8900/D8010W automatically detect the input signal resolution.

yRS-232

9-pin D-sub connector for interfacing with a PC or home theater automation/control system.

Autres manuels pour D8800

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vivitek Projecteur

Vivitek

Vivitek D75X ULTRA SHORT SERIES Manuel utilisateur

Vivitek

Vivitek D3 Series Manuel utilisateur

Vivitek

Vivitek DU6871 Manuel utilisateur

Vivitek

Vivitek D5500 series Manuel utilisateur

Vivitek

Vivitek D86x Series Manuel utilisateur

Vivitek

Vivitek DU9057Z Manuel utilisateur

Vivitek

Vivitek DU4371Z-ST Manuel utilisateur

Vivitek

Vivitek H118x Series Manuel utilisateur

Vivitek

Vivitek H7080HD Manuel utilisateur

Vivitek

Vivitek DS262 Manuel utilisateur

Vivitek

Vivitek D366 Series Manuel utilisateur

Vivitek

Vivitek D86x Series Manuel utilisateur

Vivitek

Vivitek D755WT SERIES Manuel utilisateur

Vivitek

Vivitek DU72x Series Manuel utilisateur

Vivitek

Vivitek DU6675 Manuel utilisateur

Vivitek

Vivitek D8 Series Manuel utilisateur

Vivitek

Vivitek D5280U Manuel utilisateur

Vivitek

Vivitek DH833 Series Manuel utilisateur

Vivitek

Vivitek Qumi Q5 Series Manuel utilisateur

Vivitek

Vivitek D860 Series Manuel utilisateur

Vivitek

Vivitek D732MX Manuel utilisateur

Vivitek

Vivitek DW866 series Manuel utilisateur

Vivitek

Vivitek DU9900Z Manuel utilisateur

Vivitek

Vivitek D5010-WNL Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
