Transcendent Series

5 MegaPixel Indoor/Outdoor

WDR IP Fixed Turret Camera

with Matrix IR Illumination

QUICK START GUIDE

FEATURES:

• 1/2.7” 5.0 Megapixel CMOS Image Sensor

• Up to 20fps live view @ 5MP(2592x1944)

• 2.8mm Fixed Iris Lens

• 1 Matrix IR with 100’ IR Range

• Digital Wide Dynamic Range (D-WDR)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D DNR) Noise Reduction

• On Board Motion Detection, Privacy Masking, Region of Interest,

Exception, Line Crossing, Intrusion, Object Detection / Removal

(Museum Search)

• H.265, H.264 Compression

• Built-in Mic*

• MicroSD Card Slot (Up to 128GB)

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance

• Optional Junction Boxes (VT-TJB01, VT-TJB08) and Wall Mount

(VT-TWMT-3) Available

• 12VDC & PoE (Power over Ethernet) Operation

• Available in Ivory or Charcoal Gray(VTC-TNT5RFEB-2)

*Please research local, state and federal laws

regarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

Network Cable & Power Connections

First connect the Waterproof Cap to an Ethernet patch cable, then

connect the cameras ethernet adaptor. If not powering the camera

with PoE, also connect the power Cable to an approved 12VDC

power supply.

Overview

Components and Accessories

Camera

Quick Guide

Screws

Hex Wrench

Drill Template

Rubber Plug

Waterproof Cap

Ethernet connector

Mounting base

Micro SD card slot

Reset

Power connector

Microphone

Fixed screw

DC12V

Weather Resistant Security Cap

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera.

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and connect the power & video cables, using the

rubber plug to fill the gap of the mounting base, then secure the

mounting base to the ceiling or wall with screws (see fig. 2 on next

page).

∅

∅3.84”

∅.17”

1.92”

120° 120°

.96”

3.22”

4.25”

MicroSD Card Installation: Remove the bottom of the cover from the

camera, insert card and replace the cover (be sure it is even).

Cover Insert a micro SD card

Fixed Screw

4 5

4. Carefully remove the protective film from the lens to complete the

installation.

Lock Screw

3. Loosen the lock screws,

then adjust the camera

to obtain the optimium

viewing angle. Confirm

the correct viewing

angle with a monitor.

Next, tighten the lock

screw to secure the

viewing angle adjust-

ments.

Fig. 2

Rubber Plug

4. Carefully remove the protective film from the lens to complete the

installation.

Lock Screw

3. Loosen the lock screws,

then adjust the camera

to obtain the optimium

viewing angle. Confirm

the correct viewing

angle with a monitor.

Next, tighten the lock

screw to secure the

viewing angle adjust-

ments.

Fig. 2

Rubber Plug

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

6 7

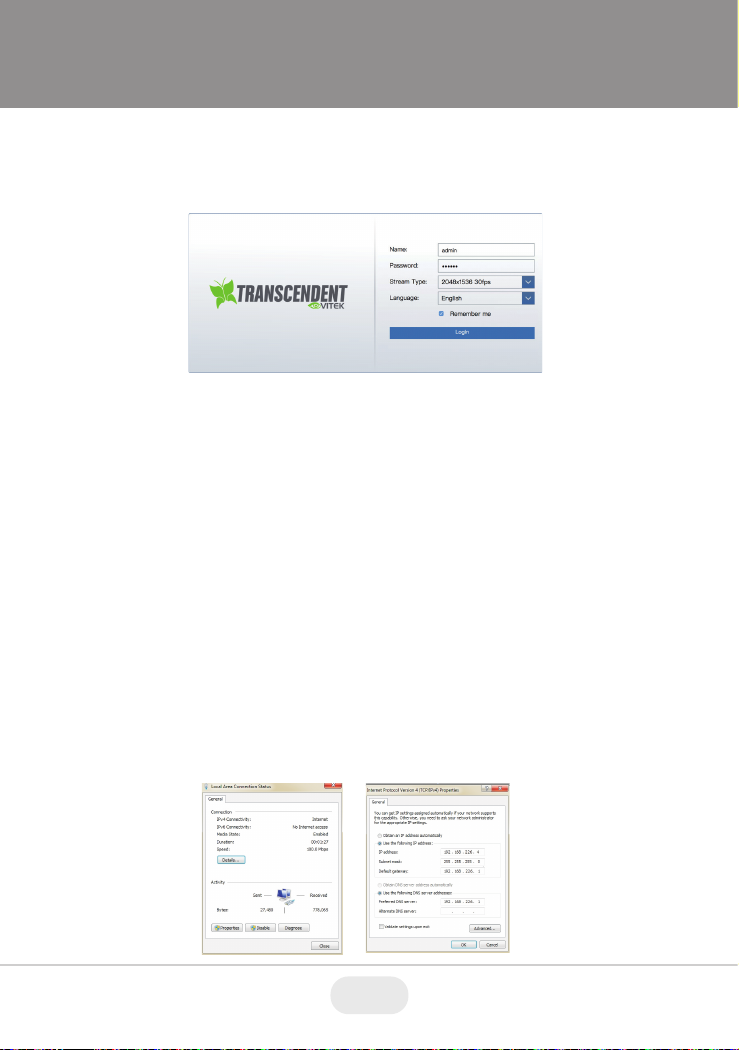

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM

Version 1.0

Nov. 2019

LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants

to the purchaser that products manufactured by VITEK are free of any

rightful claim of infringement or the like, and when used in the manner

intended, will be free of defects in materials and workmanship for a

period of three (3) years, or as otherwise stated above, from the date of

purchase by the end user. This warranty is nontransferable and extends

only to the original buyer or end user customer of a VITEK Authorized

Reseller.

The product must have been used only for its intended purpose, and

not been subjected to damage by misuse, willful or accidental damage,

caused by excessive voltage or lightning.

The product must not have been tampered with in any way or the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to

products sold or purchased through unauthorized sales channels.

Warranty support is available only if product is purchased through a

VITEK Authorized Reseller.

Autres manuels pour VTC-TNT5RFE-2

Table des matières

Autres manuels Vitek Caméra de sécurité

Vitek

Vitek VTD-IR2811DN Manuel utilisateur

Vitek

Vitek VTC-TNB8RMS Manuel utilisateur

Vitek

Vitek Mighty VTD-MVP2810/L35 Manuel utilisateur

Vitek

Vitek VTC-750WDR Manuel utilisateur

Vitek

Vitek TRANSCENDENT VTC-TNB42R5F2 Manuel utilisateur

Vitek

Vitek VTC-TNT30R3F Manuel utilisateur

Vitek

Vitek Premium TVI VTC-IRT30-2812 Manuel utilisateur

Vitek

Vitek Transcendent VTD-TND24R5F2 Manuel utilisateur

Vitek

Vitek Transcendent 5 Series Manuel utilisateur

Vitek

Vitek VTD-HOCR2812/V Manuel utilisateur

Vitek

Vitek Transcendent 3 Series Manuel utilisateur

Vitek

Vitek VTD-IR2811DN Manuel utilisateur

Vitek

Vitek VTC-IRH70 Manuel utilisateur

Vitek

Vitek VTD-A4F Manuel utilisateur

Vitek

Vitek VTC-IRV30/2810 Manuel utilisateur

Vitek

Vitek VTD-TND5RMEA Manuel utilisateur

Vitek

Vitek VTC-EB25C Manuel utilisateur

Vitek

Vitek VT-PTZ10 Manuel utilisateur

Vitek

Vitek VTC-C2BAZE Manuel utilisateur

Vitek

Vitek Transcendent VTD-TNMD4RFS-2 Manuel utilisateur

Vitek

Vitek VT-PTZ220NP Manuel utilisateur

Vitek

Vitek Transcendent Series Manuel utilisateur

Vitek

Vitek VTC-IRLED24H Manuel utilisateur

Vitek

Vitek VTC-T4T3HR2MD Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
