FEATURES:

• Sony® 1/2.8” Progressive Scan CMOS Sensor

• Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel)

• MegaPixel IR Corrected Fixed 3.6mm & 2.8-12mm Motorized Varifocal Lens

Options with 1 click focus for easy Configuration

• Optional 35 Dynamic Infrared LEDs at 850nm enable viewing in total

darkness up to 120 feet

• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction

• True Day/Night by ICR - Dual Filter Switch

• Triple Streaming (H.264/MJPEG) offering Extensive Integration Possibilities

• Real-time Lens Distortion Correction (LDC) for an optically correct picture

• Compliance with the latest Onvif Profile S

• On-board network security with IP address filtering

• Advanced OSD Features including Image Stabilization & Corridor Mode

• MicroSD memory card slot for Local recording supporting up to 128GB

MicroSDXC cards

• Ultra Versatile Design with Infinity Ball Mount for Any Viewing Angle

• Can be Flush or Surface mounted and Fits Perfectly in 4S (indoor domes) &

4-11 (vandal domes) Backboxes

• Outdoor Vandal Resistant Versions Feature Fully Gasket Sealed with an IP-68

Water tight NEMA Rating & Optional Extreme Cold (-60°F) Temperature Kits

• Optional Mounts Available

• Available in Ivory or Black

• 12VDC & PoE (Power over Ethernet) Operation

VTD-M30 / VTD-MV30

Virtuoso Series 3.15MP WDR IP

Mighty Dome Camera Series

INSTALLATION GUIDE

VITEK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

2 3

Package Contents

Torx Wrench (Outdoor Vandal Versions Only)

Type #: T20

Length: 63mm / Diameter: 4mm

Qty: 1

Phillips head Screws (Outdoor Vandal Versions Only)

For attaching the dome cover to the flush housing.

Type #: Phillips head M4x10

Length: 10mm / Diameter: 4mm

Qty: 4

Self Tapping Screws

For attaching the surface mount housing or the the flush mount base to a

solid surface.

Type #: Phillips St4x30

Length: 30mm / Diameter: 4mm

Qty:4

Self Tapping Screws - (Indoor Version Only)

For attaching the dome cover to the flush housing.

Type #: Phillips St4x12

Length: 12mm / Diameter: 4mm

Qty: 4

Plastic Anchors

If necessary, use the to help secure the self tapping screws.

Length: 30mm / Diameter: 7mm

Qty: 4

Mounting Template

Qty: 1

MountingTemplate

Surface Mount

109.0

70.0

RJ45 Coupler

Qty: 1

Installation CD

Qty: 1

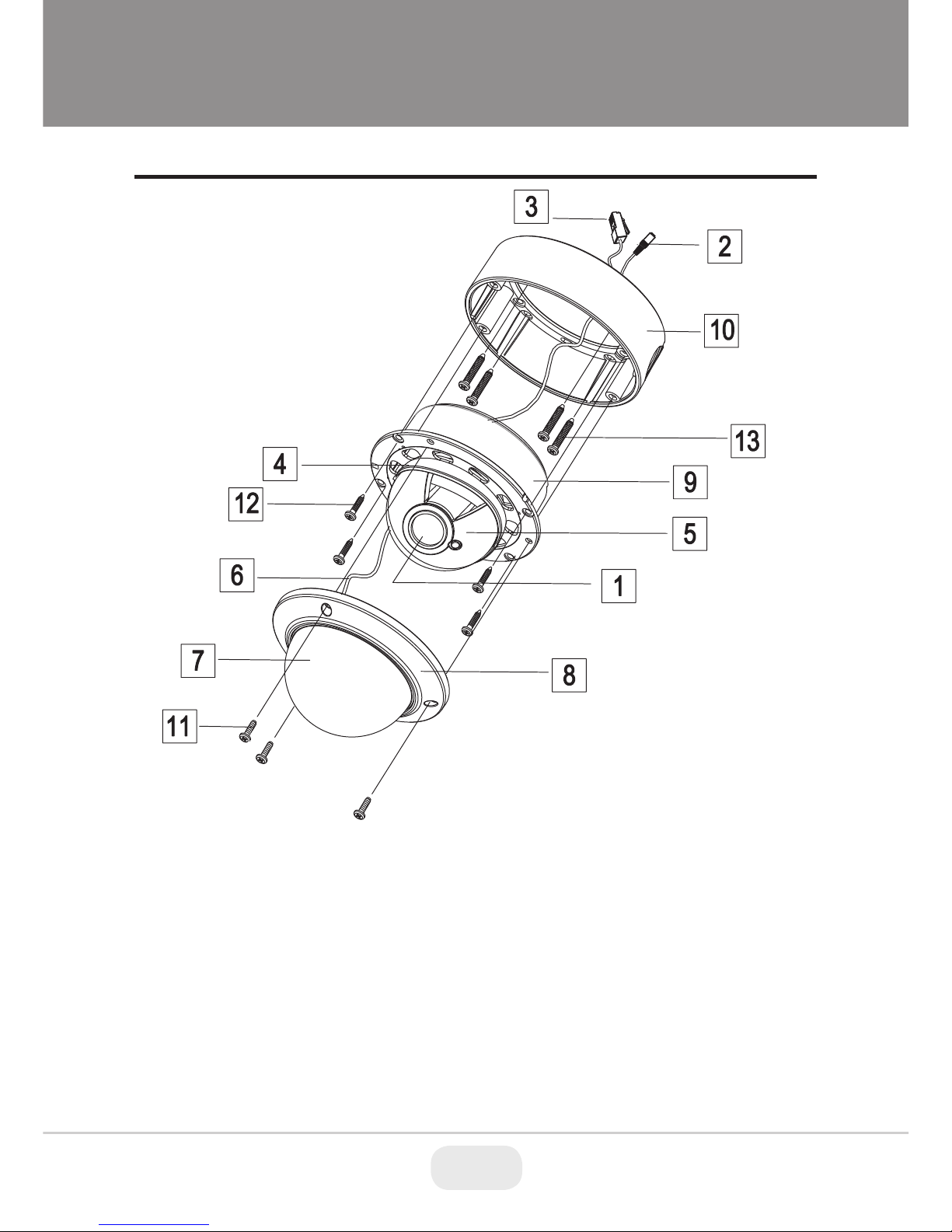

Part Names

1) Lens

2) 12VDC Power Input Connector

(Not for use with PoE)

3) RJ45 Ethernet Connector

4) Camera Holder

5) Ball with the Camera Assembly

6) Safety Wire

7) Bubble

8) Dome Cover Ring

9) Flush Mount Base

10) Surface Mount Base

11) Assembly Screws - Torx M4x9

(Vandalproof)

12) Assembly Screws - Phillips

ST4x12 (Indoor) / Phillips M4x10

(Outdoor Vandalproof IR)

13) Mounting Screws - Phillips ST4x30

4 5

Installation Instructions

1) Remove Dome Cover

Use the provided Torx wrench to unscrew the vandal proof screws and remove the

dome cover.

A) Flush Mount Installation:

Using four St4x30 screws, attach the flush mount base to a sturdy surface.

Optional flush mount decorator plate. Model: VT-MD-FMP

B) Surface Mount Installation:

Drill pilot holes at the mounting location using the provided mounting template.

Using four St4x30 screws, mount the surface mount housing to a sturdy

surface. Using four ST4x12 (Indoor) screws or M4x10 (Vandal-proof) screws,

attach the flush mount base to the surface mount housing.

Mighty Domes can easily be flush or surface mounted to an electrical junction

box (4S J-Box) using the pre-drilled mounting holes on either the surface mount

housing or the the flush mount base.

C) Junction Box Installation:

2) Choose Installation Method:

A B

Installation Instructions

MicroSD

Card Slot

1) Remove the ball gimbal from the socket, and

hold the base firmly with one hand.

2) Gently pull away from the gimbal base until

the gimbal cover is removed from the base.

3) The MicroSD memory card slot is located

below the camera board.

For recording directly on the camera you will need

to install a MicroSD card, this will allow you to

record video directly on-board the camera.

(Class 10 MicroSD cards recommended)

The Gimbal mechanism yields maximum rotation and placement as shown below.

MicroSD Card Installation

Gimbal Adjustment

6 7

Installation Instructions

Flush Mount

Vandal Surface Mount

Indoor Surface Mount

4.29”

2.76”

0.2”

5.63”

4.51”

1.57”

2.70”

R1.95”

2.76”

4.29”

0.2”

6.77”

1.85”

2.46”

R1.95”

2.76”

3.37”

3.37” 4.29” 4.88”

0.22”

R1.95”

5.75”

1.69”

2.66”

Detailed Specifications VTD-M30F3NP

Sensor

Resolution

Video Encoding

Video Output

Frame Rate

Dynamic Intensity IR LEDs

IR Range

Lens

Corridor Format

Minimum Illumination

Day/Night

Noise Reduction

WDR

Advanced OSD Functions

Memory Card

Video Streaming

Audio

Security

Weather Resistance Rating

Input Voltage

Power Consumption (12VDC)

Power Consumption (PoE)

Operating Conditions

Dimensions (W x H x D)

Weight

Sony 1/2.8” Progressive Scan CMOS Sensor

3.15 MegaPixel (2048x1536)

H.264 / MJPEG

Ethernet (RJ45)

30fps max

N/A

3.6mm Fixed Lens

90° / 270°

0.15 lux (Color) / 0.03 lux (B/W)

Auto True Day/Night (TDN)

XD-DNR (2D-DNR+3D-DNR)

Digital WDR (ATR-EX)

Privacy Mask, Motion Detection, Tamper, Defog, D-Zoom, HLC/ BLC, LDC (Lens

Distortion Correction), Mirror/Flip, Hue, Brightness, Contrast, Saturation, Sharpness

MicroSD - up to 128GB

Simultaneous H.264 and MJPEG (Triple Streaming)

N/A

Multi User Authority, IP Filtering, HTTPS

N/A

12VDC / PoE

150mA

5.9 Watts

14°-122°F (-10°-50°C) < 80% RH

4.45” x 5.71” (113mm x 145mm)

1lb (.46Kg)

8 9

Detailed Specifications VTD-M30FR3NP

Sensor

Resolution

Video Encoding

Video Output

Frame Rate

Dynamic Intensity IR LEDs

IR Range

Lens

Corridor Format

Minimum Illumination

Day/Night

Noise Reduction

WDR

Advanced OSD Functions

Memory Card

Video Streaming

Audio

Security

Weather Resistance Rating

Input Voltage

Power Consumption (12VDC)

Power Consumption (PoE)

Operating Conditions

Dimensions (W x H x D)

Weight

Sony 1/2.8” Progressive Scan CMOS Sensor

3.15 MegaPixel (2048x1536)

H.264 / MJPEG

Ethernet (RJ45)

30fps max

35 850nm IR LEDs

120’

3.6mm Fixed Lens

90° / 270°

IR OFF: 0.15 lux (Color) / 0.03 lux (B/W) / IR ON: 0.00 lux

Auto True Day/Night (TDN)

XD-DNR (2D-DNR+3D-DNR)

Digital WDR (ATR-EX)

Privacy Mask, Motion Detection, Tamper, Defog, D-Zoom, HLC/ BLC, LDC (Lens

Distortion Correction), Mirror/Flip, Hue, Brightness, Contrast, Saturation, Sharpness

MicroSD - up to 128GB

Simultaneous H.264 and MJPEG (Triple Streaming)

N/A

Multi User Authority, IP Filtering, HTTPS

N/A

12VDC / PoE

150mA (IR Off) / 300mA (IR On)

5.9 Watts

14°-122°F (-10°-50°C) < 80% RH

4.45” x 5.71” (113mm x 145mm)

1lb (.46Kg)

8 9

Detailed Specifications VTD-M30V212NP

Sensor

Resolution

Video Encoding

Video Output

Frame Rate

Dynamic Intensity IR LEDs

IR Range

Lens

Corridor Format

Minimum Illumination

Day/Night

Noise Reduction

WDR

Advanced OSD Functions

Memory Card

Video Streaming

Audio

Security

Weather Resistance Rating

Input Voltage

Power Consumption (12VDC)

Power Consumption (PoE)

Operating Conditions

Dimensions (W x H x D)

Weight

Sony 1/2.8” Progressive Scan CMOS Sensor

3.15 MegaPixel (2048x1536)

H.264 / MJPEG

Ethernet (RJ45)

30fps max

N/A

2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration

90° / 270°

0.15 lux (Color) / 0.03 lux (B/W)

Auto True Day/Night (TDN)

XD-DNR (2D-DNR+3D-DNR)

Digital WDR (ATR-EX)

Privacy Mask, Motion Detection, Tamper, Defog, D-Zoom, HLC/ BLC, LDC (Lens

Distortion Correction), Mirror/Flip, Hue, Brightness, Contrast, Saturation, Sharpness

MicroSD - up to 128GB

Simultaneous H.264 and MJPEG (Triple Streaming)

N/A

Multi User Authority, IP Filtering, HTTPS

N/A

12VDC / PoE

250mA

5.9 Watts

14°-122°F (-10°-50°C) < 80% RH

4.45” x 5.71” (113mm x 145mm)

1lb (.46Kg)

10 11

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vitek Caméra de sécurité

Vitek

Vitek VTC-EL52H Manuel utilisateur

Vitek

Vitek VTD-MX2910-WDR Manuel utilisateur

Vitek

Vitek VTD-TNMD5RFS-2 Manuel utilisateur

Vitek

Vitek VTD-A4F Manuel utilisateur

Vitek

Vitek VTC-TTB42R2F Manuel utilisateur

Vitek

Vitek VTD-TND5RMS Manuel utilisateur

Vitek

Vitek VTC-C770/WDR Manuel utilisateur

Vitek

Vitek VTC-IRH70 Manuel utilisateur

Vitek

Vitek VTC-IRLED24A Manuel utilisateur

Vitek

Vitek VTC-IRLED30HD Manuel utilisateur

Vitek

Vitek Virtuoso Series 8 Manuel utilisateur

Vitek

Vitek Alpha VTC-IRLED24 Manuel utilisateur

Vitek

Vitek Transcendent VTC-TNT4FLN-2 Manuel utilisateur

Vitek

Vitek VTC-IRX36/3895 Manuel utilisateur

Vitek

Vitek Alpha VTD-A2812/I Manuel utilisateur

Vitek

Vitek Transcendent VTC-TNB8RFS-2 Manuel utilisateur

Vitek

Vitek VT-PIRC1 Manuel utilisateur

Vitek

Vitek VTD-C510 Manuel utilisateur

Vitek

Vitek VTC-B301 Manuel utilisateur

Vitek

Vitek Transcendent VTC-TNT8FADW-2 Manuel utilisateur

Vitek

Vitek Alpha VTD-A2812/V Manuel utilisateur

Vitek

Vitek TRANSCENDENT VTD-TND24R3F2 Manuel utilisateur

Vitek

Vitek VTC-AR2B4FN Manuel utilisateur

Vitek

Vitek VTD-A2812 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
