VITEK

VT-TPTZ20HR-2PNS

Transcendent Series

2 MegaPixel

1/2.8” 20x PoE+

IP Speed Dome Camera

QUICK START GUIDE

FEATURES

• 1/2.8” 2MP Sony STARVIS® CMOS Progressive Scan Sensor

• Superior Image Quality via High MTF 20x Zoom Lens and STARVIS® to Capture Vivid

Color Images in Low Light Conditions

•Max 30fps @ 2MP

• True WDR (Wide Dynamic Range)

•H.265 / H.264 / MJPEG

• High Efficiency Video Coding (H.265, ITU-T VCEG)

•Smart IR (2.0) with up to 500 foot IR Range

• Smart IR Lighting Sub-System, Improves Uniformity of Illumination

•5.5-110mm Focal Length, 20x Optical Zoom Lens

• Zoom Speed Approximately 3.5s (Optical Lens, Wide-TELE)

•Aperture Range: F1.6 (Wide) to F3.5 (TELE)

• Day / Night w/ IR Cut Filter

• Smart Thermal Management (1.0), with a Built-In Temperature Sensor, Highly Efficient

Turbo Fan, and High Power Heater

• Built-in Micro SD Card Slot, Supporting up to 128GB

• 360° Endless Pan Range, and Pan Speed from 0.1°/s to 80°/s

• ONVIF Compliant with Zero Configuration

• 12VDC @ 3amps / PoE+ (20 watts)

• 12VDC Power Supply Included

• Optional Mounts: VT-TPT20HR-WM (Wall), VT-TPT20HR-PM (Pendant), VT-TPT20HR-FM

(Semi-Flush) Available

• IP 66 Ingress Protection

• 3-Year Warranty

*Sony STARVIS® is a registered trademark of Sony

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

*Shown with

optional wall mount

VT-TPT23HR-WM

2 3

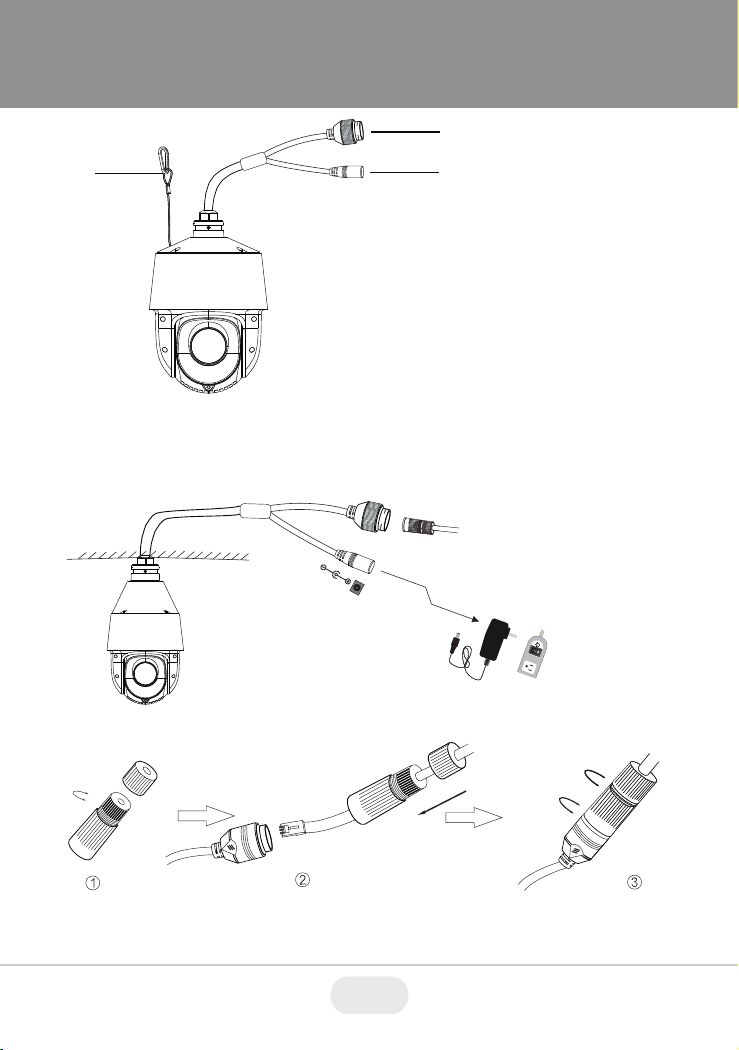

Cable Connections

Overview

First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras

ethernet adaptor. If not powering the camera with PoE+, also connect the power Cable

to an approved 12VDC Power Supply.

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler.

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

1 Ethernet connector

3 Safety wire

Power connector

Network Cable

DC12V

Installation

Installation Using Wall Mount VT-TPT23HR-WM

(mount sold separately) *see page 10 for mount dimensions

Before beginning, make sure that the wall or ceiling is strong enough to

withstand the weight of the camera, and that the power is off.*Wall mounting

instructions are below, followed by ceiling mounting and semi-flush mounting.

Insert amicro

SD card

MicroSD Card

Installation

1. Loosen the cover’s 4 screws

and remove it.

2. Insert a microSD card as

indicated (right) and re-install

the cover.

1. Fasten the adapter to

the bracket.

2. Drill the screw holes in the

wall according to the template.

Then insert the plastic plugs

into the holes.

.32”

3.10”

3.94”

4 5

Installation Using Ceiling / Pendant Mount -

VT-TPT20HR-PM (mount sold separately)

*see page 10 for mount dimensions

Adapter tube

1. Install the ceiling mount according to the following diagram:

2. Mount the adapter tube to the

bracket and secure it with a screw.

3. Secure the pendent mounting

bracket to the ceiling.

3. Attach the bracket

to the wall with four

screws.

4.Hook the safety wire to the bracket.

Then connect the cables. After that,

attach the speed dome to the bracket

with the screws.

Installation Using Semi-Flush Ceiling Mount

VT-TPT20HR-FM (mount sold separately)

*see page 10 for mount dimensions

*The following illustrations are for

demonstration purposes only, and depictions

of the PTZ camera used as an example

will differ from the actual camera.

4. Connect cables, then hook the

safety wire to the adapter stem.

5. Securely attach the camera

to the adapter stem with screws.

6 7

Attach

8.35”

s Thr

8.35

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

Network Cable Network Cable

Switch

Router Computer

P T Z C amer a

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

Network Cable Network Cable

Switch

Router Computer

P T Z C amer a

8 9

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

menu to set up the port number.

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

menu to set up the port number.

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

10 11

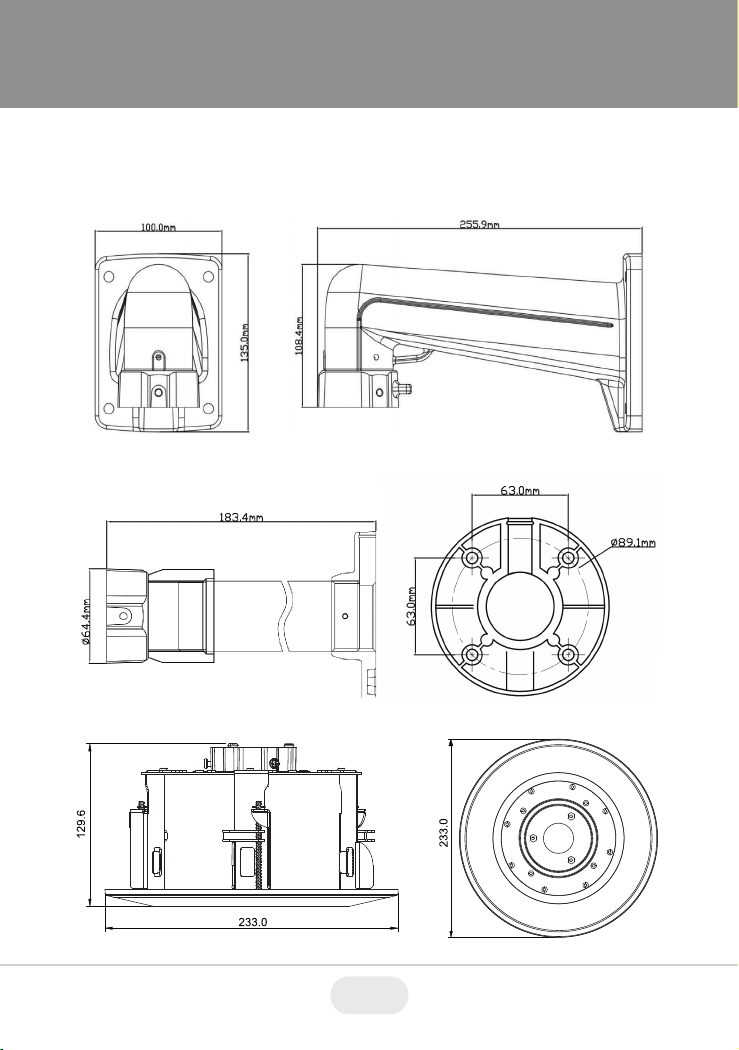

Installation Mount Dimensions

VT-TPT20HR-FM

VT-TPT20HR-PM

VT-TPT23HR-WM

10.07”

5.32”

3.94”

7.22”

2.48”

3.51”

2.48”

2.54”

9.17”

5.10”

4.27”
