Vitek VTC-TTT28R2F Manuel utilisateur

VITEK

FEATURES

• 1/3” 2.1 Megapixel Progressive Scan CMOS image sensor

• 2.1 MegaPixel Video Transmission over COAX cable at

distances of up to 1500’ using HD-TVI Technology*

• 2.8~12mm Varifocal Lens (VTC-TTT28R2V) / 3.6mm Fixed

Iris Lens (VTC-TTT28R2F)

• 28 Infrared LED’s with 70’ IR Range

• Digital Wide Dynamic Range (D-WDR)

• True Mechanical Day/Night function by ICR

• 3D-DNR Noise Reduction

• IP66 Weather Resistance

• 12VDC Operation

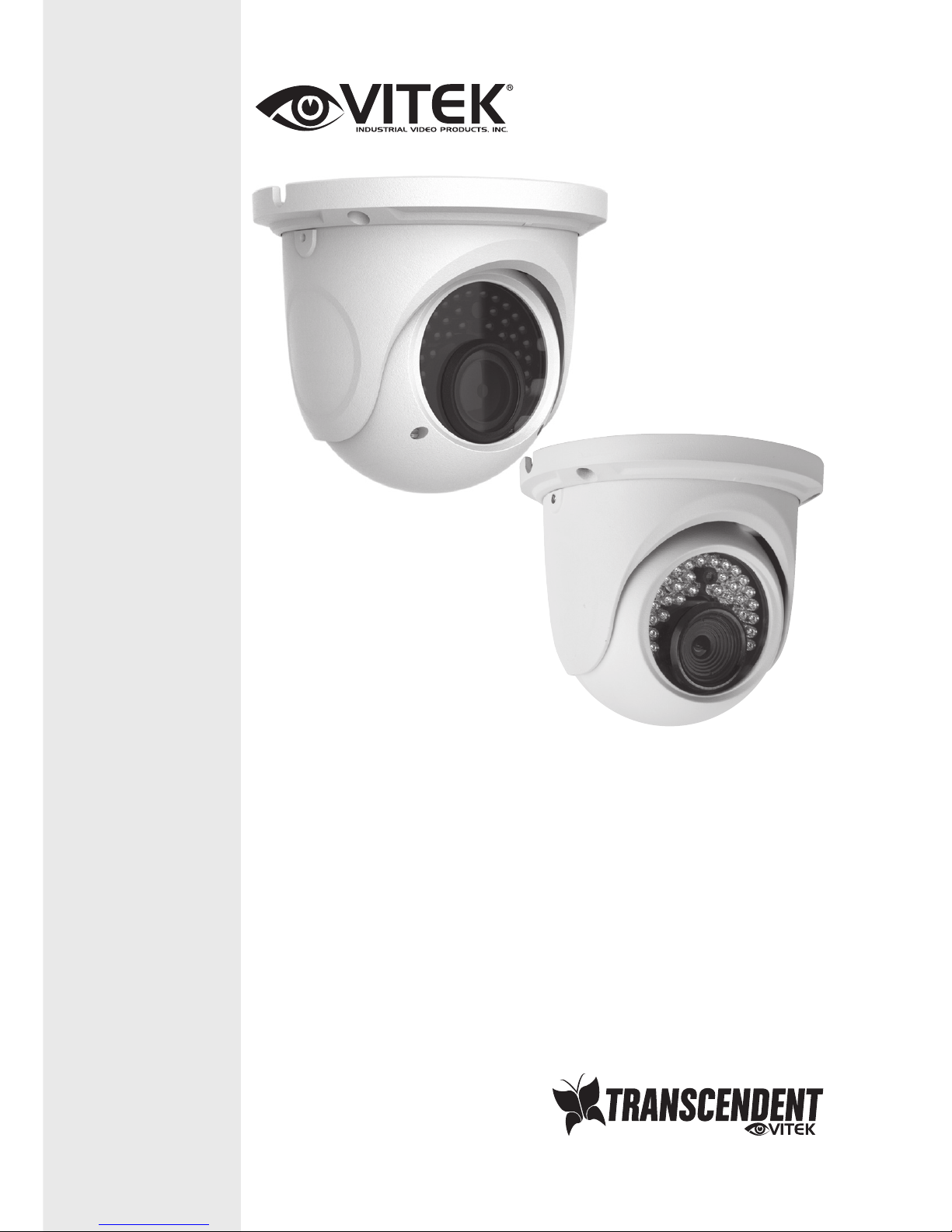

VTC-TTT28R2F

VTC-TTT28R2V

2.1 Megapixel Indoor/Outdoor

HD-TVI IR Turret Cameras

2 3

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electrical shock.

Components and Accessories

Overview

This camera series supports both fixed and varifocal lenses. Please note

that the zoom and focus features mentioned below are not features of the

fixed lens version.

Focus

Zoom

*Optional

Lens

Focus*

Zoom*

Lock Screws

Video Cable

Power Cable

Focus

Zoom

Camera

User Manual

Screws

Hex Wrench

Mounting Plate

4 5

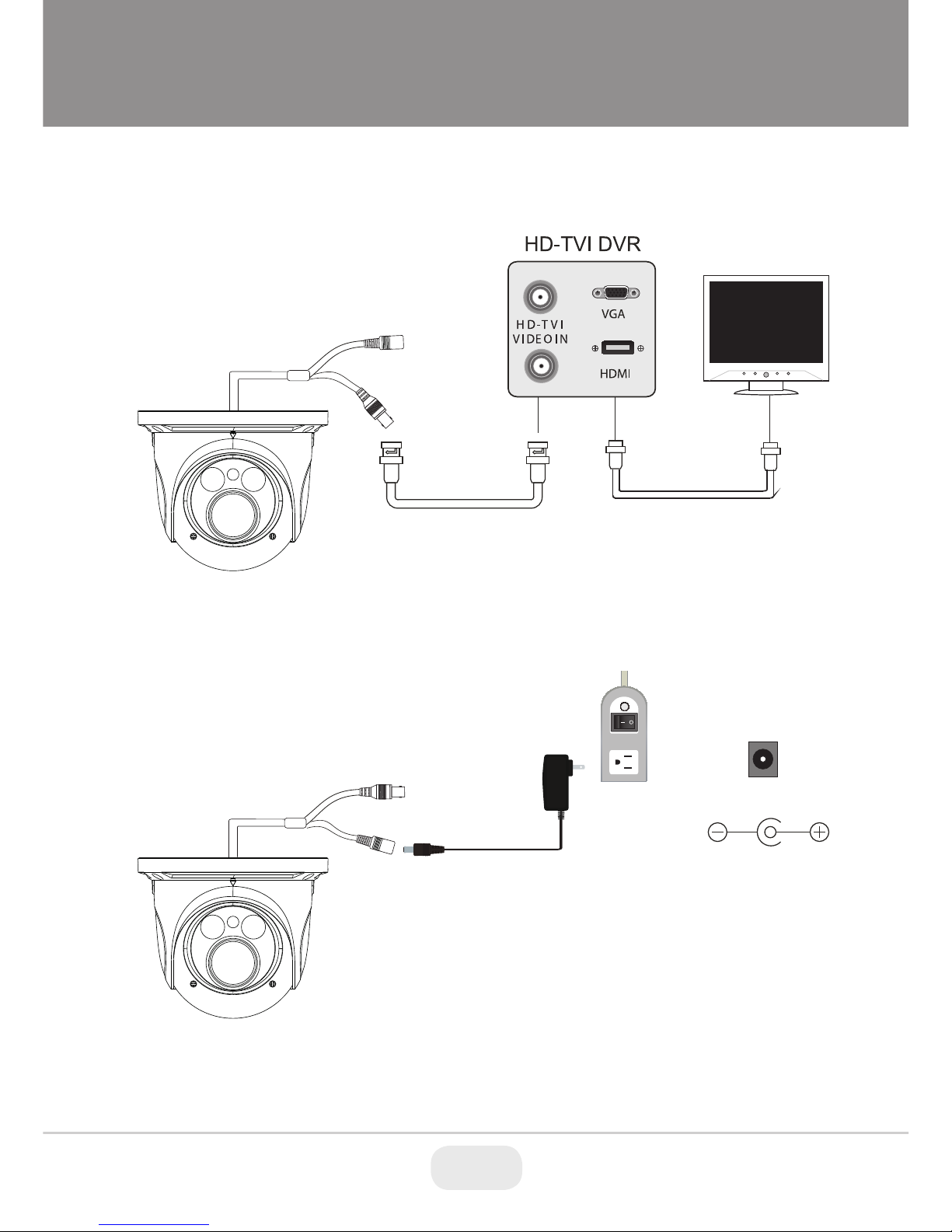

Video Connection

Power Connection

Power

12VDC

Monitor

Video

Focus

Zoom

Focus

Zoom

Connect the power connecter to a 12 VDC power adaptor.

Connect the video connecter to a BNC patch cable.

Installation

Before start, please make sure that the wall or ceiling is strong enough

to withstand 3 times the weight of the camera. The mounting steps are

as follows:

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and

connect the power & video

cables, then secure the

mounting base to the ceiling

or wall with screws.

3. Loosen the lock screws, then

adjust the camera to obtain

the optimium viewing angle.

Confirm the correct viewing

angle with a monitor. (See

next page for location of lock

screws)

Fo c us

Zoom

6 7

Installation

4. Tighten the lock screws to secure the viewing angle adjustments.

5. Adjust the Focus and Zoom screws to achieve a clear image (if

your camera has a fixed lens, please skip this step).

6. Carefully remove the protective film from the lens to complete the

installation.

Focus

Zoom

Fo cu s

Fo c us

Zoom

Foc u s

Zo o m

Zo om

Fo c u s

Zoo m

Detailed Specifications VTC-TTT28R2F VTC-TTT28R2V

Image Sensor

Video Compression

Resolution

Effective Pixels

Signal System

Synchronization

Lens

S/R Ratio

Auto Gain Control

Min Illumination

IR LEDs

IR Distance

Color-B/W Auto Switch

Electronic Shutter

White Balance

WB Range

ICR

BLC

WDR

Transmission Distance

Noise Reduction

Video Output

Weather Resistance

Power Supply

working Environment

Weight

Dimensions

1/3” CMOS (AR0330 + NVR2421 + TP2801)

Standard H.264

1080P (2 MegaPixel)

1920(H) x 1080(V)

PAL/NTSC

Internal

>52dB (AGC OFF)

OFF ~ 44.8dB

0 Lux (LED ON)

70’

Yes

1/50s~ 1/67500s

AWB

2300~9600K

Yes

Digtial WDR

Up to 1500’ (Depending on cable characteristics & integrity)

Yes

BNC × 1

IP66

DC 12V (±10%)

-4~122 / 10%~90% Humidity

3.6mm Fixed

13.05 oz. / 0.82 lbs. / 370g

3.43” x 4.25” (87 × 108mm) Dia x H

2.8~12mm (Vari-Focal)

26.46 oz. / 1.65 lbs. / 750g

4.07” x 4.33” (130.3 × 110mm) Dia x H

VITEK

28492 Constellation Road ValenCia, Ca 91355

WWW.ViteKCCtV.CoM

Version 1.0

June 2015

LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants

to the purchaser that products manufactured by VITEK are free of any

rightful claim of infringement or the like, and when used in the manner

intended, will be free of defects in materials and workmanship for a

period of three (3) years, or as otherwise stated above, from the date of

purchase by the end user. This warranty is nontransferable and extends

only to the original buyer or end user customer of a VITEK Authorized

Reseller.

The product must have been used only for its intended purpose, and

not been subjected to damage by misuse, willful or accidental damage,

caused by excessive voltage or lightning.

The product must not have been tampered with in any way or the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to

products sold or purchased through unauthorized sales channels.

Warranty support is available only if product is purchased through a

VITEK Authorized Reseller.
