Vision TM-IFP Manuel utilisateur
2
TM-IFP_manual_en_v2.doc
DECLARATION OF CONFORMITY
Where applicable Vision products are certified and comply with all known local regulations to a
‘CB Certification’ standard. Vision commits to ensure all products are fully compliant with all
applicable certification standards for sale in the EU and other participating countries.
The product described in this owner manual is in compliance with RoHS (EU directive
2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. This product should be returned
to the place of purchase at the end of its useful life for recycling.
WARNINGS
During installation take care to adhere to workplace health and safety laws:
•Do not cut or drill any parts above head height. This should all be done using the correct
safety equipment at floor level.
•Avoid overstretching which might result in the ladder tipping over.
•SWL (safe working load): Flat Panel: 127 kg
•Ensure it is installed in an appropriate place – for example not obstructing an emergency exit.
IN THE LOWEST POSITION THE BOOM AND PROJECTOR CAN PRESENT A
HEAD HEIGHT HAZARD
•Check stability after installation.
•Installation must be done by a specialist audio-visual installer
•Allow 500mm x 500mm space around the bracket.
•Avoid installing in a moist environment, or in direct sunshine, or near corrosive gas or liquid.
•Routing of cables through the bracket must comply with local regulations.
ENSURE POWER CABLE IS NOT TWISTED, SQUEEZED, OR SHEARED!
All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan
Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park,
Clifton Moor, York, YO30 4GH. WEEE Registration: GD0046SY
DECLARATION OF ORIGIN
All Vision products are made in the People’s Republic of China (PRC).
3
TM-IFP_manual_en_v2.doc

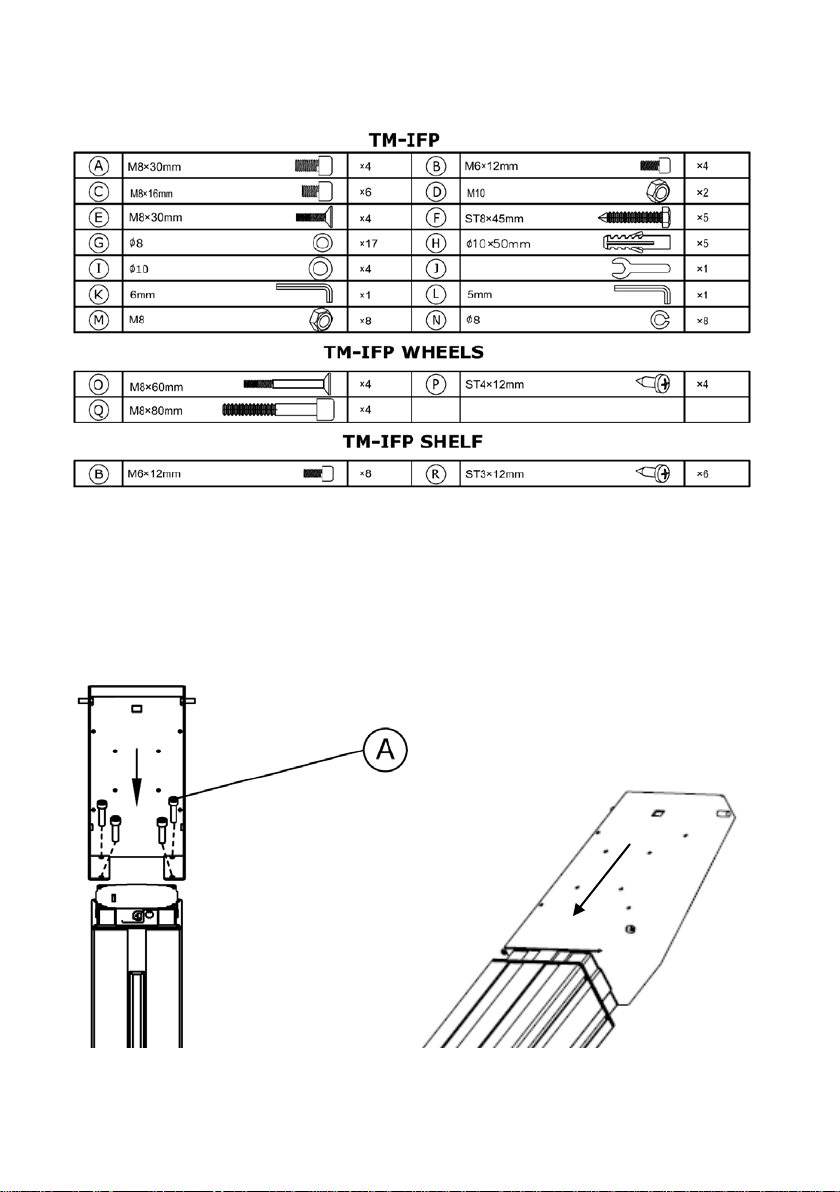

ACCESSORIES
ASSEMBLY
1. ATTACH TOP ASSEMBLY TO TOP OF COLUMN
4
TM-IFP_manual_en_v2.doc
2. IF FIXING TO FLOOR
a. FIX FLOOR PLATE TO BOTTOM OF COLUMN
b. FIX COLUMN ASSEMBLY TO WALL
Ensure the correct fixtures are used to attach the Techmount to the wall and
floor. The fixtures provided may not be suitable for your application.
5
TM-IFP_manual_en_v2.doc
3. IF FIXING TO OPTIONAL WHEELS
a. ASSEMBLE WHEEL ASSEMBLY AS SHOWN
b. ATTACH THE COVERS
6
TM-IFP_manual_en_v2.doc
c. ATTACH ASSEMBLY TO COLUMN
4. FIX FLAT-PANEL BRACKETS TO REAR Common M6 and M8 bolts are included. See the flat-
panel manual to check which bolts to use.
NOTE: Flat panels use standard bolts. If the bolts you need are not included they are
available at hardware stores.
7
TM-IFP_manual_en_v2.doc
Recommend Torque: 20Nm
For large screens extension ears are included:
GUIDANCE: 20Nm is equivalent to a 2kg load being placed on the end of a 1m ratchet handle.
8
TM-IFP_manual_en_v2.doc
5. HANG FLAT-PANEL ASSEMBLY ON COLUMN Once in place fit locking screws (step 2).
ADJUSTING STOP SWITCH
A feature of newer models is a plug which can be inserted into holes on the rear of the column
to set the height limit. A limiting switch inside is activated by the plug.
Set to height as required.
9
TM-IFP_manual_en_v2.doc
FITTING OPTIONAL SHELF
1. FIT COLUMN TO TOP ASSEMBLY as shown to support shelf BELOW screen
2. FIT SHELF BRACKET
10
TM-IFP_manual_en_v2.doc
3. FIT SHELF
NOTE: to mount the shelf ABOVE the screen mount as shown:
